Installation Guide

FS-STAT-32ACH
Thermostat with Humidity Control
Caution
Failure to follow these instructions can damage the product or cause a hazardous
condition. Disconnect power during the installation of this product. All wiring must
conform to local codes and ordinances. This thermostat is designed for use with 24
VAC systems.
For additional assistance visit www.Founten.com to request support.
Before Removing Old Thermostat
Note the colors and letter designations of the terminal connections on the existing
thermostat to assist in identifying the correct wiring connections.
Wall Mounting
The rear cover of the thermostat is mounted to the wall. To separate the front cover
from the rear cover, simply grasp the front and back of the thermostat firmly and pull
apart.

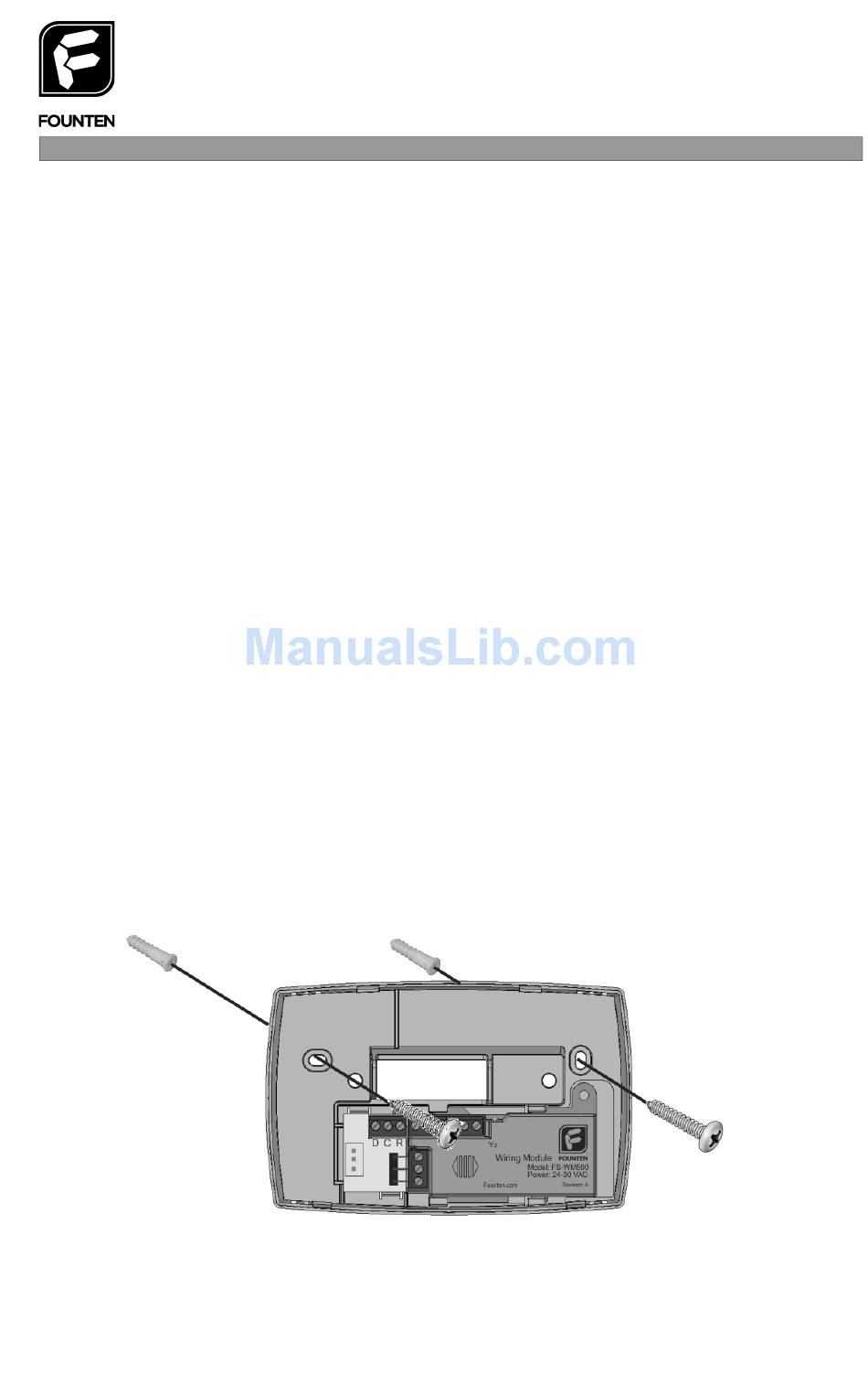

Attach the rear of the thermostat to the wall using the included Plastic Anchors.
Position the rear cover so that the wires can be fed through the rectangular opening
in the back of the thermostat. Then mark the locations of the mounting points on the
wall. Drill a 3/16" hole for each anchor. Insert the anchors into the wall and attach the
rear cover using the included screws. The thermostat can also be mounted to an
electrical box using the included machine screws.
