WIRELESS 433MHz WEATHER STATION
Instructions Manual
INTRODUCTION:
Congratulations on purchasing this Weather Station with wireless 433MHz
transmission of outdoor temperature and display of indoor temperature and
humidity, weather forecast icons and weather tendency indicators. It is further
featuring a DCF-77 radio controlled clock with calendar display. With only four easy
to use function keys, this innovative product is ideal for use in the home or office.

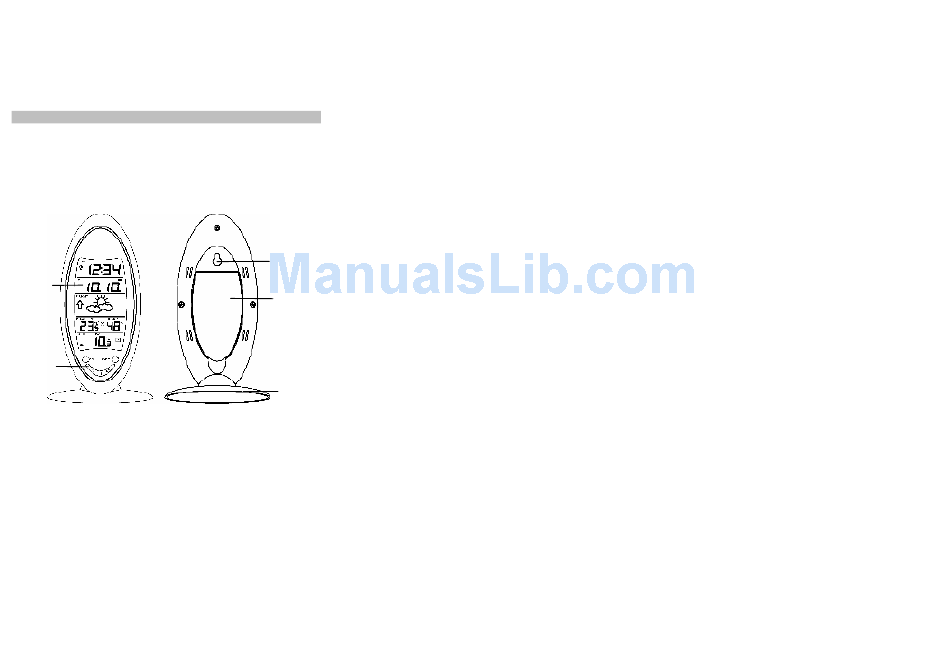

The Weather Station
LCD Display
Function Keys
FEATURES:
WEATHER STATION
•
DCF-77 Radio controlled time with manual setting options
•
Time reception ON/OFF
•
12/24 hour display
•
Hour and minute display, seconds indicated by flashing dot
•
Time zone option ±12hours
•
Date and month calendar display
•
Weather forecasting with 3 weather icons and weather tendency indicator
•
Weather forecasting icon sensitivity setting
•
Temperature display in degrees Celsius (°C) or Fahrenheit (°F) selectable
•
Indoor and outdoor temperature display with MIN/MAX recording
18
Hanging Hole
Battery Cover
Detachable
Stand

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCF-77 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dotsmann DCF-77

  • Page 1 It is further featuring a DCF-77 radio controlled clock with calendar display. With only four easy to use function keys, this innovative product is ideal for use in the home or office.
  • Page 2 • Indoor humidity reading displayed as RH% with MIN/MAX recordings • All MIN/MAX temperature recordings show date and time received • All MIN/MAX recordings can be reset • Indoor comfort level indicator - happy or sad face icons • Can take up to three outdoor transmitters •...

  • Page 3: How To Install And Replace Batteries In The Temperature Transmitter

    Once the remote temperature has been received and is displayed on the Weather Station, the DCF-77 time code reception is automatically started. This takes typically between 3 - 5 minutes in good conditions. This time period is an excellent opportunity to locate the transmitter(s) in suitable location(s) outdoors.

  • Page 4: Battery Change

    Note: In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures. This is because a random security code is assigned by the transmitter at start-up and this code must be received and stored by the Weather Station in the first three minutes of power being supplied to it.

  • Page 5: Lcd Screen

    For better distinctness, the LCD screen is split into 5 sections displaying the information for time, date, weather forecast, indoors and outdoors. DCF-77 RADIO CONTROLLED TIME The time base for the radio-controlled time is a Cesium Atomic Clock operated by...

  • Page 6: Manual Settings

    The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled Weather Station receives this signal and converts it to show the precise time in summer or wintertime.

  • Page 7: Time Zone Setting

    CH key. TIME RECEPTION ON/OFF SETTING Flashing In area where reception of the DCF-77 time is not possible, the DCF-77 time reception function can be turned OFF. The clock will then work as a normal Quartz clock. (Default setting is ON).

  • Page 8: Manual Time Setting

    Press the IN key to select the “12h” or “24h” display mode. Press the SET again to confirm and to enter the “Manual Time setting” or exit the setting mode by pressing the CH key. Note: When 24h mode display is selected, the calendar format will be date and month display.

  • Page 9: Snooze Setting

    Confirm with the SET key and enter the “Snooze setting” or exit the setting mode by pressing the CH key. SNOOZE SETTING Important: The snooze setting in this Weather Station will not have any effect in this unit performance. This feature is only available in enhance model with alarm function.

  • Page 10: The Weather Tendency Indicator

    Sunny Cloudy with sunny intervals Rainy For every sudden or significant change in the air pressure, the weather icons will update accordingly to represent the change in weather. If the icons do not change, then it means either the air pressure has not changed or the change has been too slow for the Weather Station to register.
  • Page 11 with cloud and sun icons, then the last noticeable change in the weather was when it was sunny (the sun icon only). Therefore, the next change in the weather will be cloud with rain icons since the indicator is pointing downwards. Note: Once the weather tendency indicator has registered a change in air pressure, it will remain permanently visualized on the LCD.

  • Page 12: Outdoor Temperature

    OUTDOOR TEMPERATURE Maximum Display Number showing the Outdoor Temperature transmitter unit (only if in °C or °F there is more than one transmitter) Outdoor reception signal The fifth LCD section shows the outdoor temperature and a reception signal. A number beside the temperature will also show if more than one transmit ter is used. TOGGLING AND RESETTING THE OUTDOOR RECORDINGS To toggle between the outdoor current, minimum and maximum temperature data and the times at which they were recorded, press the OUT key:...

  • Page 13: Positioning The Weather Station

    The distance of the Weather Station or transmitter should be at least 1.5 to 2 meters away from any interfering sources such as computer monitors or TV sets. Avoid placing the receiver onto or in the immediate proximity of metal window frames.

  • Page 14: Care And Maintenance

    There is also double sided tape included with the wall mount. On smooth surfaces this can be used instead of drilling holes. The mounting surface can, however, affect the transmission range. If for example the unit is attached to a piece of metal, it may then either reduce or increase the transmitting range.

  • Page 15: Liability Disclaimer

    Temperature Transmitter : 2 x AAA, IEC LR3, 1.5V Battery life cycle : approximately 12 months (Alkaline batteries recommended) Dimensions (L x W x H) Weather Station : 117 mm x 75 mm x 205 mm (table stand included) Temperature Transmitter : 40 x 22 x 128 mm (wall bracket excluded) LIABILITY DISCLAIMER •...
