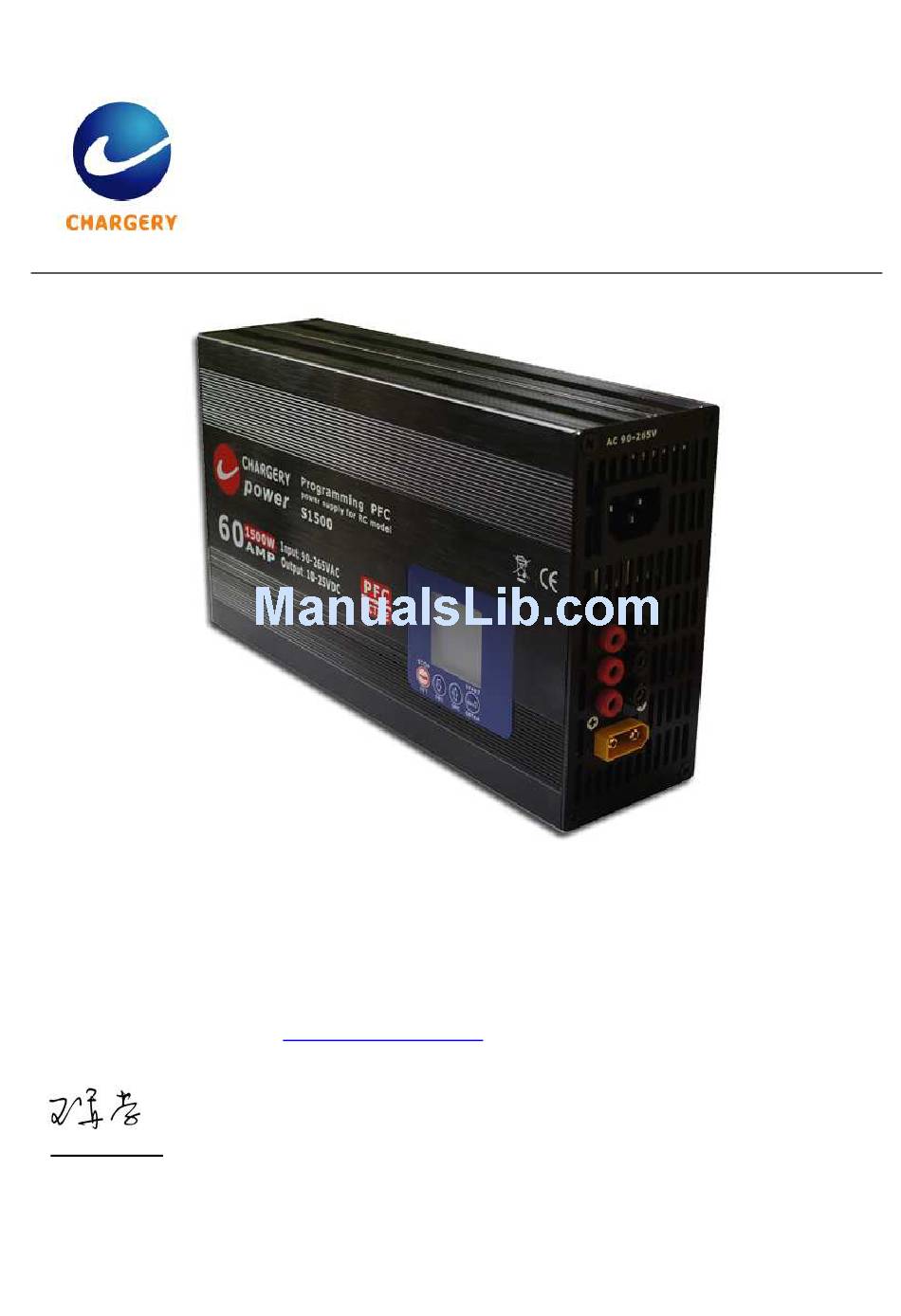

S1500
PFC programmable Power supply
High efficiency wide input voltage
90V~265VAC Input
10V~25V DC Output
60Amps 1500W max.
T
hanks for your purchasing the intelligent and powerful power supply.
R
ead the ENTIRE instruction manual to become familiar with the features/functions of the device
before operating.
F
eel free to send an email to
jasonwang3a@163.com
or call at 86 755 2643 6165 should you have
any questions and suggestions.
Jason Wang
©
2013 Chargery Power Co., Ltd.
06/18/2013 V1.1
Add: Room 6-303, Langqinyu, Chuangye Road NanShan 518054 ShenZhen, China,
Tel: +86 755 2643 6165, Fax: +86 755 2641 2865, Email: Jasonwang3a@163.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Chargery Power S1500

Summary of Contents for Chargery Power S1500

  • Page 1 86 755 2643 6165 should you have any questions and suggestions. Jason Wang © 2013 Chargery Power Co., Ltd. 06/18/2013 V1.1 Add: Room 6-303, Langqinyu, Chuangye Road NanShan 518054 ShenZhen, China, Tel: +86 755 2643 6165, Fax: +86 755 2641 2865, Email: Jasonwang3a@163.com...
  • Page 2 S1500 High efficiency wide input voltage PFC programmable Power supply 90V~265VAC input 10V~25VDC output 60Amps 1500W max. Features 1500 is a high efficiency wide input voltage PFC power supply, the device can output 1500W at AC90V~265V in a smaller size. Many creative technology help to realize up to 94% of efficiency, and the internal temperature is still under 80℃.
  • Page 3 E-bike, E-scooter battery charger. Operation 1. Connect S1500 to AC 110 / 220V outlet by the special heavy power cable, if use other brand cable, please note the wire AWG must be AWG14 at least. 2. 2 seconds later, default output voltage (12V) and maximal output current can be displayed, actual power and internal temperature is also displayed, but S1500 is at idle mode(power off) to save power consumption, as the following picture 1.
  • Page 4 S1500 will work in idle mode to save power consumption till disconnect the S1500 to the AC outlet. Generally you needn’t disconnect S1500F from AC outlet, because the S1500 consume under 1W power at idle mode.

  • Page 5: Mechanical Characteristics

    S1500 High efficiency wide input voltage PFC programmable Power supply 90V~265VAC input 10V~25VDC output 60Amps 1500W max. again. Environment Requirements Ambient Temperature : -10--45℃ ：5%--95% Ambient Humidity ：-20℃--70℃ Storage Temp. ：30%--90% Storage Humidity Input Rated Voltage ： AC110 / 220V Voltage allowed：AC90 ~ 265V...

  • Page 6: Optional Accessory

    XT-90 female connector with AWG10 silicon glue wire: 1pcs The XT-90 Female connector used to connection of S1500 and your charger or other loads at 60A Optional Accessory The following adapter wire (XT90 female to EC5 female, length 100mm, AWG10) is for Cellpro PowerLab 8 (1344W charge power) and iCharger 4010DUO (2000W charge power).

  • Page 7: Warranty And Service

    Output voltage over 10% of setup value for 2 On power off page, the setup voltage and Over voltage seconds, S1500 turn off automatically and turn on over voltage displayed in turn. manually Output current over 10% of setup for 2 seconds,...
  • Page 8 90V~265VAC input 10V~25VDC output 60Amps 1500W max. Chargery Power Co., Ltd. as manufacture of R/C model power warrants S1500 power supply to be free of defects in material and workmanship. This warranty is effective for months from date of purchase.
