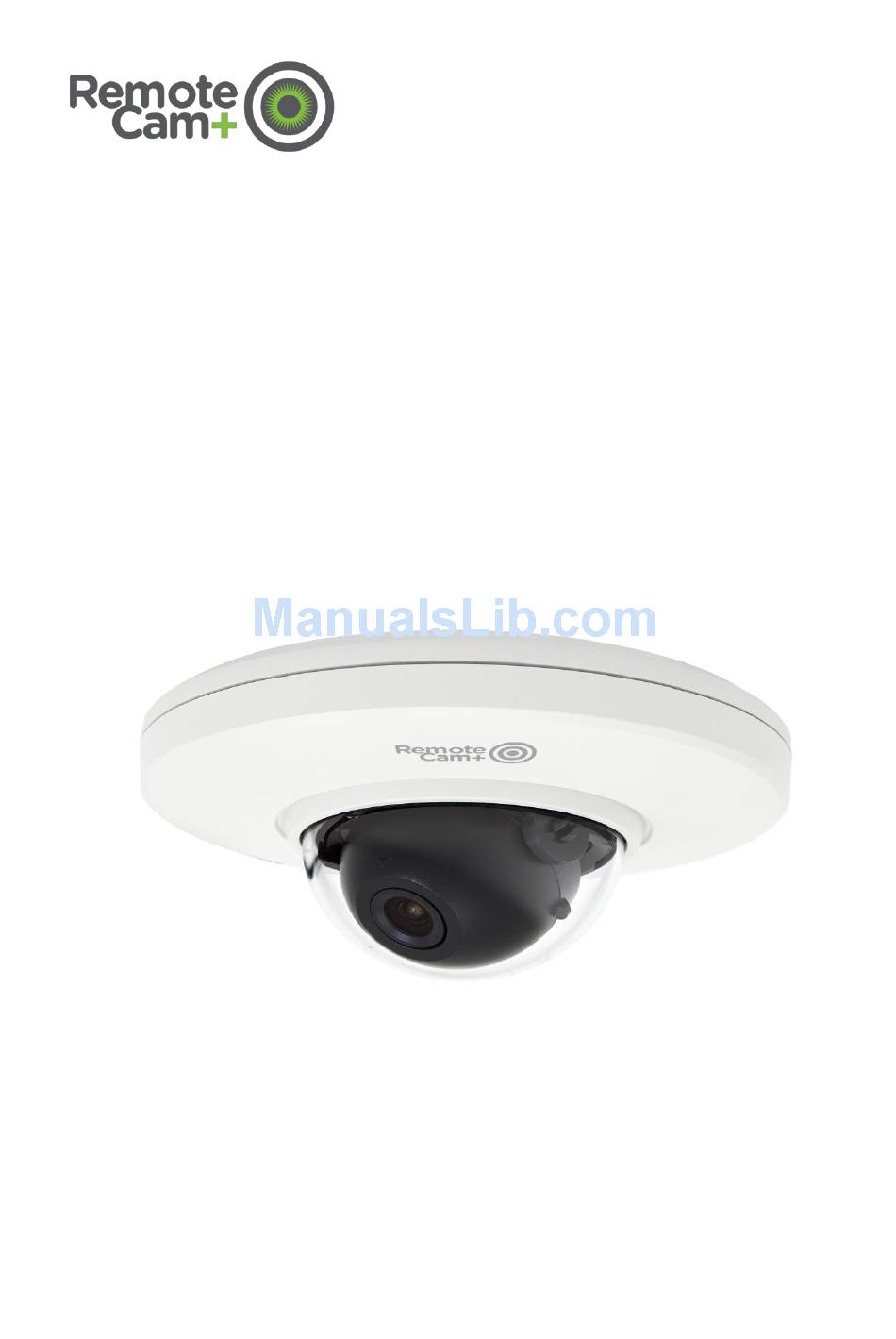

- Page 1 INSTRUCTION MANUAL Network Flat Dome Camera 2M-C3W Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Explanation Of Graphical Symbols
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. - Page 4 THIS DIGITAL EQUIPMENT FULFILLS THE REQUIREMENTS FOR RF EMISSION ACCORDING TO THE CLASS B LIMIT OF EN 55022. THIS PRODUCT FULFILLS THE REQUIREMENTS FOR IMMUNITY ACCORDING TO EN 55024 OFFICE AND COMMERCIAL ENVIRONMENTS. TO COMPLY WITH RF EXPOSURE COMPLIANCE REQUIREMENTS, THE ANTENNA USED FOR THIS TRANSMITTER MUST BE INSTALLED TO PROVIDE A SEPARATION DISTANCE OF AT LEAST 20cm (7.9in) FROM ALL PERSONS AND MUST NOT BE CO-LOCATED OR OPERATING IN CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 6: Table Of Contents
3.2 Access from the internet ------------------------------------------------------------------------------ 14 3.3 Setting the admin password over a secure connection ------------------------------------------- 14 3.4 Mobile App ---- ----------------------------------------------------------------------------------------- 14 3.5 2M-C3W Setup ------------------------------------------------------------------------------------------ 15 3.5.1 Basic Configuration ---------------------------------------------------------------------------- 15 1) Users ------------------------------------------------------------------------------------------ 16 2) Network -------------------------------------------------------------------------------------- 17 3) Video &... -
Page 7: Description
By using its dedicated program, many users are able to have an access to the 2M-C3W at once or a single user can monitor various 2M-C3Ws at the same time. It also enables users to play, store and retrieve a monitoring image by using a PC. -
Page 8: Key Features
The 2M-C3W also supports a micro-SD memory slot for local recording with removable storage. • Improved Security The 2M-C3W logs all user access, and lists currently connected users. Also, its full frame rate video can be provided over HTTPS. • Megapixel Resolution Max 15fps @1920x1080 •... -
Page 9: Layout
1.3 Layout Name Description Alarm Cable Yellow : Alarm input, Black : GND, Blue : Alarm output Power Cable Cable for Power source (DC 12V) Ethernet Cable Cable for Ethernet (POE) Camera Dimension See the diagrams below for the exact dimension Dimensions Unit: mm... -
Page 10: Installation
2. Installation 2.1 Camera Installation Carefully remove the contents from the box, and verity that nothing was damaged in shipment. 1) Make screw holes for camera on the ceiling with Template Sheet 2) Disassemble a camera by Camera Cover 3) Fix the camera set using Anchors (2x) and Screws (2x) to the ceiling. 4) Assemble Camera Cover to Dome Camera. - Page 11 • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the 2M-C3W. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a router. Micro SD memory slot ...
-
Page 12: Network Connection And Ip Assignment
2.2 Network Connection and IP assignment The 2M-C3W supports the operation through the network. When a camera is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the “Smart Manager”... -
Page 13: Operation
3. Operation 1M-C2W supports Windows and Mac operating systems. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. NOTE: To stream Live and Playback in Browser, set your browser to allow Adobe Flash. 3.1 RemoteCamPlus Activation Start a Browser. -
Page 14: Access From The Internet
3.4 Mobile APP (Android and iOS) Start Mobile App Type User ID / Password... -
Page 15: C3W Setup
Basic, Live View, Video & Image and System Configuration. You can configure the 2M-C3W by clicking Setup in the top right-hand corner of the Live View page. Click on this page to access the online help that explains the setup tools When accessing the 2M-C3W for the first time, the “Admin Password”... -
Page 16: Users
1) Users User access control is enabled by default. An administrator can set up other users, by giving these user names and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page, as described below: The user list displays the authorized users and user groups (levels): User Group Authority... -
Page 17: Network
When using IPv4, the IP address for the 2M-C3W can be set automatically via DHCP, or a static IP address can be set manually. If IPv6 is enabled, the 2M-C3W receive an IP address according to the configuration in the network router. -
Page 18: Video & Image
3) Video & Image • Stream1 Setting Codec: The codec settings are separated into MPEG4 and H.264. H.264 is also known as MPEG-4 Part 10. This is the new generation compression standard for digital video. This function offers higher video resolution than Motion JPEG or MPEG-4 at the same bit rate and bandwidth, or the same quality video at a lower bit rate. - Page 19 Originally intended as the mainstream consumer profile for broadcast and storage applications, the importance of this profile faded when the High profile was developed for those applications. MPEG4 SP(Simple Profile): Mostly aimed for use in situations where low bit rate and low resolution are mandated by other conditions of the applications, like network bandwidth, device size etc.
-
Page 20: Date & Time
JPEG frame rate: Same as the Stream1 Setting. JPEG quality: Select the picture quality. If users want to have a high quality of fast image one by one, please decrease the value. For the purpose of general monitoring, please do not change a basic value. -
Page 21: Live View
Synchronize with NTP Server: the 2M-C3W will obtain the time from an NTP server every 60 minutes. Set manually: this option allows you to manually set the time and date. • Date & Time Format Specify the formats for the date and time (12h or 24h) displayed in the video streams. -
Page 22: Video & Image
3.5.3 Video & Image Basic Refer to “3.5.1 Basic Configuration > Video & Image” for more details. Image... - Page 23 • Image Appearance This page provides access to the advanced image settings for the 2M-C3W. Brightness: The image brightness can be adjusted in the range 1-10, where a higher value produces a brighter image. Contrast: The image contrast can be adjusted in the range 1-10.
- Page 24 • Exposure control This page provides access to the advanced exposure control settings for the 2M-C3W. Mode: Supports exposure modes to control the amount of light detected by the camera sensor based on settings for light conditions. The default setting is Auto with DC-IRIS.
- Page 25 • Day & Night Control Select the day/night mode from among three modes. Mode: Normally works in day mode. It switches automatically to night mode in a dark place. Automatic: Normally works in day mode. It switches automatically to night mode in a dark place.
- Page 26 Select “Enable” to activate the privacy masking function. Webcasting The 2M-C3W can stream live video to a website. Copy the HTML code generated on the screen and pastes it in page code of the website you want to display live video.
-
Page 27: Event
3.5.4 Event 1) Event-In On Boot This is used to trigger the event every time the 2M-C3W is started. Select “Enable” to activate the motion event. Event In – Alarm In... - Page 28 This page allows you to configure the input supported by the camera. The Port can be given as Normally Open or Normally Close state, and their Normal state can be configured. An input will be inactive as long as its Normal state equals its Current state. The 2 options for Normal state are NO (Normally Open) and NC (Normally Close).
- Page 29 This option makes use of the manual trigger button provided on the live view page, which are used to start or stop the event type manually. Alternatively the event can be triggered via the product's API (Application Programming Interface). Motion Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video image.
- Page 30 To create a motion or mask window, follow steps: Click the right button of mouse to see the mouse menu. Select New Motion (or Mask) Window in the mouse menu. Click and drag mouse to designate a motion area. • Motion Detection Setting The behavior for each window is defined by adjusting the Threshold and Sensitivity, as described below.
- Page 31 2) Event-Out SMTP (E-Mail) The 2M-C3W can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP (E-Mail) Setting Select “Enable” to activate the SMTP operation. Mail Server / Port: Enter the host names (or IP addresses) and port numbers for your mail server in the fields provided, to enable the sending of notifications and image email messages from the camera to predefined addresses via SMTP.
- Page 32 FTP & JPEG When the 2M-C3W detects an event, it can record and save images to an FTP server. Images can be sent as e-mail attachments. Check the box to enable the service.
- Page 33 Additional suffix: Add either a date/time suffix or, a sequence number - with or without a maximum value HTTP Server When the 2M-C3W detects an event, HTTP Server is used to receive uploaded image files and/or notification messages. Check the box to enable the service. •...
-
Page 34: Event-Out
• HTTP Server Test When the setup is complete, the connection can be tested by clicking the Test button. Event Out – Alarm Out • Enable alarm out Click the Enable alarm out checkbox to enable the Alarm Out port. Type: The default setting is NO. - Page 35 ▼ Record When the 2M-C3W detects an event, it can record video stream in the Micro SD Memory (not supplied) or NAS (Network Attached Device) as a storage device. Check the box to enable the service. • Record Setting Overwrite: Click checkbox to overwrite the storage device.
- Page 36 * Capacity: Enter the capacity of storage to be used. It must be less than the total storage capacity. * IP/Password: Enter ID and Password. The 2M-C3W will ask them whenever you access NAS device. * Check: Press the Check button to check the validity of Device Setting data.
- Page 37 When the 2M-C3W detects an event, Notification Server is used to receive notification messages as a type of XML data format. Check the box to enable the service. • Event Notification Setting Notification Server URL: The network address to the server and the script that will handle the request.
-
Page 38: Event Map
The event map allows you to change the settings and establish a schedule for each event trigger from the 2M-C3W. You can register the event map up to max. 15. Click Add button to make a new event map and you can see a popup window as below. -
Page 39: System
Check the box to enable the Function. Record: When the 2M-C3W detects an event, it can record video stream in the Micro SD Memory (not supplied) or NAS (Network Attached Device) as a storage device. Check the box to enable the Function. -
Page 40: Security
Live View page, as described below: • User Setting Check the box to enable anonymous viewer login to the 2M-C3W without the user account. When using the user account, users have to try log-in at every access. •... - Page 41 HTTPS For greater security, the 2M-C3W can be configured to use HTTPS (Hypertext Transfer Protocol over SSL (Secure Socket Layer)). That is, all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. •...
- Page 42 IP Filtering Checking the Enable IP address filtering box enables the IP address filtering function. Up to 256 IP address entries may be specified (a single entry can contain multiple IP addresses). Click the Add button to add new filtered addresses. When the IP address filter is enabled, addresses added to the list are set as allowed or denied addresses.
-
Page 43: Date & Time
From the Time Mode section, select the preferred method to use for setting the time: Synchronize with computer time: sets the time from the clock on your computer. Synchronize with NTP Server: the 2M-C3W will obtain the time from an NTP server every 60 minutes. -
Page 44: Network
IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address. Use the following IP address: To use a static IP address for the 2M-C3W, check the radio button and then make the following settings:... - Page 45 IP address: Specify a unique IP address for your 2M-C3W. Subnet mask: Specify the mask for the subnet the 2M-C3W is located on. Default router: Specify the IP address of the default router (gateway) used for connecting devices attached to different networks and network segments.
- Page 46 When using the high-speed Internet with the telephone or cable network, users can operate the 2M-C3W even on the floating IP environment in which IPs are changed at every access. Users should receive an account and password by visiting a DDNS service like http://www.dyndns.com/, or http://www.cctv-network.co.kr/.
- Page 47 The 2M-C3W includes support for UPnP™. UPnP™ is enabled by default, and the 2M-C3W then is automatically detected by operating systems and clients that support this protocol. Note: UPnP™ must be installed on your workstation if running Windows XP. To do this, open the Control Panel from the Start Menu and select Add/Remove Programs.
- Page 48 When the port is selected automatically it is displayed in this field. To change this enter a new port number and click Save. Zeroconfig Zeroconfig allows the 2M-C3W to create and assign IP address for 2M-C3Ws and connect to a network automatically. Zero configuration networking (zeroconf), is a set of techniques that automatically creates a usable Internet Protocol (IP) network without manual operator intervention or special configuration servers.
- Page 49 Automatic location of network services, such as printing devices through DNS service discovery. Bonjour The 2M-C3W includes support for Bonjour. When enabled, the 2M-C3W is automatically detected by operating systems and clients that support this protocol. Note: Bonjour - Also known as zero-configuration networking, Bonjour enables devices to automatically discover each other on a network, without having to enter IP addresses or configure DNS servers.
- Page 50 This list is the result of a network scan. Access points with a disabled SSID Broadcast will not appear unless the camera is linked to it. The 2M-C3W is currently linked to is shown in blue. A network using unsupported security is shown in grey. The following information is provided: SSID: The name of a wireless network (or ad-hoc device).
-
Page 51: Language
5) Language It will be able to select a user language. The type of language it will be able to select is the English, the French, the German, the Spanish and the Italian. 6) Maintenance... -
Page 52: Maintenance
• Upgrade Carry out the upgrade by importing an upgrade file and pressing the Upgrade button. During the upgrade, do not turn off the power of the 2M-C3W. And try an access again after waiting five minutes or longer. •... - Page 53 • Logs The 2M-C3W support system log information. Click the System Log button to get the log data. • Reports Server Report: Click the Server Report button to get the important information about the server’s status and should always be included when requesting support.
- Page 54 - Networks Check: Click the Network Check button to get the information about the camera’s network setting and traffic. You can see the pop-up window below.
-
Page 55: About
- Hardware Check: Click the Hardware Check button to diagnose the camera’s hardware like video. 3.5.5 About The following website will provide the support information for the 2M-C3W information and operation. http://www.remotecamplus.com/Support... -
Page 56: Playback
3.6 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording's start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not. - Page 57 24-hour basis. (4) Search Calendar Search results from the SD local storage in the 2M-C3W connected are displayed monthly. If there is a recorded data for a particular date, a blue square on the date will be displayed.
-
Page 58: Help
The Help information window will be provided as a popup window so that users can open and read it without a need for log-in. It will offer a description on setting and Help page by which users can manipulate the 2M-C3W without a reference to the manual. -
Page 59: Resetting To The Factory Default Settings
3.8 Resetting to the factory default settings To reset the 2M-C3W to the original factory settings, go to the Setup>System> Maintenance web page (described in “3.5.4 System > Maintenance”) or use the Reset button on the 2M-C3W, as described below •... -
Page 60: Appendix
4. Appendix 4.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the 2M-C3W with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. -
Page 61: Alarm Connection
4.2 Alarm Connection The following connection diagram gives an example of how to connect a 2M-C3W. 4.3 Preventive Maintenance Preventive maintenance allows detection and correction of minor that faults before they become serious and cause equipment failure. Every three-month, perform the following maintenance. -
Page 62: Product Specification
4.4 Product Specification Main Item Specification Image sensor 1/2.8” Progressive scan RGB CMOS Active Array 1920(H) x 1080(V) Lens Fixed 3.7mm Lens, F1.8 89.0°(H) x 46.0(V) Angle of View Min. illumination 0.2 Lux Shutter Speed 1/20,000 ~ 1/30 (Slow shutter 1/15, 1/8 and 1/4) -. -
Page 63: System Requirement For Web Browser
System Requirement for Web Browser Operating System: Microsoft Windows OS Series CPU: Intel Core 2 Duo 2Ghz or higher, 1GB RAM or more, 10GB free disk or higher VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher) General performance considerations When setting up your system, it is important to consider how various settings and situations will affect performance. -
Page 64: Network Camera
Flat Dome Network Camera http://www.remotecamplus.com Printed in Korea...
