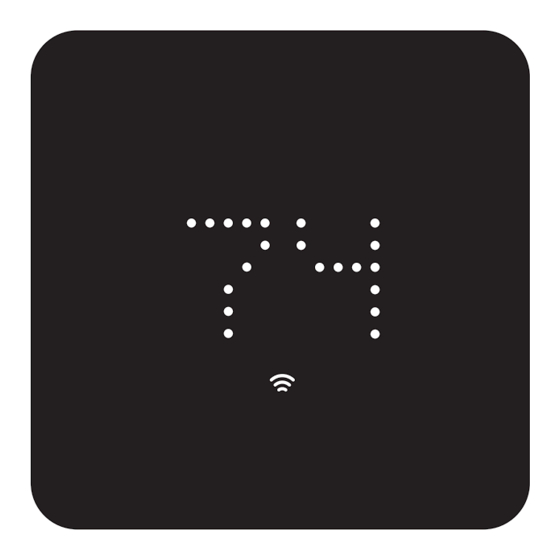

Summary of Contents for ZEN ZEN-01
-
Page 2: Inside The Box
INSIDE THE BOX 2 x screws Main display 2 x wall plugs Wall mount Wire labels Adapter plate 4 x AA Batteries... -
Page 3: Getting Started
GETTING STARTED The ZEN thermostat™ can only be connected to low voltage systems. Ensure that you complete the following steps before you begin installation. 1. Turn off main breaker 2. Remove cover from old unit... - Page 4 HVAC installer. internet web browser to complete installation. WARNING It takes approximately 45 minutes to get your ZEN Extra Low Voltage only. Do not thermostat™ ready to use. connect to mains voltages. Do not interconnect the outputs of class two circuits Have a question? Visit zenthermostat.com/faq...
-
Page 5: Quick Look
QUICK LOOK Increase temperature Confirm Change Change mode mode Decrease temperature... -
Page 6: Basic Operation
BASIC OPERATION Center touch to wake. Center touch again. Display shows current ambient Display shows current set point temperature. temperature. Touch left or right to select Touch up or down to change the operating modes. Center touch set point temperature. Center to confirm your selection. -
Page 7: Icon Guide
ICON GUIDE Second stage Network heating or cooling Connected Emergency heating Active Demand response Heating Mode event in progress Status Eco mode Cooling Mode Fan On Schedule Mode Continuous Preferences Mode Auto Mode Battery Low Error Warning Filter Change Required Some modes may not be enabled by your home automation provider. -
Page 8: User Preferences
USER PREFERENCES Access the user preferences by removing the unit from the wall and center touch to activate options. Touch right or left to scroll through the preferences. Touch up or down to modify a preference. Center touch to confirm. Info Units Brightness... - Page 9 Caring for your ZEN thermostat™ Clean with a damp cloth only. Avoid using chemical cleaning agents. Rebooting or Resetting to Factory Defaults If you are experiencing issues, reboot your display by removing and reinserting the batteries. This will retain your configuration settings. To restore to factory settings, press the Config button on the back of the main display 20 times, the display will beep five times to confirm the reset.
- Page 10 Designed in Australia by Planet Innovation Powered by MMB Networks RapidConnect Built in Malaysia Model: ZEN-01, Electrical Rating: 24VAC, 2A FCC ID: 2ADJL-ZEN01, IC ID: 12476A-ZEN01...
