Summary of Contents for LynxNet LN-2400DH

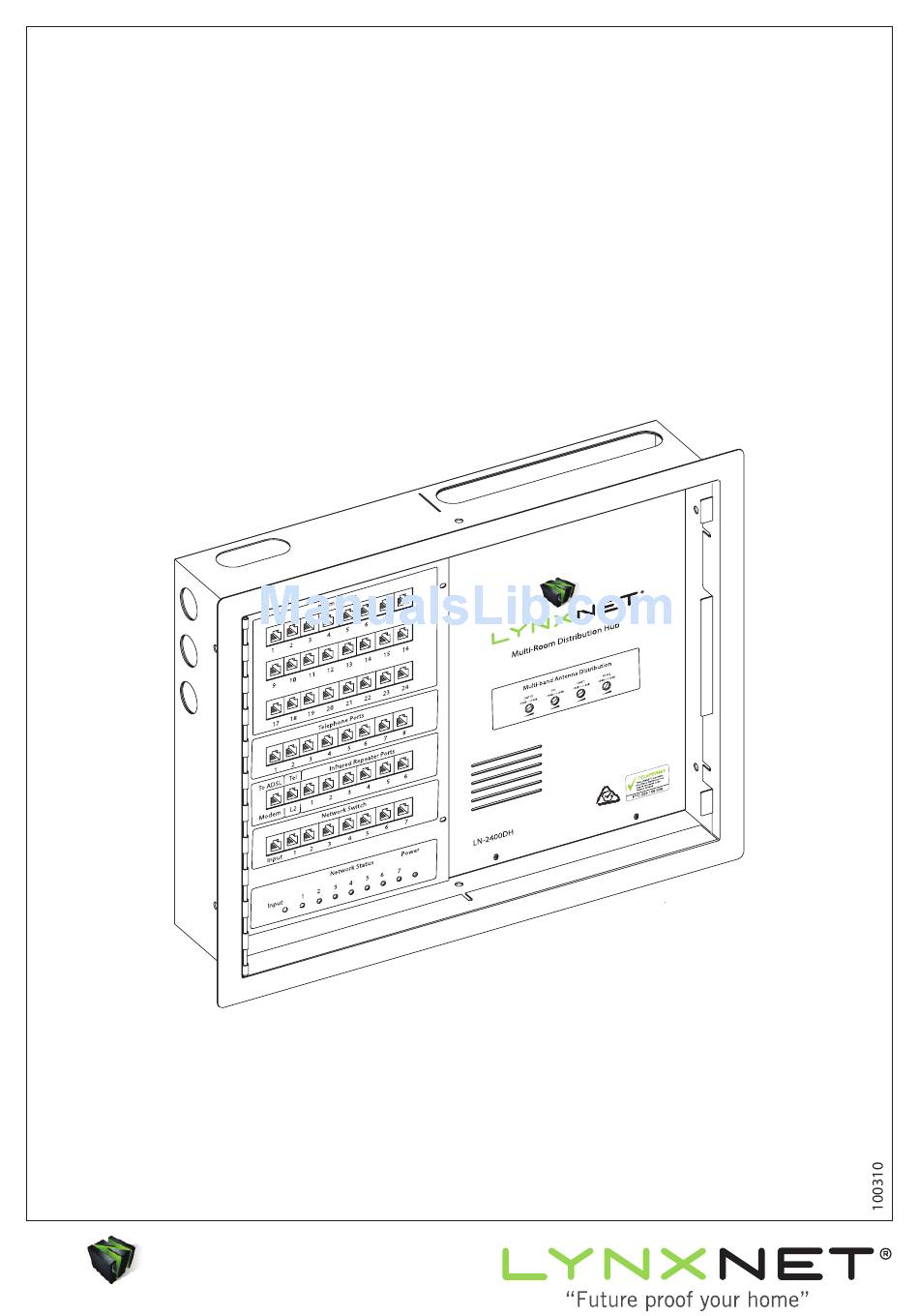

- Page 1 INSTALLATION MANUAL LN-2400DH Multi-Room Distribution Hub www.lynxnet.co.nz...
-
Page 2: Kit Contents
KIT CONTENTS Multi-Room Distribution Hub Qty: 1 Pc Part Code: LN-2400DH Computer Network Patch Cables Qty: 8 Pcs Part Code: LN-CAT5-0.3BL Telephone Patch Cables Qty: 8 Pcs Part Code: LN-CAT5-0.3GY IR Patch Cables Qty: 2 Pcs Part Code: LN-CAT5-0.3RD IR Target... -
Page 3: Antenna Distribution
OVERVIEW General Description The LN-2400DH is an “All in One” distribution hub All outlets are power-pass capable allowing a designed to be installed during the construction or Set-top box to pass power to the Satellite dish. renovation of a home or small office. -
Page 4: Installation Diagram
Antenna Amplifier adjustments RG6/RG59 Antenna cable entry RJ-45 Room outlets Mounting Holes RJ-45 Telephone ports CAT5e cable entry 10 RJ-45 Infrared Repeater ports Removable door surround 11 RJ-45 Network ports 230VAC Mains cable entry 12 RJ-45 ADSL Modem port www.lynxnet.co.nz... -
Page 5: Wall Mounting
May be rotated and installed as Right or Left hanging door. NOTE: Ensure the case is installed 10mm proud of the framing to allow for the thickness 95mm of the plasterboard wall linning Additional framing maybe added to provide further support www.lynxnet.co.nz... - Page 6 The cable clamp is designed to secure 8 cables. In the event less than 8 cables are to be installed, cables ties may be required. INSTALLATION TIP: When running cables ensure a minimum of 2 Cat5e cables are run to each room. ADSL Modem distribution uses 2 cables. www.lynxnet.co.nz...
-
Page 7: Telephone Cable Connection
Secuirity panel. This enables the security system to take priority over the line in the event of an activation. Using standard two core cable, connect the security panel as shown above. Remove the two “Links” JP1 & JP2 to allow the phone line to pass through the system. www.lynxnet.co.nz... -
Page 8: Antenna Distribution Amplifier
A minium of (3) RG6 cables should be run from the roof to allow for F M , UHF & Satellite signals. It is also recommend that (2) or more cables be run to the main entertainment area, allowing for “Set top Box” signals to be routed back to the distribution hub for distributing modulated signals to other rooms. www.lynxnet.co.nz... -
Page 9: Electrical Power Suppl Y Connection
Electrical 230VAC Input This Distribution hub includes an internal switch mode power supply. A 230V AC connection is required as shown above. Use standard 1.5mm TPS cable for this connection . NOTE: This connection must be done by a registered Electrician www.lynxnet.co.nz... - Page 10 PATCHING COMPUTER NET WORK ADSL www.lynxnet.co.nz...
- Page 11 PATCHING T ELEPHONE www.lynxnet.co.nz...
- Page 12 ROOM OUTLET TABLE Room Outlet Location (ie boardroom 1 Kitchen etc) (ie telephone, Data, IR etc) www.lynxnet.co.nz...
