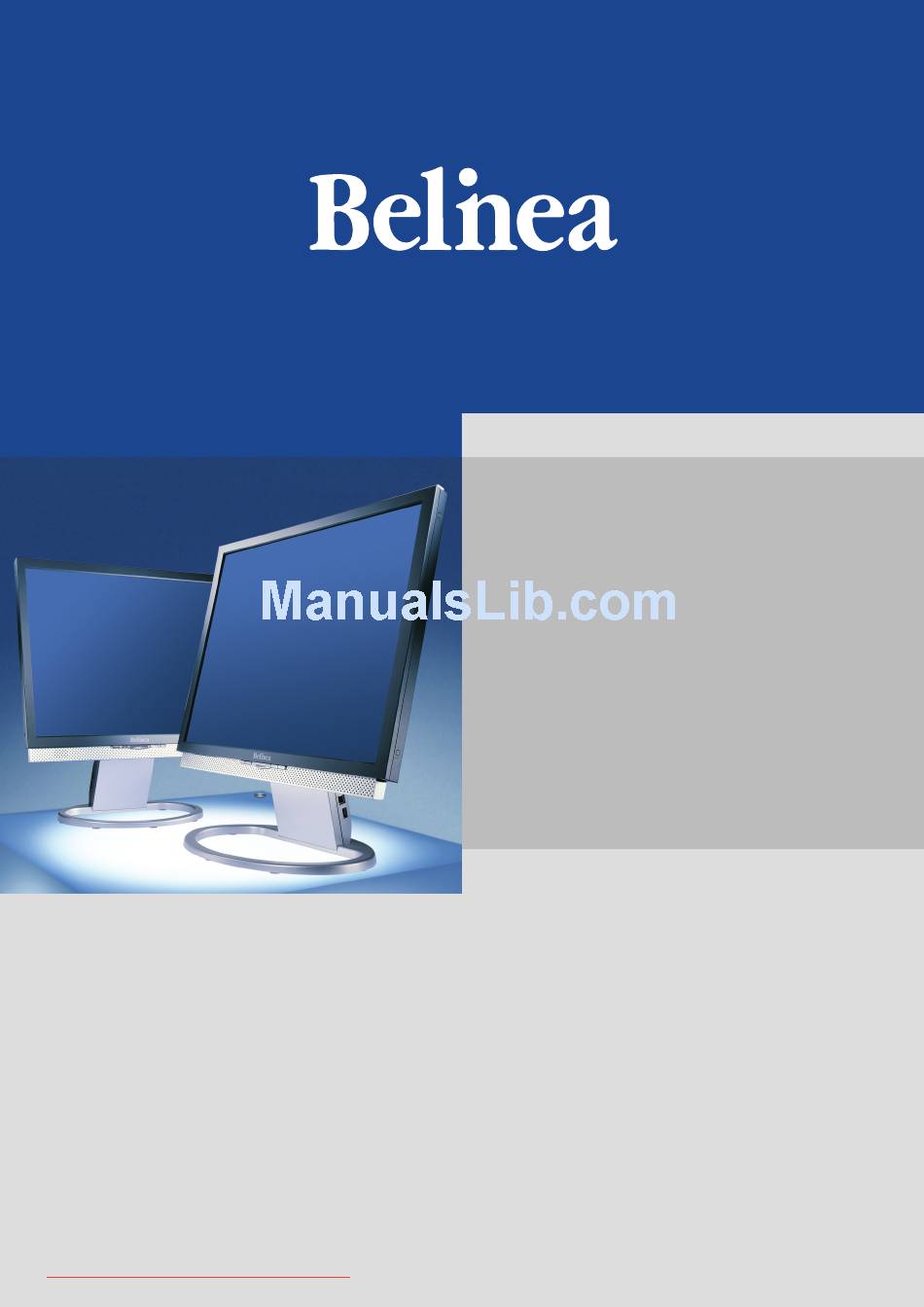

  • Page 1 LCD-Monitor Belinea 1975 S1 Handbuch Manual nuel Manuale Handleiding Handledningen Hånd- Vejledning Käyttö­opas Instrukcja Használati Handbuch Manual Manuel Manuale Handleiding Handledningen Håndbok Vejledning Käyttö­opas Instrukcja Használati Handbuch Manual Manuel Manuale Handleiding Handledningen Håndbok Vej- ledning Käyttö­opas Instrukcja Használati Handbuch Manual...
  • Page 2 BELINEA PREMIUM SERVICE The three-year return to base warranty for your Belinea monitor includes all parts and labour. In addition many countries offer a free of charge swap out warranty programme. This does not affect English your Statutory Rights. Please visit http://www.belinea.com or call the numbers below for further warranty or service information.

  • Page 3: Table Of Contents

    INTRoDUCTIoN TABLE oF CoNTENTS This manual will familiarize you with the installation and INTRODUCTION ............2 use of your Belinea monitor. Please take the time to look IMPORTANT INFORMATION ........3 through these instructions even if you are familiar with monitors.

  • Page 4: Important Information

    (always use the original packag- ing). WALL MoUNTING The Belinea monitor is shipped with the standard desktop configuration. However, you can optionally mount the device on a wall or on a monitor swivel arm (optional accessory). Please follow the corresponding instructions (4-hole assembly with a spacing of 100 × 100 mm according to the international VESA FDMI standard).

  • Page 5: Unpacking

     connector of the monitor ( in fig. 3) and the other end to of the monitor stand (see fig. 2a). the Line-Out connector of the computer. STARTUP 1. First start your Pc and then turn on your Belinea moni- . Adjust the image to meet your requirements (see the  tor using the power switch ( in fig. 4). The power following sections “Basic Setup” and “Image settings indicator ( ...

  • Page 6: Configuration

    NT 4.0 no separate setup file is required. ® If using the monitor under Windows 9x/ME/2000 Select the vertical frequency and the number of colors ® or xP, we strongly recommend installing the Belinea directly from within the “Settings”  “Control Panel”  configuration file. you can obtain this file from your Belinea “Display”  “Settings” menu. dealer or download it from the MAxDATA FTP server at ftp.maxdata.com.

  • Page 7: Osd Menu Functions

    If you wish to set individual color values, select the Custom Color option. Then press the MENU but-  ton ( in fig. 4) to select the red, green and blue settings and set the desired value using the OSD < >   buttons in fig. 4). The current settings are automatically saved when you return to the previous level or exit the OSD menu. Belinea 1975 S1 - Operating Instructions - 6 Downloaded from ManualMonitor.com Manuals...

  • Page 8: Troubleshooting

    Loudspeaker: 1 W continuous load, 1.5 W peak power Power connection Input: 100–240 V Ac, 50–60 Hz; output: 12 V Dc Power consumption ON status: < 37 W; color of the status LED: blue SLEEP status: < 2 W; color of the status LED: orange Power saving functions EPA certified Dimensions / weight Width: 411 mm, height: 444 mm, depth: 220 mm; 4.9 kg (net) operating environment Operation: 0 to +40 °C, humidity: 20–80% (without condensation) Storage: -20 to +60 °C, humidity: 8–95% (without condensation) Belinea 1975 S1 - Operating Instructions - 7 Downloaded from ManualMonitor.com Manuals...

  • Page 9: Definition Of The Maxdata Warranty

    • Breaks and scratches on TFT panels and cRT displays • Damage through use of force and external impact respectively • Spots on the panel caused by external impacts Belinea 1975 S1 - Operating Instructions -  Downloaded from ManualMonitor.com Manuals...
  • Page 10 Data Backup: The responsibility for complete data backups, including of applications and operating system software remains exclusively with the customer. The data must be backed up before the warranty claim is made. MAxDATA excludes liability for any data or information lost for this reason during a warranty claim. For further details regarding the MAxDATA warranty conditions please refer to www.maxdata.co.uk. Belinea 1975 S1 - Operating Instructions - 9 Downloaded from ManualMonitor.com Manuals...

  • Page 11: Nagement

    Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
  • Page 12 Phone: +44 (0) 1344 788900 I-20090 Milanofiori, Assago (MI) Phone: +39 (0) 2 5777-91 www.belinea.com Belinea ist eine Marke der MAXDATA AG Belinea is a trademark of MAXDATA AG Belinea est une marque déposée de MAXDATA AG Downloaded from ManualMonitor.com Manuals...
