Summary of Contents for Camon TC07

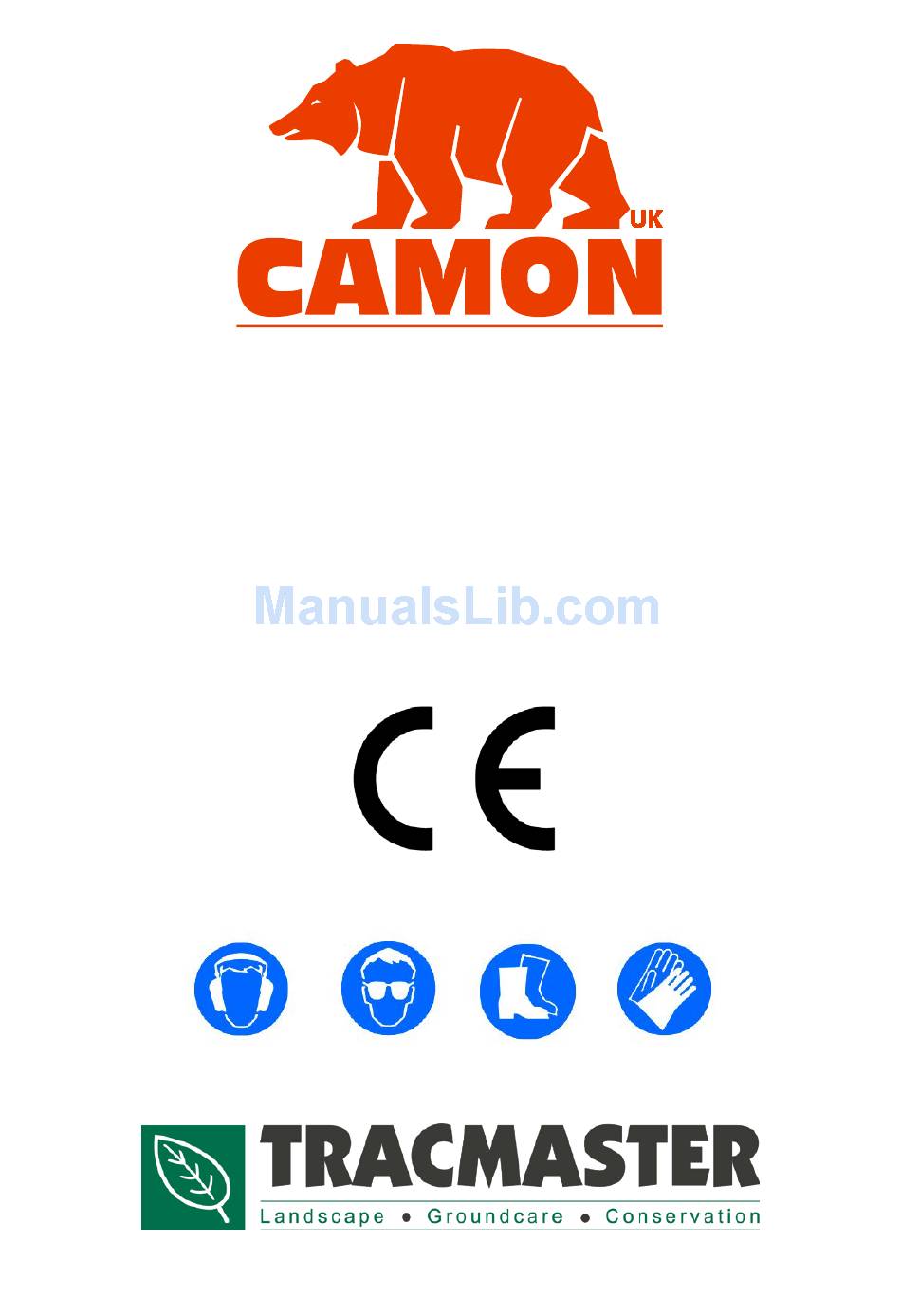

- Page 1 TC07 TURF CUTTER Operating Instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions.
- Page 3 Tracmaster Ltd CAMON TC07 Turf Cutter Manufacturer Details Tracmaster Ltd Sovereign Centre Victoria Road Burgess Hill West Sussex RH15 9LR UNITED KINGDOM Tel: +44 1444 247689 Fax: +44 1444 871612 www.tracmaster.co.uk info@tracmaster.co.uk Machine Details Model: CAMON TC07 Turf Cutter Serial Number: ..........
- Page 4 CAMON TC07 Turf Cutter Tracmaster Ltd _______________________________________________________________________________________________ For parts diagrams visit www.tracmaster.co.uk...
-
Page 5: Table Of Contents
5.3 Safety Equipment ......................9 5.4 Operation ......................... 9 5.5 Procedure for Unexpected Shut Down ................10 5.6 Residual Risks of the TC07 Turf Cutter ................. 10 6.0 Maintenance ........................... 11 6.1 Schedule ......................... 11 6.2 Basic Maintenance ......................11 6.3 Engine ........................... -
Page 6: Designation Of Machine
The CAMON TC07 Turf Cutter has been designed by Tracmaster for removing the top surface of lawn. The benefit of using a TC07 Turf Cutter is the ease and efficiency with which the machine is able to cut consistent strips of turf away from the soil. -
Page 7: Specifications
Tracmaster Ltd CAMON TC07 Turf Cutter 2.0 Specifications ENGINE Engine Manufacturer Honda Engine Model GX160 Engine Type 4-Stroke overhead valve, single cylinder Engine Output Engine Shaft Size 3/4” Straight Spark Plug BPR6ES(NGK) / W20EPR-U (DENSO) Spark Plug Gap 0.70-0.80mm Engine Ignition Type... -
Page 8: Unpacking And Assembly
CAMON TC07 Turf Cutter Tracmaster Ltd 3.0 Unpacking and Assembly 3.1 Major Components Diagram Engine On/Off Switch Drive Lever Vibration Mounts Cutting Depth Controls Fuel Tank Engine Wheels Cutting Blade Lifting Lever Gear Selector Lever 3.2 Unpacking Instructions Open the top of cardboard box. -
Page 9: Safety Instructions
4.4 Gear Selector Lever The drive to the back axle of the TC07 Turf Cutter can be engaged and disengaged using the gear selector lever located at the rear of the machine, above the front axles. -
Page 10: Drive Lever
This lever operates both the cutting blade and the driving power to the back wheels. It does this by raising the engine speed until a centrifugal clutch engages and transfers the engine power to the driven components of the TC07. Letting go of the drive lever causes the engine revolutions to drop, the centrifugal clutch to disengage and both the engine drive and cutting blade to stop moving. -
Page 11: Engine Specific Safety Instructions
Tracmaster Ltd CAMON TC07 Turf Cutter Before starting work clear the area of any objects that may cause damage to the machine. Do not operate the machine if you are under the influence of alcohol or drugs. This equipment must only be operated by persons who are medically fit both physically and mentally. -
Page 12: Safety Instructions Starting And Operating
CAMON TC07 Turf Cutter Tracmaster Ltd 5.0 Safety Instructions Starting and Operating To Start the Engine Using the dipstick provided, check the engine oil level. Top up with 10w/30 oil if the dipstick is clear of oil. Check the fuel level. Refill as necessary and as determined by the fuel tank type –... -
Page 13: To Stop The Engine
Switch the engine ON/OFF switch to the ‘O’ off position. Turn the fuel tap lever to the OFF position. WARNING: THE EXHAUST COVER MAY BE HOT – DO NOT TOUCH. 5.3 Safety Equipment The TC07 operator must be wearing: • Ear Defenders •... -
Page 14: Procedure For Unexpected Shut Down
5.6 Residual Risks of the TC07 Turf Cutter The TC07 Turf Cutter is designed to be pushed by the operator during transportation. It has no brake system and the operator must hold firmly onto the machine at all times when the machine is on sloped areas. -
Page 15: Maintenance
Tracmaster Ltd CAMON TC07 Turf Cutter 6.0 Maintenance 6.1 Schedule Operation Daily Every Every Week Month Engine Check engine oil level 10W/30 See separate engine manual Machine Check condition of blade Check belt condition Check operating lever and cable Check protection cover condition... -
Page 16: Change Engine Oil
CAMON TC07 Turf Cutter Tracmaster Ltd 6.3.2 Change Engine Oil Refer to the engine manufacturer's manual for location of components and more detailed assistance. Do not change the oil if the engine is hot. The first oil change is after 50 hours of work. -
Page 17: Cleaning
Tracmaster Ltd CAMON TC07 Turf Cutter 6.4 Cleaning After cleaning, particularly if a pressure washer has been used, ensure any lubrication points are re-lubricated. Clean the engine with a cloth only. Avoid spraying the engine with jets of water as this may leak into the fuel and ignition systems. -
Page 18: Lubricants
CAMON TC07 Turf Cutter Tracmaster Ltd 6.5.3 Lubricants Use the specified 10w/30 oil specified by Honda for the engine oil. To lubricate the roller bearings in the wheels we recommend using bio-lubricating grease. _______________________________________________________________________________________________ For parts diagrams visit www.tracmaster.co.uk... -
Page 19: Transportation, Storage And Handling
7.1 Transportation Use ramps where possible to manoeuvre the Turf Cutter into a transportation vehicle. The TC07 Turf Cutter must be fixed securely using straps and by placing chocks behind the wheels. Always transport the TC07 Turf Cutter horizontally and not tilted at an angle. -
Page 20: Service Record
CAMON TC07 Turf Cutter Tracmaster Ltd 8.0 Service Record To ensure your machine is kept in peak condition we recommend that your Turf Cutter is serviced regularly. Contact Tracmaster on 01444 247689 to find out who your local Authorised Agent is. -
Page 21: Warranty Registration Form
Tracmaster Ltd CAMON TC07 Turf Cutter Warranty Registration To validate your warranty please complete the form below and return it to: Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR Tracmaster Ltd, Alternatively visit www.tracmaster.co.uk and complete the online form. CUSTOMER DETAILS Name: ....................... - Page 22 CAMON TC07 Turf Cutter Tracmaster Ltd _______________________________________________________________________________________________ For parts diagrams visit www.tracmaster.co.uk...
-
Page 23: Ec Declaration Of Conformity
Tracmaster Ltd CAMON TC07 Turf Cutter EC Declaration of Conformity Tracmaster Ltd declares that the machinery stipulated below complies with all the relevant provisions of: Machinery Directive 2006/42/EC EMC Directive 89/336/EEC and the National Laws and Regulations adopting these directives and other relevant directive. - Page 24 © 2012 Tracmaster Ltd Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR Tel: +44 (0) 1444 247689 Fax: +44 (0) 1444 871612 www.tracmaster.co.uk info@tracmaster.co.uk...
