Summary of Contents for Sylvania SDVD7051

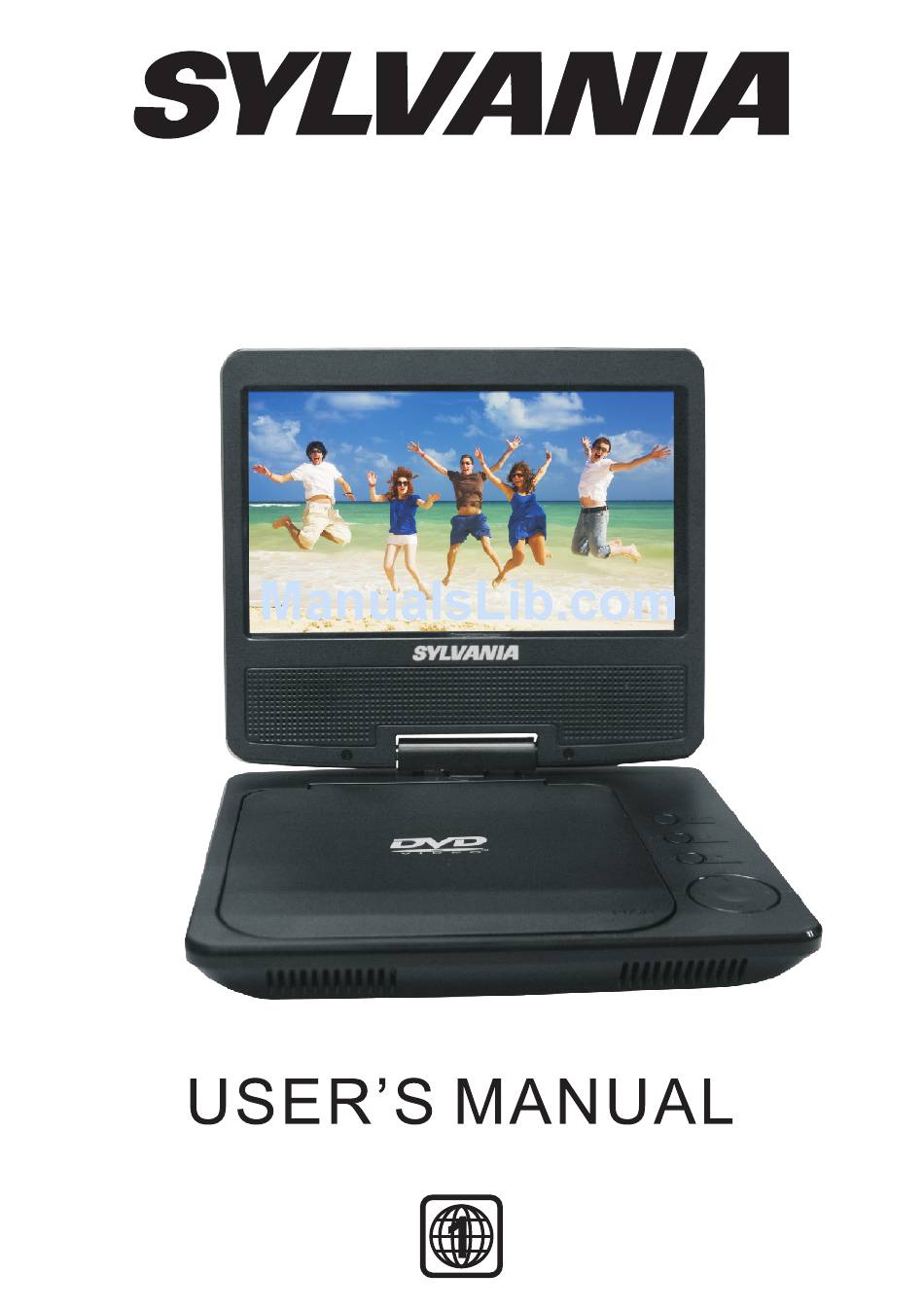

- Page 1 SDVD7051...
-
Page 2: Table Of Contents
Table Of Contents Safety Precaution Package Main Features Main Unit Controls System Connection Basic operation Virtual Remote Operation System Setup Specification Troubleshooting... -
Page 3: Safety Precaution
Safety Precaution Thank you for choosing our portable DVD player. The unit applies the latest state of art electronics and is designed for use at home, in hotels and in offices etc for relaxation. The compact size makes carrying easier as well as installation. Please read the manual carefully prior to use and keep it well for later consultation. - Page 4 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
-
Page 5: Package
Package DVD Player AC/DC Power Adapter User Manual Main Features High brightness color 7" LCD screen Compatible with disc of DVD, MP3, CD, JPEG, etc. Built-in stereo speaker Built-in rechargeable Lithium polymer battery Support PAL or NTSC system Support Multi-language OSD Swiveling LCD Screen You can swivel the LCD screen of this player clockwise a maximum of 180 °... -
Page 6: Main Unit Controls
Main Unit Controls 1. MODE button (show virtual remote control menu when play disc. Setup function when no disc or CD door open.) 6. Open knob 2. Play/Pause / VOL+ 7. DC IN 9-12V (press shortly to play/pause, press 8. Power ON/OFF switch longly to add volume.) 9. -
Page 7: System Connection
System Connection Powering And Installation Plug one end of the AC/DC power adaptor into the DC IN9-12V jack on the right of the machine, then plug the other end into the AC power receptacle. Please refer to the following illustration. If using car cigarette lighter adaptor to connect to the power: Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket. - Page 8 Connecting With External Speaker The unit can be connected with external speaker. Please see the following illustration. AV CABLE Not supplied VIDEO IN AUDIO IN AMPLIFIER Left front Center speaker Right front speaker speaker SUBWOOFER Left rear speaker Right rear speaker Note: There is no 5.1 channel in the unit, however, after connecting to APM it is available to output audio in 5.1 channel.
-
Page 9: Basic Operation
Basic Operation Playing disc of DVD, CD, MP3 1. Connect the unit to the power; 2. Open the unit and adjust the monitor to the best position for viewing. 3. Turn on the unit by sliding the ON/OFF switch to ON. 4. - Page 10 5. You can also press "MODE" button to close virtual remote menu. The player will resume playing after the menu exit. Note: 1. When the disc is in the submenu, press the function key can go back the title menu. 2.
-
Page 11: Function Operation
9. Slow: You can press slow key to change the playing speed slowly during playing DVD. Then press " " repeatedly to change the playback speed according the following sequence: 1/2 1/4 1/8 1/16. (Return): to return to the main menu. (MUTE): to turn mute. - Page 12 Play MP3 File 1. Place a MP3 disc into the disc door. 2. Press " " to select the file; Press " " button to play the file selected. 00 36 03 43 Dir 001 \Ctyy\ ..TRACK01 TRACK02 TRACK03 TRACK04 TRACK05 Function operation:...
-
Page 13: System Setup
System Setup Press MODE button when no disk or CD door open, the main menu will be displayed on the screen. Setup Menu Main Page In the General Setup Page, Press button General Setup to highlight this item. Press button to access. Video Setup Press button to select the setting. -
Page 14: Video Setup Page
General Setup Screen Saver: TV Display Wide Enter this option to set whether to activate Angle Mark OSD Lang the screen saver function. Screen Saver The default is ON. :Move :Return :Entry Video Setup Page Video Setup TV Type NTSC TV Type: NTSC Panel Quality... - Page 15 Preference Setup Subtitle: Select your preferred language to show the English Audio subtitles on the screen. Subtitle French The default is OFF. Disc Menu German The subtitle languages depend on the Parental Italian information available on each disc,You can Default also change the subtitle language during playback by press the SUBTITLE button.
-
Page 16: Specification
Specification Compatible disc: DVD/CD/MP3 Signal system: PAL/NTSC Panel size: 7 inch Picture resolution: 480x234(RGB) Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4Vrms/10kOhm Audio S/N: Better than 80 dB Dynamic range: Better than 85 dB USB: support USB 1.1 Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9-12V... - Page 17 Rechargeable Battery Use The unit utilizes long-life Li polymer battery for portable power supply. The battery has no Memory Effect and thus can be recharged safely regardless of whether the battery is fully or partially discharged. It is enough to recharge no longer than 4H each time.
-
Page 18: Troubleshooting
Troubleshooting PROBLEM SOLUTION Make sure the machine is connected properly. No sound or Make sure all cables are securely inserted into distorted sound the appropriate jacks. You can't advance through the opening credits Can't advance and warning information that appears at the through a movie beginning of movies because the disc is programmed to prohibit that action.
