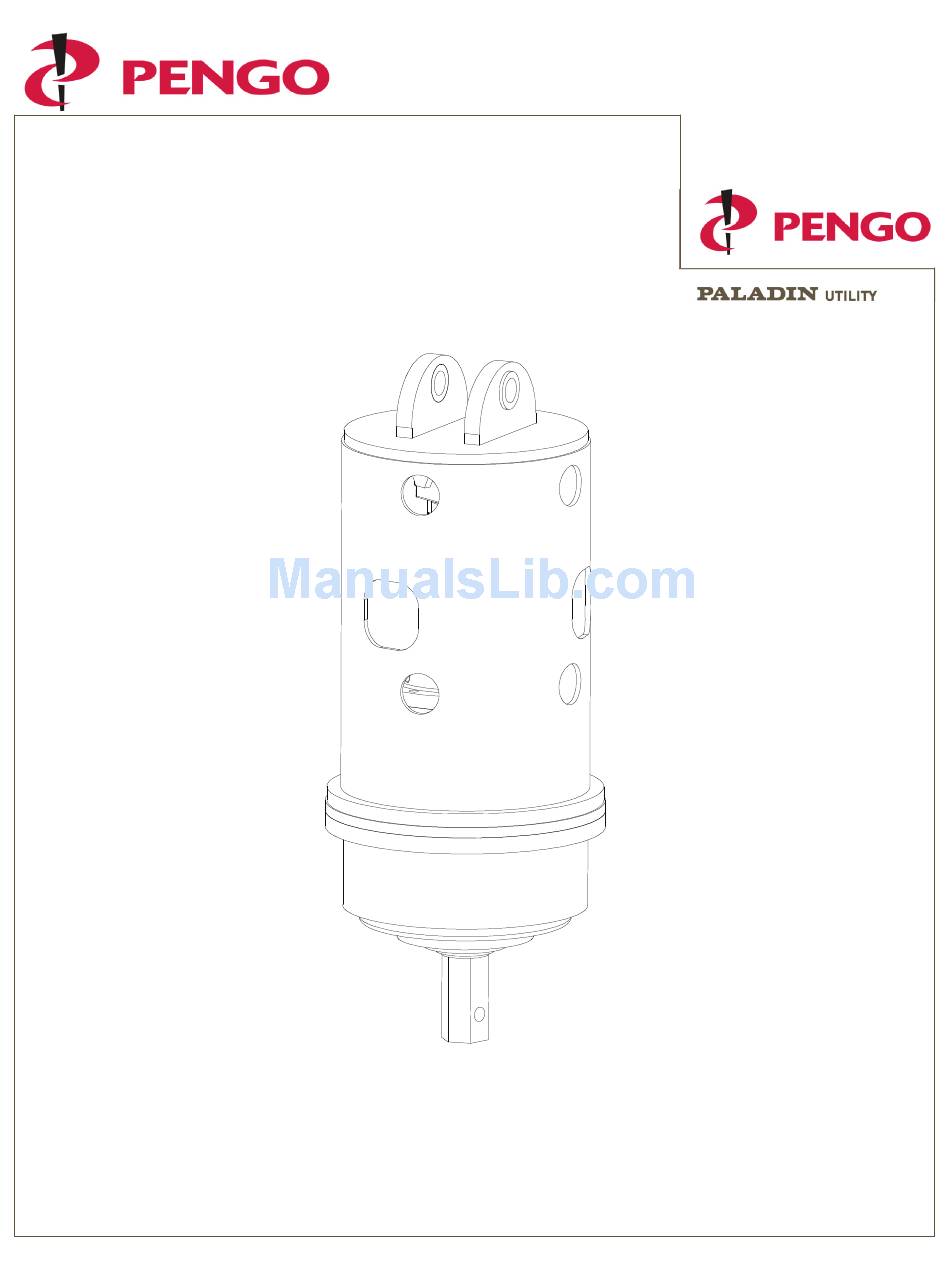

AUGER DRIVE
(TWO SPEED GEARTEK MOTOR VARIANT)
SA-70 (660983)
Instruction Manual
Owner's Manual
Safety Precautions
Operating Instructions
Maintenance
Manual Number: M135776.indd
Parts Lists
Release Date: March 27, 2007
800-599-0211 l www.paladinbrands.com l PENGO: 500 East Highway 10, Laurens, IA 50554, United States of America
(M135776.indd)
SA-70
1
Advertisement
Table of Contents
Summary of Contents for Pengo SA-70
- Page 1 AUGER DRIVE (TWO SPEED GEARTEK MOTOR VARIANT) SA-70 (660983) Instruction Manual Owner’s Manual Safety Precautions Operating Instructions Maintenance Manual Number: M135776.indd Parts Lists Release Date: March 27, 2007 800-599-0211 l www.paladinbrands.com l PENGO: 500 East Highway 10, Laurens, IA 50554, United States of America (M135776.indd) SA-70...
-
Page 2: Table Of Contents
Preface / Table of Contents ..........................2 Safety Statements ............................3 General Precautions ............................4 Safety Decal Locations / Serial Tag Location ...................... 5 Specifications / Component and Control Locations .................... 6 Set-Up Instructions / Operating Procedures / Storage ..................7 General Maintenance / Checking and Changing the Gear Oil ................8 Maintenance Cont. / Troubleshooting ......................... 9 SA-70 Drive Parts Breakdown ........................... 10 SA-70 Drive Parts List ............................11 Auger Drive Warranty Policy / Returned Goods Policy ..................12 Torque Chart for Common Bolt Sizes ........................ 13 2 SA-70 (M135776.indd) -
Page 3: Safety Statements
DO NOT MODIFy EQUIPMENT Modifications may weaken the integrity of the equipment and may impair the functions, safety, life, and performance of the equipment. When making repairs, use only the manufactures genuine parts, following authorized instructions. Other parts may be substandard in fit and quality. (M135776.indd) SA-70... -
Page 4: General Precautions
PRACTICE SAFE MAINTENANCE • Use proper tools and equipment when conducting maintenance, refer to this manual for additional information. • Work in a clean dry area. • Inspect all parts. Be sure parts are in good working condition and installed properly. • Remove build up of grease, oil or any debris. • Remove all tools and unused parts from equipment before beginning operation. wARNING BE ALERT ON ThE jOB SITE Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to machinery and work activity. Never assume that children will remain where you last saw them. BE ALERT and turn the equipment off if children enter the work area. Keep children out of the work area and under supervision of another responsible adult. wARNING DRILLING SAFETy • Inspect the area to be drilled before operation. Remove objects which can be thrown or become entangled. • Keep all parts of your body away from the drilling bit when operating the unit. • DO NOT operate the Auger Drive when the auger bit is more then 12” (305mm) above ground. The auger bit may bind and cause injury to the operator and damage to the equipment. • While the auger bit is rotating, DO NOT attempt to manually guide the auger to a location. wARNING UNDERGROUND hAZARDS It is the responsibility of the operator to know where buried power, gas, telephone, and other utilities are at in the work area. This may lead to shock or an explosion. Have the work area marked for buried lines and do not dig in marked areas set by your local municipals. Striking a hard object underground with the auger turning can result in the slowing or stopping of the auger. 4 SA-70 (M135776.indd) -
Page 5: Safety Decal Locations / Serial Tag Location
INSPECT UNIT BEFORE EACH USE. VERIFY ALL COMPONENTS ARE PROPERLY SEATED AND TIGHTENED. DO NOT USE IF EXCESSIVE WEAR AND OR WARN, CRACKED OR DAMAGED COMPONENTS EXIST. STAY 10 FT. (3m) OR MORE AWAY UNLESS OPERATING MACHINE 350247 350247 Figure 1 (M135776.indd) SA-70... -
Page 6: Specifications / Component And Control Locations
A - Bail Boss purposes only. B - Bail Housing C - Hydraulic Motor Pengo continually looks for new ways to improve its products. Therefore, Pengo reserves the right to make D - Motor Ports changes to our products and specifications without notice. E - Pilot Port... -
Page 7: Set-Up Instructions / Operating Procedures / Storage
SET-UP INSTRUCTIONS Your Pengo Planetary Auger Drive receives its hydraulic 5. Once the required hole depth is reached, allow the auger oil flow and pressure from the parent machine through the to turn a few seconds at this depth to clean the hole. auxiliary hydraulic circuit via two quick release couplers near the end of the truck boom or excavator arm. 6. Stop rotation of the auger and raise the auger out of the hole. Swing the auger away from the newly drilled hole. CAUTION: Alert yourself to the weight of the Auger Spin the lose material off the auger. Drive. Do NOT exceed the recommended lift capacity Note: Do not reverse the auger rotation while the auger is of the parent machine. Refer to you machines owners... -
Page 8: General Maintenance / Checking And Changing The Gear Oil
4. Position the gearbox for filling by orientating the unit so of oil ,the gearbox should be drained and the correct that the same port used for draining can now be used to amount of oil replenished. fill. 5. Fill the gearbox with oil, until full. See oil specifications below: Lubrication Recommendations: SAE 80W90 GL-5 Oil Density / 15 deg C: 0.895 Viscosity Index: Viscosity @ 40 deg C: 138 Flash Point COC: Viscosity @ 100 deg C: 13.9 Pour Point (deg C): 8 SA-70 (M135776.indd) -
Page 9: Maintenance Cont. / Troubleshooting
• Hydraulic system is overheating. See the “Oil Overheating” section below. hyDRAULIC OIL OVERhEATING: • Oil pressure is too low. Set relief valve to machine specifications. • Hydraulic line is restricted. Inspect and repair. • Auger continually stalling. Limit down pressure used. • Hydraulic oil tank is low. Fill oil tank to maximum level. • Insufficient oil capacity. Check oil cooler. • Parent machine is too small. Couple Auger Drive to larger machine. (M135776.indd) SA-70... -
Page 10: Drive Parts Breakdown
SA-70 PARTS BREAKDOwN Figure 3 10 SA-70 (M135776.indd) -
Page 11: Drive Parts List
SA-70 PARTS LIST Please order replacement parts by PART NO. and DESCRIPTION. (M135776.indd) SA-70 11... -
Page 12: Auger Drive Warranty Policy / Returned Goods Policy
RETURNED GOODS POLICy Pengo reserves the right to determine whether products claimed to be defective shall be inspected by our personnel in the field or returned to the factory. If judged by Pengo to be defective in material or workmanship, the product will be replaced or a credit issued at the option of Pengo. Upon notification of defect, Pengo’s Inside Sales Department will issue a Return Materials Authorization (RMA) number. All returns for replacement or credit MUST be accompanied by a RMA number. Products returned without... -
Page 13: Torque Chart For Common Bolt Sizes
1380 2960 2190 4100 3220 1-1/4”-12 1680 1240 2730 2010 1-3/8”-6 1990 1470 3230 2380 1-3/8”-12 1010 2270 1670 3680 2710 1-1/2”-6 1180 2640 1950 4290 3160 1-1/2”-12 1330 2970 2190 4820 3560 tpi = Nominal thread diameter in inches per inch. Nm = Newton Meters. Ft-Lbs = Foot Pounds mm x = Nominal thread diameter in millimeters x thread pitch. (M135776.indd) SA-70 13... - Page 14 NOTES 14 SA-70 (M135776.indd)
- Page 15 NOTES (M135776.indd) SA-70 15...
- Page 16 Utility headquarters Iowa 500 East Highway 10, Laurens, IA 50554 United States of America PH: 800-599-0211 FX: 712-845-2497 Minnesota 13369 60th St. S.W. Cokato, MN 55321 PH: 888-286-0982 FX: 320-286-5583 California 1541 M Street Newman, CA 95360 PH: 209-862-1504 FX: 209-862-1520 www.paladinbrands.com 16 SA-70 (M135776.indd)
