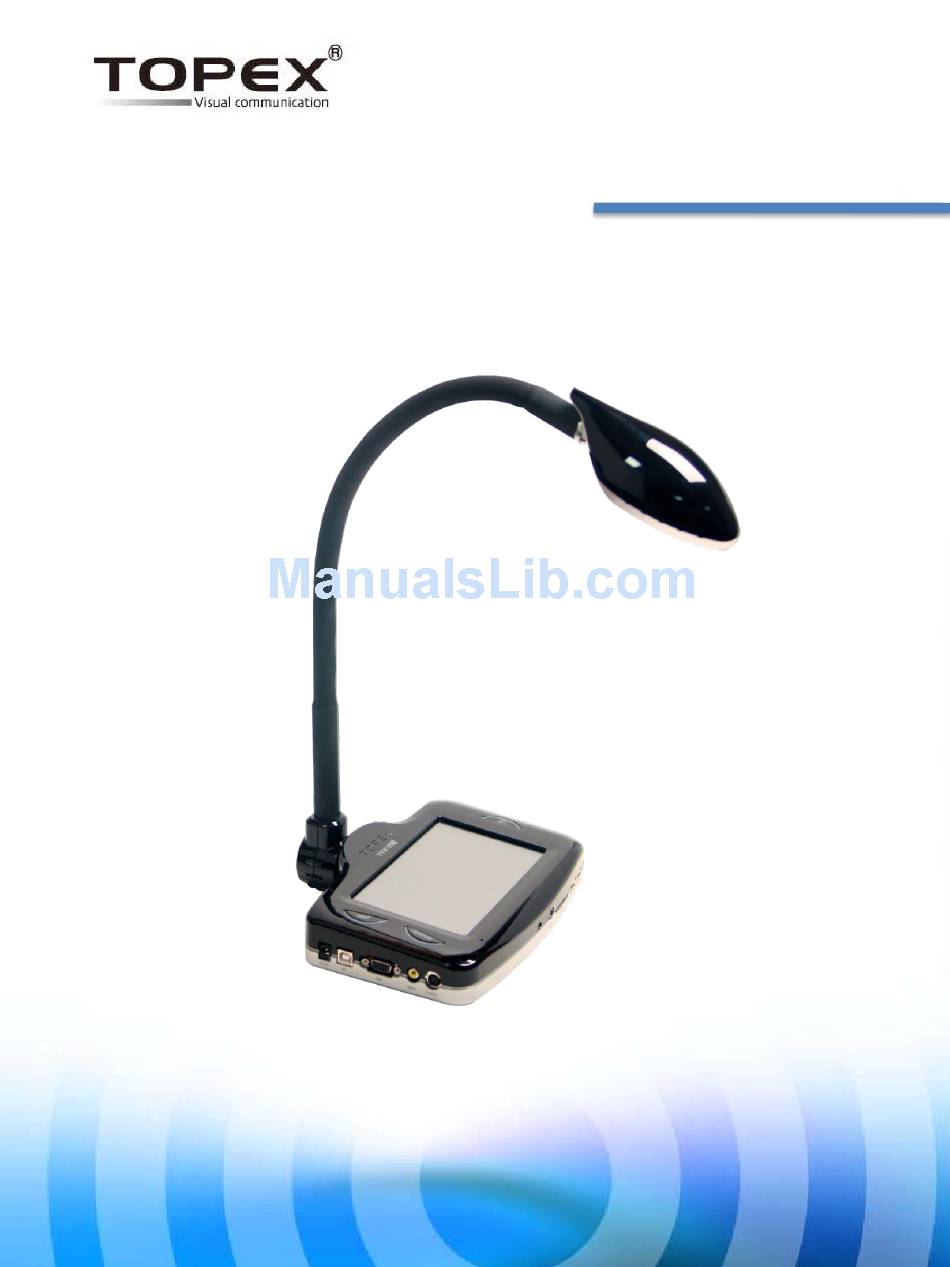

  • Page 1 TTV-5.0 Operation Manual...
  • Page 2 Features 5.0 Mega pixels high resolution CMOS Camera, Max. 30 fps  7” Full Touch Screen Electronic Board function (Support Moving picutres)  Convenient outer button (A/F, CAPTURE, LIGHT) and 8 pcs of high-  brightness LED 1GB inner memory (Saving images / videos on the body) ...
  • Page 3 C o n t e n t s Confirmation prior to use and connection 1. Accessories 2. Names of each part 3. Description of remote controller 4. Setting up 5. Connection Usage 1. Installing the program 2. Using on the PC 1) Preview 2) Drawing 3) Learning...
  • Page 4 1. Accessories · Check all accessories that you have before using. · Contact the head office or sales agency to purchase accessories or optional items. Progrm CD Operation manual Touch Pen RGB Cable AV Cable USB Cable Adapter Aluminum Remote controller case...

  • Page 5: Names Of Each Part

    2. Names of each part Camera head Lens/LED light Capture Light HDMI Audio 7” LCD Touch Screen Product control and Image Display RS-232C Mic./SD Card/USB/USB...
  • Page 6 Ⅰ 사용전 확인 및 연결 2. Names of each part(Continued) Power S/W DC 5V Video S-Video...

  • Page 7: Description Of Remote Controller

    3. Description of remote controller • A/F(Auto Focus) : Perform the auto focus function whenever clicking • Zoom+, Zoom- : Manifying or minimizing the size of displaying data or object • ▲,▼,◀,▶ : Moving the magnified or minimized image to Up, Down, Left &...
  • Page 8 4. Setting up 1. Raise the flexible post slowly. 2. Rotate the post at 180° and fit the camera head horizontally(when turning the post, grasp the lower end and rotate post). 3. Connect adapter to DC 5V terminal. 4. Power S/W on.
  • Page 9 - Using the Goose neck of Digital Video Presenter, can shoot the wished video easily. 2) Start the program file of TTV-5.0 on the PC. - Double click the icon of TTV-5.0 on the desktop. - Select camera and click enter.
  • Page 10 5. Connection 1) Connecting with monitor/TV - Using HDMI/DVI/RGB/S-Video/RCA cable, connect monitor with TTV-5.0. - Using the Goose neck of Digital Video Presenter, can shoot the wished video easily. 2) A/F adjustment and how to use LED lighting lamp - When using product, press the A/F button on the right of unit at the wished shooting distance, then the focus is readjusted.

  • Page 11: Installing The Program

    II. Usage 1. Installing the program 1) When insert CD in the CD driver, the following display will be shown. It takes about 20~30 sec. (Execute CD\setup.exe, if doesn’t become automatically.) Then, click 『Next』. (Total installation time will be take about 3~5 min.) 2) After click 『Installation』, continue he installation.
  • Page 12 3) When completed the installation, click 『OK』 and end up. 4) Registration of S/N * Start ⇒ Program ⇒ TouchVision ⇒ TTV-5.0 or carry out TTV-5.0 on the desktop. - Put the S/N on the enclosed product, then click 『OK』.
  • Page 13 2. Using on the PC * After preparing the setting as I-3 and when executed TTV-5.0 on the desktop, the following window will be floating and the images shooting by camera will be shown on the display. • Program is divided into 4 sections as Preview (Showing the...
  • Page 14 Zoom in : Magnify at 25% whenever clicking (Max. 1000%) Support AOW (Active Output Window) when Zoom in. Zoom out : Reduce at 25% whenever clicking (Min. 25%) Display window : Display the enlarged state and change to the assigned magnification Minimize : Minimizing the display and move to the taskbar Maximize : Change/Return to the full screen on the monitor...
  • Page 15 2) Drawing (Doing various works on the image and saving) When click the drawing on the Preview or image capture on the movies, showing the seeing captured image and can demonstrate the saved image by opening. Can make various tasks on the captured image like pen, highlighter, shape and etc., and erase the contents of writing sequentially by clicking Undo &...
  • Page 16 Open : Open the saved image Save : Save the written contents altogether Fullscr./Return : Convert the display at 4:3 or Full Undo : Cancel the drawing or figure by stage Redo : Return the drawing or shape by stage Pen : Select a normal pen Highlighter : Select a highlighted pen Color : Select the color at 10 stages...
  • Page 17 3) Learning (Reading ENG/KOR and saving the edited contents) When press the Learning in Preview and Drawing, it capturing image and obtaining it. By clicking the Learning while playing in Movies, capturing the seeing image and get it. To convert the letter of captured image to text, press the OCR at above function bar.
  • Page 18 When click the My Dic., My Dictionary (pronunciation dictionary) window will pops up. Change Korean and English to pronounce as I wished words. For Korean, the left is before changing and the right is the words after changing. [Example) Co. => Read as a Keompani] For English, [W-TEXT] is before changing and [W-READ] is the words after changing.
  • Page 19 The saved file in Learning is saved as a *. tec and available as a V.Book When click the V.Book, the text window change to the V.Book list window. Click Call or Add to add it to the list window. After checking v and if click the point where you want to read, the color will be reversed.
  • Page 20 Open : Open the saved image Save : Saving the converted text and image in the text window. OCR : Convert the whole or mouse-selected image to text(OCR) and saving it in the text window. My Dic. : Setting the specific words as user’s preferred pronunciation BGM : Play the set sound as a background music Cover : Make the quadrangle cover on the display.
  • Page 21 4) Movies (Playing the saved movies) Play and show the recorded movie in Preview mode or other movie. Play the movie by calling and the movie can be played at various speeds. When doing the image capture during play, move to the writing and do a variety of tasks.
  • Page 22 Open : Open the saved movies. Capture : Save the image of playing movies automatically (save as the set resolution) Full screen : Choose 4:3 or full Play : Play the opend movies. Pause : Pause playing the movies. When click the play, replay it from the stopped point. Stop : Stop paying the movies.
  • Page 23 II. Usage 3. Using on the Digital Video Presenter ▪ When power TTV-5.0 on, the image will be displayed on the LCD.
  • Page 24 ▪ TOPEX logo will be appeared on the LCD panel of TTV-5.0. When click the logo, the menu will be appeared.
  • Page 25 ▪ When click Composite/RGB(VGA )icon, the image will be transferred to the connected terminal. ▪ When click Embed/PC icon, the image will be transferred to the connected terminal.
  • Page 26 ▪ When click 'Open', can open the wished file. ▪ When click 'Setting', can choose the LED specification/Time Setup/Touch Calibration.
  • Page 27 ▪ After Zoom in and touch the screen, the scroll bar will be shown to move screen. ▪ When open the movie, the control icon as right side will be activated.
  • Page 28 ▪ When click the Tool, can execute the various functions of Video Presenter. ▪ When click the Drawing, can execute the writing function with outer monitor at the same time.
  • Page 29 III. Miscellaneous Precautions, handling, storage after use & etc. 1. Handling after use When cleaning the exterior, wipe it with a soft and dry cloth. Wipe the dust or fingerprint on the LCD with a soft cloth. Be careful do not water flew into the product. 2.

  • Page 30: Troubleshooting

    4. Troubleshooting Symptoms Check Check the USB connection is correct • Image is not displayed • Check the Power connection is correct • Check the cable is connected properly Picture is not displayed on the monitor • Check the selection of VGA and Composite •...

  • Page 31: Product Specifications

    5. Product specifications Items Specifications Camera Sensor 5 Mega Pixel CMOS Sensor Focus Auto focus Frame rate Max. 30 fps Exposure Auto exposure adjustment Color Auto white balance adjustment Frequency Auto anti-flicker adjustment Resolution Max. 2592 X 1944 Display Support A4 size Unit Memory GPIO...
  • Page 33 FAX : 031-852-2992 E-Mail : topex@topex.com • ©2011.8 TOPEX Corp. has the copyright of this operational manual and prohibited to using all or any parts of this manual without an advance consent. • Product or operational manual are subject to change without prior notice for the improvement of its functions.
