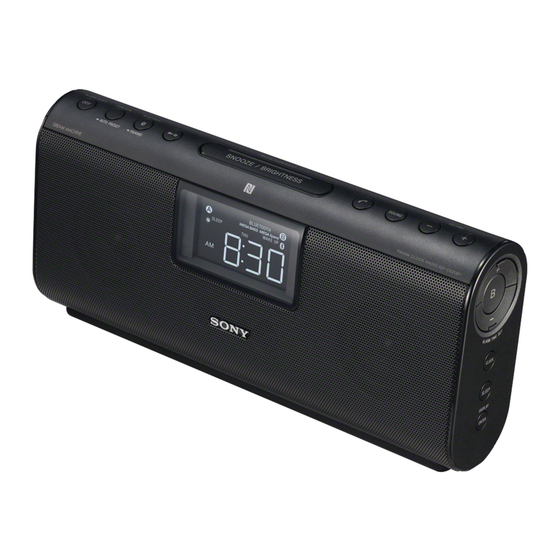

Sony ICF-CS20BT Operating Instructions

Personal Audio System
Operating Instructions
©2013 Sony Corporation Printed in China
ICF-CS20BT
English Personal Audio System
Setting the Clock
Before operating the system, please read this guide
thoroughly and retain it for future reference.
Setting the clock for the first time
On Copyrights and Licenses
This system is preset to the current date and time at the
The BLUETOOTH® word mark and logos are owned by
factory, and is powered by a backup battery. All you
the Bluetooth SIG, Inc. and any use of such marks by
need to do the first time is just plug it in and select your
Sony Corporation is under license.
time zone.
The N Mark is a trademark or registered trademark of
NFC Forum, Inc. in the United States and in other
1 Plug in the system.
countries.
The current date and time appear in the display.
Android and Google Play are trademarks of Google Inc.
iPad, iPhone, iPod, iPod classic, iPod nano, iPod touch
2 Press and hold
and Mac are trademarks of Apple Inc. registered in the
until area number "0" or "1" begins to
U.S. and other countries.
flash in the display.
Lightning is a trademark of Apple Inc.
"Made for iPod," and "Made for iPhone" mean that an
3 Press
electronic accessory has been designed to connect
specifically to iPod or iPhone, respectively, and has been
the number as follows:
certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of
Area number
this device or its compliance with safety and regulatory
0
standards. Please note that the use of this accessory
with iPod or iPhone may affect wireless performance. (default setting for
customers in the UK)
No Power No Problem is a trademark of Sony
Corporation.
1
Auto Time Set is a trademark of Sony Corporation.
(default setting for
Other trademarks and trade names are those of their
customers in Europe)
respective owners.
2
Notes
ˎ This system is not specified for use with an iPad via ˎ
USB connection, and malfunction may result if used
with one. 3
ˎ In the Operating Instructions, "iPod" is used as a
ˎ
4
general reference to functions on an iPhone, iPad or
iPod, unless otherwise specified by the text or
5
illustrations.
4
Precautions Press
Notes
Note when using with a mobile phone
ˎ To cancel the time zone setting, press OFF  instead of ˎ
ˎ For details on operation of your mobile phone when ˎ DISPLAY/ENTER  in step 4.
ˎ Though the clock is correctly set at the factory, discrepancies ˎ
receiving a telephone call while transmitting the
may arise during transport or storage. If necessary, set the clock
sound using the BLUETOOTH connection, refer to the
to the correct time by referring to "Setting the clock manually."
operating instructions supplied with the mobile
ˎ Only customers in the UK can set the system to Gulf Standard ˎ
phone.
Time or Hong Kong Time.
Notes on the AC plug
When daylight saving time (DST/summer
ˎ Plug the AC plug into a nearby wall outlet. In the case
ˎ
time) begins
of a problem, unplug it from the wall outlet
immediately.
This system automatically adjusts for daylight saving
ˎ Do not twist or place heavy objects on the AC plug ˎ
time (summer time).
cord.
" " lights up from the beginning of daylight saving time
ˎ To disconnect AC power, grasp the plug itself, not the ˎ
(summer time) and turns off at the end of the daylight
cord.
saving time (summer time) automatically.
Auto DST/summer time adjustment is based on GMT
On placement
(Greenwich Mean Time).
ˎ Do not set the speaker in an inclined position. ˎ
Area number 0:
ˎ Do not leave the system in a location near heat ˎ
ˎ Daylight saving time (summer time) begins at: 1:00 ˎ
sources, or in a place subject to direct sunlight,
AM on the final Sunday of March.
excessive dust, moisture, rain or mechanical shock.
ˎ Standard time begins at: 2:00 AM on the final Sunday ˎ
of October.
On operation
Area number 1:
ˎ Do not insert any small objects, etc., into the jacks. ˎ
ˎ Daylight saving time (summer time) begins at: 2:00 ˎ
The system may short out or malfunction.
AM on the final Sunday of March.
On cleaning
ˎ Standard time begins at: 3:00 AM on the final Sunday ˎ
of October.
ˎ Do not use alcohol, benzine, or thinner to clean the ˎ
cabinet. Area number 2:
ˎ Daylight saving time (summer time) begins at: 3:00 ˎ
Others
AM on the final Sunday of March.
ˎ If you have any questions or problems concerning this ˎ
ˎ Standard time begins at: 4:00 AM on the final Sunday ˎ
system that are not covered in this manual, please
of October.
consult your nearest Sony dealer.
To cancel Auto DST/summer time adjustment
during the daylight saving time (summer
Ô Getting Started ˎ
time) period
The Auto DST/summer time adjustment can be
cancelled.
While the clock is displayed, press and hold OFF  and
Connecting to a Power
DISPLAY/ENTER  until " " and "OFF" light up in the
display. Auto DST/summer time adjustment has been
Source
cancelled, then the display returns to the clock.
To activate Auto DST/summer time adjustment again,
press and hold OFF  and DISPLAY/ENTER  until " "
1 Plug the AC plug  into a wall outlet
and "On" light up in the display.
firmly.
Note
ˎ Changes to Auto DST/summer time adjustment by the system ˎ
About the battery as a backup (see above) are subject to circumstances and laws in each
country/region. Should this interfere with desired adjustment,
cancel the Auto DST/summer time adjustment and set the DST
power source
display manually as necessary. Customers living in a country/
region that does not use daylight saving time (summer time)
This system contains a CR2032 battery as a backup power
must cancel Auto DST/summer time adjustment before using
source to keep the clock and the alarm operating during a
the system.
power interruption. (No Power No Problem system)
Note on Moscow Standard Time, Gulf
Note for customers in Europe
Standard Time, and Hong Kong time
The clock is preset at the factory, and its memory is
When Moscow Standard Time, Gulf Standard Time, or
powered by the preinstalled Sony CR2032 battery. If
Hong Kong time is set, Auto DST/ summer time
"0:00" appears in the display when the system is
adjustment defaults to off. If you wish, you can turn it
connected to a wall outlet for the first time, the battery
on by the above operation. The beginning and the end
may be weak. In this case, consult a Sony dealer. The
of daylight saving time (summer time) will be the same
preinstalled CR2032 battery is considered part of the
as area number 1.
product, and is covered by the warranty. You are
required to show "Note for customers in Europe" (in this
instruction) to a Sony dealer in order to validate the Setting the clock manually
warranty for this product.
To change the clock setting manually, operate the
Note for customers in the UK
system as follows.
The clock is preset at the factory, and its memory is 1
Plug in the system.
powered by the preinstalled Sony CR2032 battery. If the
"AM 12:00" appears in the display when the system is 2
Press and hold
connected to a wall outlet for the first time, the battery
digits begin to flash in the display.
may be weak. In this case, consult a Sony dealer. The
preinstalled CR2032 battery is considered part of the
3 Press
product, and is covered by the warranty. You are
the year, and then press
required to show "Note for customers in the UK" (in this
instruction) to a Sony dealer in order to validate the confirm.
warranty for this product.
Press and hold ALARM TIME SET +/–  to change
the year digits quickly.
CAUTION
Once you confirm the setting by pressing CLOCK ,
the month digits begin to flash.
When to replace the battery
4 Repeat step 3 to set the month, day,
When the battery becomes weak, "" lights up in the
hour and minute.
display.
If a power interruption occurs while the battery is weak, The seconds start incrementing from zero.
the current time and alarm will be erased.
Notes
Replace the battery with a Sony CR2032 lithium battery.
ˎ If you do not press any button for about 1 minute while setting ˎ
Use of another battery may cause a fire or explosion.
the clock, the clock setting will be cancelled.
To replace the battery, see "Replacing the Battery" for
details.
4-468-398-13(1)
ˎ A 100-year calendar (2013 - 2112) is installed in the system. ˎ
When the date is set, the day of the week is automatically
displayed.
MON = Monday, TUE = Tuesday, WED = Wednesday,
THU = Thursday, FRI = Friday, SAT = Saturday, SUN = Sunday
To change the time format
You can choose the displayed time format between the
24-hour system (default for customers in Europe) or the
12-hour system (default for customers in the UK).
Press and hold OFF  and SNOOZE/BRIGHTNESS 
for about 2 seconds.
The time format toggles between the 24-hour system
("0:00" = midnight) and the 12-hour system ("AM 12:00"
= midnight).
To display the year and date
While the clock is displayed, press CLOCK  once to
display the date and month, and press again to display
the year. To return to the current time display, press
CLOCK  once again; or after a few seconds the
display will return automatically.
Connecting the AM Loop
Aerial
The shape and length of the aerial is designed to
receive AM signals. Do not dismantle or roll up the
aerial.
1 Raise the plastic stand and fit the aerial
OFF  and CLOCK 
into the slot of the stand.
ALARM TIME SET +/–  to select
Time zone
Western European Time/
Plastic stand
Western European
Summer Time
Central European Time/
2
Insert the AM aerial connector in the
Central European Summer
Time AM ANTENNA
system.
Eastern European Time/
Eastern European
Summer Time
Moscow Standard Time
Gulf Standard Time
Hong Kong Time
DISPLAY/ENTER  to confirm.
To remove the AM loop aerial
Push and hold down the tab of the aerial terminal
clamp, and remove the AM loop aerial.
How to Make Wireless
Connection with BLUETOOTH
Devices
You can enjoy music and hands-free calling with the
system wirelessly by using your device's BLUETOOTH
function.
Choose one of the following three connection methods,
best suited for the BLUETOOTH device. For details on
how to operate your device, refer to the operating
instructions supplied with the device.
Pairing with a BLUETOOTH device: see
Pattern A
BLUETOOTH devices need to be "paired" with each other
beforehand.
Connecting with a paired device: see
Pattern B
To listen to music with a BLUETOOTH device that has
been paired, see this pattern.
One-touch connection with a
smartphone (NFC):
see
Pattern C
Using an NFC compatible smartphone, you can establish
BLUETOOTH connection by just touching the system
with it.
For details about NFC, see "About NFC" in Pattern C .
Check the following before operating the system.
ˎ Both the system and the device are placed within 1 m ˎ
of each other.
ˎ The system is connected to a power source. ˎ
ˎ The operating instructions supplied with the device ˎ
are kept at hand.
Pattern A
Pairing and connecting with a
BLUETOOTH device
1 Set the BLUETOOTH function of the
BLUETOOTH device to on.
For details, refer to the operating instructions
supplied with the device.
2
Press and hold
 on the system until beeps are heard
and " (BLUETOOTH)" begins to flash
quickly in the display.
Tip
ˎ From the factory, pairing information is not stored in the ˎ
system. In this case, if you only press
PAIRING , "
(BLUETOOTH)" starts flashing quickly in the
display.
CLOCK  until the year
ALARM TIME SET +/–  to select
CLOCK  to
Connecting cord
(not supplied)
USB cable* (not supplied)
* USB cable: Use the Lightning to USB
Cable or Dock Connector to USB Cable
supplied with your iPhone/iPod.
3
Perform the pairing procedure on the
BLUETOOTH device to detect the
system.
If "SONY: ICF-CS20BT" does not appear on the
device's display, repeat from step 1.
Note
ˎ Some devices cannot display a list of detected devices. ˎ
4 Select "SONY: ICF-CS20BT" shown in the
display of the BLUETOOTH device.
5 If Passcode* input is required on the
display of the BLUETOOTH device, input
"0000."
The BLUETOOTH connection is established and "
(BLUETOOTH)" in the display stays on.
* Passcode may be called "Passkey," "PIN code," "PIN
number," or "Password."
Tip
ˎ To pair with other BLUETOOTH devices, repeat steps 1 to 5 for ˎ
each device.
Notes
ˎ Pairing mode of the system is cancelled after about 5 minutes, ˎ
and " (BLUETOOTH)" in the display flashes slowly. If the
pairing mode is cancelled while performing this procedure,
start over from step 2.
ˎ Passcode of the system is fixed as "0000." The system cannot ˎ
be paired with a BLUETOOTH device whose Passcode is not
"0000."
ˎ Once BLUETOOTH devices are paired, there is no need to pair ˎ
those devices again. However, in the following cases, you will
need to perform the pairing procedure again.
ˋ Pairing information is deleted after repair, etc. ˎ
ˋ The system is paired with 5 or more devices. ˎ
The system can be paired with up to 4 BLUETOOTH devices. If
a new device is paired after 4 devices have been paired, the
device whose latest connection time is the oldest among the
4 paired devices is replaced by the new one.
ˎ More than one device can be paired with the system, but sound ˎ
will be heard from just one of those devices.
Pattern B
Press the aerial
into the stand Connecting with a paired
until it clicks.
BLUETOOTH device
1
Set the BLUETOOTH function of the
jack  on the rear of the
BLUETOOTH device to on.
Tips
ˎ When ˎ BLUETOOTH  is pressed, the system tries to
establish BLUETOOTH connection with the BLUETOOTH
device connected to the system last time. The BLUETOOTH
connection is established and "
display stays on.
ˎ When " ˎ
(BLUETOOTH)" lights up in the display, the system
is connected to a BLUETOOTH device. When you want to
connect another BLUETOOTH device, terminate the current
BLUETOOTH connection first by operating the connected
BLUETOOTH device.
2
Select "SONY: ICF-CS20BT" shown in the
display of the BLUETOOTH device.
If necessary, select a BLUETOOTH profile that the
system supports from the following: A2DP, HSP or
HFP. For details on each profile, see "Listening to
Music by BLUETOOTH Connection with a
Smartphone, etc." or "Using Hands-free Calling While

Listening to Music."

Note
ˎ This step may not be necessary for some devices. ˎ
The BLUETOOTH connection is established and "
(BLUETOOTH)" in the display stays on.
Pattern C
Connecting with a smartphone by
One touch (NFC)
By just touching the system with an NFC compatible
smartphone, the system pairs and connects with the
smartphone. (After making the BLUETOOTH connection,
the system switches to the BLUETOOTH function
automatically.)
Compatible smartphones
ˎ Smartphones with the NFC function built-in
ˎ
(OS: Android 2.3.3 or later, excluding Android 3.x)
Customers in Europe
Access the following Web site for details:
http://support.sony-europe.com
About NFC
NFC (Near Field Communication) is a technology
enabling short-range wireless communication between
various devices, such as mobile phones and IC tags.
Thanks to the NFC function, data communication can be
achieved easily just by touching the relevant symbol or
designated location on NFC compatible devices.
1
Set the NFC function of the smartphone
to on.
For details, refer to the operating instructions
supplied with the smartphone.
ˎ If your smartphone OS is Android 2.3.3 or later, ˎ
and less than Android 4.1: proceed to step 2.
ˎ If your smartphone OS is Android 4.1 or later: ˎ
proceed to step 4.
2
Download and install the app "NFC Easy
Connect" on the smartphone.
"NFC Easy Connect" is an original app by Sony for
Android phones, and is available at Google Play
Store.
Search for "NFC Easy Connect" or scan the following
two-dimensional code to download and install the
BLUETOOTH PAIRING
free app. Communication fees are required to
download the app.
The App may not be available in some countries
and/or regions.
Tip
ˎ For some smartphones, One-touch connection may be ˎ
available without downloading the app "NFC Easy
BLUETOOTH
Connect." In that case, the operation and specifications
may be different from the description here. For details, refer
to the operating instructions supplied with the
smartphone.
By the two-dimensional code:
Use a two-dimensional code reader app.
3 Start the app "NFC Easy Connect" on the
smartphone.
(BLUETOOTH)
Make sure that the application screen is displayed.
flashes quickly
4
Touch the system with the smartphone.
Keep touching the smartphone on the N marked
part of the system until the smartphone responds.
Note
ˎ If the screen of your smartphone is locked, the smartphone ˎ
will not function. In this case, release the lock, then touch
the smartphone on the N marked part again.
Smartphone responds (system recognized)
(BLUETOOTH)
lights up
Follow the on-screen instructions to establish the
connection.
The BLUETOOTH connection is established and "
(BLUETOOTH)" in the display stays on.
Tips
ˎ If it is difficult to establish the connection, try the following. ˎ
ˋ Activate the app "NFC Easy Connect" and move the ˎ
smartphone slightly on the N marked part of the system.
ˋ If the smartphone is in a case, remove it. ˎ
ˎ Touch the system with the smartphone again to ˎ
disconnect.
ˎ If you have multiple NFC compatible devices, just touch the ˎ
smartphone to a different device to switch the connection
to that device. For example, when your smartphone is
connected with NFC compatible headphones, just touch
the smartphone to the system to change the BLUETOOTH
connection to the system.
Indications of the BLUETOOTH
function
Status Display
BLUETOOTH function "BLUETOOTH" lights up
Pairing with a device " (BLUETOOTH)" flashes
quickly
Searching for a device " (BLUETOOTH)" flashes
Connected to a device " (BLUETOOTH)" lights up
Ô Listening to Music ˎ
Listening to Music by
BLUETOOTH Connection
with a Smartphone, etc.
You can enjoy listening to music and basic remote
control operation of a BLUETOOTH device via
BLUETOOTH connection. The BLUETOOTH device is
required to support the following BLUETOOTH profiles.
ˎ A2DP (Advanced Audio Distribution Profile): enables
ˎ
you to enjoy high-quality audio content wirelessly.
ˎ AVRCP (Audio Video Remote Control Profile): enables
ˎ
you to enjoy basic remote control operation (play,
stop, etc.) of a BLUETOOTH device.
Operations may vary depending on the BLUETOOTH
device. Refer also to the operating instructions supplied
with your BLUETOOTH device.
1 Make the BLUETOOTH connection
between the system and the device.
For details on the BLUETOOTH connection procedure,
see "How to Make Wireless Connection with
BLUETOOTH Devices." The BLUETOOTH connection is
established and " (BLUETOOTH)" in the display
stays on.
2 Start playback on the BLUETOOTH
device, then adjust the volume.
Set the volume of the BLUETOOTH device to a
moderate level, and press VOLUME –/+  on the
system.
After use
(BLUETOOTH)" in the
Do any of the following to terminate the BLUETOOTH
connection.
ˎ Set the BLUETOOTH function of the BLUETOOTH ˎ
device to off. For details, refer to the operating
instructions supplied with the device.
ˎ Turn off the BLUETOOTH device.
ˎ
ˎ Touch the system with the smartphone again to ˎ
disconnect (NFC compatible smartphones only).
System button functions during music
playback
You can operate a BLUETOOTH device that supports
AVRCP. Available functions may vary depending on the
BLUETOOTH device. Refer to the operating instructions
supplied with the BLUETOOTH device.
Buttons Functions
 (play/pause)  Press once to pause/resume
playback.
/ (forward/ Press once to skip to the
rewind)  next/previous track.
Press to adjust the volume.
VOLUME –/+ 
Listening to Music by Wired
Connection
Listening to Music via USB
Connection with an iPhone/iPod
You can enjoy listening to music and play back an
iPhone/iPod connected to the system via USB.
Update your device to the latest software version before
use.
1 Connect the iPhone/iPod to the  (USB)
port  on the rear of the system using
the USB cable* (not supplied).
2 Press FUNCTION  to select "USB."
Press FUNCTION  repeatedly until "USB" lights up
in the display.
3
Start playback on the connected
iPhone/iPod, then adjust the volume.
Set the volume of the connected iPhone/iPod to a
moderate level, and press the VOLUME –/+  on
the system.
* USB cable: Use the Lightning to USB Cable or Dock
Connector to USB Cable supplied with your iPhone/
iPod.
Notes
ˎ When a USB device other than an iPhone/iPod is connected to ˎ
the system, only charging begins automatically.
ˎ Do not connect the multiple devices to the  (USB) port  of ˎ
the system.
After use
Press FUNCTION  or OFF  to deactivate the USB
function.
System button functions during music
playback
Buttons Functions
Press once to pause/resume
 (play/pause) 
playback.
ˎ Press once to skip to the ˎ
/ (forward/
rewind)  next/previous track.
ˎ Press and hold to ˎ
fast-forward/fast-rewind.
VOLUME –/+  Press to adjust the volume.
Listening to Music by Wired
Connection with a Portable Audio
Device, etc.
You can enjoy sound from the external device, such as a
portable digital music player, through the speaker of
this system. Be sure to turn off the power of the device
before making any connections.
1 AUDIO IN
Connect the device to the
 on the rear of the system using the
connecting cord (not supplied).
2 Press FUNCTION  to select "AUDIO IN."
Press FUNCTION  repeatedly until "AUDIO IN"
lights up in the display.
3
Start playback on the connected device,
then adjust the volume.
Set the volume of the connected device to a
moderate level, and press the VOLUME –/+  on
the system.
After use
Press FUNCTION  or OFF  to deactivate the AUDIO
IN function. To stop playback on the connected device,
operate the connected device.
Notes when connecting the device by
wired connection
ˎ The necessary type of cable or connecting cord depends on the ˎ
device. Be sure to use the correct type of cable or cord.
ˎ When you watching TV or listening to the radio with a device ˎ
connected to the system, the reception may be poor.
ˎ When you listen to the radio with a device connected, turn off ˎ
the connected device to prevent noise. If noise occurs, even
when the device is turned off, disconnect and place the device
away from the system.
Tip
ˎ You can use hands-free calling while the cable or connecting ˎ
cord is used with this system.
Listening to Radio
Presetting the radio stations
automatically - Auto preset tuning
You can preset receivable radio stations in your area
automatically by auto preset tuning. You can preset up
to 20 FM stations and 10 AM stations.
1 FUNCTION  to select "FM" or
Press
"AM."
Press FUNCTION  repeatedly until "FM" or "AM"
lights up in the display.
2 Press and hold FUNCTION AUTO PRESET
 until "AP" begins to flash in the
display.
3 DISPLAY/ENTER .
Press
Receivable radio stations will be preset automatically
in order of frequency.
Tip
ˎ To cancel auto preset tuning, press OFF . ˎ
Listening to the radio from preset
radio stations
You can listen to the radio simply by selecting a preset
number. Although radio frequencies are preset at the
factory, we recommend you to preset receivable radio
stations in your area by auto preset tuning.
1 FUNCTION  to select "FM" or
Press
"AM."
Press FUNCTION  repeatedly until "FM" or "AM"
lights up in the display.
2 MODE  to select "PRESET."
Press
3 Press PRESET +/–  to select the preset
number for the desired radio station.
4 VOLUME –/+
Press  to adjust the
volume.
To display the preset number and the
frequency when listening to radio
Press DISPLAY/ENTER  once to display the preset
number, and press again to display the frequency of the
current station. To return to the clock display, press
DISPLAY/ENTER  once again; or after a few seconds
the display will return automatically.
After use
Press FUNCTION  or OFF  to deactivate the radio
function.
To improve reception
ˎ For FM radio reception, extend the FM wire aerial 
ˎ
fully to increase reception sensitivity.
ˎ For AM radio reception, connect the supplied AM loop
ˎ
aerial to the system. Rotate the aerial horizontally for
optimum reception.
ˎ If stereo FM reception is noisy, press and hold MODE ˎ
 until "MONO" lights up in the display. You will lose
the stereo effect, but noise will be reduced.
Listening to the radio by manual
tuning
1 FUNCTION  to select "FM" or
Press
"AM."
Press FUNCTION  repeatedly until "FM" or "AM"
lights up in the display.
2 MODE  to select "TUNING."
Press
3 TUNE +/–  until the
Press and hold
frequency digits begin to change
quickly in the display.
The system automatically scans the radio
frequencies and stops when it finds a clear station
(automatic tuning mode).
If you cannot tune to a station using the automatic
tuning mode, press TUNE +/–  repeatedly to
change the frequency step by step.
When an FM stereo broadcast is received, "ST" lights
up in the display.
4 VOLUME –/+  to adjust the
Press
volume.
To preset radio stations manually
You can manually preset a radio station which cannot
be preset automatically.
1
Tune to a station you want to preset.
2 Press and hold DISPLAY/ENTER  until
"PRESET" begins to flash in the display.
3 Press PRESET +/–  to select the preset
DISPLAY/ENTER
number, and then press
 to confirm.
The station is preset and assigned to the selected
preset number.
Example: The following displays appear when you
preset FM 89.8 MHz to preset number 2 for FM.
Tip
ˎ To cancel the preset number, press OFF  instead of DISPLAY/ ˎ
ENTER  in step 3.
Notes on radio reception
ˎ Do not place the AM loop aerial near the system, power supply ˎ
or other A/V equipment during use, as noise may result.
ˎ Keep digital music players or mobile phones away from the AM ˎ
loop aerial or the FM wire aerial , as this may lead to
reception interference.
ˎ When you are listening to radio with a BLUETOOTH device or ˎ
USB device connected to the system, interference with radio
reception may occur. In this case, terminate BLUETOOTH
connection, or disconnect the USB device from the system.
Tip
ˎ You can use hands-free calling while listening to the radio on ˎ
this system.
jack
