Summary of Contents for Ads Security A180 Series

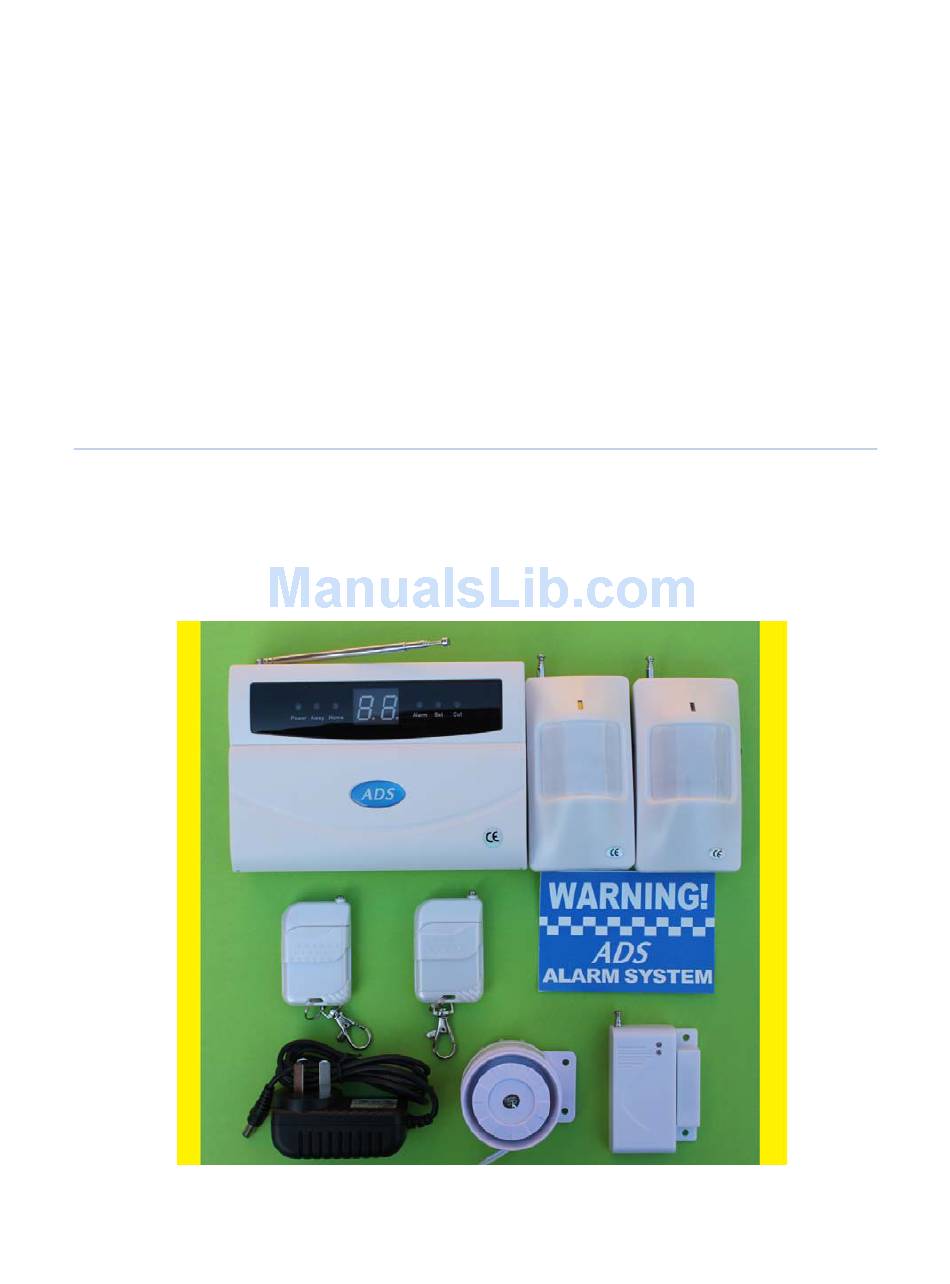

  • Page 1 MOUNTVIEW TECH AUSTRALIA PTY LTD Wireless Alarm system’s  manual  ADS‐A180 Series    ADS Security  1/11/2011         ...
  • Page 2 1.  Before You Begin                                                                                                         For  your  safety  and  the  safety  of  others,  and  to  ensure  that  you  get  the  most  out  of  the  wireless alarm kit, please read and adhere to these guidelines.  • Make sure product is fixed correctly and stable if fastened in place.  • Do not operate if wires and terminals are exposed.  • Do  not  put  the  alarm  main  panel  near  large‐scale  metal  objects  or  household  appliances with high‐frequency interference.   •...
  • Page 3 ADS‐A180 main panel  The main panel is the heart of the wireless alarm system. It is responsible for monitoring the  various sensors throughout your home and or triggering the alarm signal when one of them  reports a disturbance.    1. Power light  2. Away light (away mode)  3. Home light (home mode)  4. Digital number screen  5. Alarm light (alarming)  6. Set light    7. Cut light  8. Set button  9. Code button  10. Record button  11. Panic button  12. Away button  13. Home button  14. Disarm button        Function  Signal  Interpretation Power LED  Not lit  The ON/OFF switch is OFF position  Without electricity Away LED  Always lit   Alarm system is on away mode  Home LED  Always lit  Alarm system is on home mode  Set LED  Always lit  Alarm system is on set mode  Cut LED  Always lit ...
  • Page 4 Away  Away mode  All detectors work (long press the away button to active)  Home  Home mode  Some detectors work and other not (long press the home  button to active)  Disarm    Used  to  disarm  the  wireless  alarm  system,  whichever  mode it is in. KEY IN the password first.   Window/door sensor  Door /windows sensors are extremely reliable, and will be triggered every time the door on  which they are mounted is opened.  When the two parts of the sensor are extremely  close  to  one  another  (ideally  touching)  the  sensor  is  deactivated.  As  soon  as  the  two  parts  are ...
  • Page 5 garages  may  be  large enough  that one sensor cannot  cover  that  whole  area –  we suggest  testing this in the actual environment if there’s any doubt.  The sensor has a horizontal 110° vertical 60° field of view. The main blind spots are above,  below or behind the sensor itself.  Typically, the ideal placement in an environment  is  the  upper  corner  of  a  room,  facing  slightly  towards  the  ground  (perhaps  20‐25°,  depending  on the height of the sensor). Try to cover typical  paths  through  the  room,  focussing  particularly  on likely entry and exit points. If the room has several entry points, try to cover as many of  these as practicable.  A visible PIR motion sensor can be a great deterrent to intruders – but on the other hand,  skilled intruders can avoid obviously visible sensors. Try to mix it up a bit.   ...
  • Page 6 Wireless keypad  The wireless keypad is the electronic  key  as  same  as  remote  control.  The  keypad  will  be  a  better  solution  for  large family or business user.   *  /  Away:      Arm  away  mode.  (All  detectors work)   # / Home:  Arm home mode. (Some  detectors work and other not)  0/  Disarm:    Used  to  disarm  the  wireless alarm system, whichever mode it is in.  Keypad  is  locked  automatically  for  power  saving.  Please  press  the  [*]  key  to  unlock.  To  operate ...
  • Page 7: Installation

    7. inner Circuit Board      3.  INSTALLATION  Open the alarm kit and determine where each piece is to be located. The PIR sensors usually  mounted  high  on  a  wall  and  directed  into  the room  requiring  protection  such  as a  lounge  room or hallway. The main panel is usually located somewhere within 1 meter of a power  point. The sensors must not be located more than 80 metres from the main panel.  Installing the ADS‐A180 main panel:   Connect  the  power  supply,  telephone  line,  internal  siren,  and  antenna.  Switch  ON/OFF  to  ON position. Remember: test the whole system before you fasten them on the position.   Installing  wireless  PIR  sensors:    Installation  height  is  about  2.2  meters  above  ground  and  you need consider the best coverage. (Ref: page3) ...
  • Page 8 CODE mode:  Key  in  password  then  presses  the  CODE  button.  You  can  code  thee  wireless  accessories  under this CODE mode.  Press the CODE button to return. System will return automatically if  there is no operation in 30 seconds during CODE mode condition.  RECODE mode:  Key in password then presses the RECODE button. Press 1 for 10 seconds message record,  press  2  to  listen  what  you  have  recoded,  press  the  RECODE  button  to  return.  System  will  return automatically if there is no operation in 30 seconds during RECODE mode condition.  The alarm system doesn’t have inner microphone you will need telephone’s help.  Code/ Register the wireless Accessories:   Has two ways to code the wireless accessories. One way is under CODE mode. Another way  is under SET mode.   1.
  • Page 9 Set inner defence zone for home arm mode:  Choose one or few zone for special home arm function. Please code the wireless detectors  and sensors into the special zone if those detectors and sensors will not work during home  arm  mode.  The  zone  number  can  be  any  two  digital  numbers  between  01  and  90.  The  command pattern is:  29 * [Zone NO] * 1 #  For  example:  there  are  3  PIR  sensors  located  in  zone  11,  zone  12  and  zone  13.  Sensor  in  Zone 12 will not work during home arm mode. We can use the command: 29 * 12 * 1 #  Set inner defence zone for delay alarm function:  Choose ...
  • Page 10 command  function  parameter details 11  Phone number 1  Phone number 1  12  Phone number 2  Phone number 2  13  Phone number 3  Phone number 3  14  Phone number 4  Phone number 4  15  Phone number 5  Phone number 5  16  Phone number 6  Phone number 6  17  Phone number 7    monitoring  centre’s  phone  number  21  Code  the  wireless  01,02,03……90 90 zones accessories  Can  have  160  wireless  accessories in one zone.   ...
  • Page 11: Ademco Contact Id

    34  Delay time to alarm  1‐99 1 second – 99 seconds  35  Delay time to arm  1‐99 1 second – 99 seconds  41  ADEMCO CONTACT ID Choose  the  ADEMCO  CONTACT ID  42  User ID    4 digital number  43  Set the sub‐ID    2 digital number    5. Operate in long distance  ‐ call in the ADS‐A180 alarm system and hear one long beep ( Hear recorded voice message  first if alarm system call you).   ‐ key in password and #, ( one long beep for incorrect password, two short beeps for correct  password. The system will hang up after receiving 3 times incorrect password).  ‐  key in [command]  Operate in long distance commands table:  Command  Function  1  Arm (one beep if successfully) 2  Disarm (one beep if successfully)  3   Siren sounds for 3 seconds *  Listen in for 30 seconds. Key in * for continue.  # ...
  • Page 12: Technical Parameters

    • siren plug or jack in short  • repair or change plug or jack 6.  siren without  • change the jack line  sound  circuit or broken‐line  • siren out of order  • activate siren by command  • closed siren by command  • use another siren to double  • positive and ground wires of  check  • reverse the wires to try  siren reversed  • a nearby emitter is sending  • move one detector next to  7.  the transmission  distance of  signal  panel and try  • Panel receiver stoppage  • identify the interfering  detector to panel  • standby battery of the Panel  shorten ...
  • Page 13 Wireless P.IR Detector:  Power Supply: DC9V (inner 9V battery)  Static Current: ≤100 mA   Transmission Current: ≤20mA  Frequency: 433MHZ  Transmission Distance: less 80M  Detective Speed: 0.3 ‐ 3m/s  Detective Distance: 5 – 12M  Detective Range:  Horizontal 110° Vertical 60°  ℃ ℃  Working Condition: Temperature –10  + 40  Humidity ≤ 90 rh    Remote Control:  Power Supply: DC12V (inner DC12V battery)  Transmission Current: ≤15mA  Frequency: 433MHZ or 315MHZ  Transmission Distance: less 80M              After sale support for ebay buyer                   EMAIL: estore3150@gmail.com                        12 ...
