O w n e r ' s M a n u a l

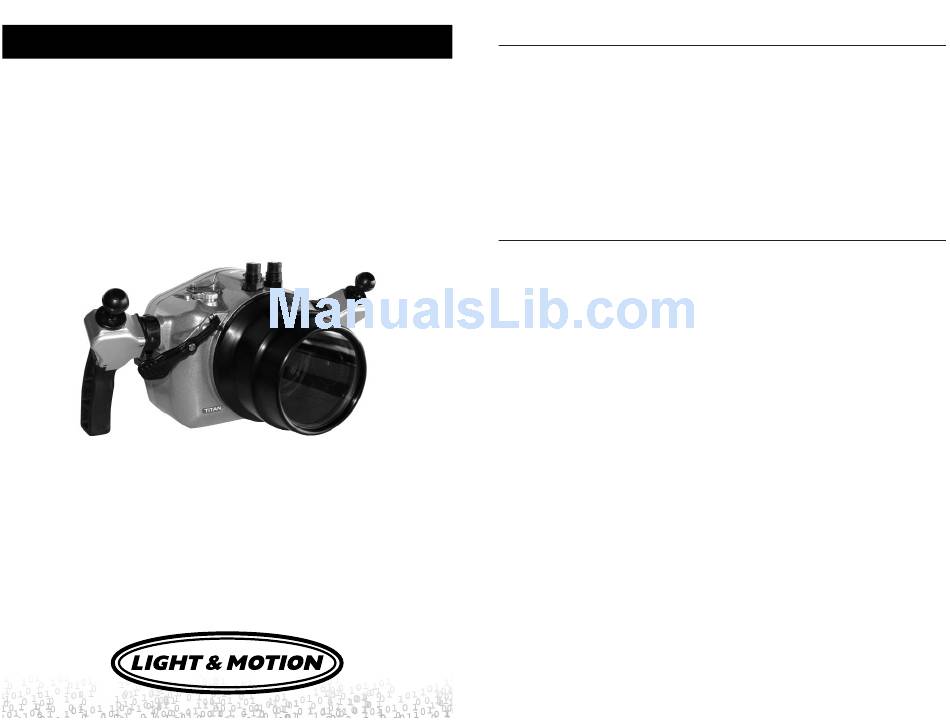

TITAN D100
www.uwimaging.com
Standard Warranty
Light & Motion provides a limited warranty to the original purchaser against all defects in
original workmanship and material, under normal use and service, for one year from the
date of purchase, with the following exceptions: Lamps are warranted for 30 days, batteries
are warranteed for 90 days, and battery chargers are warranteed for use only in the US and
Canada. Using a battery charger in conjunction with a voltage converter is NOT considered
normal use and chargers are not warranteed under such conditions. Light & Motion will not
be liable for any further loss, damages, or expenses, including incidental or
consequential damages directly or indirectly arising from the sale or use of this product.
Products not manufactured by Light & Motion, such as strobes and strobe arms, are not cov-
ered under the Light& Motion warranty. These products are covered by the Terms and
Conditions set forth by their respective manufacture.
Fault Free Warranty (Optional)
For 24 months from warranty purchase date this product is warranteed against any physical
damage or harm, from any cause, regardless of the fault of purchaser, limited only by
intentional damage. During the Fault-Free Warranty period, any damage to or defects in
this product will be repaired and any adjustments needed for the product to conform full to
factory prescribed standards will be made, without charge. At our option, the product will
be replaced without charge (but only once during the Fault-Free Warranty period, and only
if the serial number is recognizable). If the product is replaced under the Fault-Free
Warranty due to customer negligence or internal disruption of the product, the replacement
product will be covered only by the Extended Warranty (up to the end of the original Fault-
Free Warranty period). Also included in the Fault-Free Warranty is one Light & Motion
Annual Service.
These warranties extend only to the original purchaser through Light & Motion or an
authorized dealer.
The Fault-Free Warranty does not cover the following:
Loss of product as the result of theft, misplacement, or other cause. Accessories, monitors,
accessories lenses and pointer lights, chargers, parts such as lamps, O-rings, and batteries
that are wear items. Damage due to tampering or repair by a non-authorized shop or
person. Import duties, customs clearance fees, and general expenses involving shipping to
Light & Motion. Light & Motion reserves the right to choose the return shipping method of
warranted products. Expedited shipping charges are purchaser's responsibility.
The expressed warranty set forth herein is in lieu of all other warranties expressed or
implied, including without limitation any warranties of merchantability or fitness for a
particular purpose, and all such warranties are hereby disclaimed and excluded by the
manufacturer. Repair or replacement of defective items as provided above is the sole and
exclusive remedy provided hereunder. Light & Motion will not be liable for any further loss,
damages, or expenses, including incidental or consequential damages directly or indirectly
arising from the sale or use of this product.
The Titan D100 Fault Free Warranty is $300. Contact your Light & Motion reseller
or Light & Motion directly to activate your Fault Free Warranty.
Advertisement
Table of Contents
Related Manuals for Light & Motion TITAN D100
Summary of Contents for Light & Motion TITAN D100
- Page 1 The Titan D100 Fault Free Warranty is $300. Contact your Light & Motion reseller or Light & Motion directly to activate your Fault Free Warranty.
-
Page 2: Table Of Contents
Titan D100 Accessories ........ -
Page 3: Getting Started
Battery Board, you can use the mechanical shutter for auto-focus. You received two battery boards with your Titan D100 housing. One is a spare and can be stored inside the Titan’s rear plate (Fig. 7 & 8). -
Page 4: Installing The D100
(Fig. 1) (Fig. 2) (Fig. 3) (Fig. 4) (Fig. 5) (Fig. 6) (Fig. 7) (Fig. 8) Installing the D100 Remove the rear plate by holding both latch locks in and simultaneously rotating both latches down and rearward of the housing body (Fig. 9). Remove the camera tray. -
Page 5: Titan D100 Controls
(Fig. 12) (Fig. 13) (Fig. 14) (Fig. 15) (Fig.16) Titan D100 Controls Top Controls Mode Dial (Fig 17): Accesses the camera’s Mode Dial. Use the Mode Dial to select camera’s exposure mode. Use the Mode Dial to select the following settings: ISO - White Balance - Image Size - Image Quality - AF Area Mode On Dial (Fig. - Page 6 (Fig. 17) (Fig. 18) (Fig. 19) (Fig. 20) (Fig. 21) (Fig. 22) (Fig. 23) (Fig. 24) Front Controls Shutter Lever: Accesses the camera’s shutter button (Fig. 27). The Shutter Lever also activates the camera’s auto focus when depressed half way.When depressed fully, the camera will take a photo. Focus Mode Selector (Fig.
-
Page 7: Attaching Strobes
(Fig. 25) (Fig. 26) (Fig. 27) (Fig. 28) (Fig. 29) (Fig. 30) (Fig. 31) (Fig. 32) Attaching Strobes The Titan housing is supplied with two 1” Base Ball Mounts (Fig. 31). Most ball style clamps for strobe arms can readily attach to these base mounts (Fig. 32). Installing Bulkheads Remove bulkhead cap by inserting a coin into the slot in the cap and turning counter clock wise. -
Page 8: Pre-Dive Checklist
ROC allows the power levels for each strobe to be controlled independently or together. In addition to the unique strobe control, the Titan D100 handles also offers electronic Auto-Focus, Auto Focus Lock, Area Focus Selection, and control of Command Dials. - Page 9 (Fig. 33) (Fig. 34) Press together and hold Press either button to move to enter programming mode. ROC LED position. (Fig. 35) (Fig. 36) – -1 = Ikelite 200 – -2 = Ikelite 100 – -3 = Nikonos SB-105 – -4 = Sea &...
-
Page 10: Changing D100 Lenses
Continue holding the Focus button and pressing the Sub - button to scroll through the focus zones of the camera. Changing D100 Lenses The Titan D100 has a lens release mechanism that allows you to change camera lenses with the camera inside the Titan housing. Remove the Titan port. -
Page 11: Replacing Roc Handle Batteries
(Fig. 48) (Fig. 49) (Fig. 50) (Fig. 51) (Fig. 52) (Fig. 53) (Fig. 54) Installing Mod Light Installing Sunray Mod Light (Optional) Identify the appropriate parts in the Titan mounting kit included with the Mod Light. Titan Kit includes the following. Hex screw, split washer, metal washer, 1/2”... -
Page 12: Replacing Handle Thread Rings
(Fig. 55) (Fig. 56) (Fig. 57) (Fig. 58) (Fig. 59) Replacing Handle Thread Rings The Handle Thread Rings that attach the ROC handles (Fig. 57) to the Titan housing are designed to absorb shock should the Titan be dropped or fall. If the Handle Thread Rings experience extreme pressure, they will break and minimize potential damage to the Titan. -
Page 13: After Diving Care
Titan D100 Electronics Replacment Kit ..854-0152 Titan D100 Body Cap ......854-0148 Titan D100 Neoprene Dome Port Cover . -
Page 14: Returning Products For Care
Returning Products for Care We highly recommend a factory annual service to maintain prop- er operation of your Titan Housing Before returning your Light & Motion product for care, please call or email our service department for a RMA number. Ship your product pre-paid freight with the RMA number printed on the outside of the box.
