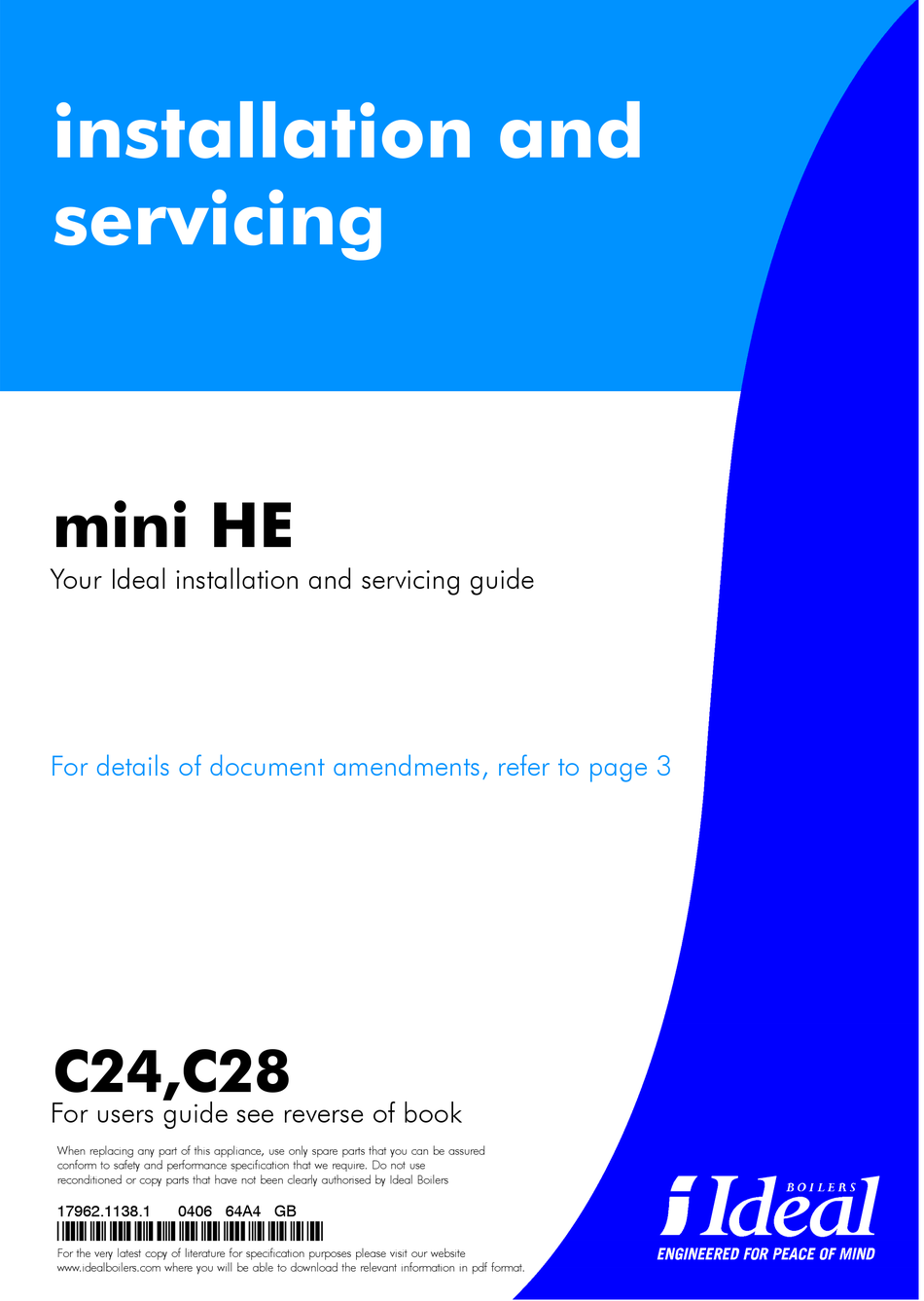

installation and
servicing
mini HE
Your Ideal installation and servicing guide
For details of document amendments, refer to page 3
C24,C28
For users guide see reverse of book
When replacing any part of this appliance, use only spare parts that you can be assured
conform to safety and performance specification that we require. Do not use
reconditioned or copy parts that have not been clearly authorised by Ideal Boilers
17962.1138.1
0406 64A4 GB
*1796211381*
For the very latest copy of literature for specification purposes please visit our website
www.idealboilers.com where you will be able to download the relevant information in pdf format.
