21"Colour TV/DVD Combo

Instruction Manual

Model FC2154TV/DVD

Please read these instructions carefully and retain for future reference.

Table of Contents

Need help?

Do you have a question about the FC2154TV/DVD and is the answer not in the manual?

Questions and answers

Summary of Contents for Foresee FC2154TV/DVD

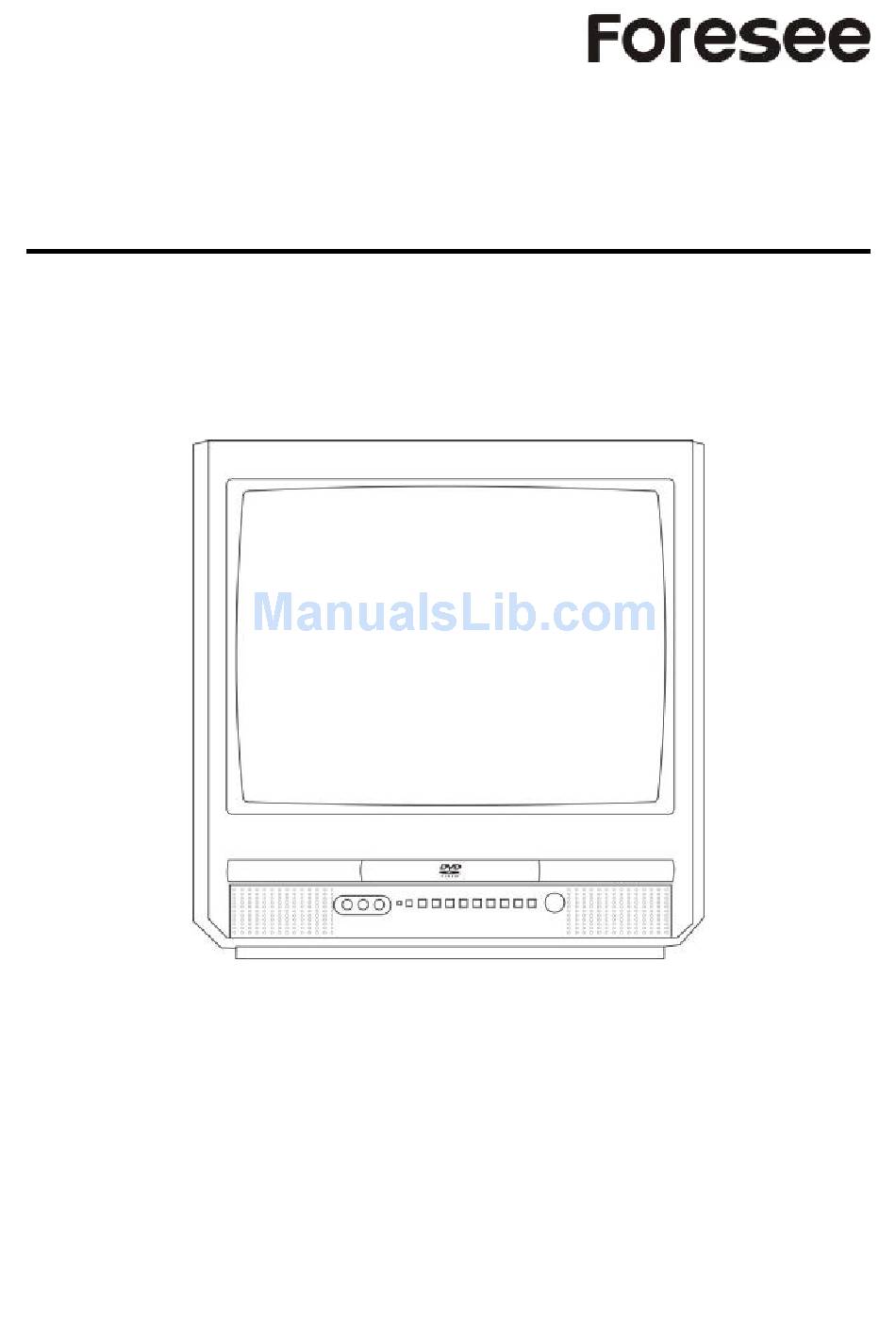

Page 1 21”Colour TV/DVD Combo Instruction Manual Model FC2154TV/DVD Please read these instructions carefully and retain for future reference.
Page 2 SYMBOLS The graphic symbols used in this manual or on the back cover of the set mean the following: Read this manual in full before use. This is a class II double insulated appliance The lightning flash symbol is intended to alert the user to the enclosures that contain hazardous voltages.
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS When using any electrical apparatus always observe safety regulations and use basic safety precautions to reduce the risk of fire, electric shock and personal injury, including the following Read, Keep and Follow these instructions, heeding all Warnings. CAUTION! This is a Class-1 laser product. This player uses a visible laser beam that could cause hazardous radiation exposure.
Page 4 This product incorporates copyright protection technology that is protected by U S patent rights. Use of this copyright protection technology must be authorised by the Macrovision, and is intended for home and other limited viewing use only unless otherwise authorised by Macrovision.
Page 5: Table Of Contents
CONTENTS Safety precautions Installation Front of the machine Remote Control Unit Antenna connection method TV Operation Picture menu DVD player operation General Setup DVD operations Program Mode Troubleshooting Specification...
Page 6: Safety Precautions
Safety and Precautions 1. SAFETY PRECAUTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. LOCATE the receiver in the room where direct light does not strike the screen. Total darkness or a reflection on the picture screen can cause eyestrain.
Page 7 ·Locate the TV set in the room where direct light does not strike the screen and cause reflection on the picture screen. Reflection will reduce contrast and color of pictures. ·Total darkness or a reflection on the picture screen can cause eyestrain easily. Soft and indirect lighting is recommended for comfortable viewing.
Page 8: Front Of The Machine
3. NAMES AND FUNCTIONS OF CONTROLS FRONT OF THE MACHINE Speaker 2. Remote control receiving window 3. Indicator 4. MENU button 5. TV/AV/DVD button Pressing this button can switchover as follows: AV1 → AV2 → TV→ SKIP+ button Channel Button(P+) Channel Button(P-) Volume Button(V-) Volume Button(V+)
Page 9: Remote Controller
Side connectors Video IN2: Video terminal for DVD, VCR or other device. Used as the video input for AV2. Audio IN2: Audio terminal for DVD, VCR or other device. Used as the audio input for AV2. 5. REMOTE CONTROLLER With this remote control the TV set can be operated from a certain distance. Please take care of the following: 1.The remote control handset must be pointed to the infrared remote sensor while operating any remote functions.
Page 10 • When the battery is to be exhausted, electrolyte leaking may occur and damage may be caused to the remote controller. 2. BATTERY INSTALLATION • Remove the battery cover. • Insert the two “AAA” 1.5V batteries with the polarity matching with the mark inside the battery compartment.
Page 11 R19FAV.SET): Fav.set button R20(P+)/R23(P-):Program decrease/increase button R22(MENU):Tv main menu button R24(GAME):Game button R25( : ) :DVD search forward button R26(9) :DVD skip backward button R27( r ) : DVD up direction button R28( OK ) :DVD confirm bottom R29( SETUP) : DVD menu setup button R30( v ) :DVD left direction button R31(TITLE) :DVD title button R32(...
Page 12: Antenna Connection Method
R51(AUDIO): DVD sound switchover button R52(PBC): DVD PBC switch button BASIC CONNECTION 1. ANTENNA CONNECTION To connect the 75 OHM coaxial cable from the antenna to the RF socket on the rear panel, as shown above. • For better reception, especially in outlying areas or where ghosting or interference occurs, an external roof- mounted antenna is recommended.
Page 13: Tv Operation
Auto search features: • During auto searching, all TV channel found will be automatically stored starting from the current Program Number. • If the number of TV channels found exceeds the maximum number of the memory locations the auto search will stop automatically. •...
Page 14 1. PICTURE menu Press MENU once to display the picture menu on the BRIGHTNESS screen. CONTRAST • Select the item that you want to adjust using P+ or P-. COLOUR SHARPNESS That is brightness, contrast, colour, or sharpness. • Adjust the item value using V+ or V-. •...
Page 15 4. SETUP menu Press the MENU button 4 times, so that the screen will display the set-up menu (as shown). • This television set display language is ENGLISH only. • If the colour or sound of a channel is not normal, the LANGUAGE ENGLISH problem may be wrong settings for colour or sound...
Page 16 Press MENU button repeatedly to exit this menu. 5. SEARCH menu Press the MENU button 5 times, so that the screen will → SEARCH display the search menu (as shown). AUTO SEARCH PROGRAM The Search Menu is not available in AV mode. SORT TO PRO.
Page 17: Dvd Player Operation
DVD OPERATION 1. BASIC PLAY DVD OPERATION 1. Press TV/DVD button on the remote controller or DVD button on the TV set to turn on (or off) DVD. 2. Press OPEN / CLOSE button to load disc into disc tray. Hold the disc without touching either of its surfaces, position it with the printed title side facing up, align it with the guides, and place it in its proper position.
Page 18 Screen Saver Start the screen saver, the screen saver image will appear when the player stops or the picture is frozen for a few minutes. This saver can keep the screen from being damaged. ·On (Start the screen saver) ·Off (Turn off the screen saver). 2.
Page 19 Contrast User can set the level of contrast for the image displayed. It is ranged from -16 to 16. 5.Preference Setup You must press STOP twice to enter Preference Page TV Type · PAL - This is selected when the player is connected to a PAL System TV.
Page 20: Dvd Operations
· P GR · R · NC 17 · ADULT Password User can change the password that is required when the user wants to change the Age Control Grade in the Parental Lock function. NOTE: (Preset password is 3308) Default User can load the factory default setting by choose RESET and press OK button.
Page 21 Pause Mode This function is applicable for DVD and CD audio. ·For DVD , the picture will become static. ·For CD audio, it will become silent. 1. Press the PLAY/PAUSE ( ) Button will cause the player to enter Pause mode. 2.
Page 22 Slow Play The Slow Forward is applicable for DVD, There are 4 steps of slow motion speed, 1/2,1/4, 1/8, 1/16. Successive key presses will decrement the playback speed. Note : Press Play Key to switch back to normal playback speed. Repeat Mode This function is applicable for DVD and CD audio but with different effects.
Page 23: Program Mode
Display (Remain Time) This function is applicable for DVD only. It will display the timing information of the playback on screen. ·For DVD playback, subsequent key press on the DISPLAY key will show the Title Elapsed Time, Title Remain Time, Chapter Elapse Time and Chapter Remain Time one by one.
Page 24 5. After assigning the playback sequence, move the highlight cursor to the START option by using the Navigation Arrows. Press OK on the remote controller to confirm. Picture CD The unit can also be used to navigate picture CDs. Insert a picture CD into the tray and the disc will be loaded automatically.
Page 25: Troubleshooting
TROUBLESHOOTING Should your television product develop a problem, please refer below before requesting service. Symptom Check & Action Check if power cord is connected properly to the power outlet. No Power Check if main power button on the unit is switched on. Make sure the main power button on the unit is switched on.
Page 26: Specification
SPECIFICATIONS Description 21” TV/DVD Combo Power input AC230-240V 50Hz Power consumption Colour system PAL (NTSC playback) Sound system BG, DK, I Channel memory Viewable size 51cm (diagonally) DVD format MPEG 2 Compatible with disc DVD, DVD +R/RW, DVD-R/RW, CD, Picture CD, MP3 CD Net weight 23kg Dimensions...
