Summary of Contents for Element-Hz ELE7082

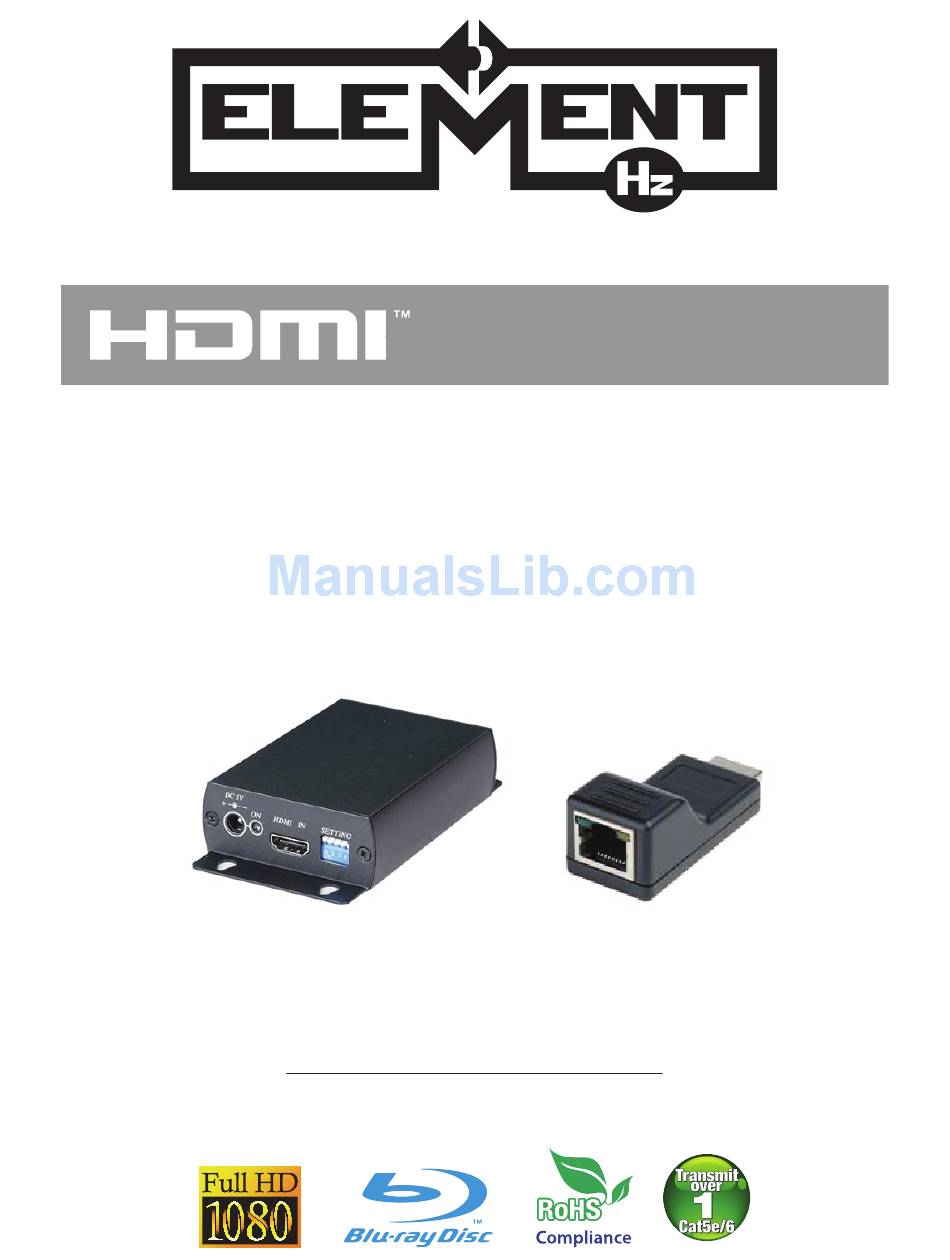

- Page 1 EXTENDER ELE7082 HDMI Extender Over Single CAT5e/6 Cable INSTALLATION MANUAL...
-
Page 2: Dear Customer
A/V device more convenient, more comfortable, more productive, and more cost-efficient. The ELE7082 HDMI Extender transmits signal over one Cat5e/6 cable to extend your HDTV display up to 60m at 1080i and 40m at 1080p. It is equipped with HDMI connections. It also supports DVI equipment when using an HDMI to DVI adapter. -
Page 3: Package Contents
Package Contents ELE7082 Transmitter (x1) ELE7082 Receiver (x1) Power Adapter (x1) Specifications Video Bandwidth: 2.25 Gbps (HDMI 1.3) Resolution: 480i, 480p, 720p, 1080i, 1080p @ 24/50/60 Hz Transmission Distance: 60m @ 1080i / 40m @ 1080p ... -
Page 4: Led Indication

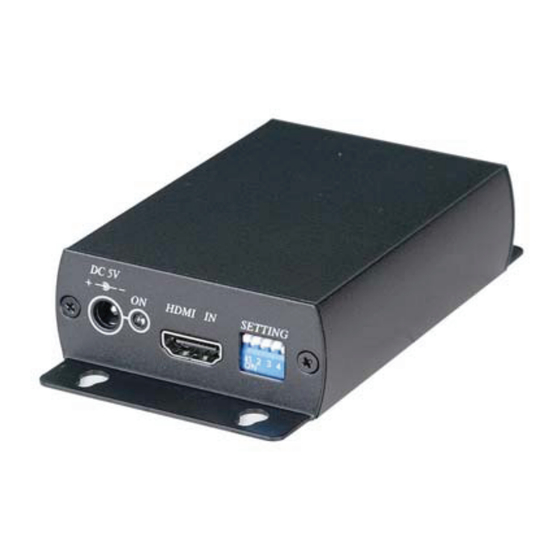

TX UNIT / RX UNIT Transmitter Front/back HDMI Input Indicator LED Power Input EDID Setting RJ-45 Output EDID Setup LED Indication Default Move DIP Switch 1 off (up) BLUE Power On BLUE Flash TV EDID Backup Complete ... -
Page 5: Transmission Distance
Receiver Front/back HDMI Output RJ-45 Input LED Indication GREEN Sending Power or Video to Rx Unit YELLOW No Data Input or Unsupportd Video Format Cable Transmission Use High Quality Cat5e UTP or Cat6 UTP Cable Cat6 Is Recommended For Distances Over 30m ... -
Page 6: Troubleshooting
NOTICE Performance Guidelines Be sure to use the product as directed to maximize the performance quality and the operational lifetime of your hardware. Be sure to place the device in a suitable environment. Do NOT place in damp, dusty, erosive, or oxidative areas. - Page 7 EXTENDER ELE7082 HDMI Extender Over Single CAT5e/6 Cable engineeredby www.skywalker.com 9390 Veterans Memorial Pkwy, O’Fallon, MO 63366 (800) 844-9555 | retailsupport@skywalker.com...
