Summary of Contents for Ffeuk F3K

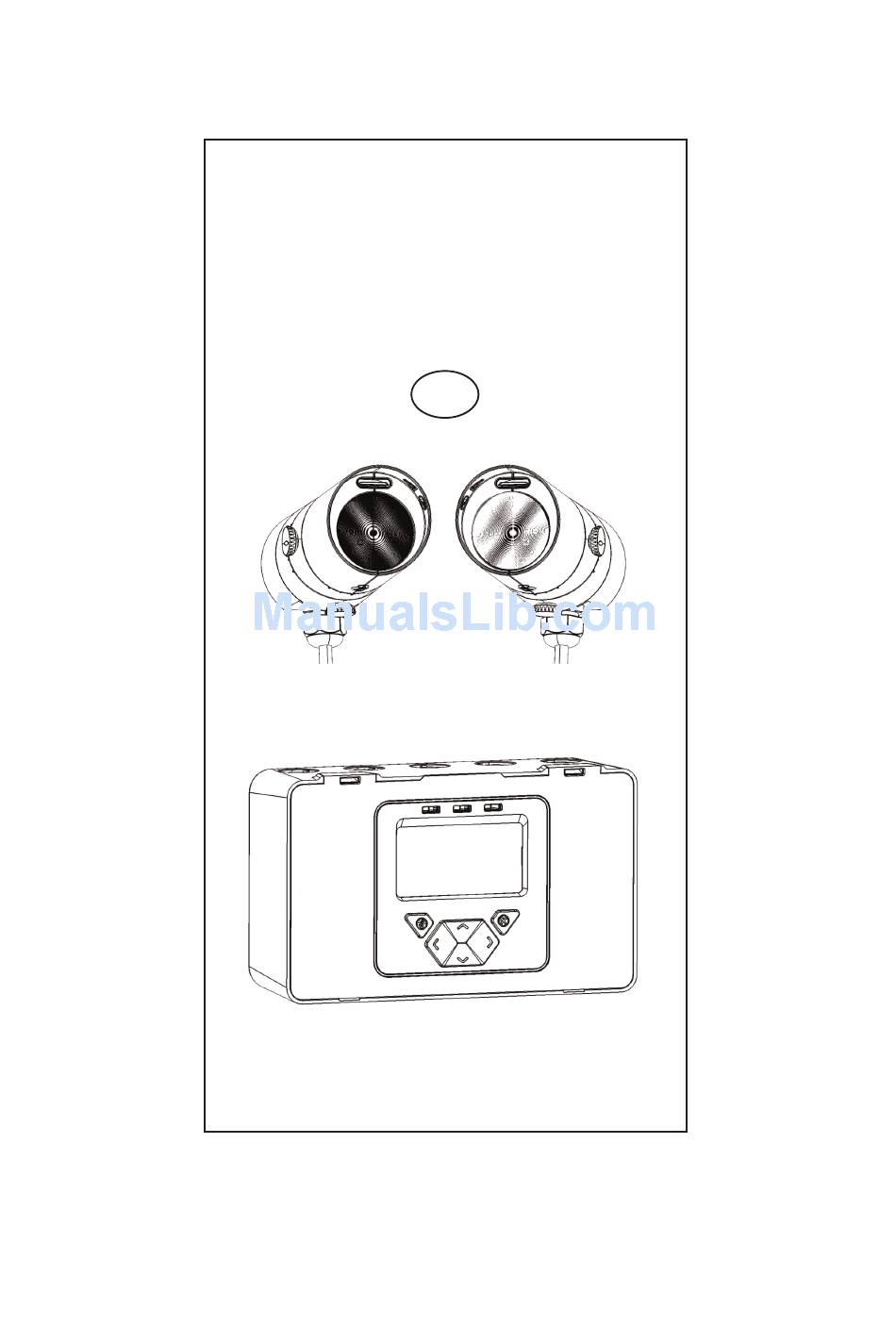

- Page 1 End To End Optical Beam Smoke Detector User Guide...
-
Page 2: General Information
1.General Information Ensure clear line of sight from Receiver to Transmitter >30cm >30cm Receiver Transmitter 5 - 120m Power Controller Supply Unit • IMPORTANT NOTE: The infrared beam path MUST be kept clear of obstructions at all times! Failure to comply may result in the system initiating a Fire or Fault signal. •... -
Page 3: Wiring Diagrams
2. Wiring Diagrams Wiring two Receivers onto two zones: RECEIVER 1 RECEIVER 2 TRANSMITTER TRANSMITTER OUTPUT OUTPUT SUPPLY SUPPLY 12V to 36V DC RECEIVER 2 RECEIVER 2 RECEIVER 1 RECEIVER 1 FIRE FAULT FIRE FAULT N/O COM N/C N/O COM N/C N/O COM N/C N/O COM N/C see note 1... - Page 4 3. Fitting the Product RECEIVER: TRANSMITTER: TO ‘RECEIVER OUTPUT’ ON 12 to 36V SUPPLY OR ‘TRANSMITTER SUPPLY’ CONTROLLER BOARD ON CONTROLLER BOARD LED indicator must face downward...
-
Page 5: Apply Power
4. Apply Power NOTE: One System Controller can be used to control and monitor up to two Receiver heads. The ‘#’ symbol in this guide is used to represent the number of the Receiver currently selected (1 or 2). Apply Power to Controller, Receiver(s) &... - Page 6 5. Enter Pass Code to Access Engineering Menu Press to enter PASS CODE SCREEN in USER MENU Default Pass Code: 1 2 3 4 Change digit Move between digits Accept • An incorrect Pass Code will return the display to the Pass Code entry screen •...
- Page 7 7. Select Receiver to be Accessed • All Receivers need to be aligned separately • Steps 8 and 9 explain how to align individual Receivers 8. LASER Targeting • The LASER in the Receiver head is used to align the Receiver with the Transmitter. •...
- Page 8 9. Alignment Step 1 In installation mode you are centring the Transmitter beam onto the Receiver and the system is adjusting its power for optimum signal. Step 2 NOTE 1: Value can be Set Tx power to between 2 and 178. maximum.
- Page 9 From Step 3 Step 4 NOTE 1: Value can be Adjust one between 2 and 178. thumbwheel by A higher value means a 1/4 turn. better alignment. Amber - flash/stop Green - flash/stop View LEDs on Rx or LCD value (SEE NOTE 1) (SEE NOTE 1) Signal...
- Page 10 10. Manual Fire and Fault Tests After installation or cleaning, it is recommended that a Manual Fire and Fault test is performed: Fire Test: Slowly half-cover the Receiver. The Controller will indicate Fire after the Fire Delay Time. Uncover the Receiver. The Controller will return to Normal state after approximately 5 seconds. Fault Test: Completely cover the Receiver taking less than 2 seconds to do so.
- Page 11 12. Fire Threshold This setting is the threshold at which the Receiver will detect a fire. Default factory setting=35%. (Set for each Receiver). • Sensitivity can be adjusted in 1% steps by pressing up or down keys • Press to accept setting UL268 Fire Threshold Ranges: Distance betweenTransmitter Fire Threshold Range...
- Page 12 13. Delay To Fire This setting is the delay the System Controller uses before signalling a FIRE condition to the Fire Control Panel. Default factory setting=10 seconds. (Set for each Receiver). 14. Delay To Fault This setting is the delay the System Controller uses before signalling a FAULT condition to the Fire Control Panel.
-
Page 13: Cleaning The System
16. Cleaning The System The system will automatically compensate for dust build-up by changing the Compensation Level. However, it is recommended that the Receiver lenses are cleaned periodically with a soft lint-free cloth. The system should be isolated from the Fire Control Panel before cleaning takes place. After cleaning, verify that the system is operating normally by following the Alignment procedure and the Fire and Fault Tests described in this User Guide. -
Page 14: Troubleshooting
17. Troubleshooting E-00 AIM not recognised Refer to manufacturer for further technical assistance Receiver Communications Fault E-01 Check wiring between Controller and Receiver ‘Find’ not successfully executed E-02 Follow ‘Find’ process E-03 Compensation limit reached Clean and re-align system E-04 Receiver missed too many readings, or lost Ensure clear line of sight from Transmitter to sync with the Transmitter... -
Page 15: Technical Specifications
18. Technical Specifications Parameter Value Operating Distance between Transmitter and Receiver 5 - 120m Operating Voltage Range 12 to 36V DC +/- 10% Transmitter Current Quiescent Current (Controller with 1 or 2 Receivers) 14mA Alarm Current (Controller with 1 or 2 Receivers) 14mA Fault Current (Controller with 1 or 2 Receivers) 14mA... - Page 16 Document Number: 0044-047-02-EN...
