Factory Five Racing 15471 Installation Instructions Manual

Roadster coyote engine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Part Number: 15471
Document Type (indicate):
Parts needed ........................................................................................................................................................................... 2
Ford Racing Parts............................................................................................................................................................... 2
Ford Motor Co. Parts.......................................................................................................................................................... 3
Summit Racing................................................................................................................................................................... 3
Fuel System .................................................................................................................................................................... 3
Air Intake System ........................................................................................................................................................... 3
Other vendors..................................................................................................................................................................... 3
Autozone ........................................................................................................................................................................ 3
Supplies ................................................................................................................................................................................. 3
Information ............................................................................................................................................................................ 4
Accelerator Pedal ................................................................................................................................................................... 4
Drivetrain............................................................................................................................................................................. 19
Engine prep...................................................................................................................................................................... 19
Exhaust ............................................................................................................................................................................ 19
Alternator......................................................................................................................................................................... 19
DO NOT DUPLICATE CONFIDENTIAL INFORMATION AND PROTECTED UNDER U.S. COPYRIGHT LAWS  2012 FACTORY FIVE RACING, INC.
Factory Five Racing, Inc.
Revision: G
 Bill of Material
 Assembly Instructions

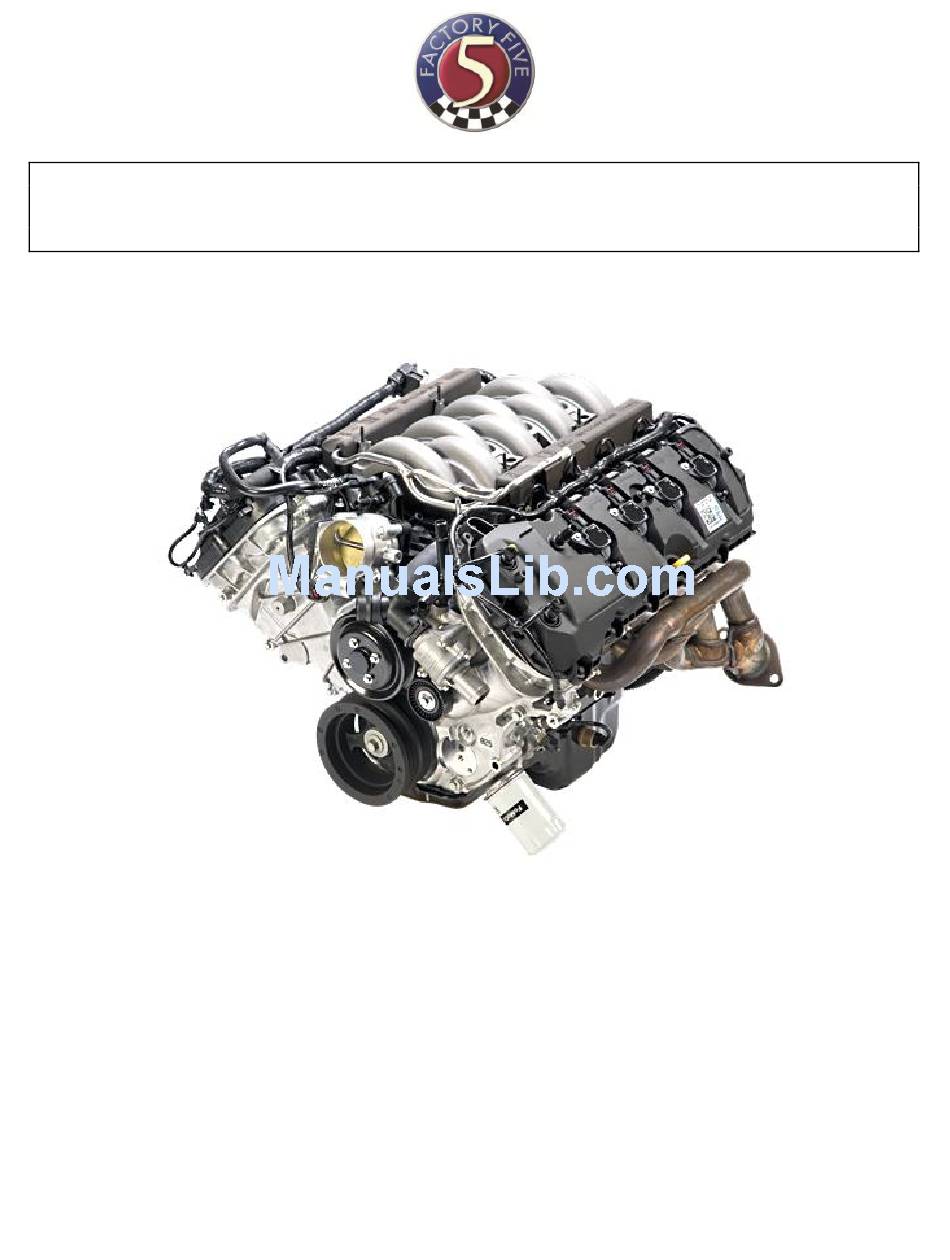

Roadster Coyote Engine

Installation Instructions

Effective Date: 9/7/12
 Drawing (may be attached)
 Operating Procedure
By: J. INGERSLEV
 Specification
 Other
Company/instructions

Advertisement

Table of Contents
loading

Related Manuals for Factory Five Racing 15471

Summary of Contents for Factory Five Racing 15471

  • Page 1: Table Of Contents

    Autozone ..................................3 Supplies ....................................3 Information .................................... 4 Accelerator Pedal ................................... 4 Drivetrain..................................... 19 Engine prep..................................19 Exhaust .................................... 19 Alternator..................................19 DO NOT DUPLICATE CONFIDENTIAL INFORMATION AND PROTECTED UNDER U.S. COPYRIGHT LAWS  2012 FACTORY FIVE RACING, INC. Company/instructions...

  • Page 2: Parts Needed

    Oil filter relocator................................21 Oil Pressure sender................................26 Water Temp Sender................................30 Transmission Prep................................34 Engine/Transmission Installation ............................36 Fuel System..................................37 Cooling system..................................42 Vacuum ports and PCV vent ..............................48 Tough emissions................................49 Relaxed Emissions................................52 Air Intake/Filter ................................... 55 Mass Air Meter ................................

  • Page 3: Ford Motor Co. Parts

    Ford Motor Co. Parts F3LY-6C070-A – Flywheel access hole plug BR3Z-8260-B – Mustang upper radiator hose W500310.S438- Starter bolts (3 needed) BR3Z-6379-A – Flywheel bolt (8 needed) Summit Racing Fuel System AEI-13301 – 6AN Fuel pressure regulator SUM-220166B – 6AN O-ring to straight 6AN Adapter (2 needed) SUM-220701-B –...

  • Page 4: Information

    Information These instructions assume that the customer has the Hot Rod Coyote Installation kit from Factory Five Racing. Make sure to download the latest version of the engine controls instructions from the Ford Racing parts website: www.fordracingparts.com. Do a parts search for: M-6017-A504V and click on the instructions pdf.
  • Page 5 Use a hack saw to cut the right mount off the accelerator. Cut right against the flat section of the pedal so it also cuts the top Webbing off.
  • Page 6 On the underside, cut the bottom mounts off with a hack saw so that the bottom is flat. Cut the accelerator pedal.
  • Page 7 Align the mount holes of the pedal on the pedal mount and mark the pedal through the upper frame mount hole.
  • Page 8 Hold up the mount screw to the pedal at the point marked. Mark the pedal where the screw starts, stops and the height of the screw.
  • Page 9 Use a grinder, hack saw or drill bit to remove material on the pedal for screw clearance. Check the fitment of the mount screw by putting the pedal on the pedal mount with the screws.
  • Page 10 Attach the Accelerator pedal mount to the frame accelerator pedal mount using the ¼” screws provided and the ones from the standard kit.
  • Page 11 Attach the Coyote accelerator pedal to the new pedal mount. Cut the FFR accelerator pedal at the bottom of the existing mount hole using a hack saw.
  • Page 12 Clamp the FFR pedal to the Coyote pedal with a small clamp so that the accelerator pad is 2⅛” back from the brake pedal.  This is a starting point...
  • Page 13 Sit in the car and push the brake pedal down as if you were stopping the car. You should be able to push the pedal down without hitting the gas pedal but be able to rock your foot (heel/toe) onto the gas pedal. Once the correct height is set, mark the side of the coyote pedal using a paint marker.
  • Page 14 Remove the pedal from the car and check the alignment of the two pedals with the line you just drew. On the backside of the pedal insert one of the ¼” locknuts into one of the recesses so that the bolts will be as far apart as possible and still go through both the FFR pedal and the Coyote pedal.
  • Page 15 Using the locknut nylon as a guide, drill a ” hole through the plastic pedal. Remove the locknut and enlarge the hole using a ¼” drill bit.
  • Page 16 Check the alignment of the metal pedal on the plastic pedal then drill through the metal pedal using the plastic hole as a guide. Attach the metal pedal to the plastic pedal using one of the ¼”-20 x ¾” screws and locknuts included with the kit.
  • Page 17 Use a pair of pliers and a vise to slightly bend the metal pedal to match the plastic. Use another lock nut and drill bit to locate the lower hole location and drill a pilot hole.
  • Page 18 Mark and drill the location on the metal pedal. Use one of the flanged ¼”-20 x ¾” screws in the lower hole.

  • Page 19: Drivetrain

    Mount the pedal to the new pedal mount in the footbox. Drivetrain Engine prep  6mm, 10mm, 13mm,15mm sockets, 13mm deep socket, ratchet  Ford Racing Alternator, pipe fittings, Shallow oil pan Exhaust Remove the Stock Mustang headers. Remove all of the header studs using a 6mm 6 point socket. Alternator Install the Ford Racing alternator and tensioner per the Ford racing instructions...
  • Page 20 Route and install the serpentine belt. Remove the stock oil pan and install a shallow oil pan.

  • Page 21: Oil Filter Relocator

    On the left side of the engine, remove the wiring harness holder from the stud on the front of the head; it will hit the steering shaft after install. Oil filter relocator  ⅜” Hex key, 8mm socket, ratchet, Teflon tape, ratchet extensions, ⅞” wrench, vise grips ...
  • Page 22 Put the o-ring in the relocator groove and screw the spin-on adapter onto the block. Use one of the hose adapters to turn the relocator if necessary so that the spin-on adapter is oriented front to back.
  • Page 23 Use Teflon tape on the port plugs. Screw the plugs into the spin-on adapter.
  • Page 24 Use Teflon tape on the hose fittings. Screw the hose fittings into the rear of the spin-on adapter.
  • Page 25 Screw hose fittings into the relocator. Screw the threaded nipple into the relocator.

  • Page 26: Oil Pressure Sender

    Oil Pressure sender  Pipe fittings, Gauge assembly  H14 Hex key, 12mm deep, ”, 1 ” sockets, ratchet, Teflon tape, ratchet extensions, ⅜”, (2) ”, ”, ⅞” wrenches, vise grips Remove the stock oil pressure sender from the block located behind the alternator.
  • Page 27 Use Teflon tape and install the oil pressure gauge sender. From the gauge box, screw on the ¼” NPT adapter.
  • Page 28 Put Teflon tape on the adapter then screw on the “T” adapter fitting. Put Teflon tape on the 1.50” NPT tube.
  • Page 29 Use vise grip pliers to attach the 1.50” tube to the sender assembly. Use Teflon tape and install the pipe fitting assembly in the oil pressure location on the engine so that the side port faces up for now.

  • Page 30: Water Temp Sender

    Use Teflon tape and install the OEM oil pressure sender in the side of the T fitting. Water Temp Sender  H14 Hex key or socket, 1 ” socket, 12mm deep socket, extension, ratchet, Teflon tape  Water temp gauge sending unit...
  • Page 31 Remove the ¾” NPT plug from the side of the block using a H14 Hex key or socket. Put Teflon tape on the ¾” NPT to ½” NPT adapter.
  • Page 32 Screw the adapter into the block using a 1 ” socket. Use Teflon tape on the ⅛” NPT to ¼” NPT adapter included with the gauge.
  • Page 33 Screw the adapter into the larger adapter on the block. Put Teflon tape on the sending unit.

  • Page 34: Transmission Prep

    Use a 12mm deep socket to screw the sender into the adapters. Transmission Prep  Hack saw or Reciprocating saw, ¾” socket, ratchet  Transmission, Polyurethane engine/transmission mount kit  The two aluminum spacers provides are not used. If you are using a Tremec 3550, TKO 500 or, a TKO 600 you will need to trim off the unused mounting boss on the bottom of the case.
  • Page 35 Trim it flush or just below the pad for the transmission mount. Attach the transmission mount plate to the polyurethane transmission mount using the ½”-13 x 1.50” bolts. If not already done, install the flywheel and clutch on the engine.

  • Page 36: Engine/Transmission Installation

    Remove the vibration damping weight from the clutch fork, it is not needed. Attach the bellhousing and clutch fork to the engine. Attach the transmission to the engine. Engine/Transmission Installation Install the engine and transmission per the assembly manual.

  • Page 37: Fuel System

    Attach the polyurethane transmission mount assembly to the transmission. Attach the polyurethane transmission mount to the frame mount. Fuel System  Fuel pressure regulator, fittings, fuel hose, hose clamps, high pressure fuel pump  The Coyote engine requires a 255 lph high pressure fuel pump such as the Summit Racing SUM- G3138 Fuel Pump.
  • Page 38 Mount a fuel pressure regulator to the firewall and connect the appropriate fittings, the return is on the bottom.
  • Page 39 Push the ⅜” fuel line onto the right side of the regulator; attach a hose clamp then run it over to the engine fuel rail. Push the white fuel line connector onto the fuel rail. Hold the fuel line up to the connector and cut it to length with a razor knife. Remove the fuel line connector.
  • Page 40 Push the white connector onto the fuel rail. Cut a 2.50” section from the length of ½” hose provided. Assemble the ½” to ” 90 degree adapter. Push the ½” side into the short section of ½” hose and fasten with a hose clamp. Slide a second hose clamp onto the hose.
  • Page 41 Push the vacuum line onto the fuel pressure regulator. Push the vacuum line onto the hose adapter.

  • Page 42: Cooling System

    Cooling system  Razor knife, flat head screwdriver, wire cutters, hack saw, marker  Stainless radiator hose kit Push the correct size adapters onto to the thermostat housing with a length of the stainless hose. Route the stainless hose to the left side lower radiator outlet and mark the hose for cutting. Remove the stainless hose and cut it where marked with a hack saw.
  • Page 43 Push the Ford supplied hose onto the outlet under the throttle body. Decide where you would like to change to the stainless hose and cut the webbing off the hose using wire cutters.
  • Page 44 Cut the hose using a razor knife. Push the stainless hose into the end of the rubber hose and run the hose to the right side upper radiator inlet.
  • Page 45 Push the bypass caps onto the tubes to the left of the throttle body and hose clamp the lower one.  For air bleeding later, remove the top cap until coolant starts going up the tube then recap and hose clamp.
  • Page 46 Push and hose clamp the small coolant barb behind the ¾” coolant tubes. Cap and hose clamp the ¾” coolant.  This is the other heater core location if running a heater.
  • Page 47  If running a heater, the stock Mustang heater hoses work well. The numbers for the hoses are: BR3Z.18472.B BR3Z.18472.D...

  • Page 48: Vacuum Ports And Pcv Vent

    Vacuum ports and PCV vent  Flat head screwdriver, razor knife, WD40  Vacuum plugs, PCV lines, ½” rubber hose, T connector  There are a couple ways to route the PCV hose depending on your emission requirements (tough or relaxed) Block off the vacuum ports and fuel evaporator intake tube just behind the throttle body.

  • Page 49: Tough Emissions

    Tough emissions If not already done, connect the right side stock PCV hose from the valve cover to behind the throttle body. Install a ½” barb fitting in the intake tube after the mass air meter but before the throttle body.
  • Page 50 Carefully cut the 90° PCV fittings out of one of the pcv lines without damaging the barbs. Push the ½” heater hose onto the PCV fitting.
  • Page 51 Attach the fitting to the left side valve cover. Run the hose over to the intake barb and cut the hose to length. Use a hose clamp to attach the hose to the intake tube.

  • Page 52: Relaxed Emissions

    Relaxed Emissions Carefully cut the 90° PCV fittings off the pcv lines without damaging the barbs. Spray some WD40 into the end of the hose and push the ½” heater hose onto one of the PCV fittings.
  • Page 53 Push the fitting onto the left valve cover and run the hose the back of the engine. Cut the hose at the back of the engine with a razor knife. Push the remaining hose onto the other 90° PCV fitting again using WD40.
  • Page 54 Push the fitting onto the right valve cover and run the hose around the back of the engine to the left side. Insert the “T” fitting into left side hose. Cut the Right side hose so that it will go onto the “T”. Push the right side hose onto the “T”.

  • Page 55: Air Intake/Filter

    Push the remainder of the hose onto the third leg of the “T” and run it down the side of the bellhousing and zip tie it to the transmission tunnel tube. Air Intake/Filter  Mass air meter, silicone hoses, intake tubes, air filter ...

  • Page 56: Mass Air Meter

    Mass Air Meter Unscrew the mass air sensor from the Ford intake using a T-20 Torx driver Remove the sensor and note the direction of the curved part of the sensor.
  • Page 57 Install the rubber ring into the intake mount. Insert the sensor into the mount to determine which way around it needs to go so the sensor mount holes will line up and the sensor will mount the correct way.
  • Page 58 Attach the mount to the intake tube using the long screws so that the flat side of the sensor will face the “Spectre” writing. Install the sensor on the mount using the short screws so the flat side of the sensor will face the “Spectre” writing.
  • Page 59 Run a bead of Sensor safe RTV silicone around the flange of the large plastic reducer. Slide the Mass Air Meter tube flat sensor side first (Spectre writing) down onto the plastic reducer. Wipe any excess RTV off the tube.

  • Page 60: Intake Tube

    Turn the mass air meter over so the Reducer is on the top and let the RTV dry overnight. Intake tube Slide the Mass Air Meter tube flat sensor side first (Spectre writing) into the air filter.
  • Page 61 Adjust the Mass air meter so that the mass air plug is on the far side as the Ford Racing instructions recommend. Tighten the hose clamp.

  • Page 62: Wiring

    Connect the elbow tube to the mass air meter using the silicone connector; only tighten one of the hose clamps right now. Attach the silicone reducer to the tube elbow. Push the intake tube onto the throttle body and position the air filter under the hood hinge. Tighten the hose clamps.

  • Page 63: Fuel Pump

    Fuel Pump Remove the fuse from the fuel pump circuit on the chassis harness fuse panel. On the back of the fuse panel, cut the tan wire going from the relay to the fuse area. Route the Coyote harness fuel pump green wire to the back of the chassis harness fuel panel.

  • Page 64: Neutral Safety Switch

    Cut the wire to length and solder the tan and green wires together. Make sure the wires and harness are out of the way of the steering shaft. Neutral Safety switch If not using the neutral safety switch in the Coyote harness, route the wire (blue/yellow) to a ground on the chassis.
  • Page 65 Cut the wire to length and crimp on a blue ring connector. Attach the ring connector to ground.

  • Page 66: Radiator Cooling Fan

    Radiator Cooling Fan  It is best to let the engine control the radiator fan. If you do not want to do this, do not use the wires and remove the correct radiator fan fuse from the black box. Separate the orange and black fan wires. The orange wire in the engine harness needs to either be taped back along the harness or, a better way is to remove the engine harness wrap tape and pull the orange wire back to the last junction.

  • Page 67: Wiring Using The Fuse Panel

    Run the orange wire along the outside of the harness going to the accelerator pedal.  The Ford cooling fan cicuit includes a fuse and relay in the black box.  There are two ways to wire the cooling fan: o Run the orange wire over to the fuse panel and use the Orange Ford wire to control the relay in the chassis harness.
  • Page 68 At the top of the footbox area, find the chassis harness orange fan wire in the dash harness plugs. Cut the wire out of the plug. Solder or butt connect the orange fan wires together. Skip to the next section.

  • Page 69: Wiring Bypassing The Fuse Panel

    Wiring bypassing the fuse panel Locate the blue wire going into the harness on the opposite side of the cooling fan fuse from the blue wire coming from the fan relay. Cut the blue wire and solder it to the orange wire.
  • Page 70 Remove the fan relay from the fuse panel. Remove the fan fuse. The remaining fan wiring in the black box will be completed later.

  • Page 71: Power/Start

    Power/start  Soldering iron, wire cutters/strippers, electrical tape Locate the EFI/crank and coil wires in the chassis harness.
  • Page 72 Route the Coyote 12v start/run wire (red/green) and 12v start (red/blue) wires to the chassis harness EFI wires and cut to length. Connect the 12v start/run wire (red/green) wire to the orange coil wire.

  • Page 73: Tach

    Connect the 12v start (red/blue) wire to the blue crank wire. Tach  Soldering iron, wire cutters/strippers, electrical tape...
  • Page 74 Find the purple tach wire in the sending unit plug and cut it so the engine harness can get connected to the purple wire. Run the engine harness tach wire to the chassis harness plug and connect it to the purple wire attached to the plug.

  • Page 75: Alternator

    Alternator  Ford Racing Alternator kit, battery cable Attach the coyote harness alternator plug to the alternator. Run the chassis harness red alternator wire to the alternator out put post. Cut the wire so that a ring terminal can be used on the alternator. Crimp on a ring terminal and attach the red wire to the Alternator.
  • Page 76 Remove the harness wrap and pull the wires back to the first harness branch. This will allow them to get routed in the engine bay with enough length.
  • Page 77 Locate the red/black power wire junction between the two O sensor plugs. Cut the wire for the left side O sensor a few inches from the junction.
  • Page 78 Use one of the extra wires pulled out of the harness or chassis harness to extend the wire. Start by soldering the wire to the end near the junction. Pull the left side O sensor wires so they are tight.
  • Page 79 Pull the wire extension tight and cut to length. Solder the other end of the extension wire to the O sensor wire.

  • Page 80: Starter Solenoid

    Recover the harness with the original conduit. Starter Solenoid  The solenoid on the starter is the one being used to start the engine. Run the battery cable to the starter solenoid along the transmission from the battery.
  • Page 81 Attach the battery cable to the starter solenoid.  Make sure not to push the cable too far over or it may contact the starter post. Separate the solenoid and ground wires.
  • Page 82 Tape the ground wire back along the harness to a common frame ground. Crimp a ring connector to the ground wire.
  • Page 83 Attach the ring connector to ground. Attach the tan/green wire to the starting post on the solenoid.
  • Page 84 Cut the chassis harness blue starter solenoid wire back to the harness conduit. Use electrical tape to cover the end of the blue wire.

  • Page 85: Computer Mounting

    Computer mounting  Silicone, Drill, Tin snips, Measure and find a location for the computer.
  • Page 86 If you are running a heater, using the ¾” tube over the passenger footbox is a good place to mount a bracket. We located it in the firewall on the passenger side.
  • Page 87  If you are running a heater or wipers you can not do this location. This diagram can be scaled on a copier to create a template. Measurements are in inches. Use weatherstripping or silicone around the flange of the computer to seal the hole.
  • Page 88 Mount the computer to the car using the #10 x 1” screws in the wiring harness mounting hardware or nutserts if you have them.
  • Page 89 Pass the O harness, computer plugs and other wires in the engine harness through the firewall extension hole into the engine bay. Drill a hole the size of the harness in the oval block off cover for the firewall extension. From the side, cut across to the hole and slide the block off onto the harness.
  • Page 90 Use some grommeting from the misc. electrical components to protect the harness. Attach the firewall extension to the frame.
  • Page 91 Silicone and rivet the block-off cover to the firewall extension. Plug the two engine harness plugs into the computer.

  • Page 92: Black Circuit Board Box

    Black circuit Board box  Small and Large Philips head screwdriver Inside the car, find a location that you can mount the black box from the coyote harness. We mounted it to the left of the center support.  Do not mount the box yet. Open the black box and remove the nut on the post marked “fan”.
  • Page 93 Tighten the nut on the fan post then bend the ring connector up so the wire clears the white connector. Push the white multipin connector onto the matching connector on the circuit board.
  • Page 94 Run the white plug wires and the orange fan plug out of the box in the slot provided near the plug.
  • Page 95 Connect the green power plug inside the box. It gets attached using a large Philips head screwdriver through the bottom of the box.
  • Page 96 Reattach the top of the box. Attach the box to the frame.

  • Page 97: Power Distribution

    Power Distribution  Wire cutters/strippers, electrical tape, wire crimpers.  We used an extra starter solenoid for power distribution in these instructions. A distribution post is provided in the Coyote kit.  The solenoid on the starter is the one being used to start the engine. Locate and attach the power distribution post to the 2”x 2”...

  • Page 98: Obd 2 Port

    OBD 2 Port Locate the OBD 2 port on the 2”x 2” tube to the right of the steering wheel. Use some of the aluminum panel #6 screws to attach the OBD 2 plug to the frame.

  • Page 99: General

    General  Wire cutters/strippers, electrical tape Cut the white/red Intercooler pump wire as far back in the harness as you can. It is not needed or used. Attach the accelerator plug to the accelerator pedal.

  • Page 100: Exhaust

    Push the mass air plug onto the mass air meter. Exhaust  15mm, 17mm sockets, 15mm wrench  Coyote headers, straight pipes  The threads in the heads for the headers changed a couple times during production Be careful when installing the headers bolts so the threads are not ruined.

  • Page 101: Starting The Engine

    Starting the engine  Oil, Coolant If not already done, fill the engine with 8 quarts of the correct oil. If not already done, fill the engine with coolant through an inline filler or radiator cap. To help remove air from the system, remove the top cap until coolant starts going up the tube then recap and hose clamp.
