Mediastar Evolution 775 Quick Start Manual

Quick Start Guide
Getting Started With MediaStar Evolution
775 MPEG-2/4 Encoder

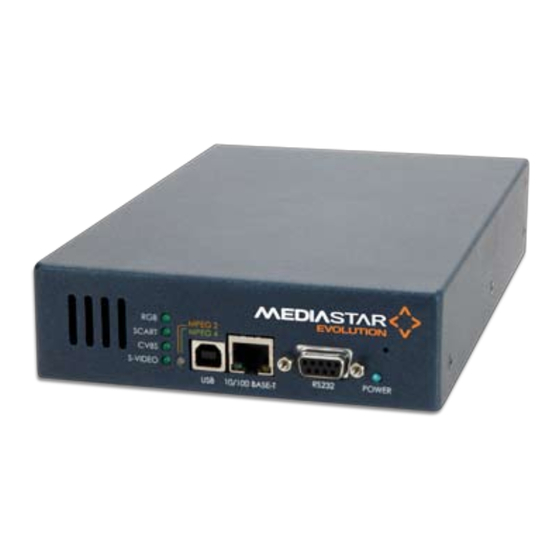

The MediaStar Evolution 775 Encoder converts analogue
video and audio signals to MPEG-2 or MPEG-4 digital
signals so that they can be streamed over a LAN/WAN
data network.
Separate hardware or software viewing applications
connected to the same LAN or WAN can decode data
streams from the network and present video and audio
for viewing at multiple remote locations.

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarised or
grounding-type plug. A polarised plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
775QSG_v3
What's in the box
• 775 Encoder unit
• AC mains power cable
• RS232 serial comms cable
• RJ45 patch cable
• BNC to phono adaptor
• USB comms cable and driver CD
• Self adhesive desktop feet kit
• Video source/IP address label
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles
and the point where they exit from the apparatus.
11. Only use attachments or accessories specified by
manufacturer.
12. Use only with the cart, stand tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
PART NO. 200-2360
1
