Life Fitness LCD 12.1 Entertainment System LCD-0101-02 Parts Manual

Life fitness lcd 12.1 entertainment system parts manual
Hide thumbs

Advertisement

Table of Contents

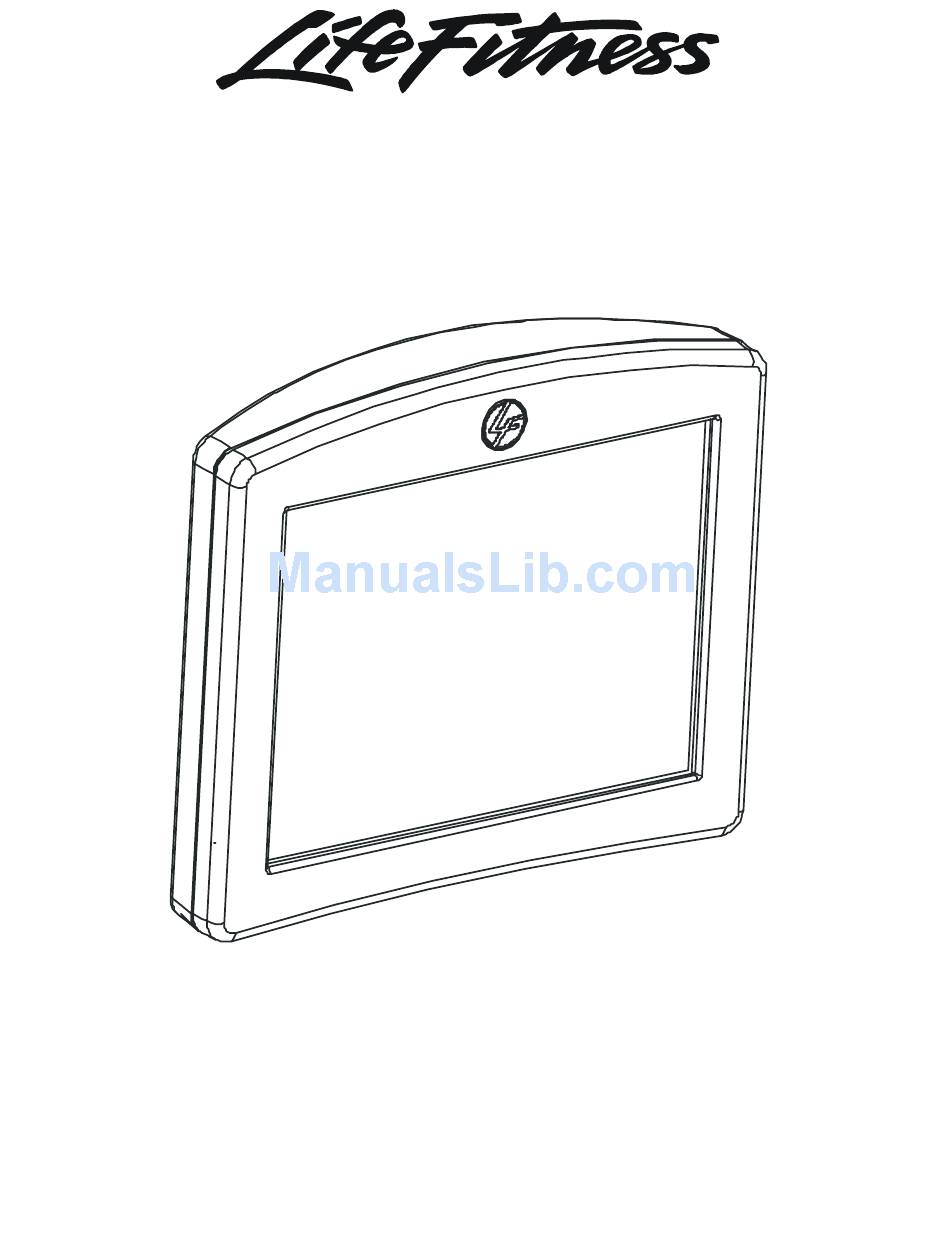

LCD 12.1 ENTERTAINMENT SYSTEM
LCD-0101-02
LCD-0102-02
LCD-0201-02
LCD-0202-02
Customer Support Services
PARTS MANUAL
rev 14 Dec 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCD 12.1 Entertainment System LCD-0101-02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Life Fitness LCD 12.1 Entertainment System LCD-0101-02

  • Page 1 LCD 12.1 ENTERTAINMENT SYSTEM LCD-0101-02 LCD-0102-02 LCD-0201-02 LCD-0202-02 Customer Support Services PARTS MANUAL rev 14 Dec 2007...

  • Page 2: Table Of Contents

    LCD 12.1-02 ENTERTAINMENT SYSTEM Contents EXPLODED ASSEMBLY ... 3 LCD COMPONENTS ... 4 REMOTE CONTROL... 5 CONSOLE SUPPORT MOUNTING HARDWARE ... 6 STAIR CLIMBER MOUNTING HARDWARE ... 7 CROSS-TRAINER (BLACK) MOUNTING HARDWARE... 8 CROSS-TRAINER (SILVER) MOUNTING HARDWARE ... 9 TREADMILL (BLACK) MOUNTING HARDWARE ... 10 TREADMILL (SILVER) MOUNTING HARDWARE ...

  • Page 3: Exploded Assembly

    LCD 12.1-02 ENTERTAINMENT SYSTEM Exploded Assembly Rear Housing Black 0K32-01011-0000 Gray 0K32-01011-0001 Decal Black 0K32-01037-0000 Gray 0K32-01037-0001 Screw 0017-01037-0001 Screws Screw 0017-00101-1280 0017-00101-1828 Ribbon Cable BRKT-ASSY: BLACK 118E-00001-0178 AK32-00155-0000 BRKT-ASSY: GREY AK32-00156-0000 LINE-CORD: 125V; 10A; DOMESTIC B POWER-SUPPLY: AC-TO-DC; 12V 6’ CORD POWER-SUPPLY: AC-TO-DC;...

  • Page 4: Lcd Components

    LCD 12.1-02 ENTERTAINMENT SYSTEM LCD Components RCPT MODPH PNL F08S 0017-00021-2980 RCPT MODPH PNL F010S 0017-00021-2981 Cable 8 Wire AK32-00145-0000 Cable 10 Wire AK32-00146-0000 Bracket Black 0K32-01112-0000 Gray 0K32-01112-0001 Cable Power AK32-00045-0000 CONN F TYPE 0017-00021-2846 CONN FTYPE ADP 0017-00021-8210 Cable Coax AK32-00047-0000...

  • Page 5: Remote Control

    LCD 12.1-02 ENTERTAINMENT SYSTEM Remote control Remote Assembly Stealth Gray Type Of Cord Black Coiled Cord Gray Coiled Cord Gray Straight Cord Headphone jack Assembly AK32-00115-0000 Screw 0017-00101-1035 Cable Assembly Coiled Black AK32-00130-0000 Cable Assembly Coiled Gray AK32-00130-0001 Cable Assembly Straight B Gray AK32-00129-0001 Screw 0017-00101-1827...

  • Page 6: Console Support Mounting Hardware

    LCD 12.1-02 ENTERTAINMENT SYSTEM Upright and Recumbent Bikes Mounting Hardware Screws (4) Black 0017-00101-1819 Gray 0017-00101-1820 Washer 0017-00104-0476 Upright Bikes Mounting Bracket Black AK32-00033-0001 Gray AK32-00033-0009 Recumbent Bikes Mounting Bracket Black AK32-00033-0003 Gray AK32-00033-0010 Console Screws(4) Black 0017-00101-1821 Gray 0017-00101-1822 Screws (2) 0017-00101-1823 Adapter...

  • Page 7: Stair Climber Mounting Hardware

    LCD 12.1-02 ENTERTAINMENT SYSTEM Stair Climber Mounting Hardware Mounting Screws(4) Black 0017-00101-1819 Gray 0017-00101-1820 Washer 0017-00104-0476 Models: SC95/91/85 Mounting Bracket Black AK32-00033-0005 Models: 95S & 93S Mounting Bracket Gray AK32-00033-0011 Model: 90S Mounting Bracket Black AK32-00033-0012 Console Mounting Screws(4) Black 0017-00101-1821 Gray 0017-00101-1822...

  • Page 8: Cross-Trainer (Black) Mounting Hardware

    LCD 12.1-02 ENTERTAINMENT SYSTEM Cross-Trainer (Black) Mounting Hardware Mounting Screws 0017-00101-1819 Washer 0017-00104-0476 Mounting Bracket Black CT95 CT91 AK32-00033-0008 Gray 91X AK32-00033-0013 Console Mounting Screws (4) 0017-00101-1821 Support Screws (2) 0017-00101-1823 Adapter 0K32-01035-0000...

  • Page 9: Cross-Trainer (Silver) Mounting Hardware

    LCD 12.1-02 ENTERTAINMENT SYSTEM Cross-Trainer (Silver) Mounting Hardware 0K62-01265-0000 BRKT: REMOTE; 93X/95Xi Endcap 0K32-01059-0000 Console Mounting Screws(4) 0017-00101-1820 Washer 0017-00104-0476 Frame Adapter AK32-00071-0000 Cap Console Support 0K62-01031-0000 Torx Screw(2) 0017-00101-1790...

  • Page 10: Treadmill (Black) Mounting Hardware

    LCD 12.1-02 ENTERTAINMENT SYSTEM Treadmill (90T, 91T) Mounting Hardware Mounting Screws (2) 0017-00101-1820 Silver Washer 0017-00104-0476 Mounting Screws (4) 0017-00101-1816 Mounting Support, Silver AK32-00144-0002 90T-91T...

  • Page 11: Treadmill (Silver) Mounting Hardware

    LCD 12.1-02 ENTERTAINMENT SYSTEM Treadmill (Silver) Mounting Hardware Mounting Screws (4) 0017-00101-1820 Washer 0017-00104-0476 Mounting Support Gray AK32-00143-0000 Mounting Screws (2) 0017-00101-1817 Retainers (4) 0K32-01034-0000 End Caps (2) 0K43-01025-0001 Nuts (4) 0017-00103-0019 Washers (2) 0017-00104-0471...

This manual is also suitable for:

Lcd-0201-02Lcd-0202-02Lcd-0102-02
