Summary of Contents for iSolutions iColor 3

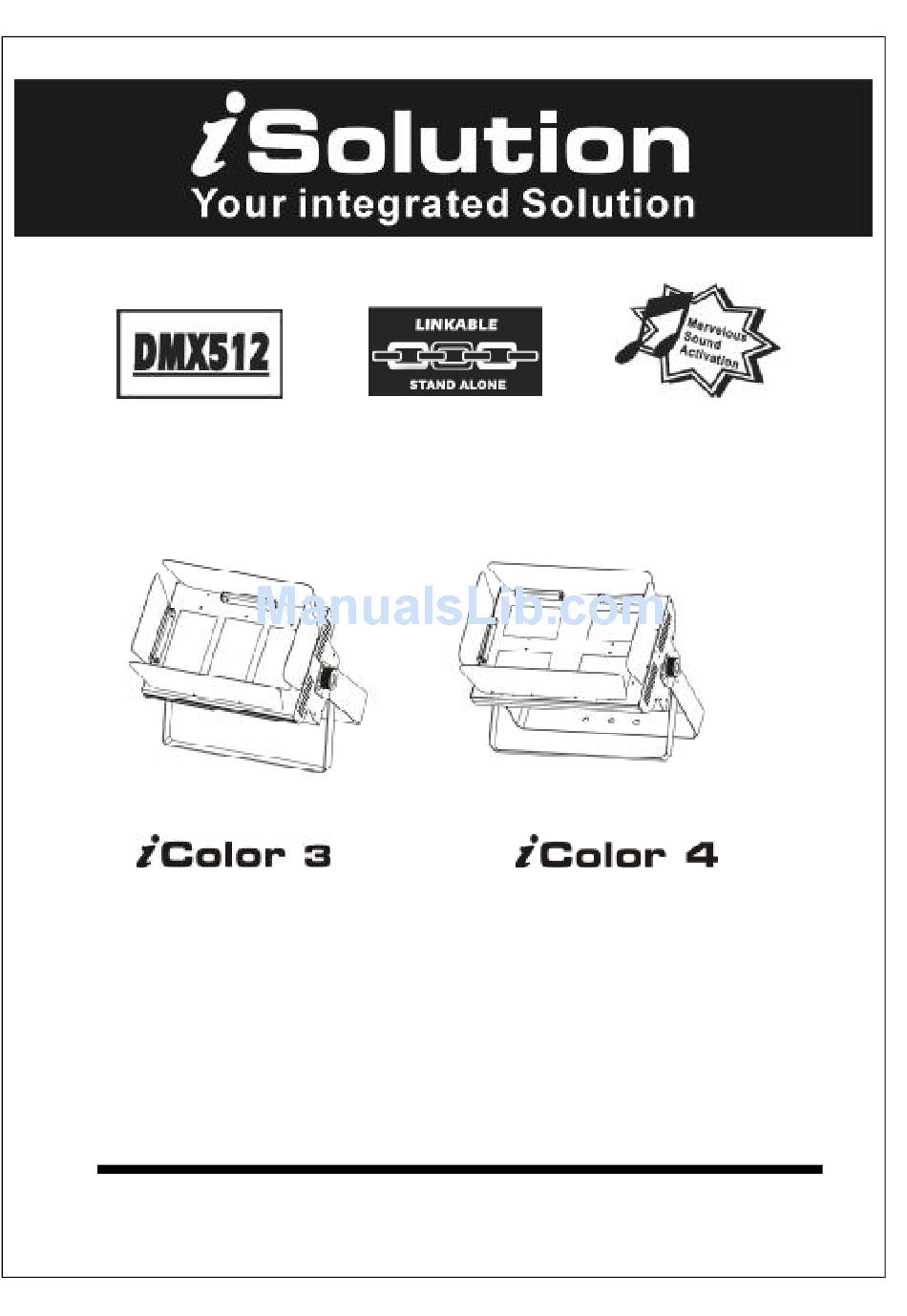

  • Page 1: User Guide

    User Guide Professional Entertainment Technology...
  • Page 3 INDEX 1. General Instructions 2. Main Features 3. Lamp 4. DMX Linking & Controls 5. How To Control The Unit A. By master/slave preprogrammed function B. By easy controller C. By Colormix controller D. By universal DMX controller 6. Troubleshooting 7.
  • Page 4 1. Getting Instructions The following points are important for safety as well as for the smooth installation and performance of the unit. Ÿ Unpack carefully and be sure that no damage has occurred during shipping. Ÿ It is very important to ground the yellow/green conductor in order to meet regulations for safety.
  • Page 5 2. Main Features Voltage：AC 120V 60Hz or 230/240/250V 50/60 Hz • Bulb： J Type 230V 500W(Euro) J Type 120V 300W(USA) • 3 dichroic mirrors red, blue, and green or 4 dichroic mirrors red, yellow, blue, and green. • With lamp saving switch-off function. When the unit receives stand by signal from a easy controller or an universal DMX controller, it will switch off the lamp extending the lamp’s lifetime.
  • Page 6 4. DMX Link & Controls 1. DMX output: pin 1: Comm., pin 2: DMX－, pin 3: DMX＋. 2. DMX input: pin 1: comm., pin 2: DMX－, pin 3: DMX＋. If you are using a controller with 5 pins DMX output, you will need to use a 5 to 3 pin adapter. 3.
  • Page 7 5. How To Control The Unit Channel Dip switches setting You can operate the unit in four ways: Master A. By master/slave preprogrammed function By linking the units in master/slave connection, Slave 1 the first unit will control the other units to give an Slave 2 automatic activated synchronized light show.
  • Page 8 C. By Colormix controller By link the Colormix controler to the unit , you have to use 3 pin XLR cable and use 5 pin XLR cable between Colormix controller and Colormix foot controller. CA-32 • A professional, user friendly DMX 4ch.controller for colorimixing. •...

  • Page 9: To Control By Universal Dmx Controller

    D. By universal DMX controller If you use a universal DMX controller to control the units, you have to set dip switches from 1 to 9 of the channel so that all the units will receive its DMX signal. Please refer to the following diagram to know how to address your DMX512 system in the binary code.

  • Page 10: Troubleshooting

    6. Troubleshooting Following are a few common problems that may occur and suggestions as to how to solve them. A. No light 1. Check the power on LED and fuse 2. Check the lamp if it is ok? (The lamp may turn off, when the unit is in blackout). B.

  • Page 11: Fixture Cleaning

    7. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
  • Page 12 Technical Specifications Power AC 120V 60Hz AC 230/240/250V 50/60Hz Fuse 6X30mm Glass T15A Lamps J Type 120V 300W J Type 230V 500W 360mm x 225mm x 150mm(i Color-3) Dimension 450mm x 270mm x 175mm(i Color -4) 6 kg / 13.2 lbs(i Color -3) Weight 7 kg / 15.4lbs(i Color -4) Innovation , Quality , Performance...

This manual is also suitable for:

Icolor 4
