Summary of Contents for Wirepath WPS-550-BUL-A-GR

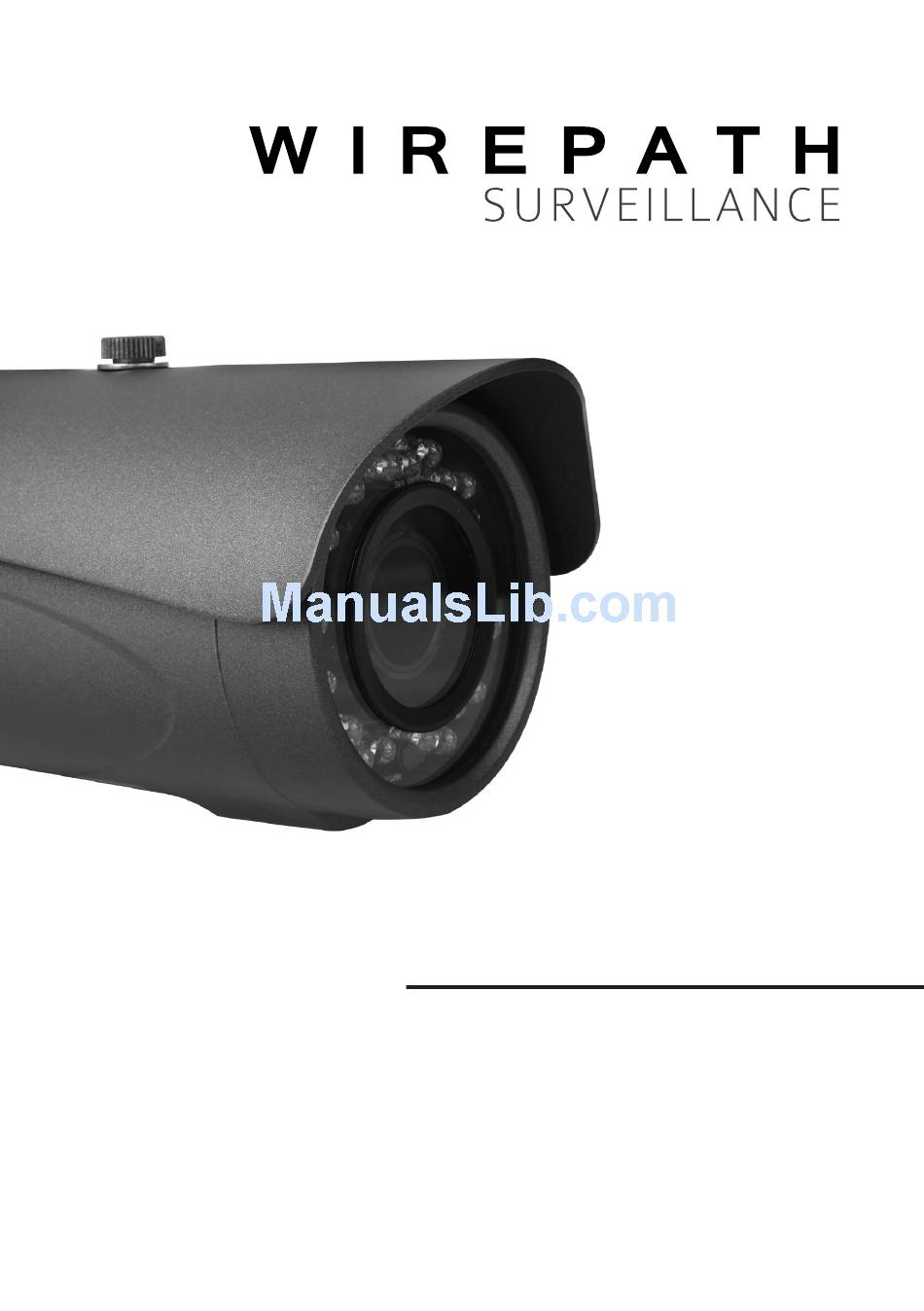

- Page 1 WPS-550-BUL-A-GR WPS-550-BUL-A-WH BULLET CAMERA INSTALLATION MANUAL Review manual thoroughly before installation. Retain for future reference.
-
Page 2: Table Of Contents
WPS-550-BUL-A Installation Manual CONTENTS Safety Instructions................3 Features....................4 Package Contents................5 Installation Instructions............... 7 Set-Up....................10 1. Operating The OSD Menu............. 10 2. OSD Menu Structure............... 10 3. OSD Menu Settings..............14 3.1 Lens................. 14 3.2 Exposure................. 14 3.3 White Balance............... 15 3.4 Backlight.................16 3.5 Day &... -
Page 3: Safety Instructions
5. Do not install camera in environments with extreme humidity. Installing camera in environments with extreme humidity may cause moisture to condense on the surface of the lens or dome cover, which can affect picture quality. © 2013 Wirepath Surveillance... -
Page 4: Features
WPS-550-BUL-A Installation Manual FEATURES • 1 /3” Sony Super-HAD II CCD The Sony Super HAD II CCD is ideal for low lux illumination, resulting in a clear and crisp image. • V arifocal Auto-Iris Lens This camera features a varifocal lens with a focal length of 3.7-12 mm. The auto-iris function intuitively manages the amount of light passing through the lens for consistent image brightness. -
Page 5: Package Contents
The PS-12DC-1A or WPS-PS multiple output power supplies are recommended. OPTIONAL ACCESSORIES Wirepath Surveillance offers a wide range of accessories that provide power to the cameras, allow for various mounting options, and make connection to the head end quick and easy. - Page 6 WPS-550-BUL-A Installation Manual WIRING ACCESSORIES In addition to mounts and power supplies, Wirepath offers a full line of accessories to easily send power, audio, and video over 2 conductors of Cat5 wiring back to the head end. Visit www.snapav.com for a complete listing of accessories.
-
Page 7: Installation Instructions
Too small a power supply or wire will cause too much voltage drop, which will cause the camera to operate incorrectly or not power up at all. DC Plug 12V DC Power BNC Video Output © 2013 Wirepath Surveillance... - Page 8 WPS-550-BUL-A Installation Manual 3. Mount the Camera A. Mounting directly to a wall or eve: A.1 - Use the Camera base as a template to mark the screw locations. A.2 - Predrill holes in the marked locations. A.3 - Connect the wires from the wall to the Cameras Pigtail and insert them into wall.
- Page 9 3mm Allen key. F. Adjust the Cameras Zoom (furthest from the lens) using the supplied 3mm Allen key. G. Adjust the Cameras Focus (closest to the lens) using the supplied 3mm Allen key. © 2013 Wirepath Surveillance...
-
Page 10: Set-Up
WPS-550-BUL-A Installation Manual SET-UP Operating the OSD Menu • To view the OSD, the OSD Joystick / OSD Joystick / BNC Test Adapter must be connected to a display monitor or WPS-CCTV- TESTER (not included). • The button found on the pigtail provides five separate actions: UP, DOWN, EXIT, ENTER and MENU. • Press the button to enter into the OSD MENU page. • Press UP, DOWN, EXIT (Left) or ENTER (Right) to select items on the menu and begin configuration. OSD Menu Structure Settings have been preconfigured for optimal performance in most applications. If adjusting the settings produces a poor picture, factory reset the camera to restore the original settings (see p.21) Bold indicates factory preset DC, MANUAL... - Page 11 All Day, Night Only RETURN DAY/NIGHT COLOR AUTO DN LEVEL 1 SEC DN DELAY ND LEVEL 5 SEC ND DELAY RETURN ON, OFF BURST IR SMART ON, OFF IR LEVEL LOW, HIGH RETURN See Page 16 for instructions © 2013 Wirepath Surveillance...
- Page 12 WPS-550-BUL-A Installation Manual OSD Menu Structure cont. (bold indicates factory preset) ON, OFF SPECIAL CAM TITLE MOTION AREA 1, 2, 3, 4 ON, OFF AREA SEL ON, OFF AREA STATE 0-15 (4) HEIGHT 0-15 (4) WIDTH 0-15 (2) LEFT/RIGHT 0-15 (2) TOP/BOTTOM 0-255 (38) DEGREE ON, OFF VIEW...
- Page 13 ON, OFF NEG IMAGE CAM ID 1~255 (1) COMM ADJ. ON, OFF ID DISPLAY 2400, 4800, 9600, BAUD RATE 19200, 38400, 57600 PELCO-D, PELCO-P PROTOCOL ID POS RETURN LANGUAGE ENGLISH VERSION RETURN FACTORY RESET RESET RETURN EXIT © 2013 Wirepath Surveillance...
-
Page 14: Osd Menu Settings
WPS-550-BUL-A Installation Manual OSD MENU SETTINGS The camera menu allows for SETUP the adjustment of settings to LENS MANUAL obtain optimal image clarity EXPOSURE and color realism. WHITE BAL. ATW1 BACKLIGHT DAY&NIGHT AUTO Note : If there is a “ ”... -
Page 15: White Balance
2000° K. • ATW2: Auto Tracking White Balance, color temperature is set to 2500° K. • AWCSET: Set the white balance to the scene. • MANUAL: Manually set the white based by adjusting Red and Blue color settings. © 2013 Wirepath Surveillance... -
Page 16: Backlight
WPS-550-BUL-A Installation Manual AWCSET Setting This function is ideal for an environment SETUP with the predominance of a single color. LENS MANUAL EXPOSURE For example, when used in a casino and WHITE BAL. AWCSET the camera is pointed to a green table, BACKLIGHT DAY&NIGHT AUTO... -
Page 17: Day & Night
AUTO, the camera uses the lens to detect the Lux rating of the picture and switches to N LEVEL --------|--------091 N DELAY 1 SEC color or B/W automatically. D LEVEL ---|-------------046 D DELAY 5 SEC RETURN © 2013 Wirepath Surveillance... -
Page 18: Dpc
WPS-550-BUL-A Installation Manual • D N LEVEL: Set the level that the camera switches from color mode to B/W mode. The larger the value, the quicker the camera will switch to B/W mode. • D N DELAY: Set the delay time before the camera switches from color mode to B/W mode. - Page 19 OFF to hide the detection zone on the screen. • Customize the size and the position of each detection zone by adjusting HEIGHT, WIDTH, LEFT/RIGHT, TOP/BOTTOM values. • DEGREE: Increase motion detection sensitivity by increasing this setting. • VIEW: When set to ON, the screen will highlight motion of the moving object with magenta rectangles. © 2013 Wirepath Surveillance...
- Page 20 WPS-550-BUL-A Installation Manual PRIVACY Setting PRIVACY Privacy Mask configuration allows the AREA SEL. AREA 1 masking of up to 8 “surveillance-free” AREA STATE HEIGHT -----|--------------32 zones of the picture. For example, this WIDTH -------------|----- 32 may be used for a camera that has a LEFT/RIGHT ---|----------------20 TOP/BOTTOM --------|---------- 16 neighbor’s window in part of the scene.
- Page 21 CRT, LCD, or USER. USER adjustments include: - PED LEVEL: The higher the value, the brighter the image. - COLOR GAIN: The higher the value, the darker the image. - GAMMA: Standard GAMMIA value is 0.55. Adjust the value between 0.05 ~1.00. © 2013 Wirepath Surveillance...
-
Page 22: Comm Adj
WPS-550-BUL-A Installation Manual • NEG. IMAGE: The Negative Image View offers a wider dynamic range and preserves most detail as it displays data exactly as the CCD sees it. Select ON for the Negative Image View mode to reproduce images with the most light intensity and color information. -
Page 23: Reset
"UNDO" feature, so ensure default settings are desired before selecting this function. EXIT A. Select EXIT to exit the OSD menu. B. Disconnect the OSD Joystick / BNC Test Adapter and replace the plate removed in step 4-A. © 2013 Wirepath Surveillance... -
Page 24: Rs485 System Diagram
WPS-550-BUL-A Installation Manual SYSTEM DIAGRAM RS485 Cable ID 1 ID 2 ID 3 ID 4 ID 255 Controller ID 0... -
Page 25: Troubleshooting
– 75 Ohm. • Reset the camera to factory default settings. Image appears blurry on the display • Check the focus of the lens. • Check the lens. If necessary, clean with a soft, clean cloth. • Check the camera iris and shutter settings. • Reset the camera to factory default settings. The camera is not working properly and the camera housing is hot • Check if camera is connected to the correct power source. © 2013 Wirepath Surveillance... - Page 26 WPS-550-BUL-A Installation Manual The color of the picture is not correct • Check White Balance and Color (Red / Blue) settings. • Reset the camera to factory default settings Screen flickers continuously • Check the camera location to make sure it is not pointing directly towards the sun or bright light source • Check if the flickerless control is set correctly; proper settings should reflect required refresh rates. • Reset the camera to factory default settings AGC settings are not available • DAY&NIGHT Mode is set to AUTO. To enable AGC control change DAY&NIGHT to EXT, Color or B/W RS-485 communication failure • Check whether the RS-485 polarity is connected correctly to the RS-485 port.
-
Page 27: Specifications
12 VDC (1A) Only Housing & Power Power Consumption 5.5W - 450mA Depth Height Width Arm 90° 8.39" 3.82" 3.4" Dimensions Arm Straight 9.07" 3.28" 3.4" All Dimensions with Sun Shade Attached Weight 1.70 lb. (770g) *Specifications are subject to change without notice © 2013 Wirepath Surveillance... -
Page 28: Dimensions
WPS-550-BUL-A Installation Manual DIMENSIONS 9.07in. 8.39in. 3.24in. 3.73in. 0.6in. Ø 3.06in. -
Page 29: Warranty
This warranty shall not apply to products which have been abused, modified, disassembled or improperly installed. Products to be repaired under this warranty must be returned to Wirepath™ Surveillance or a designated service center with prior notification and an assigned return authorization number (RA). CONTACTING TECHNICAL SUPPORT Phone: (866) 838-5052 Email: Techsupport@snapav.com... - Page 30 130424-1610 © 2013 Wirepath Surveillance...
