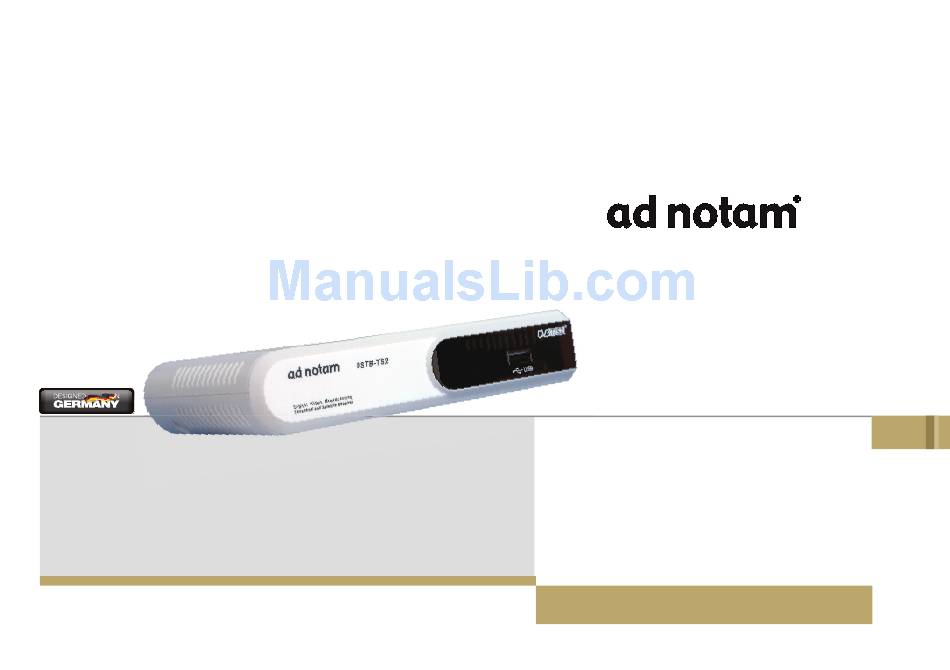

- Page 1 USER MANUAL DIGITAL SET TOP BOX, DVB-T/S2 subject to modifi cation * 06-2013 * V1...
-
Page 3: Table Of Contents
SUMMARY General Information Installation Wet Rooms Product Information Getting Started Troubleshooting Technical Specifi cation... -
Page 4: General Information
Never touch not-isolated parts of the plug, if the device is connected to the power adapter! • Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. • Avoid any impact and do not allow the product to fall! DSTB-T/S2... - Page 5 Have this product installed by qualifi ed staff only. Use the mounting systems which are specifi ed or recommended by ad notam. Install the product in a way that it is fi xed properly and take care that children are not exposed to dan- ger.
- Page 6 Please plan the positioning of the power adapter and the source cables before proceeding with the structural measures and positioning of the device. Observe the protection zones when placing the power adapter! For in-wall applications please bear in mind that the power adapter has to be placed beyond the inset due to heat emission! DSTB-T/S2...
- Page 7 NOTE The power adapter should be adequately secured to prevent it from becoming unstable and/or falling. Make sure the power source circuits are properly grounded. Use the supplied power cord in order to connect it to the power source. If your installation requires a different power cord, be sure to use an offi...
- Page 8 ® , MIRROR IMAGE , MAGIC MIRROR AD NOTAM, MIRROR IMAGE and MAGIC MIRROR are trademarks of the ad notam group. HDMI HDMI, HDMI CEC (HDMI Consumer Electronics Control), the HDMI logo and HIGH-DEFINITION MULTIMEDIA INTERFACE are trademarks of HDMI Licensing LLC.
- Page 9 GENERAL INFORMATION - DISPOSAL OF OLD EQUIPMENT AND BATTERIES European Union The following symbol indicates that electrical resp. electronic equipment and batteries signed with this symbol should not be disposed of as general household waste at its end of life. Instead, the products should be handed over to the applicable collection points for the recycling of electrical and electronic equipment as well as batteries for proper treatment, recovery and recycling in accordance with your national legislation and the Directive 2002/96/EC and 2006/66/EC.
-
Page 10: Installation Wet Rooms
DIN VDE 0100 T.701. According to this standard, ad notam monitor systems with DC 12V (Limited Power Source Class II, SELV) can be installed at each position (incl. Zones “0” and “1”) in harsh environments, also in showers and above a bath tub as long as the low voltage product is shielded from a sealed glass surface and the (external) power adapter is installed beyond these protection zones. -
Page 11: Product Information
PRODUCT INFORMATION - SCOPE OF DELIVERY ad notam introduces the DSTB-T/S2, a set top box with an inbuilt digital TV tuner that covers all main Satellite and Terrestrial Digital TV standards (DVB-T / DVB-S / DVB-S2). It is ready to interact with all models of the ad notam Display Frame Unit (DFU) line and any monitor system that features an HDMI input port. - Page 12 LNB input, 1 x 75Ohm F-TYPE connector (DVB-S / DVB-S2) • RF input, 1 x IEC-TYPE connector (DVB-T) • HDMI output, 1 x HDMI terminal • IR input (infrared), 1 x mini jack 3.5mm • Power input, 1 x Switchcraft L722 (12V DC / 1A) DSTB-T/S2...
-
Page 13: Getting Started
GETTING STARTED - HOW TO CONNECT ad notam DFU monitor system Connect an HDMI cable to the HDMI output terminal of the digital set top box and one of the three HDMI inputs of the DFU. IR pass through cable In order to use the integrated IR receiver of a combined DFU monitor system connect an IR pass through cable (ET_545) to the IR output port of the DFU monitor system and the IR input port of the digital set top box. - Page 14 Open / close OSD menu of DFU Dimmer scene 1 recall Switch between TV and radio Favorite list Sleeptimer Aspect ratio Select audio mode / audio track functions used for ad notam DFU monitor systems functions used for ad notam lighting solutions DSTB-T/S2...
- Page 15 The LED indicator is off. In order to reset all keys to ad notam “factory default” IR commands, please follow the next steps: In order to reset all keys to ad notam “factory default” IR commands, please follow the next steps: In order to reset all keys to ad notam “factory default”...
- Page 16 Open / close OSD menu of DFU Sleeptimer Aspect ratio Select audio mode and audio track Dimmer on / off Dimmer scene 1 recall functions used for ad notam DFU monitor systems functions used for ad notam lighting solutions DSTB-T/S2...
- Page 17 GETTING STARTED - INSTALLATION GUIDE Installation Guide If you use the digital set top box for the first time the OSD Language English Installation Guide will be displayed automatically. Country Germany Channel Search DVB-S/S2 Press the cursor buttons to setup the OSD Language and the Country location.
- Page 18 OSD menu. NOTE The default password is "000000", but may be modifi ed within the System menu. Channel Search System Terrestrial Channel Search Parental Guidance Satellite Channel Search Set Password DB Management Restore Factory Default Information Recall List Software Update DSTB-T/S2...
- Page 19 Program Program Press the key to open the OSD menu. Navigate to key to open the key to open the Program with the keys. Program Edit • Program Edit: move, skip, lock, delete, favor and/or rename channels according to your preferences. •...
- Page 20 Sleep command from the remote control in the meantime, choose from parameters 1 hour - 12 hours, Off. If Sleep is set to Off, the digital set top box is unable to enter standby mode automatically. DSTB-T/S2...
- Page 21 Option Option Press the key to open the OSD menu. Navigate to key to open the key to open the Option with the keys. OSD Language English • OSD Language: determine the desired language for the OSD menu, choose from Cesky, Dansk, Deutsch, Subtitle Language English English, Español, Français, Italiano, Português,...
- Page 22 Recall List: (de-)activate a recall list that shows the previous watched channels, when pressing the key on the remote control. • Software Update: accomplish a software upgrade via the USB port or (de-)activate an automatic update via OAD (over-air-download), choose from parameters USB Upgrade, OAD. DSTB-T/S2...
-
Page 23: Troubleshooting
If the above troubleshooting hints do not help you to find a solution for the problem, please contact an authorized ad notam service agent. If the product needs to be sent in for RMA service, please use the original package. -
Page 24: Technical Specifi Cation
TECHNICAL SPECIFICATION - DSTB PORTS Ports DSTB-T/S2 LNB Input 1 x 75Ohm F-TYPE connector (DVB-S / DVB-S2) RF Input 1 x IEC-TYPE connector (DVB-T) Input Ports USB Input 1 x USB terminal IR Input (Infrared) 1 x mini jack 3.5mm... - Page 25 TECHNICAL SPECIFICATION - DSTB GENERAL FEATURES General Features DSTB-T/S2 Power Voltage DC 12V Power Consumption < 6W Standby < 1W Video Decoder MPEG-4 / H.264 HP@L4, MPEG-2 MP@HL Video Output Ratio 4:3 / 16:9 / letter box / automatic Video Resolution...
- Page 28 E-Mail: info@ad-notam.com Web: www.ad-notam.com...
