USER MANUAL
DMX Dual Servo Pan LED Light Bar
Model 555-16215
The Stellar Labs Dual Servo Pan LED Light Bar offers many possibilities to achieve the effects desired by top DJs, bands,
nightclubs and other performers who want a complete LED wash light system. Please read the manual before operation.
A. SPECIFICATIONS
1. Power input: 100~240VAC, 60Hz/50Hz
2. Power consumption: 108W
3. LEDs: (8) 9 Watt Cool White
4. Beam angle: 3°
5. DMX Channels; 1 / 12 / 16
6. Weight: 19 lbs.
7. Size: 42" x 3.75" x 7"

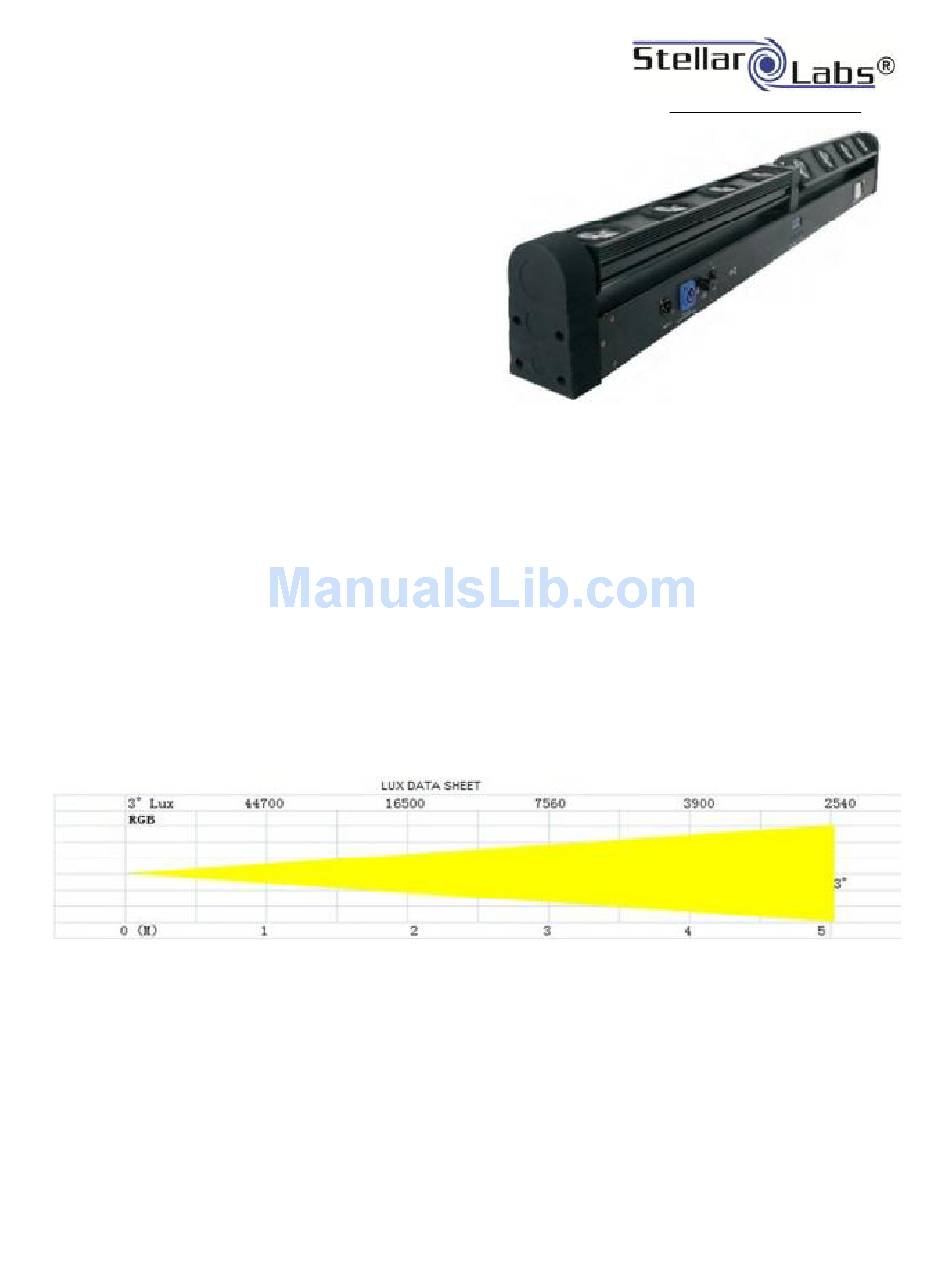

B. PHOTOMETRIC CHART
C. OPERATION
This product provides five different modes of operation, making is suitable for use in simple stand-alone environments,
as well as sophisticated DMX controlled systems.
•
built-in programs
•
auto run
•
DMX mode (DMX control or master control of other lamps)
•
slave mode (DMX control or control from another lamp)
•
sound active
www.mcmelectronics.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for stellar labs 555-16215
Summary of Contents for stellar labs 555-16215
- Page 1 Model 555-16215 The Stellar Labs Dual Servo Pan LED Light Bar offers many possibilities to achieve the effects desired by top DJs, bands, nightclubs and other performers who want a complete LED wash light system. Please read the manual before operation.
- Page 2 D. PROGRAMMING FUNCTIONS Button Function Description In main menu, press to enter next mode; MODE return to the last menu In submenu, press to return to last menu SETUP enter the next menu In parameter setting, press to add one In option menu, press to return to last menu Plus In mode menu, press to enter next mode...
- Page 3 F. PROGRAMMING The following instruction is intended to aid in navigating the above menu structure. Take some time to get accustomed to the functions of the menu buttons and layout. This will ensure proficiency with operating this unit. Note that some terminology used may not be immediately clear at first. i.e. GRAY refers to the dimming mode. Auto Mode •...
- Page 4 G. DMX CHANNEL ASSIGNMENT Single Channel Mode 1-ch Channel Number Function 0--19 LED close, electronic machine back to the horizontal position 20-29 Show1 30-39 Show2 40-49 Show3 50-59 Show4 60-69 Show5 70-79 Show6 80-89 Show7 90-99 Show8 100-109 Show9 110-119 Show10 120-139 LED close, electronic machine back to the horizontal...
- Page 5 16 Channel Mode 16-ch Channel Number Function 0--180 Left BAR 0-180°(90°horizontal) 180-255 Left BAR 180° 0-255 Adjust Left BAR speed, the larger number, more faster the speed 0-180 Right BAR 0-180°(90°horizontal) 180-255 Right BAR 180° 0-255 Adjust Left BAR speed, the larger number, more faster the speed 0-255 LED1 0-100%...
- Page 6 Warranty This Stellar Labs device is warranted, by MCM Electronics against defects for a period of 365 days from the date of purchase. This warranty includes manufacture defects and failure due to normal use and operation. Failure due to misuse, excessive wear or damage, improper installation or other external factors is not covered under this warranty.
