Original instruction

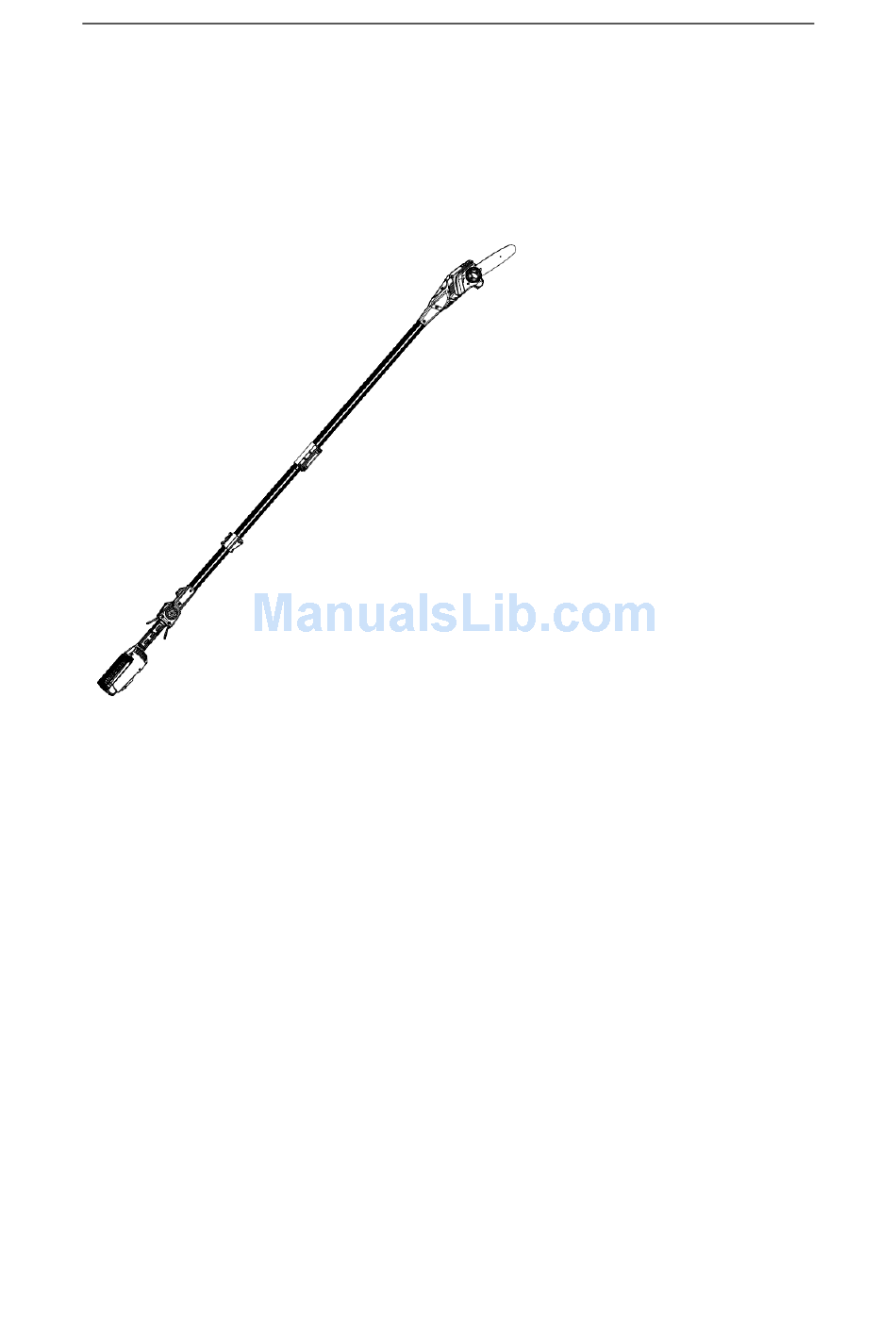

40V LITHIUM-ION CORDLESS POLE SAW

Model: E608D, E610D

Operator's Manual and Part List

Before use please read & understand this manual. Pay particular

attention to the safety instructions.

Retain these instructions for future reference.

Manufacturer: Ningbo NGP Industry Co., Ltd.

Address: No. 88, Lane 666, Jinshan Road, C Zone Jiangbei Investment Center, Ningbo

315020, P. R. China

1 / 15

Table of Contents

Need help?

Do you have a question about the E608D and is the answer not in the manual?

Questions and answers

Summary of Contents for Ningbo E608D

Page 1 Before use please read & understand this manual. Pay particular attention to the safety instructions. Retain these instructions for future reference. Manufacturer: Ningbo NGP Industry Co., Ltd. Address: No. 88, Lane 666, Jinshan Road, C Zone Jiangbei Investment Center, Ningbo 315020, P. R. China 1 / 15...
Page 2: Table Of Contents
Original instruction CONTENTS • Contents………………………………………………………….2 • Specifications…………………………………………………….3 • Symbols…………………………………………………………..4 • Safety Instructions…………………………………………….5-7 • Major Parts of the Pole Saw……………………………..…..8 • Assembly and Operation……..……………………………..9-10 • Lubrication and Sharpening………………….…………..10 • Use of the Saw………………………………………………..11 • Charger Function………………………………………...12 • Exploded View and Part List……………………………...13-14 •...
Page 3: Specifications
Original instruction PRODUCT SPECIFICATIONS Model E608D E610D Rated Voltage 40V DC Linear No Load Speed 6 m/s Guide Bar length 200mm (8 inch) 250mm (10 inch) Chain oil capacity 70ml Weight (w/0 EP40 battery 3.1kg pack) Sound Power Level 96dB(A) Lithium Ion –...
Page 4: Symbols
Original instruction SYMBOLS Warning, safety alert. Read and follow all safety precautions in the owner’s manual. Protective goggles/visor, protective helmet & hearing protection. Do not expose to rain. Wear non-slip safety footwear. Always wear the gloves when use the chain saw. Electrocution hazard.
Page 5: Safety Instructions
Original instruction General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Page 6 Original instruction conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or power tools that have the switch on invites accidents.
Page 7 Original instruction pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
Page 8: Major Parts Of The Pole Saw
Original instruction MAJOR PARTS OF THE POLE SAW FIG 1 1. Bar and Chain 2. Chain Tension Knob 3. Aluminum Pole 4. Pole Joint Clamp 5. Harness Attachment Ring 6. Safety switch 7. Power Switch 8. Battery 9. Chain Oil Filler 10.
Page 9: Assembly And Operation
Original instruction ASSEMBLY This pole saw is delivered to you with the bar and chain fully assembled, but the pole separated into two halves. To assemble, loosen the Pole Joint Clamp (item 4 in fig 1) and slide the two halves of the pole together until the spring latch pops up in the hole provided.
Page 10: Lubrication And Sharpening
Original instruction  Replace the sprocket cover and loosely fasten the inner knob of the Chain Tension Knob. Ensure that the tightening lug engages in the round hole in the bar Tightening lug  Use the outer ring of the Chain Tension Knob to get the correct tension in the chain. “+” means tigthning and “-”...
Page 11: Use Of The Saw
Original instruction 3. Keep the correct top-plate filing angle line on your file guide parallel with the chain. Many cutters have a guide mark stamped near the rear edge of the top plate that can also be used as a guide for filing angle. 4.
Page 12: Charger Function
Original instruction The Pole Saw is equipped with a Harness Attachment ring (item5 Fig1). Use this to reduce the load on your arms – it is also a useful way to check the downward movement of the saw after a branch is cut through. Quick-release harness When in danger, press and release the pruner...
Page 13: Exploded View And Part List
Original instruction EXPLODED VIEW AND PARTS LIST Part No. Description Part No. Description 60170670 Self tapping screw 70290270 Adjusting rod 21060130 Left handle 70670300 Adjusting gear 30090060 PCB board 60170760 Tapping screw 20470030 Self lock switch 60240050 Spring ring 30080030 Switch 70040120 Check ring...
Page 14 Original instruction 60090070 Screw 20140090 Centre bracket 30010230 Connector 70670290 Chain wheel 60140110 Screw 60240060 Spring ring 20800070 Plug in unit 70670280 Gear wheel 21120040 Lower plug in sleeve 60170750 Screw 60380360 Pressure spring 30070050 887 motor 60170770 Tapping screw 20140100 Bracket cover 30040200...
Page 15: Ec Declaration Of Conformity
Original instruction EC DECLARATION OF CONFORMITY Herewith we, Manufacturer: Ningbo NGP Industry Co., Ltd. Address: No. 88, Lane 666, Jinshan Road, C Zone Jiangbei Investment Center, Ningbo 315020, P. R. China declare that the machine/s Designation: LITHIUM-ION CORDLESS POLE SAW...

This manual is also suitable for:

E610d
