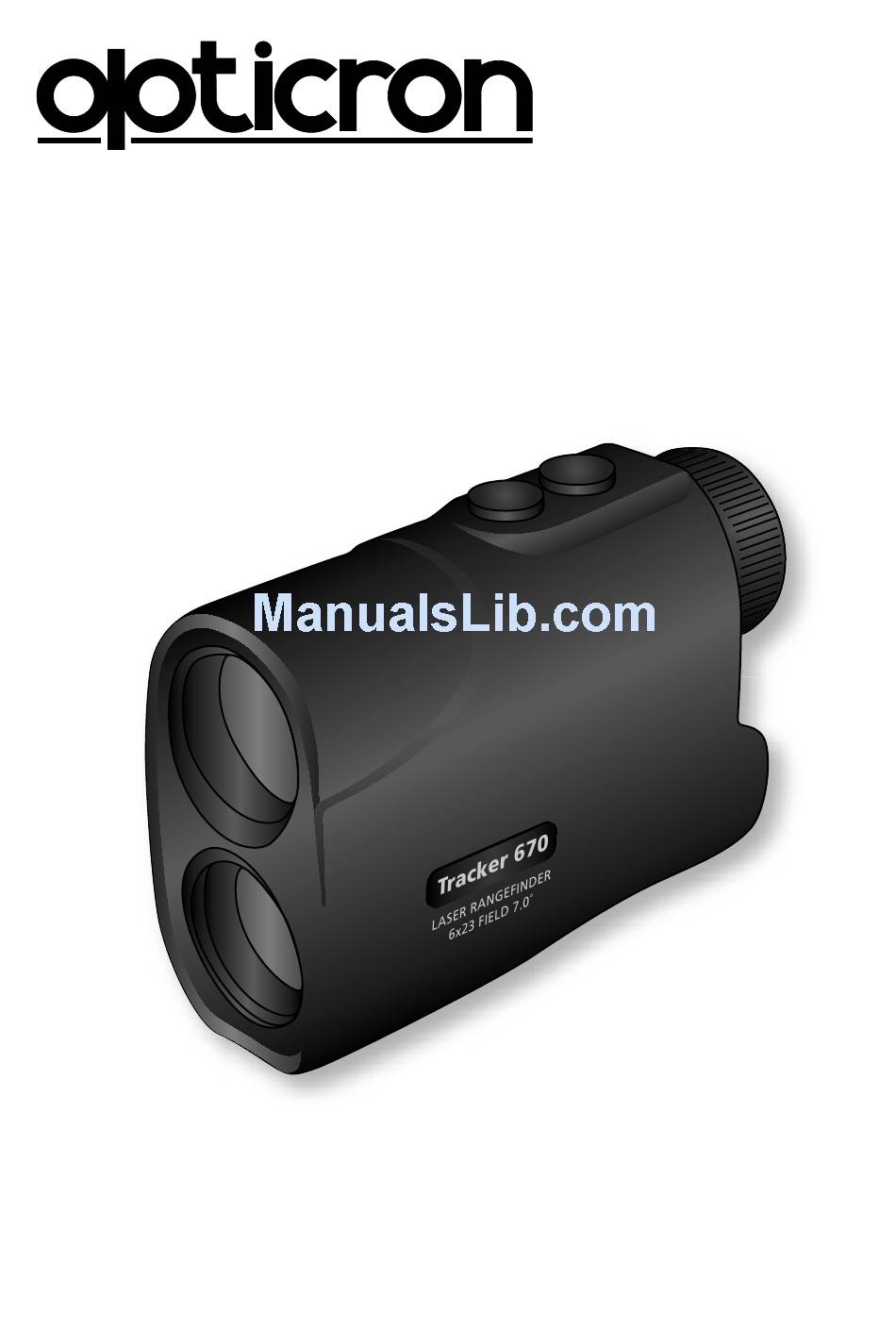

- Page 1 Tracker 670 Laser Rangefinder Operation Manual T6702YR14...

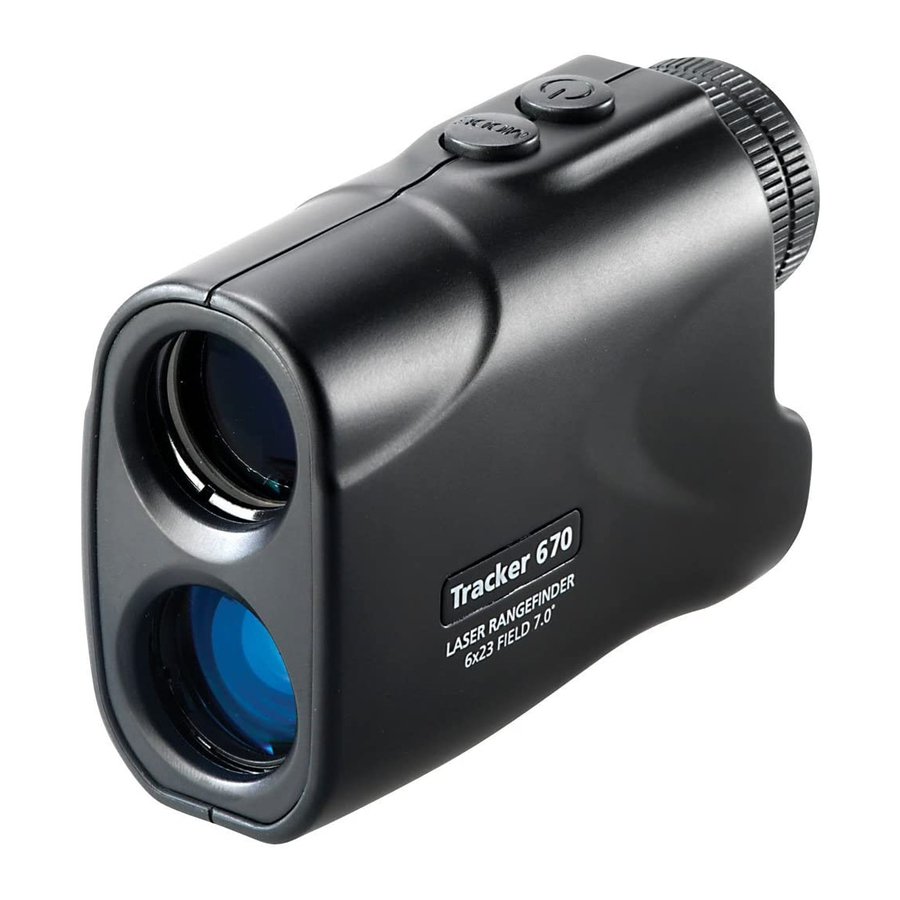

- Page 2 Introduction The Tracker 670 is a compact easy to use laser rangefinder designed for a range of outdoor activities such as golf, hunting, site surveying, walking and rambling. A compact 6x magnification monocular, the Tracker 670 provides accurate measurements of targets up to a range of 400 metres. It can also simultaneously measure the angular distance to and height of an individual target being observed.
- Page 3 Laser Using a Class 1M eye-safe laser beam, the Tracker 670 emits short bursts of laser energy from the emitting lens. These are then reflected from the target and returned to the measuring lens. The device should be held so that the emitting lens is above the measuring lens.
- Page 4 High Level The Tracker 670 is accurate to within plus or minus one metre. Operating the Tracker 670 Power on the device by briefly pressing the power button. When first powered on the LCD will be displayed as shown.
- Page 5 2 seconds. The bottom left of the LCD will show ‘M’ or ‘Y’. To switch back again, press and hold the ‘MODE’ button for a further 2 seconds. The Tracker 670 will power off automatically if not used for 20 seconds.
- Page 6 2 seconds. The bottom left of the LCD will show ‘M’ or ‘Y’. To switch back again, press and hold the ‘MODE’ button for a further 2 seconds. The Tracker 670 will power off automatically if not used for 20 seconds.
- Page 7 Avoid dropping the device on hard surfaces and take care not to crush it if it is packed in a rucksack or case. The Tracker 670 is not waterproof and should not be submerged in water. It will resist some moisture but should not be used in very rainy or snowy conditions.
- Page 8 Address: Opticron, Unit 21, Titan Court, Laporte Way, Luton, Bedfordshire, LU4 8EF, UK Phone: +44 (0)1582 726522 Fax: +44 (0)1582 723559...
