Summary of Contents for utmark X500

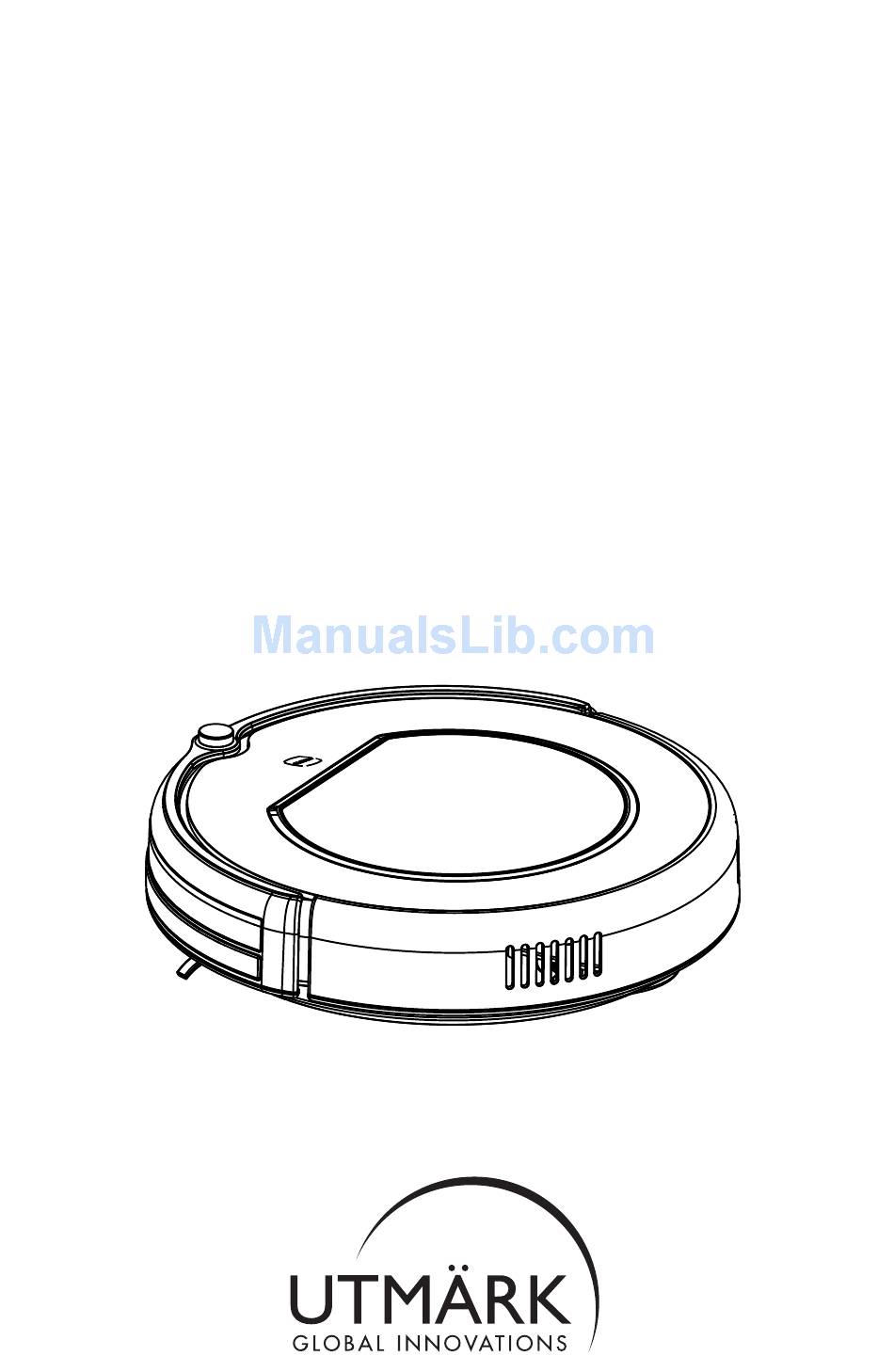

- Page 1 Smart Vacuum Cleaner Model: X500 User Manual...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions ..............1 Product Features ............... 2 Product Parts ................3 ............... 3 Main body and accessories ................4 Robot anatomy ......5 Name of each part (1)Charging home base & Virtual wall ..........6 Name of each part (2) Remote control .......... -
Page 3: Safety Instructions
Safety Instructions Before using this product, please read the following safety instructions and follow all normal safety precautions. Read this user manual thoroughly and carefully before using this product. Save this user manual. Any operations that oppose to descriptions in this user manual may lead to harm to human or this product. -
Page 4: Product Features
Product Features Powerful Suction & Intelligent Suction Adjustment Powerful suction Suction power of this product reaches 25 W, ensuring that even tiny dust on the floor will be cleaned thoroughly. Intelligent Suction Adjustment This product is able to automatically adjust its suction power when meeting different floor environments. -
Page 5: Product Parts
Product Parts Main body and accessories Description Q'ty Main Body Charging Home Base Remote Control(battery not included) Virtual Wall(battery not included) Adapter Cleaning Tool User Manual Extra Side Brushes Extra HEPA Filter... -
Page 6: Robot Anatomy
Product Parts Robot anatomy Infrared Signal Receiving Window Bumper Main Pad Cover Nose Wheel Auto Charging Pins Right Side Brush Left Side Brush Battery Cover Suck Passage Left Wheel Module Right Wheel Module Power Switch Bottom Cover Cover Dust Bin Power Supply Socket Dust Bin Primary Filter... -
Page 7: Name Of Each Part (1)Charging Home Base & Virtual Wall
Product Parts Charging home base & Virtual wall Infrared Signal Transmitting Window Signal Light Top Cover Charge Connecting Point Power Supply Socket Power Switch Infrared Signal Transmitting Window Signal Light Signal Window Side Cover Bottom Cover Installing virtual wall battery ■... -
Page 8: Name Of Each Part (2) Remote Control
Product Parts Remote control 1. “ ” Home button 2. “ ” Clean/Power button 3. “ ” Directional Buttons 4. “ ” Scheduling button 5. “ ” Spot button 6. “ ” Edge button You could use the remote like your TV remote. First make sure the power switch at the bottom side of the robot is on, then pointing it towards the robot and using it to control the robot. -
Page 9: Name Of Each Part (3) Display Panel
Product Parts Display panel Display part 1. “ ” Number display Shows the timer display, progress status, charging status, and error codes by using numbers, letters and graphies. 2. “ ! ” display Shows the error that occurs. 3. “ ”... -
Page 10: Product Operating
Product Operating 1. How to get started 1>. Place charging home base, plug in adapter, then signal light on charging home base will flash. Note: Put charging home base against the wall and remove obstacles about 1 meter at two sides and about 2 meters forward. 1>... -
Page 11: Starting Up/Pause/Sleeping
Product Operating 2. Starting up/Pause/Sleeping 1>. Starting up A. Make sure the power switch is on; B. Press CLEAN button on main body or on remote control to start cleaning. Note: If robot is in sleeping mode, press CLEAN button to wake the robot up from sleeping mode. Then press CLEAN for a second time, the robot starts cleaning automatically. -
Page 12: Cleaning Mode
Product Operating 4. Cleaning mode 1>. Auto cleaning The robot will clean a room automatically and adjust according to the situation. Note: Press CLEAN button on robot or on remote control to start auto cleaning. 2>. Spot cleaning The robot will automatically enter spot cleaning mode when it detects a dirtier area, or you could press SPOT on robot or remote control to start spot cleaning. -
Page 13: Product Maintaining
Product Maintaining 1. Cleaning side brushes Clean the side brushes when it gets dirty and replace if it’s damaged. Note: Before replacing side brushes, check and make “L”, “R” mark on side brush match with the “L”,”R” mark on bottom base of the robot. 2. -
Page 14: Cleaning Sensors And Wheels
Product Maintaining 3. Cleaning sensors and wheels. Slightly wipe cliff sensors, auto charging sensors and wheels with cleaning tool or a soft dry cloth, as shown in figure below. Clean charge connecting points on charging home base. Clean suck passage and dust sensor as shown in figure below. Note: Never let water, thinner, etc directly touch the sensor window. -
Page 15: Troubleshooting
Troubleshooting 1. Error code sheet When the robot meets with some routine troubles, it will remind you by tone and error code will show on the display panel. Error Code Cause Solution Left wheel no work Check left wheel Right wheel no work Check right wheel Re-place the robot on the floor Main body is picked up... -
Page 16: Product Specifications
Product Specifications Classification Item Detail Diameter 340mm Mechanical Height 90mm Specifications Weight 3.0kg Power voltage 14.4 V Electrical Specifications Battery specifications Ni-MH 2000mAH 0.3L Dust bin capacity Auto Charging/ Charging type Manual Charging Cleaning Auto, Spot, Edge, Cleaning mode Specifications Daily Schedule About 200-300min Charging time...
