Summary of Contents for Manhattan 160872
-

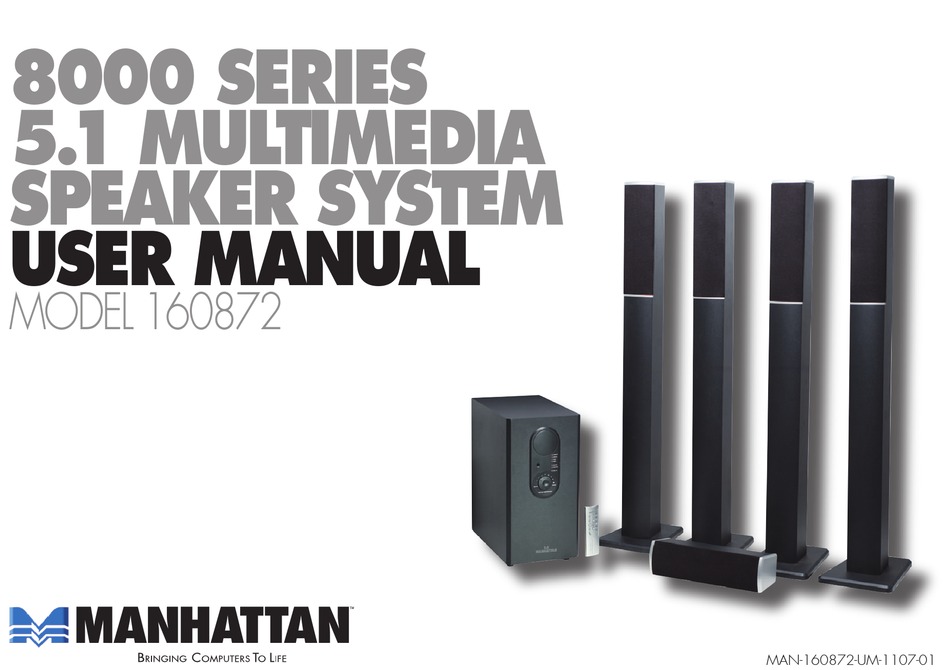

Page 1: Speaker System
8000 series 5.1 multimedia speaker system user maNual MODEL 160872 MAN-160872-UM-1107-01... - Page 3 Thank you for purchasing the MANHATTAN 8000 Series 5.1 Multimedia Speaker System, ® Model 160872. These speakers feature internally powered amplifiers, making them compatible with computers and CD and DVD players, including portable versions of such devices. They are also completely shielded in terms of magnetization, and so will not interfere with the performance or operation of your computer or TV monitor.
-
Page 4: Safety Precautions
safety preCautiONs Prior to the installation of your speakers, read the following safety guidelines to help prevent damage to any electrical components or harm to users. • Do not place this product or any of its parts near heat or potential heat sources, nor in any moist or damp environment. - Page 5 setup Subwoofer 1. Carefully unpack the speakers and accessories. Do not lift or remove the speakers from the box by the function knobs or other attachments as this may damage the speaker unit. 2. Place the satellite speakers and subwoofer in the desired listening location.
-
Page 6: Operation
5. Plug the AC power cord (attached to the rear of the subwoofer unit) into an electrical outlet and set the main power button (also on the rear panel of the subwoofer) to the on position. This allows you to then use the more convenient controller on the front of the subwoofer and the button on the remote control to bring the speaker system out of the standby mode. - Page 7 ready for use. Rotate the one-key controller on the front panel FRONT clockwise and the ST_BY LED lights blue or green, indicating that REAR the speaker system has been activated. Mode (Stereo vs. 5.1 Ch) 5.1 CH To match the speaker output to the system’s audio input, select STEREO between STEREO (CD mode) and 5.1 CH (DVD mode) by pressing ST_BY...
-
Page 8: Remote Control
The infrared receiver (IR) accepts the signal from the remote control. Make sure nothing is placed in front of the receiver (or between the receiver and the remote control) that could interfere with the signal. remOte CONtrOl The buttons on the remote control unit perform the same functions as the controls on the front panel of the subwoofer except that, instead of a controller that selects individual and pairs of speakers, the remote control has separate buttons for raising and lowering the volume levels;... - Page 9 suggestiONs fOr setup & OperatiON • Though featuring a magnetically shielded design so the speaker system is free from interference when placed near a monitor or TV, the subwoofer can cause interference in other components. Position the subwoofer at least 30 cm (1 ft.) away from monitors and TVs. •...
-
Page 10: Specifications
speCifiCatiONs • RMS output power: 70 W + 20 W x 5 • Frequency response: Satellites: 100 Hz – 20 kHz Subwoofer: 20 Hz – 300 Hz • Signal to noise ratio (S/N): ≥ 70 dB • Total harmonic dstortion (THD): ≤ 0.3% •... - Page 12 PC Components, Peripherals, Cables ® and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
