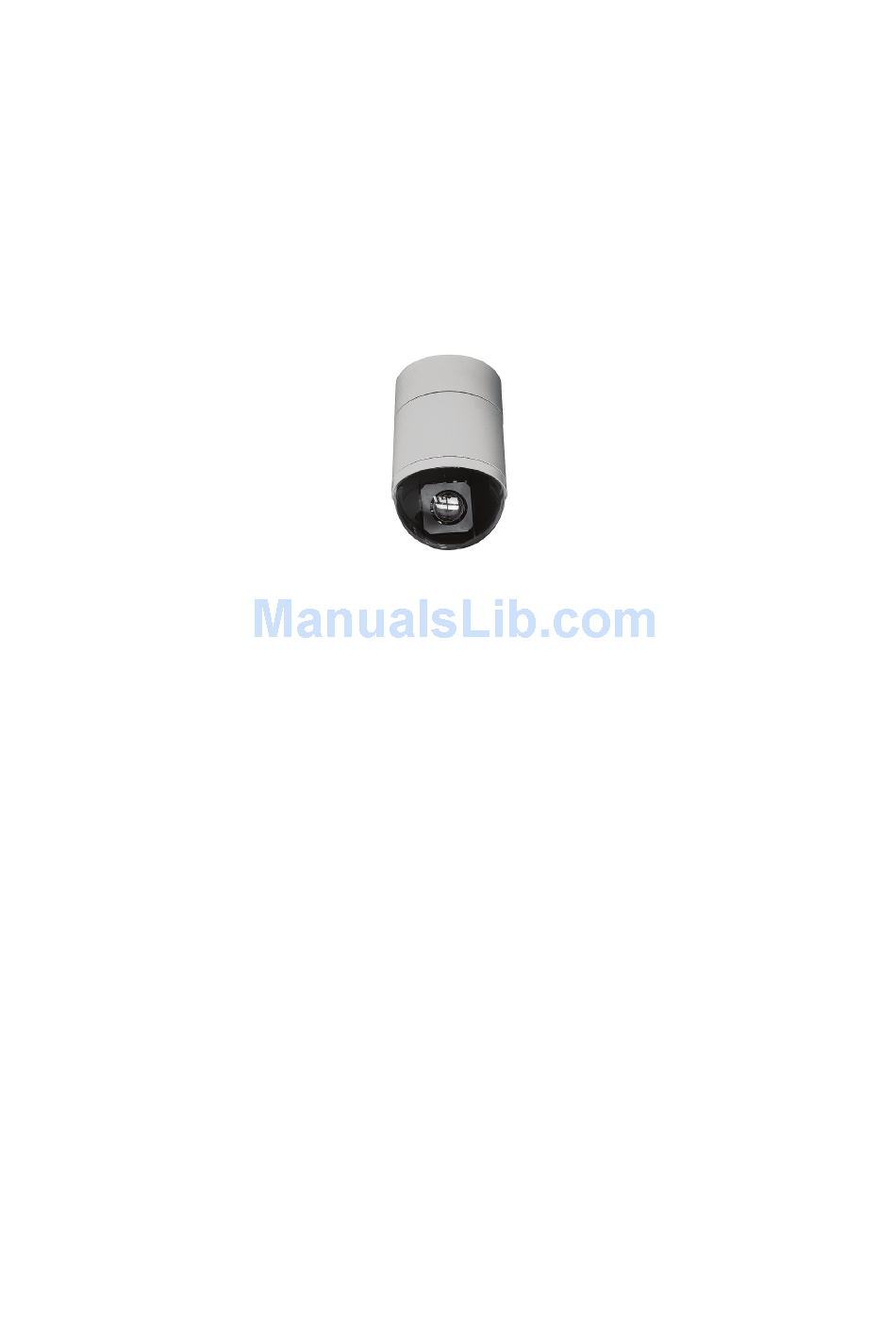

- Page 1 Integrated High Speed Dome Camera Indoor Dome (701) User’s Manual 00-3H7010ZSEA2...
-
Page 2: Important Information
User’s Manual Notice The information given in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Copyright Under copyright laws, the contents of this user manual may not be copied, photocopied, translated, reproduced or reduced to any electronic medium or machine-readable format, in whole or in part, without prior written permission of the company. - Page 3 User’s Manual Cautions • Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. • Do not disassemble the camera To prevent electric shock, do not remove screws or covers. There are no user serviceable parts inside.
-
Page 4: Table Of Contents
User’s Manual Content 1. Overview ............................ 5 Product Features......................6 Product Application......................7 2. Connecting the High Speed Dome ..................8 Package Content......................8 Switch Definition......................9 RS-485 Setting ........................ 9 Dome ID Setting ......................10 Dome Control Protocol ....................10 22-Pin Connector Definition ...................11 Alarm Pin Definition....................... - Page 5 User’s Manual 3.3.10 TITLE DISPLAY ....................28 3.3.11 TITLE SETTING ....................29 3.3.12 ALARM SETTING.................... 29 3.3.13 HOME SETTING ..................... 31 3.3.14 SEQUENCE ....................32 3.3.15 AUTOPAN......................34 3.3.16 CRUISE ......................35 3.3.17 IR FUNCTION (Removable IR Cut)..............36 3.3.18 ALARM DETECT (E/F/U Model Only) ............. 37 3.3.19 WDR Setting (K Model Only) ................
-
Page 6: Overview
User’s Manual Overview ZH701 is a new subcompact integrated high speed dome camera designed to deliver superb performance and durability with an intelligent and stylish housing that is suitable in any security and surveillance installation. ZH701 series dome cameras support one cabling for easy installation, and can be integrated with CCTV products, such as DVRs, Control Keyboards, and CCTV accessories for a total surveillance solution. -
Page 7: Product Features
User’s Manual OSD setup menu; certain function (Preset/Sequence/Auto-Pan/Cruise) can be activated when an alarm is triggered. Large set of built-in protocols provide connectivity to other surveillance systems. The built-in protocols include DynaColor, Pelco, VCL, Philips, AD-422 (Manchester), etc, which allow the Integrated High Speed Dome Camera series to be integrated with other suppliers' surveillance systems. -
Page 8: Product Application
User’s Manual • Chiper Privacy Mask for Privacy Protection • Up to 24 privacy zones of camera view programmable Dynamic Dome Configuration • Flexible In/Outdoor mountings • Compact lightweight design for easy installation • Weather resistant housing for temperature, sun ray, and rain Integrated with Web, Enhanced Internet Capability (Optional) •... -
Page 9: Connecting The High Speed Dome
User’s Manual Connecting the High Speed Dome Please refer to the following sections to connect, set and operate the dome camera. In order to control the integrated high speed dome, basically a control keyboard or other control device is required. Package Content Before proceeding, please check the box contains the items listed here. -
Page 10: Switch Definition
User’s Manual Switch Definition First of all, configuring the dome ID and communication protocol is required before connecting the dome camera to other devices. The switches used for configuring these settings are located on the bottom of the dome camera. Indoor Dome Reserved RS-485 Setting... -
Page 11: Dome Id Setting
User’s Manual Dome ID Setting Use the switch to change your speed dome ID by turning the arrow to the desired number respectively. For instance, if the dome ID is 123, the ID switch should be set as below. NOTE: No two domes should be given the same ID, or communication conflict may occur. -
Page 12: 22-Pin Connector Definition
User’s Manual decimal single digit 22-Pin Connector Definition A 50-cm data cable (as belowing figure) is shipped with the integrated high speed dome for a quick installation for demo or testing usage. The 22-pin connector definition is listed as below. Color Cable AC24-1... -
Page 13: Alarm Pin Definition
User’s Manual Alarm Pin Definition The alarm pins are serviceable for connecting alarm in- and output devices. Following lists the definition of alarm pin on the 22-pin connector located on the bottom of the dome camera. Cable Color Definition White ALM NO Black ALM NC... -
Page 14: Operation And Configuration
User’s Manual Operation and Configuration OSD Display Format The information shown on the screen are described in terms of OSD display, position and function description in the table below. Position Function OSD Display Description Auto Focus Mode Focus Modes Manual Focus Mode Back Light Compensation OFF Backlight Back Light Compensation ON... -
Page 15: Osd Menu Tree
User’s Manual OSD Menu Tree The OSD setup menu structure of E/F/U and R/K model are listed seperately in the following section. Ths star symbol indicates the factory default. For detailed function description, please see section 3.3 Configuration Menu. 3.2.1 E / F / U Model Item Layer 1... - Page 16 User’s Manual Item Layer 1 Layer 2 Layer 3 Default HOME FUNC. <ON>, <OFF> SELECT MODE PRESET ☆ SEQUENCE AUTOPAN CRUISE PRESET POINT <001> ~ <256> HOME SETTING SEQUENCE LINE <1> ~ <8> AUTOPAN LINE <1> ~ <4> CRUISE LINE <1>...
-
Page 17: R / K Model
User’s Manual Item Layer 1 Layer 2 Layer 3 Default SEQUENCE AUTOPAN CRUISE IR FUNC. NO FUNCTION PRESET POINT <1> ~ <256> SEQUENCE LINE <1> ~ <8> AUTOPAN LINE <1> ~ <4> CRUISE LINE <1> IR FUNCTION <AUTO>,<ON> SCHEDULE RESET SCHEDULE EXIT EXIT OSD 3.2.2... - Page 18 User’s Manual Item Layer 1 Layer 2 Layer 3 Default CRUISE PRESET POINT <001> ~ <256> SEQUENCE LINE <1> ~ <8> AUTOPAN LINE <1> ~ <4> CRUISE LINE <1> DWELL TIME <001> ~ <127> Sec., ALWAYS ALWAYS EXIT HOME FUNC. <ON>, <OFF>...
- Page 19 User’s Manual Item Layer 1 Layer 2 Layer 3 Default TIME DISPLAY <ON>, <OFF> SET YEAR SET MONTH TIME SET DAY SET HOUR SET MINUTE EXIT+SAVE SCHEDULE SWITCH <ON>, <OFF> SCHEDULE POINT <01> ~ <32> SCHEDULE HOUR SCHEDULE MIN SCHEDULE MODE NONE ☆...
-
Page 20: Configuration Menu
User’s Manual Configuration Menu The detailed functions and parameter settings of your high speed dome can be set by the OSD (On Screen Display) menu with a control device, such as DynaColor control keyboard. The functions in OSD menu of E, F, U, R and K model are described in the following sections. -
Page 21: Backlight
User’s Manual 3.3.2 BACKLIGHT The Backlight compensation function prevents the center object from being too dark in surroundings where excessive light is behind the center object. E/F/U Model: Turn this item <ON>; the center object will be brightened in contrast to the edge of the picture (where a backlight would most likely be located). -
Page 22: Aperture
User’s Manual • MANUAL In this focus mode, users can adjust the lens focus manually by pressing the Focus Near/Far button on the control keyboard or other control devices. R/K Model: • AUTO The optimum focus is achieved by the internal digital circuit. Users can adjust the minimum auto focus range for some special conditions;... -
Page 23: Ae Mode
User’s Manual 3.3.5 AE MODE The exposure is the amount of light received by the image sensor and is determined by how wide you open the lens diaphragm (iris adjustment), by how long you keep the sensor exposed (shutter speed), and other exposure parameters. With this item, users can define how the Auto Exposure (AE) function works. -
Page 24: Wbc Mode
User’s Manual R/K Model: • AUTO In this mode, the camera’s Shutter, IRIS and AGC control function work automatically to compensate the light exposure of image sensor for consistent video output level. IRIS OFF SET is used to set the level of IRIS variation. •... -
Page 25: Id Display
User’s Manual computes the white balance value output using color information from the entire screen. It outputs the proper value using the color temperature radiating from a black subject based on a range of values from 3000K to 7500K. • INDOOR 3200 K Base mode. -
Page 26: Setup Menu
User’s Manual • Hide the ID address of the selected dome. 3.3.8 SETUP MENU Users can adjust camera lens model parameters under SETUP MENUs. Depending on the model of dome cameras, the SETUP MENUs are different. E/F/U Model SETUP MENU1 SETUP MENU2 FLIP ENTER... -
Page 27: Zoom Speed
User’s Manual M.E. The item is a standard mechanical operation. As the dome tilts 90°, it will pan 180°, then continuing tilt to keep tracking object. Select this item to disable the flip function. NOTE: The dome will only be able to tilt 90°, or -10° ~100° with angle adjuster adjustments. -
Page 28: Slow Shutter
User’s Manual E/F/U Model: For these models, maximum 12× digital zoom function is allowed to be enabled. The default setting is <ON>. R/K Model: For the two models, Digital zoom ratio is adjustable from <1> to <12>. • SLOW SHUTTER The shutter speed determines how long the image sensor is exposed to light. -
Page 29: Setup Menu2 (E/F/U Model Only)
User’s Manual 3.3.9 SETUP MENU2 (E/F/U Model Only) The Aperture and Mask Display settings can be configured under SETUP MENU2. SETUP MENU2 APERTURE MASK DISPLAY FIRST • APERTURE Under this setup menu, users can adjust the enhancement of the edges of objects in the picture. -
Page 30: Title Setting
User’s Manual 3.3.11 TITLE SETTING Up to 16 zone titles can be set with maximum 20 characters for each title; two mask zones are allowed to set in a view area. Users can name the zone titles with privacy mask ID numbers for future recognition. NOTE: For K model, the available area for setting privacy mask is restricted within tilt angle 45°. - Page 31 User’s Manual ALARM SETTING ALARM PIN ALARM SWITCH ALARM TYPE N.C. ALARM ACTION PRESET PRESET POINT DWELL TIME ALWAY EXIT • ALARM PIN The dome provides 8 alarm inputs and 2 outputs (1× N.O. and 1× N.C.). Select an alarm connector which you want to set its alarm-related parameters with this item, and then set its alarm-related parameters in Alarm Setting menu.
-
Page 32: Home Setting
User’s Manual SEQUENCE Select a sequence line that the dome camera should execute when alarm pin is triggered. The Sequence line should be defined prior in SEQUENCE setup menu. AUTOPAN Select an auto-pan line that the dome camera should execute when alarm pin is triggered. -
Page 33: Sequence
User’s Manual • SELECT MODE Select one of the modes that the dome should execute when HOME function is enabled and the RETURN TIME is up. The options are <AUTOPAN>, <SEQUENCE>, <CRUISE> and <PRESET>. Use the left/right direction keys of the control keyboard to change the setting, and the bellowing items will change in cooperating with your selection. - Page 34 User’s Manual SEQUENCE SEQUENCE LINE SEQUENCE POINT PRESET POSITION SPEED DWELL TIME RUN SEQUENCE ENTER EXIT • SEQUENCE LINE There are eight sets of sequence lines built in the dome camera. Using LEFT/RIGHT direction keys to select a line first and then set its sequence points. •...
-
Page 35: Autopan
User’s Manual • DWELL TIME The DWELL TIME is the duration time that the dome will stay at the sequence point, and the range is from <0> to <127> seconds. The dome will go to the next sequence point when the DEWEL TIME is up. If the setting is <0>, the dome will stay at this sequence point until users manually move the dome. -
Page 36: Cruise
User’s Manual • END POINT Users are able to set the end point after the start point is defined. Pan the dome to another position and press <ENTER> to save the position as the end point. • DIRECTION The item is for setting the AUTOPAN direction of dome camera. The dome will start to pan clockwise from the start point to the end point if your selection is <RIGHT>, and then return to the start point. -
Page 37: Ir Function (Removable Ir Cut)
User’s Manual CRUISE RECORD START ENTER RECORD END ENTER RUN CRUISE ENTER EXIT • RECORD START Follow the description to record the CRUISE path. 1. Rotate the dome camera to a desired view area, and press <ENTER> to build the cruise path using joystick on the control device. The percentage of the memory buffer will be displayed on the screen. -
Page 38: Alarm Detect (E/F/U Model Only)
User’s Manual • Select the item to remove the IR cut filter. K Model: IR FUNCTION THRESHOLD IR COLOR COLOR EXIT • AUTO The Internal circuit will automatically decide the occasion to remove the IR cut filter according to the image brightness level. THRESHOLD The dome will remove the filter immediately when the threshold value is reached. -
Page 39: Wdr Setting (K Model Only)
User’s Manual INT. FOCUS The alarm will be triggered if the internal focus changes; and if the focus returns to the original position, the alarm will stop. FIX FOCUS If focus movement is detected, the alarm will be triggered, and the alarm stops when focus returns to the original position. -
Page 40: Privacy
User’s Manual • WDR FUNCTION This item is used to define the WDR function mode. AUTO If select <AUTO>, the dome camera operates the WDR function automatically. MANUAL Users are allowed to adjust WDR function manually by defining the RATIO LEVEL, SHUTTER SPEED and IRIS OFFSET value. - Page 41 User’s Manual • COLOR The color of privacy mask can be set through this item. The available colors are black, heavy gray, light gray, white, red, green, blue, cyan, yellow and magenta. • SET MASK Use the control device to move the dome camera to the area whether you want to set a mask.
- Page 42 User’s Manual • SHADE The color of privacy mask can be selected through this item. The available colors are black, gray and white. • SET MASK After pressing <ENTER> on this item, dome will memorize this position as privacy mask position, up to 8 masks can be set. The model restricts the mask zones to be set too close with each other.
-
Page 43: Time Function
User’s Manual LAST If select this mode, the camera will move the dome to the preset point, then display the mask zone. NOTE: For K model, the available area for setting privacy mask is restricted within tilt angle 45°, and two mask zones are allowed to set in a view area. •... -
Page 44: Exit Osd
User’s Manual SCHEDULE SCHEDULE SWITCH SCHEDULE POINT SCHEDULE HOUR SCHEDULE MINUTE SCHEDULE MODE PRESET PRESET POINT SCHEDULE RESET SCHEDULE EXIT • SCHEDULE SWITCH Select <ON> to enable the Schedule function or <OFF> to disable. • SCHEDULE POINT Users are allowed to set up 32 schedule points. •... -
Page 45: Appendix A: Technical Specification
User’s Manual Appendix A: Technical Specification All specifications are subject to change without notice. Items R Model E Model F Model K Model U Model CAMERA NTSC 380k Effective Pixels 440k Horizontal NTSC 470 TV lines 470 TV lines Resolution 460 TV lines 470 TV lines Progressive... - Page 46 User’s Manual GENERAL Environment Indoor Controller Interface RS-485 Operating Temperature 0°C~40°C (32°F~104°F) Water Proof Standard IP 66 Standard (Outdoor Only) Dimension ∅ 131×226mm (5.2x7.6 Inches) Weight 1.6kg (3.5 lbs) Power Source DC12 / AC 24 V Power Consumption 30 W / 52 W (with Heater) Regulatory CE, FCC, IP66...
-
Page 47: Osd Menu Notes
User’s Manual OSD Menu Notes The following OSD menu tables are provided for users to record the dome settings. <E/F/U Model> Item Layer 1 Layer 2 Layer 3 Note DEFAULT CAMERA <ON>, <OFF> BACKLIGHT <ON>, <OFF> AUTO AF Mode <Normal>, <Interval>, <Zoom Trigger> FOCUS MANUAL Focus Manual Speed <01>~<08>... - Page 48 User’s Manual Item Layer 1 Layer 2 Layer 3 Note SPEED <01> ~ <15> DWELL TIME <000> ~ <127> Sec. RUN SEQUNECE EXIT AUTOPAN LINE <1> ~ <4> START POINT <TO FIND>, <TO SAVE> END POINT <TO FIND>, <TO SAVE> AUTOPAN DIRECTION <RIGHT>, <LEFT>...
-
Page 49: R/K Model
User’s Manual <R/K Model> Item Layer 1 Layer 2 Layer 3 Note DEFAULT CAMERA <ON>, <OFF> BLC Level <000> ~ <100> BACKLIGHT AUTO Focus Length <1cm>, <10cm>, <30cm> <1m> FOCUS MANUAL <01> ~ <08> AUTO APERTURE MANUAL H APERTURE <00> ~ <31> V APERTURE <00>... - Page 50 User’s Manual Item Layer 1 Layer 2 Layer 3 Note SPEED <01> ~ <04> RUN AUTOPAN ENTER EXIT RECORD START RECORD END CRUISE RUN CRUISE EXIT AUTO THRESHOLD <LOW>, <MID>, <HI> IR FUNCTION IR COLOR <B/W>, <COLOR> (K model only) EXIT WDR SWITCH <ON>, <OFF>...
