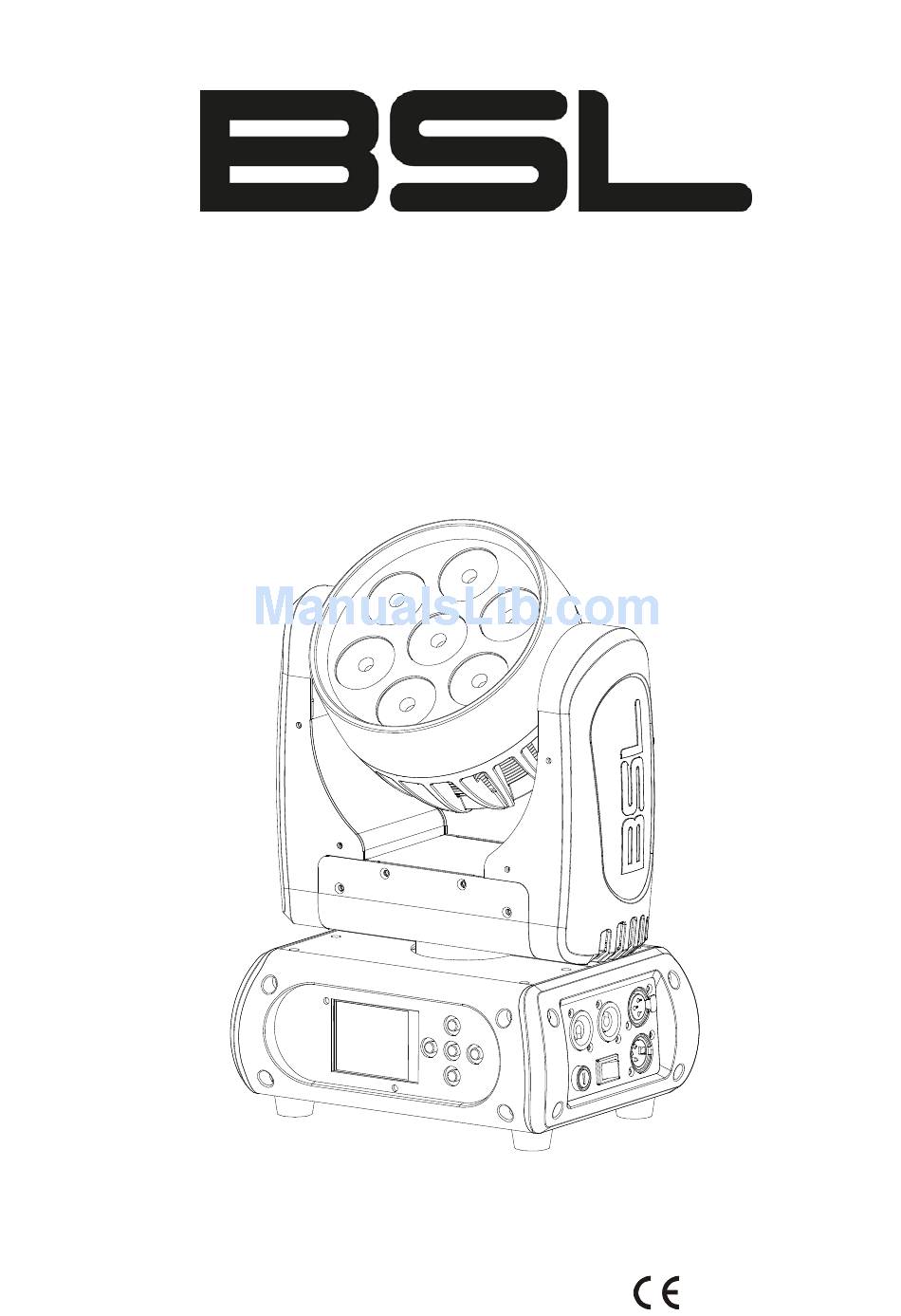

USER MANUAL
Twist Beam 7LED
LED-Moving-Head

KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Twist Beam 7LED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BSL Twist Beam 7LED

Summary of Contents for BSL Twist Beam 7LED

  • Page 1 USER MANUAL Twist Beam 7LED LED-Moving-Head         KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Safety Instructions

    Every person involved with the installation, operation and maintenance of this device has to - be qualified - follow the instructions of this manual - consider this manual to be part of the total product - keep this manual for the entire service life of the product pass this manual on to every further owner or user of the product download the latest version of the user manual from the Internet CAUTION!

  • Page 3: Health Hazard

    If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer.

  • Page 4: Operating Determinations

    OPERATING DETERMINATIONS This device is a LED moving-head lighting effect for creating decorative effects. This product is only allowed to be operated with an alternating voltage of 100-240 V, 50/60 Hz and was designed for indoor use only. This device is designed for professional use, e.g. on stages, in clubs, bars, theatres etc. Lighting effects are not designed for permanent operation.

  • Page 5: Description Of The Device

    DESCRIPTION OF THE DEVICE Features Source Light source: 7pcs Osram 15w 4in1 leds Led life: 60.000 hours Luminous Flux: 2500lumen, 15,000lux@2.5m Control: Remote on/off via DMX Ballast: switching mode power supply Optical System Beam angle: 7° Pan: 360° (4.0 sec) or 540°(3.58 sec), Tilt: 265° (2.8 sec) 16-bit resolution Auto repositioning 3 phase motor for crazily fast and quiet movement...
  • Page 6   Overview Head     Base Wireless indicator Display Microphone Left button Down buttom (10) Enter button (11) Up button (12) Right button (13) Fuse holder (14) Power input (15) Power switch (16) Power output (17) 3-PIN DMX output socket (18) 3-PIN DMX input socket 15 16  ...

  • Page 7: Installation

    INSTALLATION Rigging The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
  • Page 8 CAUTION! Use an appropriate clamp to rig the fixture on the truss. Follow the instructions mentioned at the bottom of the base. Make sure that the device is fixed properly! Ensure that the structure (truss) to which you are attaching the fixtures is secure. The Moving-Head can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics (see the drawing).
  • Page 9                     (1) Omega-holder (2) Clamp (3) Safety-rope (4) Quick-lock fastener Screw the clamp via a M12 screw and nut onto the Omega-holder. Insert the quick-lock fasteners of the Omega-holder into the respective holes on the bottom of the device.

  • Page 10: Dmx-512 Connection / Connection Between Fixtures

    DMX-512 connection / connection between fixtures Projector 1 Projector 2 Projector 3 Starting address 1 Starting address 20 Starting address 39 120 Ohms DMX-512 Controller The wires must not come contact with each other, otherwise the fixtures will not work at all, or will not work properly. Please note, the starting address depends upon which controller is being used.

  • Page 11: Connection With The Mains

    Connection with the mains Connect the device to the mains with the enclosed power supply cable. The occupation of the connection-cables is as follows: Cable International Brown Live Blue Neutral    Yellow/Green Earth The earth has to be connected! If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
  • Page 12 Note: After switching on, the device will automatically detect whether DMX 512 data is received or not. If there is no data received at the DMX-input, the display will flash. This situation can occur if: - the XLR plug (cable with DMX signal from controller) is not connected with the input of the device. - the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap in the input connector.
  • Page 13 No function (shutter open) Random strobe effect slow to fast No function (shutter open) Dimmer Dimmer(0->100%) Dimmer fine Dimmer fine control On Function CTC Function Forward Spin Virtual Color Reverse Spin Function Continuous Color Bounce CTC Function Colour Temperature Correction 2000K->2700K White 3200K White 4200K White 5600K...

  • Page 14: Control Board

    Green fine Green fine control Blue Blue 0->100% Blue fine Blue fine control White White 0->100% White fine White fine control Normal Reset All Pan&Tilt Reset Display Off Control Display On Hibernation Control Board The Control Board offers several features: you can simply set the starting address, run the pre-programmed program or make a reset.
  • Page 15 Reset  All  Reset all    Pan&Tilt  Reset Pan&Tilt    Others  Reset Others Movment  Pan Reverse①  ON/OFF  Pan Reverse  Tilt Reverse①  ON/OFF  Tilt Reverse  Pan Degree①  630/540  Choose Pan Degree  Encoders①  ON/OFF  Encoder wheel  Pan/Tilt Mode①  Stand/Smooth  on/off  Choose pan/tilt  mode  Mic Sens. ③  UI Set  0~99%,60%  Sensitivity of Mic  No Signal①  Close/Hold/Auto/Music  Mode when no      signal  Temperature at  ℃/ Temperature. C/F①...
  • Page 16 Select Chase②  Chase Part 1  Chase 1 ~ 8    Chase 1  Select and run auto  Chase Part 2  Chase 1 ~ 8    Chase 2  program  Chase Part 3  Chase 1 ~ 8    Chase 3    Edit Chase②  Chase 1  Chase Test  Test  =SCxxx  :    Step 01  Beginning scene  =SCxxx  Chase 8  Step 64  Ending scene  =xxx  Edit Scenes②  Edit Scene 001 Pan,Tilt,……  Input manual scene  =xxx  ~ Edit Scene  ‐‐Fade Time‐‐ Modify manually  =xxx  250  ‐‐Secne ...
  • Page 17 Error channels With this function, you can display the channel errors. Fixture Model With this function, you can display the model number and brand of the fixture. Software version With this function you can display the software version of each IC. •...
  • Page 18 With this function you can flip the display by 180° for a better view when the fixture is hung from the truss or a ceiling. Brand Show With this function you can show or hide the brand name 'BSL' on the display during menu operation, but still show it after reset. Key lock With this function you can lock the keys of the Control Board to e.g.
  • Page 19   RDM Parameter ID's (Slot 21-22) Value Category _Network Management DISC_UNIQUE_BRANCH 0x0001 DISC_MUTE 0x0002 DISC_UN_MUTE 0x0003 Category -RDM Information SUPPORTED_PARAMETERS 0x0050 PARAMETER_DESCRIPTION 0x0051 Category _Product Information DEVICE_INFO 0x0060 DEVICE_MODEL_DESCRIPTION 0x0080 MANUFACTURER_LABEL 0x0081 DEVICE_LABEL 0x0082 FACTORY_DEFAULTS 0x0090 SOFTWARE_VERSION_LABEL 0x00C0 Category -DMX512 Setup DMX_PERSONALITY 0x00E0 DMX_PERSONALITY_DESCRIPTION...
  • Page 20   Edit chase With this function, you can edit the internal programs. Edit scenes With this function, you can edit the scenes of the internal programs. Rec. Controller The device features an integrated DMX-recorder by which you can transmit the programmed scenes from your DMX-controller to the device.

  • Page 21: Error Messages

      • Press Up or Down to select the desired scene numbers. You can program a maximum number of 250 scenes. • Press the Enter-button to confirm. • Press Up or Down to select the desired value. • Press the Enter-button to confirm. Example: Program 2 includes scenes: 10, 11, 12, 13;...

  • Page 22: Cleaning And Maintenance

      CLEANING AND MAINTENANCE The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert after every four years in the course of an acceptance test. The operator has to make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year.

  • Page 23: Technical Specifications

      TECHNICAL SPECIFICATIONS Power supply: 100-240 V AC, 50/60 Hz ~ Power consumption: 105 W/215 VA DMX control channels: 14/22/13/15 DMX512 connection: 3-pin XLR Sound-control: via built-in microphone Type of LEDs: Osram 15w 4in1 Number of LEDs: Beam angle: approx. 7° Maximum PAN-movement: 630°...
