Chapter 1 Introduction
Overview
Viper Capacities
Physical Description
System Configurations
Figure 1-1. SCSI Bus Support Configurations
Viper Drive Models
Figure 1-2. Top View of Viper Drive
Figure 1-3. Front View of Viper External Drive
About this Manual
Chapter 2 Specifications
Overview
Physical Specifications
Power Requirements
Power Connector
Drive Performance Specifications
Environmental Specifications
Data Cartridge Specifications
Model 60S
Model 125S
Model 150S
Regulatory Compliance
ANSI X3.131 Conformance Statement
Chapter 3 Installation
Introduction
Guidelines and Cautions
Unpacking and Inspection
Installation
Internal Viper Drives
Figure 3-1. Internal Installation
Mounting Screws
Connectors
Figure 3-2. Mounting Hole Locations
Figure 3-3. Viper Rear View
Figure 3-4. Configuration Jumper Block
Jumper Configuration
Operational Mode
Parity Enable
Drive Identification
Selectable Buffer Disconnect
Table 3-1. SCSI ID Selection
Table 3-2. Buffer Disconnect Size Selection
Connecting External Vipers
Figure 3-5. External Installation
Figure 3-7. Viper SCSI Daisy-Chain Diagram
SCSI Drive Identification Switch
Table 4-1. SCSI Signal Locations on Drive Connector
Table 4-2. SCSI Interface Signals
Table 4-4. Operational Phases
Figure 4-2. Phase Sequencing with Arbitration
Figure 4-3. Arbitration and Selection Phase Signal Timing
Figure 4-4. Signals Used in Transfer from Target to Initiator
Figure 4-5. Signals Used in Transfer from Initiator to Target
Table 4-7. Command Descriptor Block Format
Table 4-10. SCSI Message Definitions
Table 4-10. SCSI Message Definitions
Table 4-11. Status Code Definitions
Table 4-12. Status Code Block Format
Table 4-13. SCSI Status Code Descriptions
Table 4-14. SCSI Bus Sequence Timing
Chapter 5 Viper SCSI Commands
Introduction
Table 5-1. SCSI Commands for Bus Sequential Access Devices
Descriptor Block
Command Descriptor Block Field Descriptions
Command Descriptor Block Format
Flag and Link Bit Descriptions
Completion Status
TEST UNIT READ Command Descriptor Block
REWIND (Olh)
Command Descriptor Block Field Descriation
Completion Status
REWIND Command Descriptor Block
REQUEST BLOCK ADDRESS (02H)
Command Descriptor Block Field
REQUEST BLOCK ADDRESS Command Descriptor Block
REQUEST BLOCK ADDRESS Data Format
Completion Status
REQUEST BLOCK ADDRESS Data Field Description
REQUEST SENSE ( 03H )
Command Descriptor Block Field Description
REQUEST SENSE Command Descriptor Block
Extended Sense Data Format
Extended Sense Data Field Descriptions
Extended Sense Data Field Descriptions Continued
Priority and Definition of Sense Keys
Completion Status
READ BLOCK LIMITS (05H)
Command Descriptor Block Field Descriptions
READ BLOCK LIMITS Command Descriptor Block
READ BLOCK LIMITS Data Format
Completion Status
READ (Ash)
Command Descriptor Block Field Descriptions
READ Command Description
READ Command Descriptor Block
End of Data
End of Tape (EOT)
Transfer Length Satisfied
Unrecoverable Data Error
Completion Status
WRITE (Oah)
WRITE Command Descriptor Block
Command Descriptor Block Field Descriptions
Completion Status
Completion Status Continued
SEEK BLOCK (Och)
Command Descriptor Block Field Descriptions
SEEK BLOCK Command Descriptor Block
Completion Status
WRITE FILEMARKS (10H)
Command Descriptor Block Field Descriptions
Write Filemark Command Descriptor Block
Completion Status
SPACE (11H)
SPACE Command Descriptor Block
Command Descriptor Block Field Descriptions
Space-By-Count Functions
Completion Status
INQUIRY (12H)
Command Descriptor Block Field Description
INQUIRY Command Descriptor Block
INQUIRY Command Data Field Descriptions
INQUIRY Command Data Format
Completion Status
VERIFY (13H)
Command Descriptor Block Field
VERIFY Command Descriptor Block
RECOVER BUFFERED DATA 04H)
Command Descriptor Block Field Descriptions
RECOVER BUFFERED DATA Command Descriptor Block
Completion Status
MODE SELECT (Ish)
Command Descriptor Block Field Description
Parameter List Header Format
Parameter List Header Field Descriptions
Parameter List-Block Descriptor
Parameter List-Block Descriptor Field Descriptions
RESERVE UNIT (16H)
RESERVE UNIT Command Descriptor Block
Command Descriptor Block Field Descriptions
Completion Status
Figure 6-1. Viper Drive Functional Block Diagram
Table 6-1. VLSI Features
Table 6-1. VLSI Features
Figure 6-2. Cartridge Loading
Figure 6-3. Motor Driver PCB Block Diagram
Figure 6-4. Motor Controller LSI Functional Block Diagram
Table 6-2. Motor Controller LSI Functions
Table 6-2. Motor Controller LSI Functions
Figure 6-5. Read/Write/Erase Magnetic Head Configuration
Figure 6-6. Typical Serpentine Recording
Figure 6-7. Track Positioning
Figure 6-11. Read after Write Error Sequence
Table 6-4. Streaming Termination Description
Table 6-4. Streaming Termination Description
Figure 6-12. Data Cartridge, Exploded View
Figure 6-13. Recorded Block Format
Figure 6-14. Block Address Definition
Figure 7-1. Head and Sensor Cleaning
Advertisement
Quick Links
Download this manual

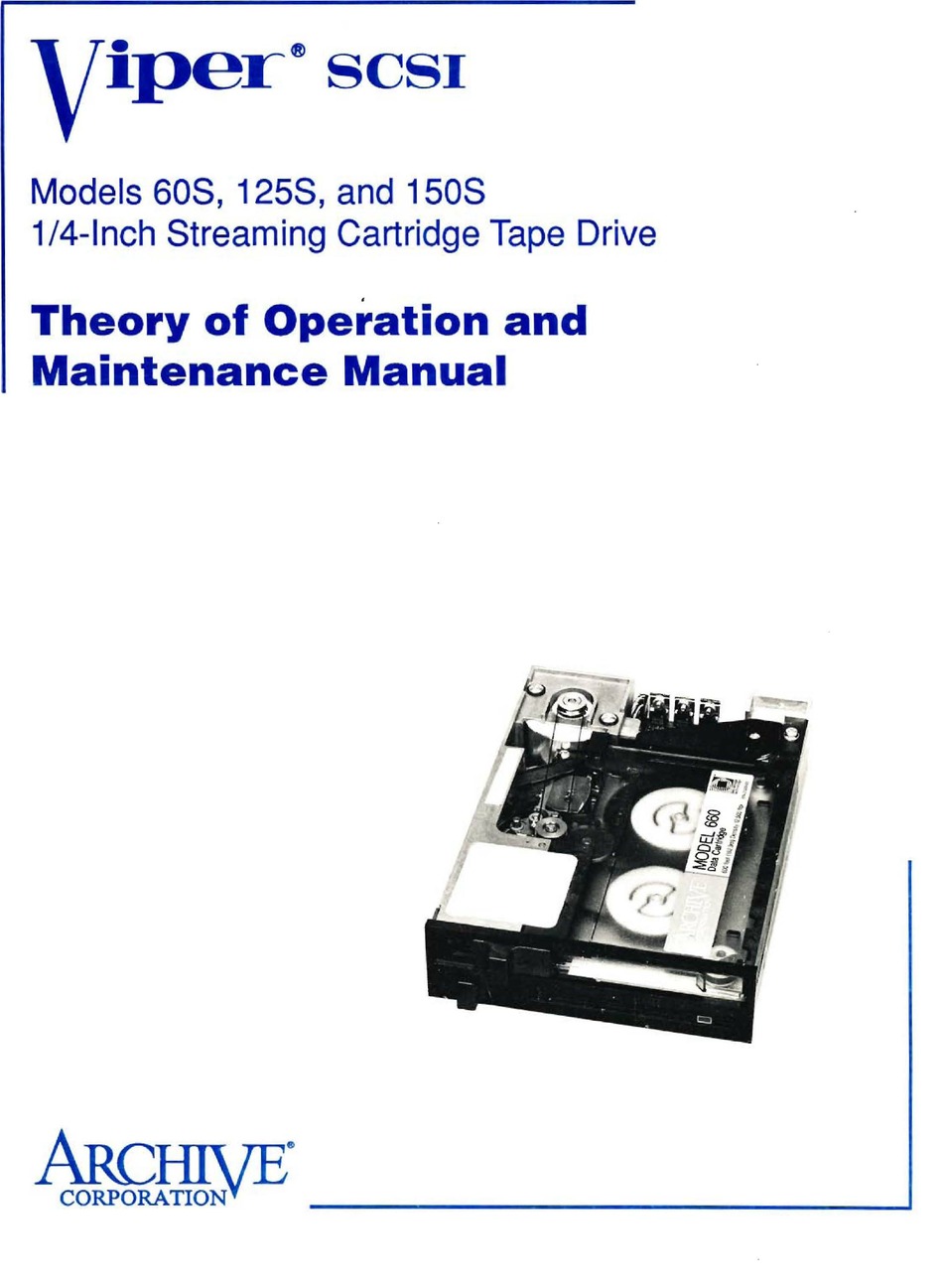

Models 608, 1258, and 150S
