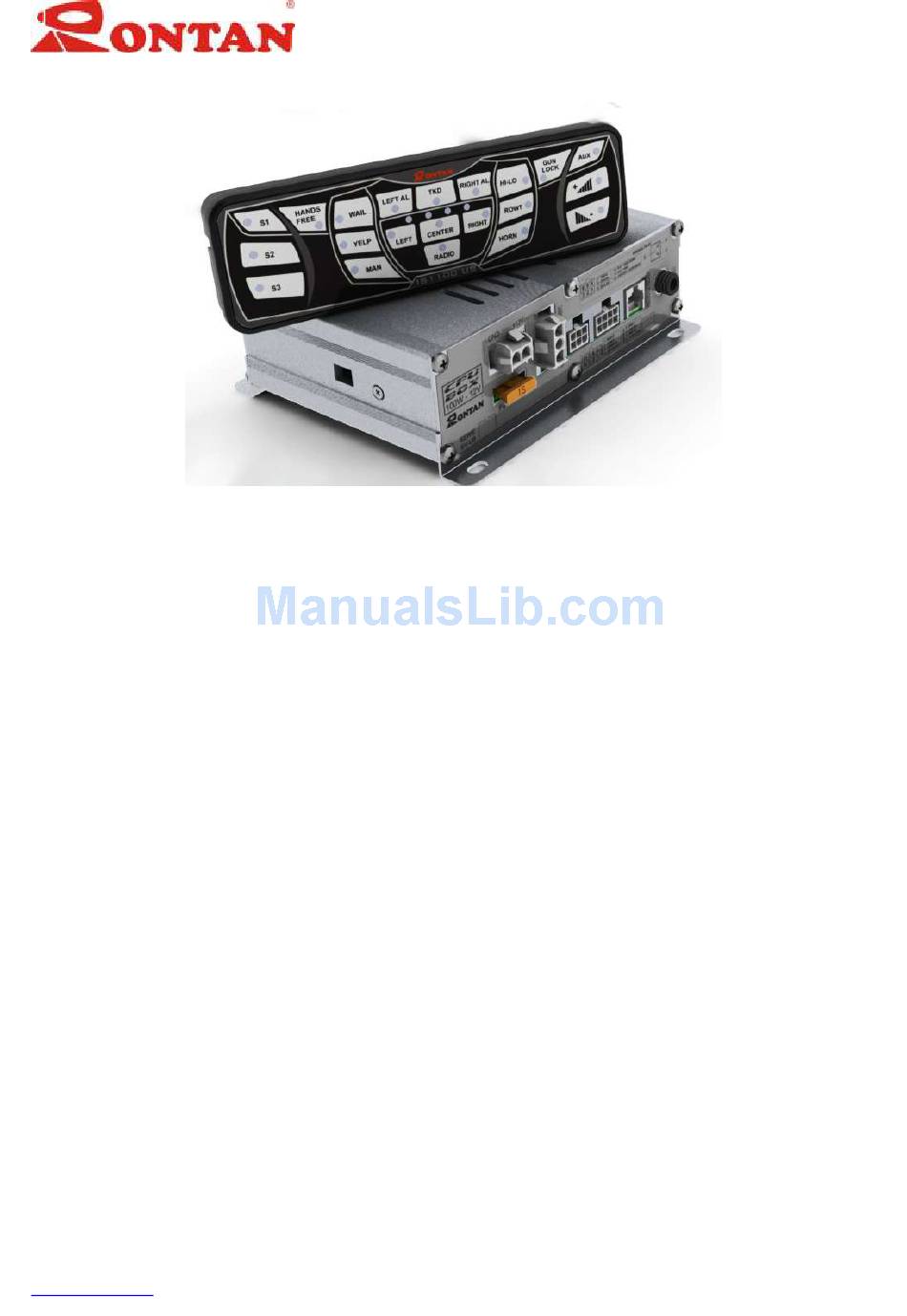

The IS 1100 US is a 50/100W amplifier created to command all the acoustic and visual
functions of a vehicle that utilizes lightbars, auxiliary lights and sirens. This product has digital
inputs and outputs that command each device individually, and intelligent power management
for energy consumption.
Features
 Siren module with 50W RMS (8Ω speakers); or 100W RMS (11Ω speakers);
 Microphone input port with a PTT (Push to talk) button;
 Radio input;
 Input for siren tone selection;
 Twenty-one command backlit buttons;
 Four LEDs indicating operating status;
 External fuse;
 Relay for Hands Free;
 Four outputs of 250mA;
 Ignition input;
 Input to activate the panel backlight;
 Serial communication with Rontan S-Series products;
 Battery management system;
 Radio and microphone volume adjustment;
www.rontan.com
Installation and Operation & Programming Instructions
Rev. 3.1
Intelligent Siren (IS1100-US)
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the IS 1100 US and is the answer not in the manual?

Questions and answers

Summary of Contents for Rontan IS 1100 US

  • Page 1 Intelligent Siren (IS1100-US) Installation and Operation & Programming Instructions The IS 1100 US is a 50/100W amplifier created to command all the acoustic and visual functions of a vehicle that utilizes lightbars, auxiliary lights and sirens. This product has digital inputs and outputs that command each device individually, and intelligent power management for energy consumption.
  • Page 2 File these instructions in a safe place and refer to them when performing maintenance and/or reinstallation of this product. Failure to follow all safety precautions could result in damage to the product and vehicle or serious injury to individuals! www.rontan.com Rev. 3.1 Page 2...
  • Page 3 2. Identification of the Components 2.1 Remote Control The Remote Control (Figure 1) is a twenty-one button keypad allowing momentary and permanent activation to control the device functions. FIGURE 1: FRONT PANEL 2.2 Back Panel FIGURE 2: BACK PANEL www.rontan.com Rev. 3.1 Page 3...
  • Page 4 Storage Temperature ºC Operation Temperature ºC TABLE 2: ELECTRICAL AND THERMAL CHARACTERISTICS 3. Compatibility IS1100 US is a device compatible with all Rontan S-Series lightbars. It also has analog signal outputs to command third party lightbars. www.rontan.com Rev. 3.1 Page 4...
  • Page 5 TABLE 3: CONNECTION WIRE GAUGE A fuse must be installed on the end of the harness cable (Figure 3) in order to prevent damage to the electric vehicle system because of short circuits. FIGURE 3: HARNESS CABLE CONNECTORS www.rontan.com Rev. 3.1 Page 5...
  • Page 6 Free function, press the Hands Free button on the panel. In case SL3 function is active, the siren will remain active as well. In order to shut off the sirens and maintain the Hands Free function, press the horn ring for 1 ½ sec. Basic Operating Diagram: www.rontan.com Rev. 3.1 Page 6...
  • Page 7 The BACKLIGHT input must be connected to the vehicles headlight power supply in order to have the backlight of Front Panel always active, when the headlights are activated. Table 6 describes the functionality of the Backlight Input: www.rontan.com Rev. 3.1 Page 7...
  • Page 8 "Gunlock" (#8 pin connector 2) is activated; it will remain so for ten seconds and then returned to the deactivated state. This output should be connected to a Gunlock device. www.rontan.com Rev. 3.1 Page 8...
  • Page 9 6. Mounting The Remote Control can be mounted on the dashboard of the vehicle using a FACE PLATE or U shaped support bracket. FIGURE 6: FACE PLATE FIGURE 7: ADJUSTABLE “U” SHAPED SUPPORT BRACKET www.rontan.com Rev. 3.1 Page 9...
  • Page 10 Intelligent Siren (IS1100-US) Installation and Operation & Programming Instructions 7: Dimensions FIGURE 8: IS1100 US REMOTE CONTROL DIMENSIONS FIGURE 9: MOUNTING DIMENSIONS www.rontan.com Rev. 3.1 Page 10...
  • Page 11 Installation and Operation & Programming Instructions 8. Front Panel Operating Function Description Active Functins and Outputs Second Function Rontan S-Series Emergency Lightbars Mode SL1 activation and Aux1 Rontan S-Series Emergency Lightbars Mode SL2 activation and Aux2 Rontan S-Series Emergency Lightbars Mode SL4 activation and Aux3...
  • Page 12 CPU to the Remote Control Short Circuit in the audio Check Siren, Speaker and ○●●○ outputs or temperature Connections. overload. TABLE 9: TROUBLESHOOTING 10. Warranty mesesage For warranty information regarding this product, please visit: http://www.rontan.com/eng/warranty www.rontan.com Rev. 3.1 Page 12...
