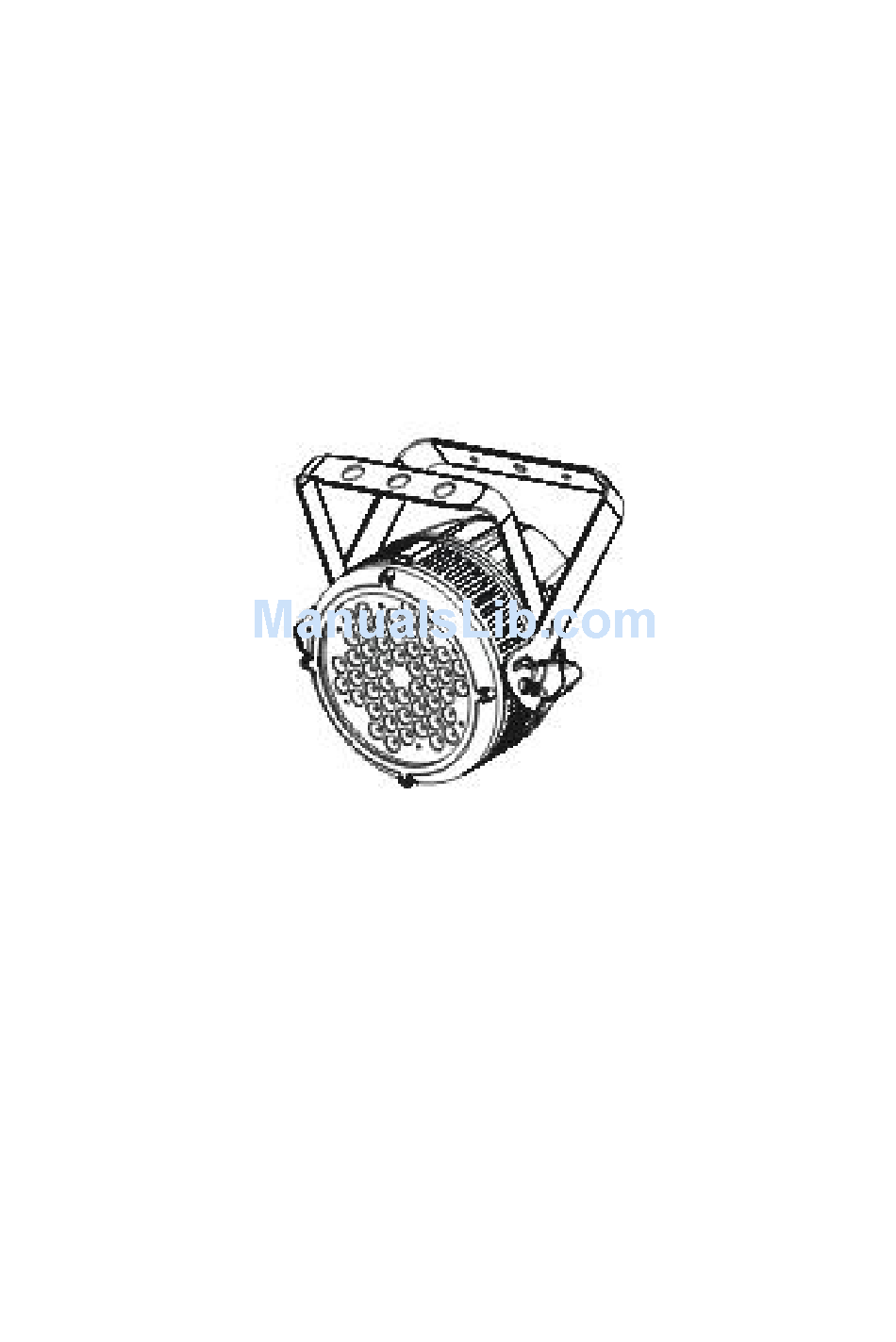

i.Shine 3148 RGBW
Color Stainer XP
USER MANUAL
Thank you very much for choosing our product. For safety purpose, please
read this manual carefully before your operation. This manual included
installation and using information. Please install and operate it according to
this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i.Shine 3148 RGBW and is the answer not in the manual?

Questions and answers

Summary of Contents for Ri-Art i.Shine 3148 RGBW

  • Page 1 3148 RGBW Color Stainer XP USER MANUAL Thank you very much for choosing our product. For safety purpose, please read this manual carefully before your operation. This manual included installation and using information. Please install and operate it according to...

  • Page 2: Table Of Contents

    3148RGBW-V6.0 05.15.2010 Indexing Part 1 Product (GENERAL) 1.1--PRODUCT INTRODUCTION 1.2--PRODUCT FEATURES 1.3--TECHNICAL SPECIFICATIONS 1.4--DIMENSION EXPLODED VIEW 1.5-- 1.6--PHOTOMETRIC DATA 1.7--SAFETY WARNING PART 2 INSTALLATION 2.1--MOUNTING 2.2--SETTING UP WITH A DMX512 CONTROLLER 2.2-1--DMX512 ADDRESSING WITHOUT ID ADDRESSING 2.2-2--DMX512 ADDRESSING WITH ID ADDRESS 2.2-3-- DMX Channel instruction 2.2-4—Special instruction of DMX connection 2.3—Master/Salve Operation...
  • Page 3 4.2 Checking steps about why led lamp not light PART 5 MAINTENANCE...

  • Page 4: Product Introduction

    Part 1 Product 1 Product introduction This product is designed for outdoor use. Suitable applications include wash or effect lighting for architectural, stage or nightclub applications. This product can also be installed for use in signage and advertising using the dynamic functions available with DMX512 control.

  • Page 5: Technical Specifications

    Technical Specifications Voltage: AC90-259v, 50/60Hz 230V--0.7A, AC115V—1.4A IP rating: IP67 Power: 158W Light Source: 48*3W LED lamp Red 12pcs, Green 12pcs, Blue 12pcs , Cool White 12pcs LED Lifespan: around 30,000 ~ 50,000 hou (Rated by LED lamp factory) Beam angle: 25 º（Optional 15 º、30 º、45º）...

  • Page 6: Exploded View

    1.5 Exploded View...

  • Page 7: Photometric Data

    1.6 Photometric Data...

  • Page 8: Safety Warning

    1.7 IMPORTANT: ALWAYS READ THE USER MANUAL BEFORE OPERATION. PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON THE PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY IN YOUR AREA. This product must be installed by a qualified professional. Always operate the equipment as described in the user manual. A minimum distance of 0.5m must be maintained between the equipment and combustible surface.
  • Page 9 damaged to such an extent that their effectiveness is impaired. The lamp (LED) shall be changed if it has become damaged or thermally deformed.

  • Page 10: Mounting

    PART 2 INSTALLATION 2.1 Mounting: 2.1-1 Hanging The Color Stainer XP can be mounted in a hanging position using the supporting bracket. The bracket should be secured to the mounting truss or structure using a standard mounting clamp. Please note that when hanging the unit a safety cable should also be used 2.1-2 Upright The Color Stainer XP can be mounted in an upright or sitting position using...

  • Page 11: Dmx512 Addressing With Id Address

    2.2-2 DMX512 ADDRESSING WITH ID ADDRESS Connect the DMX512 controller to the units in series When set 10 dmx channel mode, each unit will has 10 DMX channels so the DMX Addresses should increase by increments of 10 (e.g. 1,11,21,31...) Each DMX Address may be used as many times as required.

  • Page 12: Dmx Channel Instruction

    2.2-3 DMX Channel instruction Mode Function & Effect DMX Value /Channel DMX Mode 1- STAG MODE Dimmer 0~100% 0<==>255 RED 0~100% 0<==>255 GREEN 0~100% 0<==>255 BLUE 0~100% 0<==>255 Cool White 0~100% 0<==>255 0<==>5 No function 6<==>40 41<==>76 Green 77<==>112 Blue COLOR MACRO (7 preset color effect) 113<==>148 Yellow 149<==>184 Cyan...
  • Page 13 DMX Mode 2- ARC MODE RED 0~100% 0<==>255 GREEN 0~100% 0<==>255 BLUE 0~100% 0<==>255 DMX Mode 3 - ARC2 MODE RED 0~100% 0<==>255 GREEN 0~100% 0<==>255 BLUE 0~100% 0<==>255 0<==>255 White 0-100% DMX Mode 4 - ARCD MODE Dimmer 0~100% 0<==>255 RED 0~100% 0<==>255...
  • Page 14 BLUE 0~100% 0<==>255 Cool White 0~100% 0<==>255 0<==>255 STROBE 0-100% DMX Mode 8 - HSV MODE 0<==>255 HUE - 256 colors 0<==>255 SATURATION 0-100% 0<==>255 VALUE 0-100% 2.2-4 Special construction for DMX connection. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal errors.
  • Page 15 menu selection or return to previous menu MENU -- Press UP through the menu list to increase/change the UP -- value of the current function Press DOWN through the menu list to DOWN -- decrease/change the value of the current function Confirm &...
  • Page 17 3.3 White Balance fine-adjustment instruction...

  • Page 18: Troubleshooting List

    Part 4, Troubleshooting 4.1 Troubleshooting list for some common electrical problems may happen during use: Phenomenon Solution * Check main power fuse & power cable * The fixture does not work connection * No light out * Measure main voltage on the main * No Display connector * The fixture does not work...
  • Page 19 4.2 Checking steps about why LED lamp not light (Example: Red led lamp not light) Step 1: Disassemble lighting fixture and use multi-meter to measure input voltage between R+/ R- on main PCB. There should have DC48V. ** If there no 48V voltage, please check the electro circuit and parts such as CQ12, R39, R37, Q3 and etc.
