450 scale fuselage EC135
INSTRUCTION MANUAL
Produced By:
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC135 and is the answer not in the manual?

Questions and answers

Summary of Contents for RC Aerodyne EC135

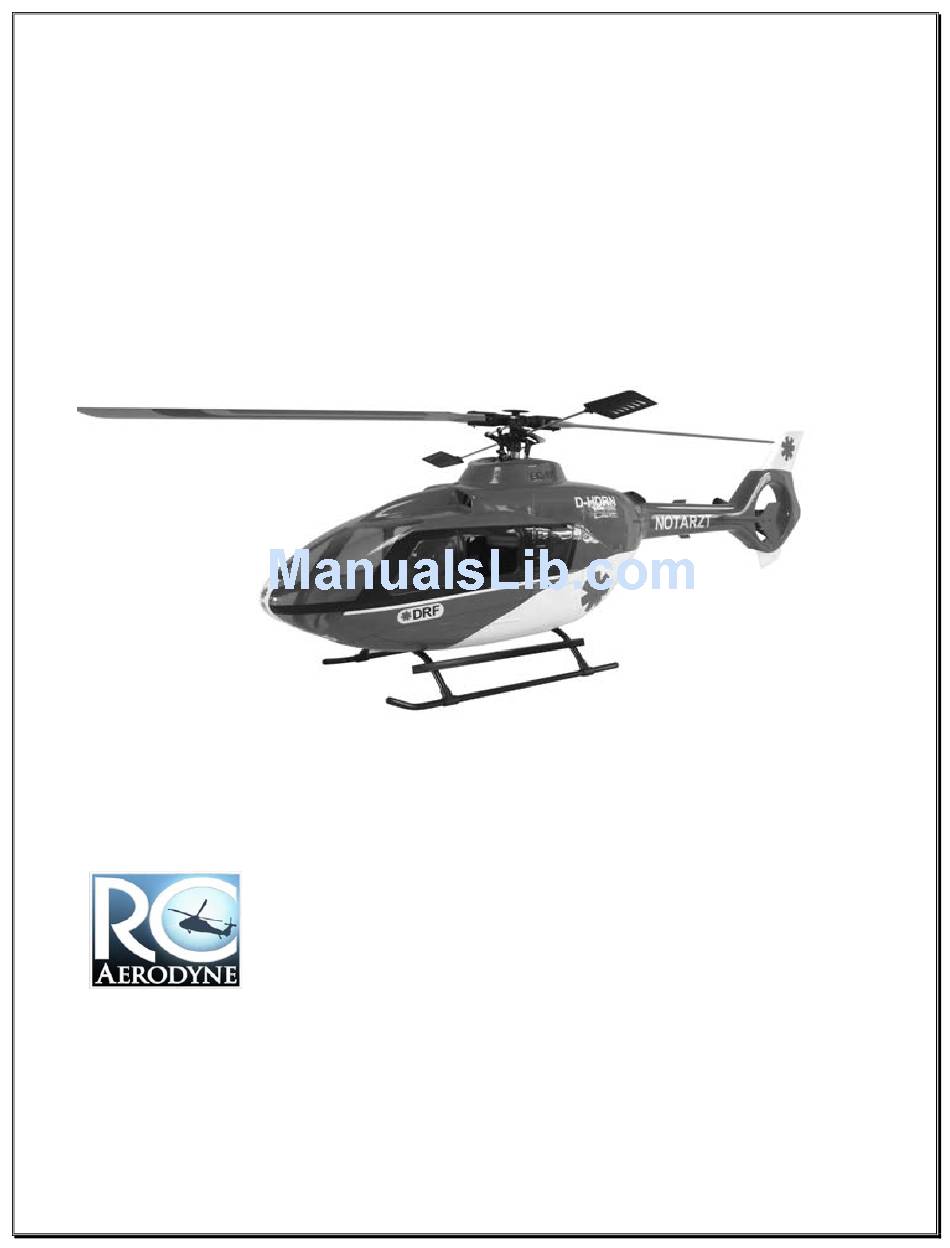

  • Page 1 450 scale fuselage EC135 INSTRUCTION MANUAL Produced By:...

  • Page 2: Table Of Contents

    Introduction: Drill bit set Thank you for your recent purchase of our 450 Phillips screw diver size EC135. This fuselage is made up of Rotary tool fiberglass and plywood formers. This is a great 5 min epoxy scale fuselage with plenty of room for a cockpit.

  • Page 3: Parts Sheet

    assistance in person or property damage. We strongly recommend you attain a membership with the AMA. The contact information for the AMA is: Academy of Model Aeronautics. 5161 E. Memorial Dr. Muncie IN 47302 (800) 435-9262 Helicopter and Aircraft operation requires a high degree of skill. Accidents, modifications or damage during flight are not covered by any warranty and are solely the pilot’s responsibility.

  • Page 4: Initial Setup

    INITIAL SET UP 1. Install the landing gear by bolting it to the bottom of the fuselage. Insert the LG supports and install the skids. 2. Bolt the step to the landing gear struts. 3. Glue the wood spacers together to make 2 equal blocks. Attach them to the bottom of the mechanics.

  • Page 5: Installing The Mechanics

    INSTALLING THE MECHANICS 4. Insert the foam support into the tail of the fuselage and install the mechanics into the fuselage. 5. Slide the wood spacers into the grooves and zip tie the front of the mechanics to the wood floor. 6.

  • Page 6: Final Steps

    FINAL STEPS 7. Epoxy the stabs to the tail of the fuselage.
  • Page 7 Since this fuselage adds weight to the helicopter we advise that you do not attempt any 3D maneuvers to FLYING CHARACHTERISTICS ensure the integrity of the helicopter. With the added weight the blades may come into contact with...
  • Page 8 The fuselage will make your helicopter look and fly more like the full scale helicopters, and that is how we advise you fly it. Thanks again from all of us here at RC Aerodyne and enjoy flying your new fuselage. Printed in China...
