Summary of Contents for Fire Com UHW-10

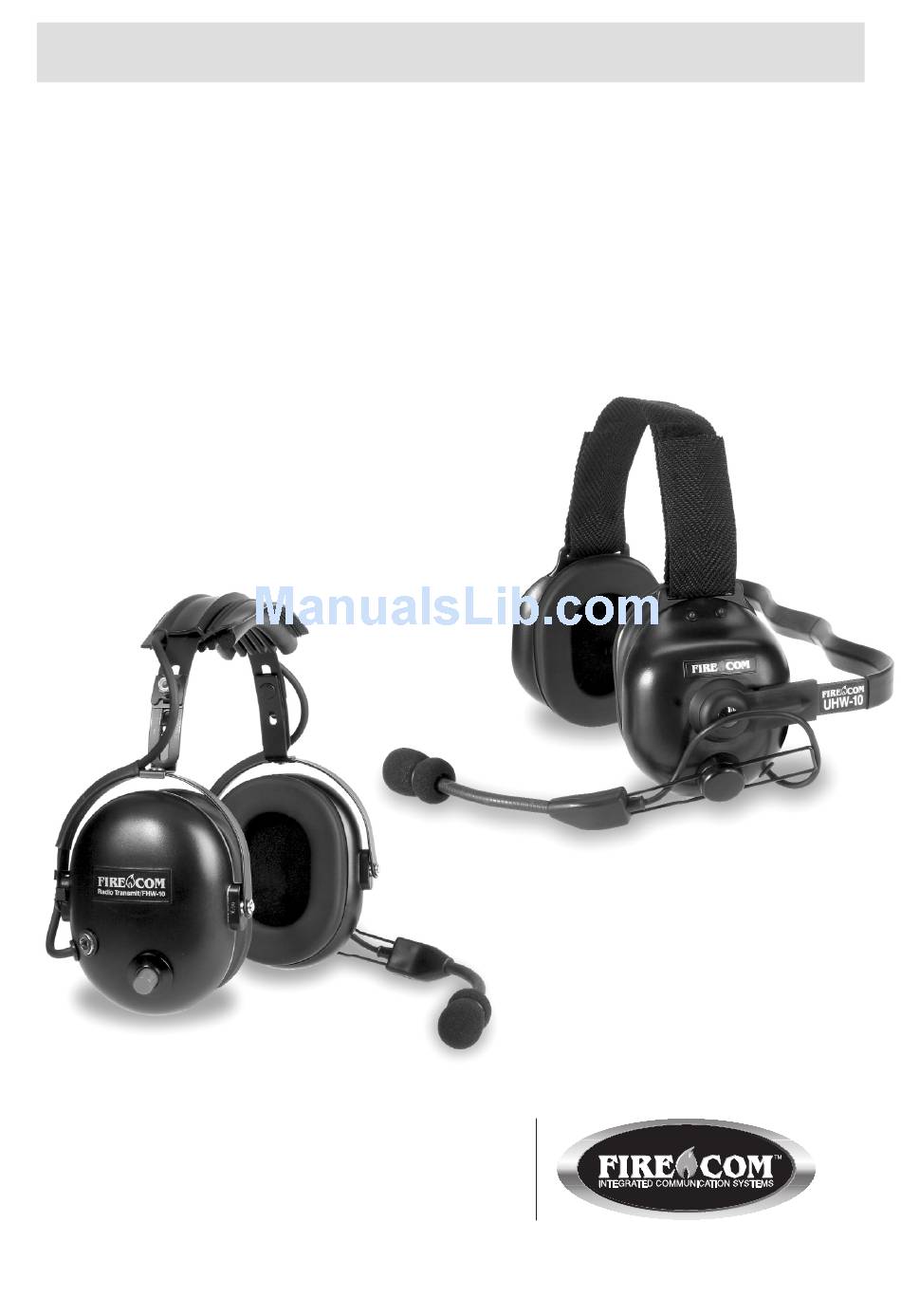

  • Page 1 Wireless Headset Series UHW-10/20 Under the Helmet FHW-10 Over the Head Operation Manual 7340 SW Durham Road • Portland, OR 97224 USA Phone: 503-684-6647 • 1-800-527-0555 Fax: 503-620-2943 • email: sales@firecom.com www.firecom.com...

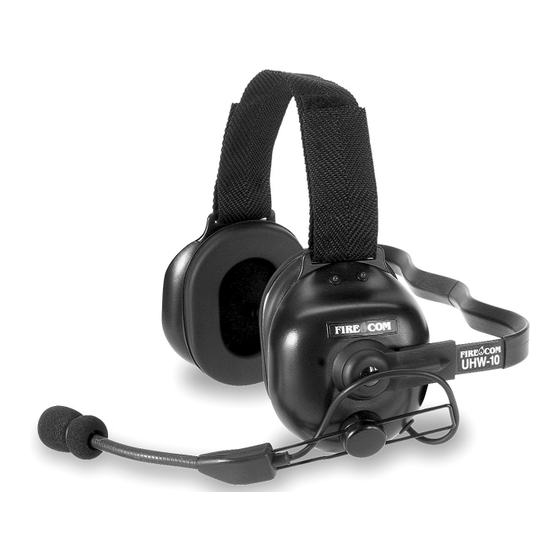

  • Page 3 Adjustable headstrap headstrap Volume control Push-To-Talk (PTT) button UHW-10 Under-the-helmet wireless headset with a red momentary PTT button for transmitting on the vehicle radio. UHW-20 Under-the-helmet wireless headset with a black momentary PTT button to key the microphone for intercom communications.
  • Page 4: Proper Fit

    Proper Fit When worn properly, this headset will provide significant hearing protection. If it is not worn properly, the headset’s effectiveness in reducing harmful noise is severely compromised. • The length or vertical fit of the headset ear dome is adjusted by the headband or head - strap.
  • Page 5: Operation

    A power switch is provided on the volume control. This control is located on the bottom side of the right ear dome on the UHW-10/ 20 headsets, and on the top side of the left ear dome on the FHW-10 headset. Volume should be set at a comfortably high audio level to optimize performance but not so high as to cause audio distortion and hearing discomfort.
  • Page 6: Led Indicators

    LED Indicators All headsets have one green and one red externally viewable LED indicator located on the top side of the left ear dome (same side as boom microphone). These two LEDs operate as follows: Power off mode: • Charging: red LED on. •...
  • Page 7: Pairing Procedure

    Radio transmitting is not possible with the UHW-20 model. The UHW-10 and the FHW-10 models have a red momentary PTT button located on the bottom of the right ear dome. The microphone on these two models is always live for internal intercom communications.
  • Page 8: Care And Maintenance

    Charging Ensure that the headset is fully charged prior to operating for the first time. All headsets have a 2.1mm panel mounted charger jack located on the right ear dome. A charger cable assembly with a 2.1mm x 5.5mm plug is provided with the headset. The unterminated end of the charger cable can be wired to nominal 12V (11-16V) from the vehicle.
  • Page 9: Specifications

    Weight (UHW-10 / 20) ........
  • Page 10: Fcc/Ic Rf Exposure Warning

    - Meets standards SAE J1455 and J1113 - Chemical resistance corrosion and humidity per MIL-STD-810 Package Contents UHW-10 Headset: 105-3092-00 - User’s manual: P/ N 600-0074-00 - Charger cable with 2. 1 mm plug,9': P/ N 420-0048-00 UHW-20 Headset: 105-3093-00 - User’s manual: P/ N 600-0074-00...
  • Page 11: Warranty

    Warranty Two-Year Limited Warranty to the Original Purchaser Sonetics Corporation warrants to the original purchaser of its products, that they will be free from defects in materials and workmanship, under normal and proper use, for the period of two years from date of purchase. Sonetics Corporation will repair or replace, at its option, any parts showing factory defects during this warranty period, subject to the following provisions.
  • Page 12 FIRECOM is a division of Sonetics Corporation 7340 SW Durham Road • Portland, Oregon 97224 800-527-0555 • 503-684-6647 • Fax: 503-620-2943 Email: sales@firecom.com • www.firecom.com Copyright © 2008 Sonetics Corporation - All rights reserved. The information in this document is subject to change without notice. No part of this document may be reproduced in any form without prior written consent of Sonetics Corporation.
