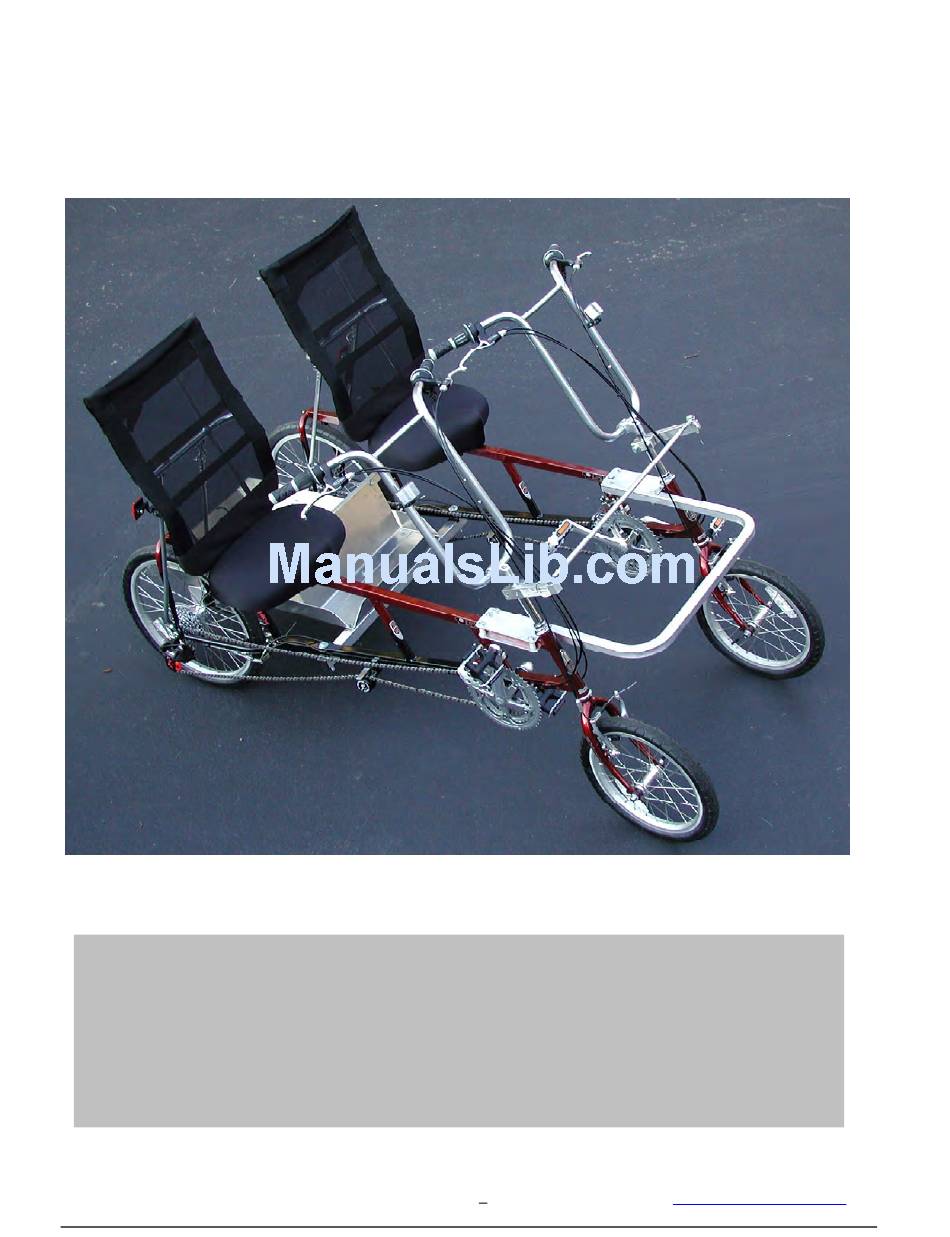

Page 1: Assembly Instructions
I N S T R U C T I O N S A N D U S E R G U I D E ™ By Blackbird Designs Inc. and Blackbird Sales Mark 4.1 - May 2007 Assembly Instructions And User Guide... - Page 2 I N S T R U C T I O N S A N D U S E R G U I D E FOR TECHNICAL SUPPORT CONTACT: © Blackbird Designs Inc. Jim Black, President 12721 Appleview Lane Burnsville, MN 55337...
- Page 3 Tips”, “Wet Weather Riding Cautions”, “Fitting Your EZ-1” and “EZ-1 Riding Tips”. General Rules For Riding Your EZ-1 Quadribent™ 1. Inspect your EZ-1 Quadribent™ before every ride. Make sure all nuts and bolts on the EZ-1 and accessory Quadribent™ frame are securely tightened. Check your brakes by applying them and pushing the Quadribent™...
-
Page 4: Helpful Hints
Blackbird Designs. Please be sure you have the compatible bikes and Quadribent™ Kit before starting. The EZ-1 Quadribent™ Kit is partially assembled, and is intended to be sold in a fully assembled and adjusted condition by your Dealer. If the kit is bought ‘factory direct’ by the customer, he is responsible for final assembly and adjustment. - Page 5 I N S T R U C T I O N S A N D U S E R G U I D E EZ-1 QUADRIBENT™ PARTS LIST FRONT BEAM (‘U’ shaped 1” x 1” square aluminum tube) LOWER TUBE (1¼” x 1¼” square aluminum tube 28” long) REAR AXLE BEAM (1”...
- Page 6 E Z - 1 Q U A D R I B E N T A S S E M B L Y I N S T R U C T I O N S A N D U S E R G U I D E ASSEMBLY INSTRUCTIONS WITH PICTURES FINGER TIGHTEN ALL NUTS/BOLTS OF...
- Page 7 E Z - 1 Q U A D R I B E N T A S S E M B L Y A N D U S E R G U I D E 5) Bring the left bike parallel to the right bike and 8) Find the cargo platform support (8”...
-
Page 8: Steering Assembly
E Z - 1 Q U A D R I B E N T A S S E M B L Y A N D U S E R G U I D E 11) It is now time to tighten bolts in the following 13) Find steering tie rod assembly (should measure order: 28½”... - Page 9 E Z - 1 Q U A D R I B E N T A S S E M B L Y A N D U S E R G U I D E FRONT END WHEEL ALIGNMENT 15) Check front-end wheel alignment by measuring the distance between the front rims of the two bikes as shown in figures 15, 16 &...
- Page 10 E Z - 1 Q U A D R I B E N T A S S E M B L Y A N D U S E R G U I D E Check proper operation of the brakes, front and rear 22) Insert the end of nylon strap back through the shifters after Quadribent is fully assembled.
- Page 11 ____________________________________________________________________________________ QUADRIBENT REGISTRATION CARD Please mail, email or fax this information to Blackbird Sales so your information you can be placed in our database and alerted if necessary regarding service advisories and special offers or upgrades that become available. Name __________________________________________________________________________________...
