STOVE GUARD SGK500 USER MANUAL
INNOHOME
Stove Guard SGK500
user manual
www.innohome.com
1
smart safety for your kitchen

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stove Guard SGK500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Inno home Stove Guard SGK500

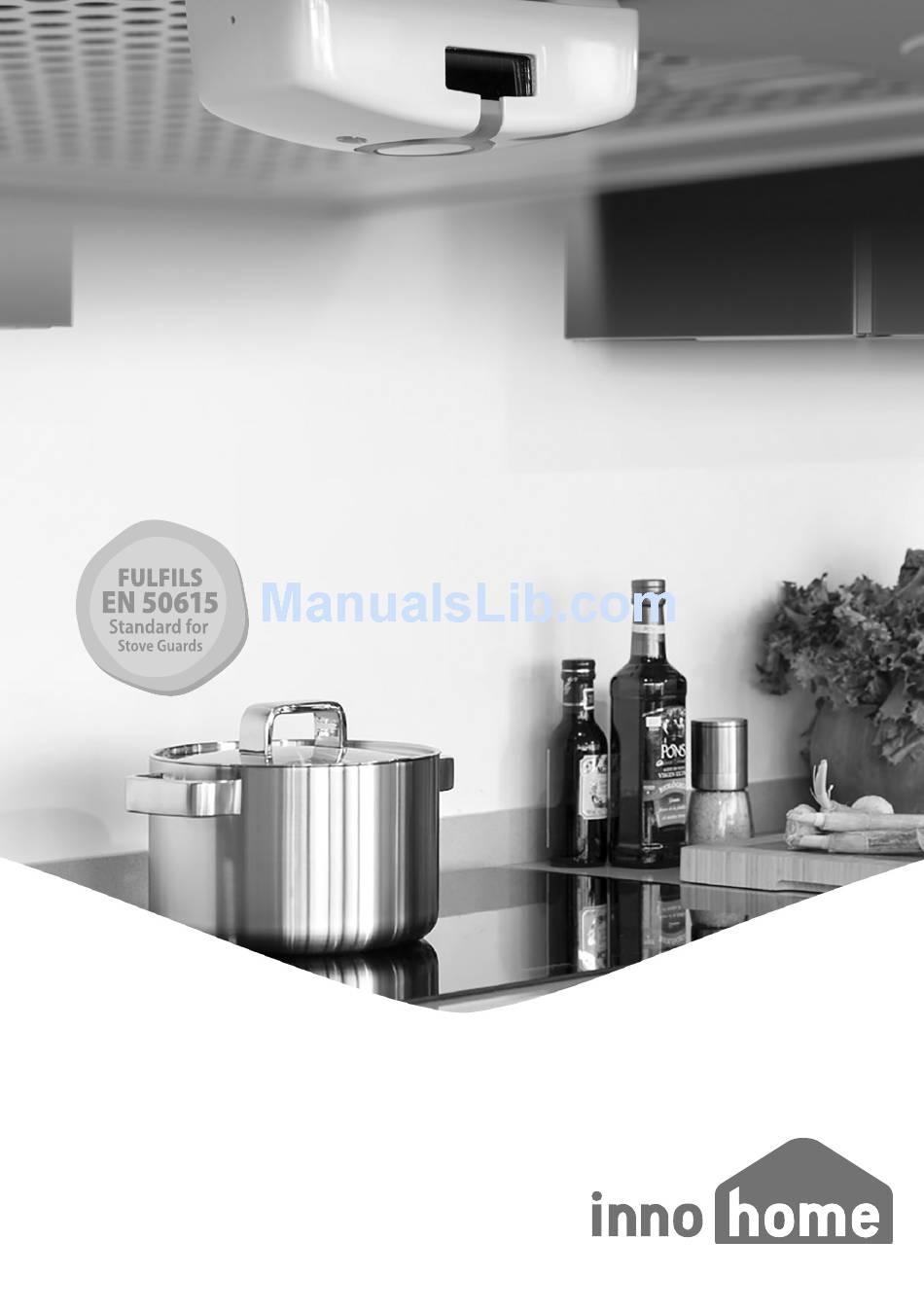

  • Page 1 STOVE GUARD SGK500 USER MANUAL INNOHOME Stove Guard SGK500 user manual www.innohome.com smart safety for your kitchen...
  • Page 2 Congratulations! STOVE GUARD SGK500 USER MANUAL You now own one of the most intelligent cooker safety products in the world. Before using this product, please read the information in ‘safety instructions’ first, then familiarize yourself with the information provided in the user manual. Always observe all safety instructions.

  • Page 3: Safety Instructions

    Safety instructions STOVE GUARD SGK500 USER MANUAL This product is not suitable for use in professional kitchens. Avoid having the heat sensor closer than 15 cm distance to the ear while signalling an alarm, due to risk of damage to hearing.

  • Page 4: Table Of Contents

    CONTENTS STOVE GUARD SGK500 USER MANUAL 1. Innohome Stove Guard and how to use it 1.1. A quick guide 1.2. Innohome Stove Guard 1.3. Stove Guard use 1.4. Stove Guard features 1.5. Meaning of alarm signals 2. Monthly Maintenance INSTALLATION 3.

  • Page 5: Innohome Stove Guard And How To Use It

    STOVE GUARD SGK500 USER MANUAL 1. Innohome Stove Guard and how to use it 1.1 A quick guide When the Stove Guard is signalling, press the Intelligent Heat Sensor cover once. Also note that: When the Stove Guard is emitting a pre-alarm signal, a short sound followed by a long break , it has identified a hazardous situation.

  • Page 6: Innohome Stove Guard

    • Control Unit SGC510-2 or SGC500-3 • Intelligent Heat Sensor SGS510 • Country-specific installation kit Stove Guard SGK500 is compatible with all electric cook- ers. The Stove Guard system is composed of an Intelligent Heat Sensor, attached above the cooker, and a Control Unit, connected to the cooker.

  • Page 7: Stove Guard Use

    STOVE GUARD SGK500 USER MANUAL 1.3 Stove Guard use When the cooker has been turned off and the Stove Guard is signalling, first turn all cooker knobs to ‘0’, then press the Intelligent Heat Sensor cover once. In cookers that are operated by touch, just press the Intelligent Heat Sensor cover once.

  • Page 8: Stove Guard Features

    STOVE GUARD SGK500 USER MANUAL 1.4 Stove Guard features The Stove Guard safeguards the cooker in several different ways. The factory setting includes the Overheating Monitor as specified in the EU standard: the Intelligent Heat Sensor, above the cooker, detects dangerously high temperature and steep temperature rise. Automatic Fault Diagnosis en- sures that the system is always working perfectly and if the Intelligent Heat Sensor is accidentally removed, an alarm signals and cooker use is prevented.
  • Page 9 STOVE GUARD SGK500 USER MANUAL b) Automatic fault diagnosis The automatic fault diagnosis ensures that the Stove Guard is working perfectly. The diag- nostic tool analyses the function of the Intelligent Heat Sensor and the Control Unit, and the radio communication link between the devices. The automatic fault diagnosis alarm can also be triggered by the Intelligent Heat Sensor not being on its mounting plate.
  • Page 10 STOVE GUARD SGK500 USER MANUAL Additional features available for all electric cookers d) Intelligent Timer The Intelligent Timer identifies a burner that has been accidentally left on by monitoring burn- er heat adjustments. If a burner has been left on, the cooker is turned off within a time period between 1 hour and 3 hours, depending on the cooker type and the burner setting - the higher the setting the sooner the cooker is turned off.

  • Page 11: Meaning Of Alarm Signals

    STOVE GUARD SGK500 USER MANUAL 1.5 Meaning of alarm signals The Intelligent Heat Sensor signal is a high-tone beep, the Control Unit signal a lower frequency ‘buzzing’ beep. The Intelligent Heat Sensor is attached above the cooker, the Control Unit signal sounds from behind the cooker.

  • Page 12: Monthly Maintenance

    STOVE GUARD SGK500 USER MANUAL Sound Meaning Course of Action Control Unit: a short The cooker has been turned off due to the First turn all cooker knobs to b e e p a n d a l o n g automatic fault diagnosis detecting a tem- ‘0’...

  • Page 13: Intelligent Heat Sensor Installation

    STOVE GUARD SGK500 USER MANUAL 3. Intelligent Heat Sensor Installation Allow the Stove Guard to first adjust to the room temperature. Choosing the installation location Choose the installation location under- neath the cooker hood, being as close to the central point of the cooker as possible, but at least 10 cm from the cooker hood lights –...
  • Page 14 STOVE GUARD SGK500 USER MANUAL The Intelligent Heat Sensor is now installed. Go to chapter 4 for Control Unit installation. Note if detaching the Sensor after installation, the Sensor will emit four beeps (Sensor Disloca- tion Alarm) and the cooker is turned off.

  • Page 15: Control Unit Installation

    STOVE GUARD SGK500 USER MANUAL 4. Control Unit Installation If the cooker is connected to the mains electricity via a plug and a socket, the Control Unit can be installed by the user. In any other case, the installation needs to be carried out by a qualified electrician.

  • Page 16: Additional Features Setup And Testing

    STOVE GUARD SGK500 USER MANUAL Turn one of the hotplates on. Press the Intelligent Heat Sensor cover until you hear a beep from the Sensor. The Sensor will emit a test alarm and the cooker electricity is cut off. Restore the cooker electricity by pressing the Sensor cover once.

  • Page 17: Activating Other Additional Features

    STOVE GUARD SGK500 USER MANUAL 5.2 Activating other additional features Choose the mode Mode 1 Standard features - activated by factory default, does not need further setup procedures: Overheating Monitor, Automatic fault diagnosis, Sensor Dislocation Alarm (in compliance with the EU standard EN50615/B))
  • Page 18 STOVE GUARD SGK500 USER MANUAL Mode 3b Includes: basic features, mode 2 features, Intelligent Timer+ and Cooker knob Safety Lock - Press the Control Unit setup button (1, see image on page 11) and hold it down. After 10 seconds the Control Unit emits a beep, and after a moment another beep. Release the setup button.

  • Page 19: Changing Settings Manually

    STOVE GUARD SGK500 USER MANUAL Safety Lock test (activated in mode 3b) Make sure the hob is turned off. In approximately 20 minutes, the Safety Lock ‘locks’ the cooker by deactivating the cooker knobs (in some cookers the oven knobs are not deactivated). Test the Safety Lock by trying to turn the burners on one by one.

  • Page 20: Stove Guard Factory Settings

    STOVE GUARD SGK500 USER MANUAL 4. Press the cover again, until you hear a beep. 5. Press the cover as many times as is the sensitivity level you want to adjust the Sensor to, with short presses. Wait for the light to go off between the presses.

  • Page 21: Changing The Mode

    STOVE GUARD SGK500 USER MANUAL 6.3 Changing the mode The Control Unit mode can be changed in the following manner: Change to modes 2, 3a or 3b: Carry out the procedure described above, starting from point 1. Change to mode 1: Return the Stove Guard to its factory settings, see chapter 6.2.

  • Page 22: Checking The Control Unit Settings

    STOVE GUARD SGK500 USER MANUAL 7.2 Checking the Control Unit settings The Control Unit settings can be checked by turning the electricity off for 15 seconds using the main switch or the cooker fuse. The Control Unit will then emit signals to inform you about its settings.

  • Page 23: Troubleshooting

    STOVE GUARD SGK500 USER MANUAL 9. Troubleshooting The cooker has been turned off and no signal sounds • The cooker has been turned off either due to the Sensor Dislocation Alarm (the Intelligent Heat Sensor being removed from its location or it not being on its mounting plate), or due to Control Unit overheating protection.
  • Page 24 STOVE GUARD SGK500 USER MANUAL I accidentally reset the pre-alarm signal even though the alarm was triggered by a haz- ardous situation. Has the Intelligent Heat Sensor now become too insensitive? • Resetting the pre-alarm signal changes the Intelligent Heat Sensor’s sensitivity but only to such a small extent, that even if it were to be accidentally changed for a couple of times, the Sensor would not become too insensitive.
  • Page 25 STOVE GUARD SGK500 USER MANUAL the trimmer first approximately 0.5mm to the right, then do a test alarm with the external alarm. If the Control Unit does not react to the alarm signal, then turn the trimmer 0.5mm to the left counting from the original position and repeat the test alarm. If the Control Unit does not identify the signal, then move the trimmer this time 1 mm to the right.
  • Page 26 STOVE GUARD SGK500 USER MANUAL The Stove Guard turned the cooker off when I was using the oven. • On some cases when a convection oven is used on high heat setting (modes 2 or 3a/3b), the Stove Guard fails to identify that the oven is being used, hence turning the cooker off.

  • Page 27: Technical Information

    STOVE GUARD SGK500 USER MANUAL 10. Technical Information - certified, Casing IP20, indoor use only Patent FI 117526, FI 117878, PCT pending Unit Connection Cut-off time Voltage/power 1 – 3 h (Intel- Control Unit Control Unit model: - SGC510-2: 230VAC, 1 – 2...
  • Page 28 STOVE GUARD SGK500 USER MANUAL Manual alarm reset Automatic alarm reset (patented) Silent alarm Red alarm light deactivation Mode 2 (in addition to the mode 1 features) Intelligent Timer (patented) Sensor automatic fault diagnosis (patented) Mode 3 (in addition to the mode 1 and 2 features)

  • Page 29: Disposal

    STOVE GUARD SGK500 USER MANUAL 11. Disposal Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) EU Directive 2002/96/EC for Waste Electrical and Electronic Equipment recycling (WEEE) This symbol on the Stove Guard product and accompanying documents indicates that this product should not be mixed with general household waste.

  • Page 30: Eu Declaration Of Conformity

    STOVE GUARD SGK500 USER MANUAL 13. EU Declaration of Conformity We declare under our sole responsibility that this product is in conformity with the Low Voltage Directive 2006/95/EC EMC Directive 2004/108/EC R&TTE Directive 1999/5/EC Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU and the following harmonised standards and technical specifications have been applied: Devices for fire prevention for hobs (cooktops) EN 50615:2015 (Cat.
  • Page 31 IMAGES...
  • Page 32 STOVE GUARD SGK500 USER MANUAL Innohome Oy www.innohome.com info@innohome.com www.facebook.com/innohome Linnoitustie 4B smart safety for your kitchen FI-02600 Espoo Finland SGK500-200UE3-002...
