Power Products LOGIC 8 Instruction Manual

8 amp battery charger for 24v lead acid and nickel cadmium batteries
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.power-products.com
INSTRUCTIONS
MODEL:LOGIC 8
P/N:BR8A
™
8 AMP BATTERY CHARGER FOR 24V
LEAD ACID AND NICKEL CADMIUM BATTERIES
Manufactured By: Power Products, Inc.
27 Pamaron Way Ste E
Novato, CA 94949
Cage Code: 3C8X4
Tel: 415-883-6300 Fax: 415-883-6302
www.power-products.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LOGIC 8 and is the answer not in the manual?

Questions and answers

Related Manuals for Power Products LOGIC 8

Summary of Contents for Power Products LOGIC 8

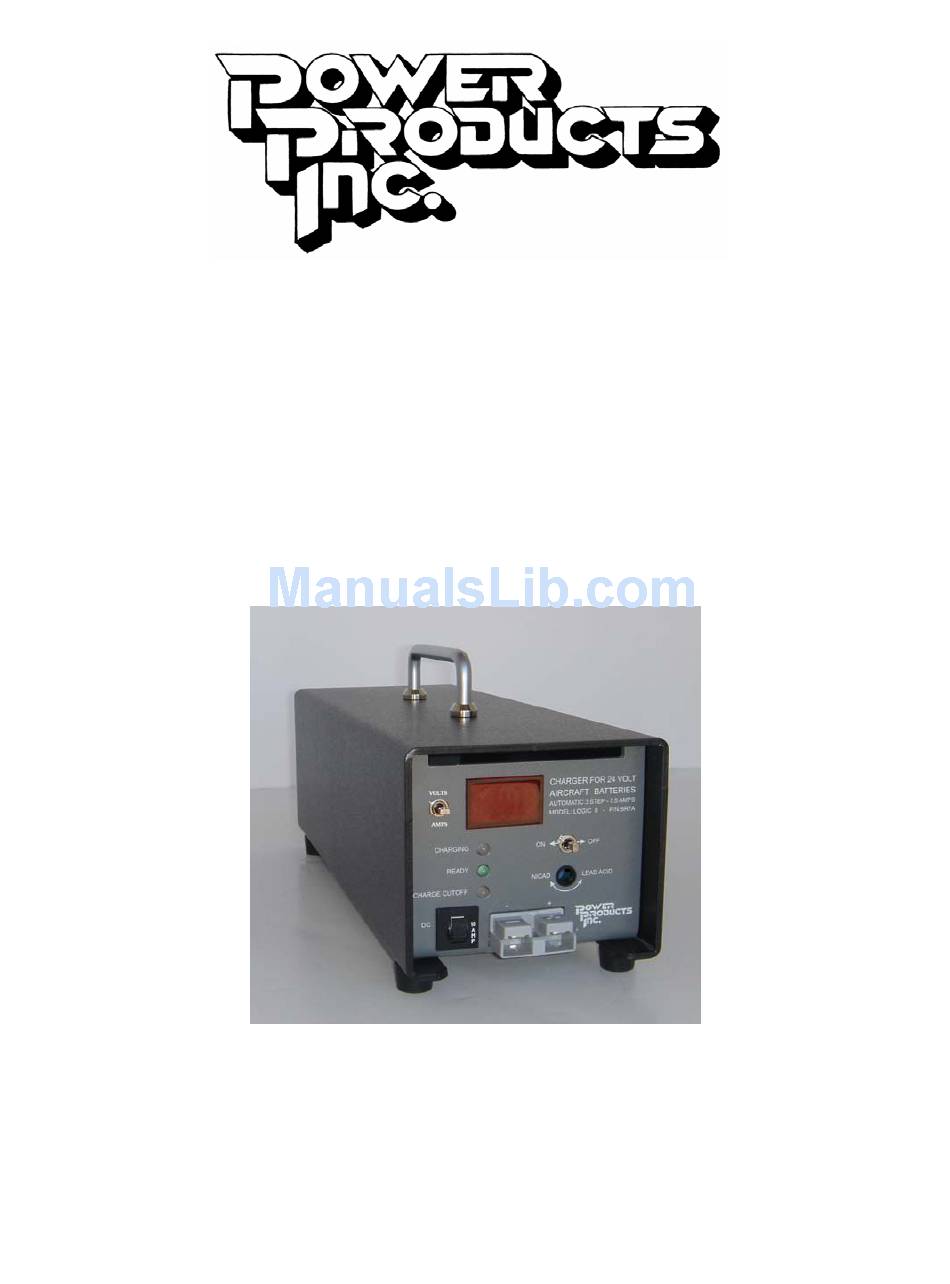

  • Page 1 INSTRUCTIONS MODEL:LOGIC 8 P/N:BR8A ™ 8 AMP BATTERY CHARGER FOR 24V LEAD ACID AND NICKEL CADMIUM BATTERIES Manufactured By: Power Products, Inc. 27 Pamaron Way Ste E Novato, CA 94949 Cage Code: 3C8X4 Tel: 415-883-6300 Fax: 415-883-6302 www.power-products.com...
