Summary of Contents for Data Video AM-100

  • Page 2: Standard Warranty

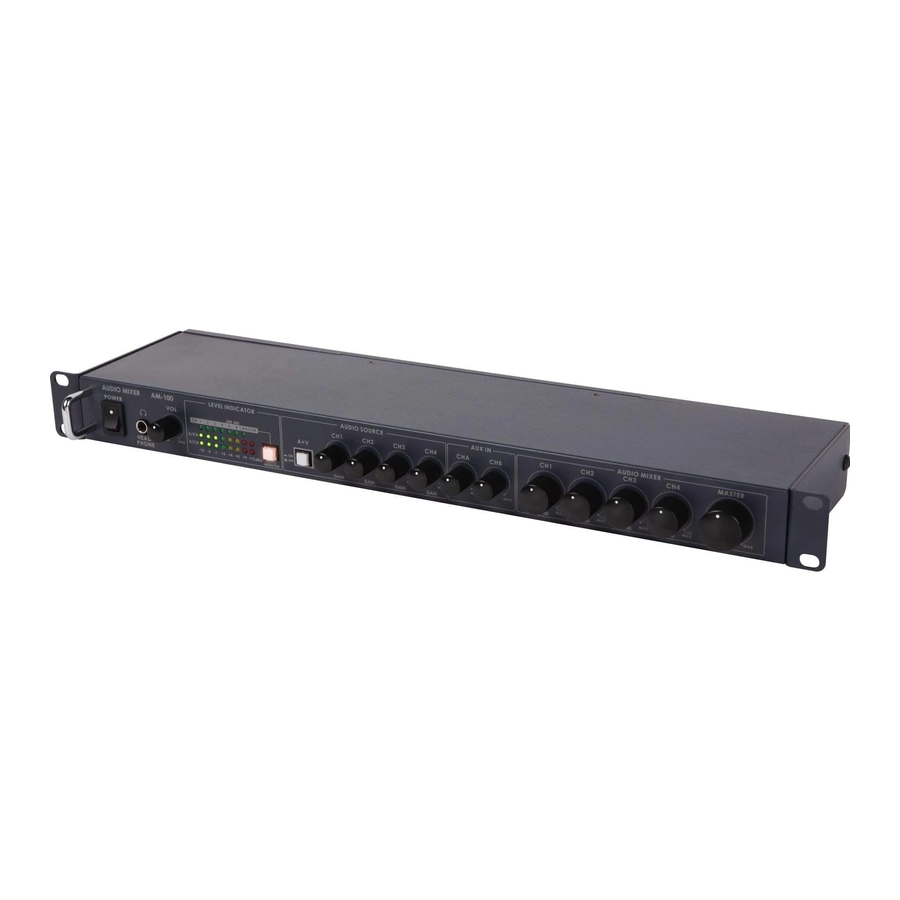

    SE-2000 or SE-800 do. For this demand, Datavideo provides AM-100 to work with SE-900 on this solution. AM-100 is a 4 x XLR input, 2 x AUX XLR input & 2 x XLR output audio mixer. This audio mixer can provide SE-900 to achieve similar function as voice synchronization switching to SE-800 or SE-2000.

  • Page 3: Connections And Controls

    Audio Input Source Level Controls This section of the AM-100 controls which audio input channel (CH1~CH4) will be sent to the Audio Bus and its associated Fader. This row of audio channel selection buttons has LEDs built in to show which input channel is active.

  • Page 4: Rear Panel

    2 channels XLR Balanced Audio output. AUX Audio Input Mix input for background music or daisy chaining AM-100 units together. To daisy chain units together take the AUDIO OUT pair from the first unit and connect these to the AUX IN on the second unit.

  • Page 5: Audio Inputs And Levels

    Audio Inputs and Levels Analogue audio comes into the AM-100 through the XLR connectors on the rear panel (see above diagram). The AM- 100 supports four XLR Balanced Audio Input channels. There are two kinds of switches next to each XLR input under AUDIO IN: The LINE/MIC switch is used to set the audio as LINE in or MIC in.

  • Page 6: Tally Input Connector (A+V Feature)

    Example Cascade Set Up It is possible to cascade or daisy chain several AM-100 units together. This allows more audio sources to be added to the set up and provided at the final mixed output. To daisy chain units together take the AUDIO OUT pair from the first unit and connect these to the AUX IN on the second unit.

  • Page 7: Specifications

    Specifications Audio Input Parameter Specification Limit Units Conditions/Comments MIC/Lin Connectors 3Pin XLR Female Pin2=(+),Pin3=(-),Pin1=GND (CH1~CH4) Mic/Lin Input Impedance 3K/5.5K Ω Mic Gain Range off to +80 ±1.5 Audio source GAIN(knob) Line Gain Range off to +20 ±1.5 Audio source GAIN(knob) Signal to noise ratio @1KHz,0dB(Lin IN) THD+N...
