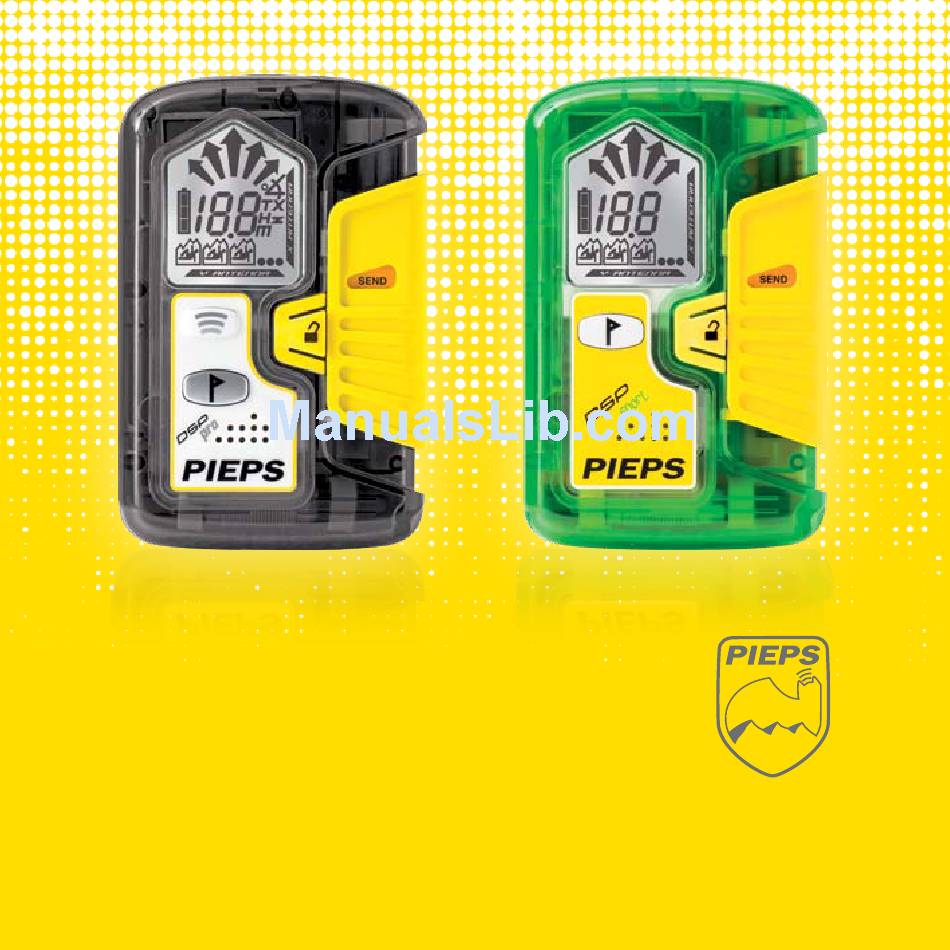

- Page 1 MANUAL PIEPS DSP Pro P R E M I U M DSP SPorT A L P I N E P E R f o R M A N c E www.pieps.com...
- Page 2 D E A R W INTE R S PO R TS EN THU SI A ST! Congratulations on having purchased a PIEPS DSP PRO/DSP SPORT. The PIEPS DSP PRO/DSP SPORT is a digital 3-antenna transceiver designed to be the easiest to use in a companion rescue. Equipped with DSP technology (Digital Signal Processing) and a triple-antenna-search system, the PIEPS DSP PRO/DSP SPORT not only offers a maximum circular range, but also simplifies the rescue, especially in a case with multiple burials.
- Page 3 WARNING! The volume level of an avalanche transceiver can be up to 100 dB There is also the option to carry the PIEPS DSP PRO/ DSP SPORT with the supplied hand loop in a securely (decibels), and may cause damages to your hearing! Make sure that there closeable trouser pocket without a protective case.
- Page 4 “E“ in combination with a warning-code (overview table in chapter warning-codes). If the warnings are still shown in an interference- free area the PIEPS DSP PRO/DSP SPORT is not fully functional. Bring your PIEPS DSP PRO/DSP SPORT to a PIEPS authorized service center.
- Page 5 A DVA N CE D BE ACO N -C HEC K-FU NCT ION Activation of beacon-check-function: 1. Turn on your PIEPS DSP PRO/DSP SPORT (Position SEND). 2. Wait until „CH“ appears on the display (CH = CHECK). 3. Press and continue to hold the MARK button.
- Page 6 (according EN300718). The Intelligent Transmitter – Gives maximum support in SEND-mode In SEND-mode there are functions working in the background of PIEPS DSP PRO/DSP SPORT that help to be found faster and more efficiently in case of an emergency.
- Page 7 I N C AS E O F E M ER GEN C Y A victim has the best chance of being rescued if the largest possible number of companions in a given group have not been buried and work efficiently as a team to search and rescue their companion.
- Page 8 2 Point of disappearance 3 Flow direction You are now beginning with the search for initial detection. The PIEPS DSP PRO/DSP SPORT has a circular receiving range and allows a direction and distance indication from the first signal (no special method of operation necessary). All signals of the burials that are within the maximum receiving range are received at the same time.
- Page 9 C OARS E S E AR C H As soon as the PIEPS DSP PRO/DSP SPORT picks Number of Burials up signals, the approximate distance and direction appear in the display. Matchstick men represent the number of burials within the range of the device.
-
Page 10: F I N E Searc H
When you are closer than 5 m to the burial, it is strongly recommended to reduce your moving speed (50 cm/sec). Keep the PIEPS DSP PRO/DSP SPORT as close as possible to the surface of the snow to have the minimum distance to the transmitting beacon. -
Page 11: Mu Lt Ipl E Bur Ia Ls
If there are multiple burials, this is clearly indicated by the number of matchstick men. By default, the PIEPS DSP PRO/DSP SPORT will automatically search for the strongest signal. Once the position of the first burial has been located (see fine search), press the button MARK without moving away from this point. - Page 12 Mark reset of all suppressed signals: To reset the MARK function switch your PIEPS DSP PRO/DSP SPORT into SEND-mode and then back to SEARCH-mode. With the PIEPS DSP PRO you also have the possibility to reset MARK with the following described SCAN-function. All information from previously suppressed signals is now reset and you can start with MARK again.
-
Page 13: Scan Function
The functions cannot be used or added to the PIEPS DSP SPORT. 1. SCAN-FUNCTION Press the SCAN button while in the SEARCH-mode. The PIEPS DSP PRO will begin scanning the entire receiving range. During the scan, stand still and hold the device steady. This will give... -
Page 14: Frequency Measurement
The PIEPS TX600 is a mini-transmitter for dogs and equipment that transmits at 456 kHz, which is out of the standard EN300718 (457 kHz +/- 80 Hz) and can be received with every PIEPS DSP PRO. Hold the MARK and SCAN buttons simultaneously for 3 seconds while in the SEARCH-mode. - Page 15 SEND mode, if the device is in SEARCH mode. Slide the main switch of the PIEPS DSP PRO/DSP SPORT from SEARCH to SEND without pressing the lock button. The main switch is engaged in SEND mode. Store the device and hold it firmly against the body.
-
Page 16: Software Update
SEND-mode automatically after 20 seconds. Important! During the measurement the PIEPS DSP PRO is transmitting. In case of an emergency the beacon can be lost. PIEPS recommends to make measurements in avalanche dangerous areas only in combination with the PIEPS BACKUP! - Page 17 IMPORTANT! During a longer time of no use (e.g. summer) the batteries have to be removed from the PIEPS DSP PRO/DSP SPORT. Damages because of leaked batteries are not included in the warranty. Electromagnetic Compatibility (EMC) and PIEPS Auto-Antenna-Switch: All beacons are very sensitive against electrical and magnetic interferences. Due to this, it’s...
-
Page 18: Technical Data
T E CHN I CAL DATA Device designation PIEPS DSP PRO PIEPS DSP SPORT Transmission frequency 457 kHz (EN 300718) 457 kHz (EN 300718) Power supply 3 batteries, Alkaline (AAA) 3 batteries, Alkaline (AAA) Battery lifetime min. 400 h SEND min. -
Page 19: Wa R N I N G C O De S
STO R AG E I CL EA NIN G Always store your PIEPS DSP PRO/DSP SPORT at room temperature (15°C-25°C) in a dry environment. Remove the batteries when not in use for an extended period (eg summer) . Do not use aggressive cleaning agents and no metallic cloth for cleaning the surface. -
Page 20: Warranty & Service
With the PIEPS warranty extension you have the possibility to extend the standard warranty of your PIEPS DSP PRO/DSP SPORT free of charge. Simply register online at the PIEPS Service Portal and get your warranty certificate for 5 years valid from the date of purchase. The warranty can be extended within 3 months from the date of purchase. -
Page 21: Safety System
SAFETY SYSTEM Pieps GmbH Parkring 4, 8403 Lebring, Austria www.pieps.com...
