Summary of Contents for Octava HDMXA71

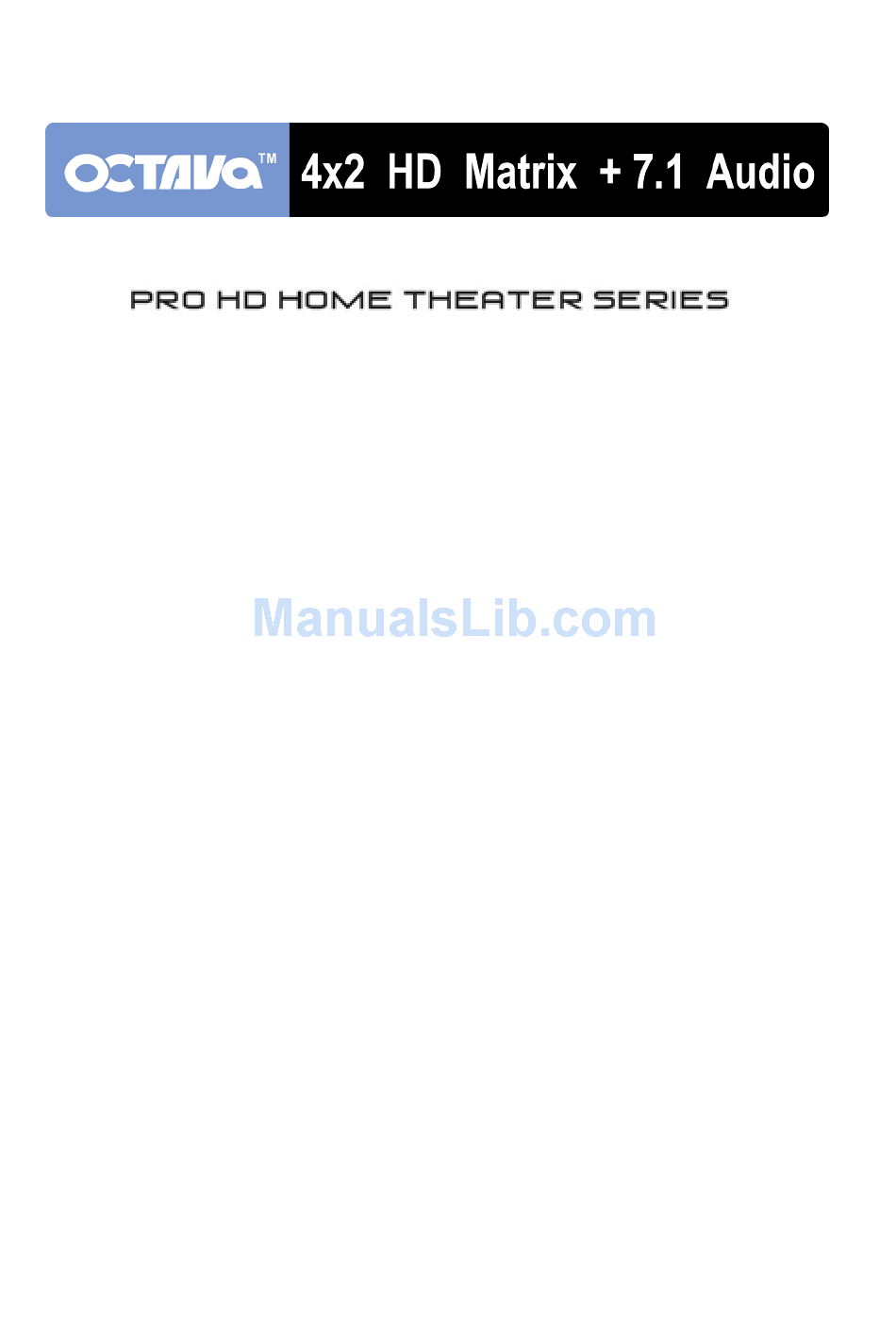

- Page 1 Model: HDMXA71 Installation Guide...
-
Page 2: Table Of Contents
Contents Application Diagram............3 Installation............... 3 Description..............4 Features................4 Remote Control Guide ............ 7 RS232 Control Commands ..........9 EDID Configuration............11 1 RU Rack mount............12 Disabling / Enabling IR Remote Control Receiver...12 Warranty................13 Disclaimers..............13 Specifications..............14... -
Page 3: Application Diagram
Note1: You must set your PS3, or source to LPCM decoding mode in order to use the 7.1 Analog Audio Output from HDMI. Application Diagram Installation: Connect the Monitor(s) to the HDMI OUT ports Connect the HDMI source to the HDMI INPUT Connect audio cables (optional) Connect the DC power adapter... -
Page 4: Description
Description: Are you looking to route HDMI and 5.1/7.1 LPCM Audio to your existing Surround Sound System? The HDMXA71 switch routes both HDMI and 5.1/7.1 LPCM (8ch.) Analog Audio. Perfect for systems using PS3 or DVD players with internal LPCM decoding on HDMI. The 4x2 can take the decoded LPCM from the PS3 and convert to 5.1/7.1 (8ch.) Analog Audio... - Page 5 3. Output A/B 5. Infrared Front View indicator Detector 6. Input Select 1. Power 2. Aux Audio 7. Aux Audio 4. Infrared Indicator Indicator Select Jack Function Power Indicator Aux Audio Input Indicator LED is illuminated if the Aux Input is selected ( loop thru mode) Output A/B Indicator Displays the Input selected...
-
Page 6: Back View
Back View 7. RS232 5. Aux 7.1 Audio In 1. Power input (5VDC) 2. HDMI Inputs 4. Analog 7.1 out 6. Optical audio 3. HDMI output B 3. HDMI output A 8. USB Port Back Side Connectors Function Power In 5V DC HDMI Inputs Connect to video sources... -
Page 7: Remote Control Guide
Input 1,2,3,4 Selects the corresponding numbered Input Turns ON/OFF the LED. Turns ON/ soft Off(standby) the unit Other Not used Octava’s Remote control uses discrete code so can be easily integrated with most Universal Remote Controls such as Logitech’s Harmony. - Page 8 Basic Quick Start: Use the remote control to select Output A or B Display that you wish to control followed by the Input that you wish to watch. For example: -Pressing Display B, “2” will switch Input 2 to Out B. -To connect DIPLAY A to IN1 and DISPLAY B to IN3 you simply follow this sequence Step 1) Display A, 1 (this will set Display A to Input 1)
-
Page 9: Rs232 Control Commands
Stop Bits Flow control none Controlling the HDMXA71 via RS232 can be done by sending a series of commands per the RS232 Command Table. Basic controls Note: The commands are in HEX. No spaces between HEX codes. “0x” denotes HEX. No need to enter “0x”... - Page 10 Switching Commands Note: The commands are in HEX. No spaces between HEX codes. “0x” denotes HEX. No need to enter “0x” Output A Switching Commands HEX CODE Select OUT A to Input port 1 0x02 0x32 0x31 0x31 0x03 Select OUT A to Input port 2 0x02 0x32 0x31...
-
Page 11: Edid Configuration
EDID 1080i resolution will be stored. Audio EDID LPCM 2-Ch / 5.1/ 7.1 ( 44/88/96/176/192-kHz) Dolby Digital 5.1, DTS 5.1, additional EDID can be downloaded to the HDMXA71 via the USB Port. Please visit our support page Custom https://octavainc.com/support%20and%20updates.html#HDMXA71USB EDID If you are unsure or need assistance, please contact us at: info.octavainc.com... -
Page 12: Ru Rack Mount
1 RU Rack mount : The Octava HDMXA71 can be installed in a 1 RU rack by simply installing the rack mounts included. Disabling /Enabling Front Panel IR Remote Receiver: To disable the front panel IR remote receiver-insert the plastic plug into the IR jack as shown. -
Page 13: Warranty
If Octava's equipment fails because of defects (1) year from the date of receipt, Octava will at its option, A) repair or replace the equipment, or B) request return of equipment for refund of the price paid for the product provided that the equipment has not been subjected to mechanical, electrical or other abuse or modifications. -
Page 14: Specifications
For Questions and support: Email: info@octavainc.com URL: www.octavainc.com Copyright© 2012 Octava Inc. All rights reserved. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LL.C All trademarks are the sole property of their respective companies...
