Summary of Contents for Legend LE2622

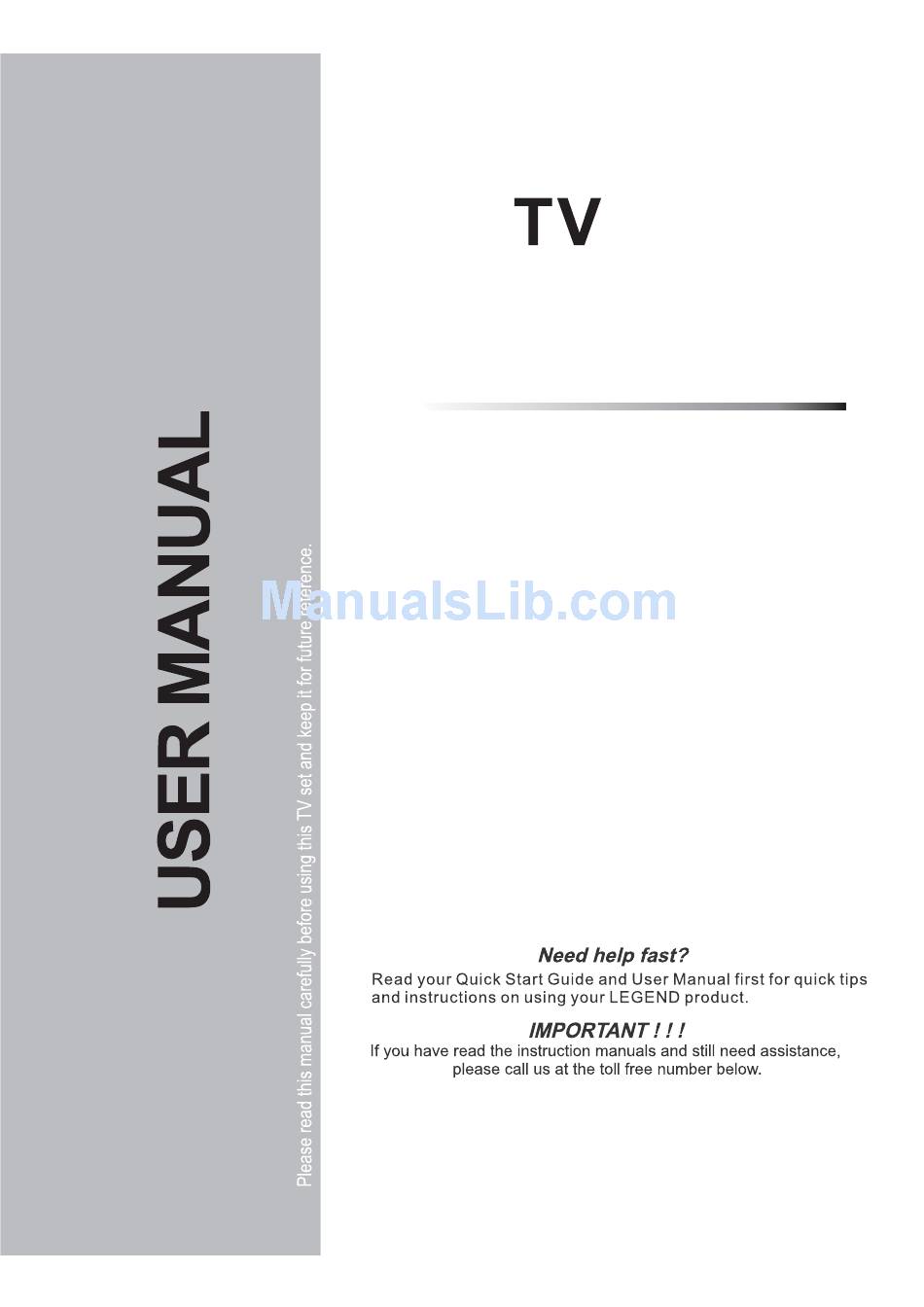

- Page 1 LE2622 1-866-96-LEGEND 24 hours a Day/ 7 Days a week.
-
Page 2: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. -
Page 3: Safety Instructions
Safety Instructions Important safeguards for you and your new TV Observing the simple precautions discussed in this booklet will provide you with many years of enjoyment and safe operation. This product complies with all applicable US Federal safety requirements, and those of the Canadian Standards Association. - Page 4 Safety Instructions 13. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the TV be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code (U.S.A.), ANSI / NFPA 70 provides information with regard to proper grounding of the mast and supporting struc- ture, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna- discharge unit, connect on to grounding electrodes, and requirements for the grounding electrode.
- Page 5 Safety Instructions 19. Replacement Parts When replacement parts are required, be sure that only an authorized service technician has used replacement parts 20. Safety Check Upon completion of any service or repairs to this TV, ask the service technician to perform safety checks to determine whether the product is in proper operating condition.
-
Page 6: Table Of Contents
Table of Contents Important Safety Instructions............................1 Table of Contents ................................5 Introduction..................................6 Remote Control Battery Install.................................7 Overview ..................................8 TV Overview Front & Side Panel ..............................10 Rear Panel & Pedestal Removal..........................11 Installation Connection to Antenna & Cable / Satellite Box ......................12 Connection to HDMI Input ............................13 Connection to Component YPbPr Input ........................14 Connection to Composite Input ...........................15... -
Page 7: Introduction
We recommend that you read the user manual thoroughly before use to familiarize yourself with the installation and adjustment options available to you; thereby, enjoying all the features of the LE2622 for many years to come. The LE2622 package includes the following items. Save the carton & packing for future shipping... -
Page 8: Remote Control Battery Install
Remote Control Battery Install Your remote control handset is powered by two (2) AAA type batteries remote control over and remove the battery over. in the battery compartment. When pointed towards the television, the effective range of the remote is approximately 16 feet from the front of the TV IR receiver and at an angle of no greater than 30°... - Page 9 Remote Control Overview Notes: 1. If direct sunlight shine directly on the remote sensor, the remote control’s operation may be unstable, and the effective range will be reduced. 2. Do not hit or violently shake the remote control. 3. Never expose the remote control to high temperature or humidity. 4.
-
Page 10: Overview
Remote Control Overview Function 1. POWER Turn the LCD display ON or OFF (Standby). 2. DISPLAY Provides program information currently viewed. PAUSE (USB) PREVIOUS (USB) NEXT (USB) STOP (USB) 7. REP REPEAT (USB) 8. CH.LIST Press to display a list of channels saved in the TV tuner memory. 9. -
Page 11: Tv Overview Front & Side Panel
TV Overview Front & Side Panel IR Receiver A soft blue light illuminates when the television power is on. Source Select HDMI1 HDMI2 HDMI3 Media 1. Input - After connecting your DVD, cable box, etc., select the appropriate input source to view. Press the INPUT button to display the input options. Press the CH+ / CH- buttons to highlight the input source and press the VOL+ button to select. -
Page 12: Rear Panel & Pedestal Removal
TV Overview Rear Panel & Pedestal Removal (ARC) supports MP3 and JPEG. 2. HDMI1,2,3 Input - Connects to digital AV equipment that feature HDMI connectivity. HDMI supports enhanced HDMI cable not included.HDMI2 has ARC funtion. 3. PC IN - VGA Input - Connect an optional VGA cable (not included) from your personal computer. - 3.5mm audio cable (not included) for sound. -
Page 13: Installation
Connection to Antenna & Cable / Installation Satellite Box It is strongly recommended that the installation of a high quality roof top antenna, digital cable, or satel- lite set top box be used in conjunction with your television for best broadcast reception. For indoor use, we geographical terrain, distance from the local broadcast transmitter and strength of antenna. -
Page 14: Connection To Hdmi Input
Installation Connection to HDMI Input Optional HDMI cable ( not included ) TV REAR PANEL (ARC) Cable / Satellite set top box Coaxial / RF Cable How to connect with Digital Cable / Satellite Set Top Box (not included) Connect the RF coaxial (75 ohm) cable from the video outlet of your cable / Satellite box to the RF input on the TV’s rear panel. -
Page 15: Connection To Component Ypbpr Input
Connection to Component Installation YPbPr Input TV REAR PANEL Optional Component cables (not included) Digital set top box, gaming console or DVD Connect to external equipment that features component video output jacks for better performance. Use the Component Y Pb Pr video and Source Select audio inputs with a set top box, gaming console or DVD player. -
Page 16: Connection To Composite Input
Installation Connection to Composite Input television TV REAR PANEL Audio Video Cable (not included) Di it l For GOOD video performance Connect to external equipment using optional video and audio cables. Composite output jacks are available on most set top cable / satel- Source Select lite boxes and DVD players. -
Page 17: Connection To A Personal Computer
Installation Connection to a Personal Computer Connecting a Personal Computer with VGA to your television TV REAR PANEL (ARC) VGA & Audio Cable (not included) Recommended computer display resolution:1366x768@60 Hz How to Connect a PC Connect using an optional male to male VGA cable (not included) from Source Select your PC to the VGA input on the TV’s rear panel. -
Page 18: Connection To A Home Theater System
Connection to a Home Installation Theater System Connection to a Home Theater Audio System TV REAR PANEL Optional digital cable (not included) Connecting to a Home Theater System Digital audio can deliver optimal 2 - channel stereo or 5.1 surround sound with Equalizer Settings Five discrete full range channels plus a separate channel for a subwoofer. -
Page 19: Tv Setup Initial Setup Wizard
TV Setup Initial Setup Wizard Initial Setup Wizard After connecting your TV antenna or cable wire, turn the television ON. The quick setup wizard will display on-screen. Select your preferred Picture setting followed by antenna options and performing Auto Scan to receive local broadcast channels that will be stored in the TV tuner memory. -
Page 20: Tv Channel Setup & Channel Auto Scan
TV Channel Setup & TV Setup Channel Auto Scan Select antenna options and perform Channel Auto Scan to receive television channels that will be stored into the TV tuner memory. To enter TV Mode: Press the MENU button Channel Using the arrow buttons;... -
Page 21: Brightness
Menu Adjustments Picture Setting The Picture and personal preferences. Adjustment options include contrast, brightness, color, sharpness and color temperature. Press the MENU button on the remote control. Navigate using arrow buttons to select Picture. Press the down arrow button to highlight Picture Mode, then press the arrow button to select your viewing preference from 5 factory options: Standard >... -
Page 22: Audio Settings
Menu Adjustments Audio Settings The Audio menu offers options to make sound enhancements while listening through the built-in speakers or to select digital audio options when connected to a Dolby Digital receiver though a (SPDIF) coaxial digital output. Press the MENU button on the remote control. Navigate using arrow buttons to select Sound. -
Page 23: Date & Time Settings
Menu Adjustments Date & Time Settings The Time menu includes adjustment of settings for your local time zone and daylight savings time. The clock will adjust automatically after the initial Channel Auto Scan of available broadcast channels in your area (see page 19 for TV Setup). -
Page 24: Setup Settings
Menu Adjustments Setup Settings In the Setup menu you may change the initial set up of preferences that include settings for language, menu display, computer monitoring, closed captions, enhancement of black detail in the picture and resetting your TV back to its factory default status. Press the MENU button on the remote control. -
Page 25: Closed Captions
Menu Adjustments Closed Captions The Setup menu includes adjustments for activating the Closed Caption text feature for display on-screen and customiz- ing CC display types and font styles. Press the MENU button on the remote control. Navigate using arrow buttons to select Setup. arrow arrow but- button to highlight Closed Caption... -
Page 26: Cec
Menu Adjustments The CEC menu includes CEC Control \ Device Auto Power Off \ TV Auto Power ON \ Audio Receiver \ Connect \ Root Menu. Press the MENU button on the remote control. Navigate using arrow buttons to select Setup arrow arrow arrow but-... -
Page 27: Advanced Settings
PC Menu Adjustments Advanced Settings In the Setup menu you may adjust the position of images displayed on screen once you connect an input signal from your PC. The recommended resolution is 1366x768. For use with a laptop computer, refer to your computer’s user manual on instruction for proper display output. -
Page 28: Parental Control
Menu Adjustments Parental Control In the Lock menu, you may block television and movie programming based on TV ratings and Motion Picture Association guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. Press the MENU button on the remote control. - Page 29 Menu Adjustments Parental Control In the Lock menu, you may block television and movie programming based on Canadian TV and movie rating guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. Press the MENU button on the remote control.
-
Page 30: Tv Settings
Menu Adjustments TV Settings The Channel provides the setup / changes of your television to receive broadcast channels, store your favorite chan- nels, add or skip channels in memory and label or name channels.(For antenna and Auto Channel Scan setup, please refer to page 19.) Press the MENU button on the remote control. -
Page 31: Aspect Modes
Aspect Modes The ASPECT function offers several viewing display options on the 16:9 screen. Press the ASPECT button to cycle through the following widescreen settings. Press ASPECT to cycle through the following widescreen settings. 1. NORMAL Recommended for viewing native widescreen content and undistorted 4:3 images (with black bars). -
Page 32: Usb Modes
1. Press the INPUT Media. Source Select Source menu, and then press the ENTER button to enter. HDMI1 HDMI2 HDMI3 Media sic, and then press the ENTER button to enter. you want to adjust in the main Media menu,then press ENTER button to enter. then press the ENTER button to enter. - Page 33 Display Size (inch) LE2622 Aspect Ratio 16:9 Digital Compatibility 480i / 480p / 720p / 1080i / 1080p Resolution 1366 x 768 Brightness (cd / m2) Dynamic Contrast Ratio 1000:1 Vertical Viewing Angle (degrees) 160° Horizontal Viewing Angle (degrees) 170°...
-
Page 34: Troubleshooting
Troubleshooting Check for a possible solution to a symptom before contacting a customer service representative. Symptom Possible Solutions Cannot receive certain channels through the See page 19. antenna No color See pages 13-15. Video noise or choppy picture and microwave appliances. TV blocked on certain channels See page 19. - Page 35 P/N:2001171253T...
