DC POWER SUPPLY
1.800.561.8187
E N G L I S H
POWER
ON
OFF
IEC 61010-1
AX 503
8.8.8. 8.8.8.
MASTER
A
V
LIMIT
2.5A
0
0
FINE
POWER
ON
100V
OFF
CAT I
IEC 61010-1
www.
User Manual
AX501
AX502
AX503
AX 501
VOLTAGE
CURRENT
8.8.8.
8.8.8.
V
A
LIMIT
30V
2.5A
0
0
FINE
COARSE
100V
CAT I
TRACKING
ON
V
LIMIT 5A
30V
3V
5V
2.7V
5.5V
COARSE
100V
CAT I
.com
8.8.8. 8.8.8.
SLAVE
A
V
LIMIT
2.5A
0
0
COARSE
FINE
100V
CAT I
information@itm.com
30V
Advertisement
Table of Contents
Related Manuals for AEMC AX501
Summary of Contents for AEMC AX501

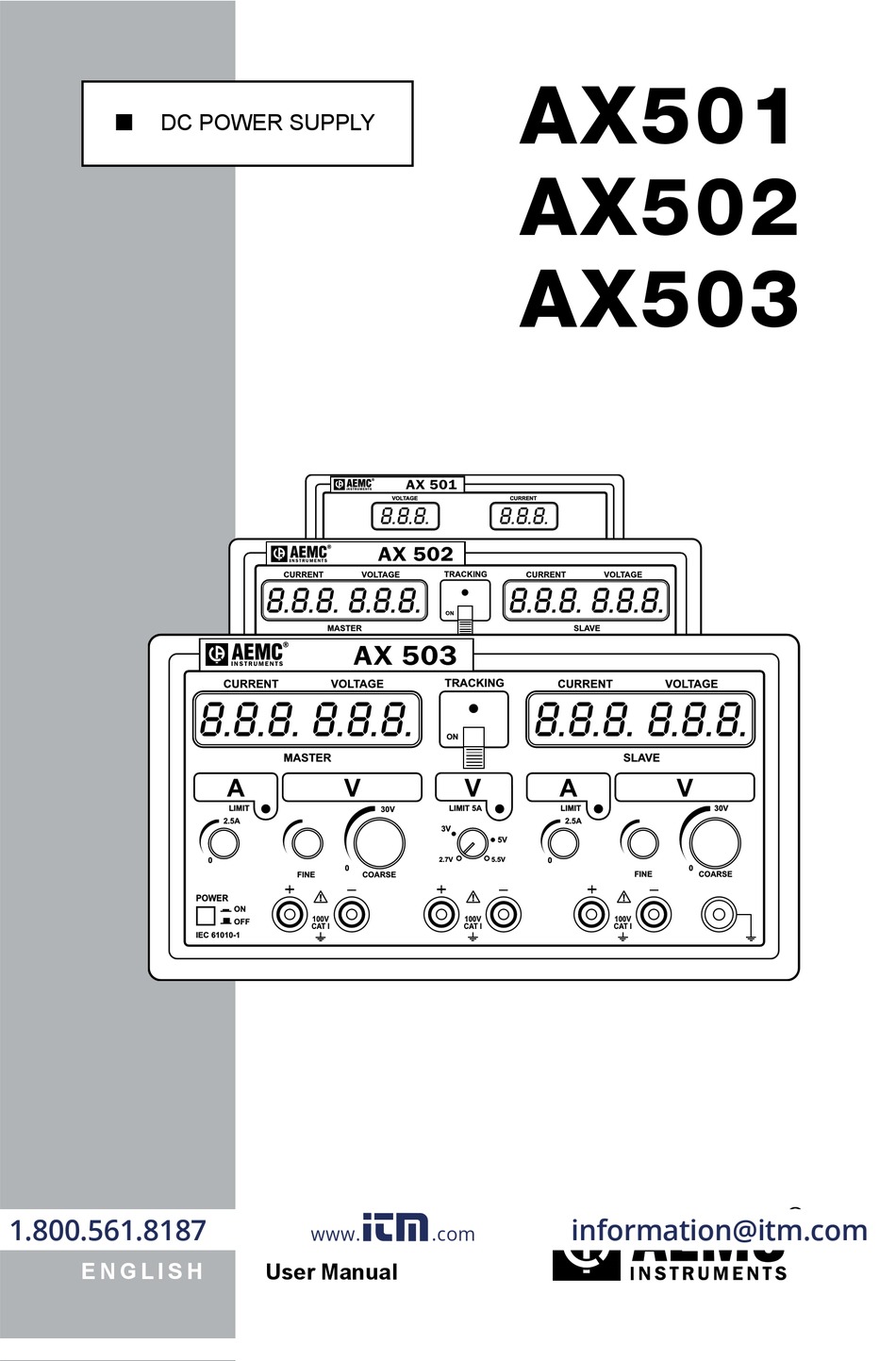

- Page 1 AX501 DC POWER SUPPLY AX502 AX503 AX 501 VOLTAGE CURRENT 8.8.8. 8.8.8. LIMIT 2.5A FINE COARSE POWER 100V CAT I IEC 61010-1 AX 503 TRACKING 8.8.8. 8.8.8. 8.8.8. 8.8.8. MASTER SLAVE LIMIT LIMIT 5A LIMIT 2.5A 2.5A 2.7V 5.5V...
- Page 2 Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2130.05 / 2130.06 / 2130.07 Model #: AX501 / AX502 / AX503 Please fill in the appropriate date as indicated: Date Received: _________________________________ _______________________ Date Calibration Due: Chauvin Arnoux , Inc.
-
Page 3: Table Of Contents
1.3 Receiving Your Shipment ............4 1.4 Ordering Information ..............4 1.4.1 Accessories ..............4 2. PRODUCT FEATURES ..............5 2.1 Description ................5 2.2 Control Features ...............6 2.2.1 Model AX501 ..............6 2.2.2 Model AX502 ..............7 2.2.3 Model AX503 ..............8 2.3 Control Descriptions ..............9 2.3.1 Power On/Off Button .............9 2.3.2 Voltage and Current Adjustments .........9 2.3.3 Current “LIMIT” LED .............9 2.3.4 “TRACKING” Switch... - Page 4 4.2.3 Use of 2 Outputs in Series ....16 (AX502 and AX503) 4.2.4 Use of the 2.7V to 5.5V (5A) Power Supply ..17 (AX503) 5. MAINTENANCE ................18 5.1 Warning...................18 5.2 Fuse Replacement ..............18 5.3 Cleaning ..................18 5.4 Storage ...................18 Repair and Calibration ................19 Technical and Sales Assistance ............19 Limited Warranty ...................20 Warranty Repairs ...................20 1.800.561.8187 information@itm.com www. .com...
-
Page 5: Introduction
This symbol on the instrument indicates a WARNING and that the operator must refer to the user manual for instructions before operating the instrument. In this manual, the symbol preceding instructions indicates that if the instructions are not followed, bodily injury, installation/sample and product damage may result. Risk of electric shock. The voltage at the parts marked with this symbol may be dangerous. 1.800.561.8187 information@itm.com www. .com Earth/Ground DC Power Supply Models AX501, AX502 and AX503... -
Page 6: Definition Of Measurement Categories
All models are shipped with a product warranty and registration card and user manual. 1.4.1 Accessories Lead Set (2 color-coded leads, 1 ground lead, 2 alligator clips and 2 grip probes)........Cat. #2117.78 Set of 5 Fuses 10A/250V, 5x20mm Slow Blow ....Cat. #2118.83 Order Accessories and Replacement Parts Directly Online Check our Storefront at www.aemc.com/store for availability 1.800.561.8187 information@itm.com www. .com DC Power Supply Models AX501, AX502 and AX503... -
Page 7: Product Features
• Voltage adjustable from 0 to 30V for a variable current of 0 to 2.5A (75W) The AX502 offers: • Dual output • Simultaneous display of the output voltage and current for each output • Two 0 to 30V, 0 to 2.5A (150W max) outputs; connected in series, parallel or coupled, (tracking function) ±30V The AX503 offers: • Triple power supply • Simultaneous display of the output voltage and current for each 0-30V output • Two 0 to 30V, 0 to 2.5A (150W max) outputs; connected in series, parallel or coupled, (tracking function) ±30V • An adjustable 2.7 to 5.5V, 5A fixed output for supplying logic cir- 1.800.561.8187 information@itm.com www. .com cuits at 3V or 5V DC Power Supply Models AX501, AX502 and AX503... -
Page 8: Control Features
Control Features 2.2.1 Model AX501 Figure 1 1. Voltage display (green) 2. Current display (red) 3. Current limit LED 4. Power On/Off button 5. Fine voltage adjustment potentiometer 6. Output terminal (+) 7. Output terminal (-) 8. Coarse voltage adjustment potentiometer 9. Current limit adjustment potentiometer 10. Ground terminal ( 1.800.561.8187 information@itm.com www. .com DC Power Supply Models AX501, AX502 and AX503... -
Page 9: Model Ax502
10 11 Figure 2 1. Current display (red) 2. Current limit LED 3. Voltage display (green) 4. Tracking function LED 5. Tracking On/Off switch 6. Current limit adjustment potentiometer 7. Power On/Off button 8. Fine voltage adjustment potentiometer 9. Output terminals (+) 10. Output terminals (-) 11. Coarse voltage adjustment potentiometer 1.800.561.8187 information@itm.com www. .com 12. Ground terminal ( DC Power Supply Models AX501, AX502 and AX503... -
Page 10: Model Ax503
1. Current display (red) 2. Current limit LED 3. Voltage display (green) 4. Tracking function LED 5. Tracking On/Off switch 6. Current limit adjustment potentiometer 7. Power On/Off button 8. Fine voltage adjustment potentiometer 9. Output terminals (+) 10. Output terminals (-) 11. Coarse voltage adjustment potentiometer 12. Voltage adjustment potentiometer 13. 5A current limit LED 14. Ground terminal ( 1.800.561.8187 information@itm.com www. .com DC Power Supply Models AX501, AX502 and AX503... -
Page 11: Control Descriptions
Current “LIMIT” LED The AX Series Power Supplies provides the ability to limit the current output. When the “limit” is reached, the power supply will switch to “current” regulation to ensure the current output and drops the voltage regulation. Setting a Current Limit: • Short the output terminals, and adjust the current to the desired limit (you may need to have a little voltage for the current to flow). The value of current flow will be displayed on the appropriate dis- play. • Turn the voltage output off and connect to the sample. As the volt- age is increased, if the current reaches the set limit, the “LIMIT” LED will turn on, and the current will no longer increase. • The current limit may be overridden simply by increasing the cur- 1.800.561.8187 information@itm.com www. .com rent output manually. DC Power Supply Models AX501, AX502 and AX503... -
Page 12: Tracking" Switch (Models Ax502 And Ax503)
Example: We want the SLAVE to Track the MASTER @ 30% of the MASTER output voltage, and we want to Track starting @ 10.0V out of the MASTER. • Make sure the Tracking is OFF • Set the MASTER Voltage to 10.0V • Set the SLAVE to 30% (3.0V) • Turn the Tracking switch to ON • The MASTER will display 10.0V and the SLAVE will display 3.0V • As the MASTER is increased or decreased, the SLAVE will track @ 30% • During Tracking, the SLAVE LED displays the actual SLAVE 1.800.561.8187 information@itm.com output voltage www. .com DC Power Supply Models AX501, AX502 and AX503... -
Page 13: Digital "Led" Displays
This terminal is directly linked internally to the ground on the AC power plug. It enables grounding of the circuit to be powered, if necessary. Its male polarity and “green/yellow” color-coding will prevent any confusion in the connections. Interruption of the protective ground conductor, inside or out- side the power supply, is prohibited. Power Supply The AX Series Power Supplies are factory configured at 115V ±10%; 50/60Hz. Consult the factory for changing to 220V supply. 1.800.561.8187 information@itm.com www. .com DC Power Supply Models AX501, AX502 and AX503... -
Page 14: Specifications
– 0 to 60V / 0 to 2.5A Parallel Mode – 0 to 30V / 0 to 5A 1.800.561.8187 information@itm.com To avoid significant drops in voltage during regulation verification measurements, the www. .com contact resistances of the connections must be very low (≤1mΩ). DC Power Supply Models AX501, AX502 and AX503... -
Page 15: General Specifications
Weight: AX501: 8.8 lbs (4kg) AX502: 9.9 lbs (4.5kg) AX503: 13.2 lbs (6kg) Safety Specifications IEC 1010-1 (NF EN 61010-1 +A2: 1995) Class 1; Pollution Degree 2 Power supply outputs: Overvoltage Cat. 100V, CAT I Max. Output Voltage: 30.5V in normal mode 61.0V in series mode Power supply inputs: Overvoltage CAT 300V, CAT II Supply Current: 115V ± 10%; 50/60Hz Electromagnetic Compatibility: EN50081-1 1992; EN50082-2 1998 *Specifications are subject to change without notice 1.800.561.8187 information@itm.com www. .com DC Power Supply Models AX501, AX502 and AX503... -
Page 16: Operation
WARNING: When the instrument is open, some of the internal capacitors may be dangerous, even once the instrument has been powered down. In the event of faults or abnormal constraints, turn the instrument OFF and do not use it until it has been checked. Operating Instructions • Check the label at the rear of the power supply to make sure that the instrument is set to the AC line voltage compatible with your setting. • Connect the AC power cord to the supply. • No connections should be made before powering up. • Start up the power supply by pushing the Power On/Off button ON. • To turn OFF the instrument, unplug the leads and push the Power 1.800.561.8187 information@itm.com www. .com On/Off button OFF. DC Power Supply Models AX501, AX502 and AX503... -
Page 17: Using Independent Outputs
Use of 2 Outputs in Parallel (AX502 and AX503) To use 2 outputs in parallel (without “TRACKING”) up to 5A at 30V max (see Fig. 4): • Set the “TRACKING” switch to the OFF position. • Set the 2 power supplies (MASTER and SLAVE) to the same output voltage value. • Link the “+” terminals together and the “–” terminals together using short leads. • Connect one of the two “+” terminals and one of the two “–” termi- nals to the circuit to be powered. 1.800.561.8187 information@itm.com www. .com DC Power Supply Models AX501, AX502 and AX503... -
Page 18: Use Of 2 Outputs In Series (Ax502 And Ax503)
• Set the “TRACKING” switch to the ON position. This sets up a series connection between the “–” terminal of the MASTER power supply and the “+” terminal to the SLAVE power supply. • Adjust the MASTER output (on left), then the SLAVE (on right). • Adjust the current controls to define identical current limits (by shorting each output). • Connect up to the circuit to be powered (external terminals of the MASTER and SLAVE power supplies). 1.800.561.8187 information@itm.com www. .com DC Power Supply Models AX501, AX502 and AX503... -
Page 19: Use Of The 2.7V To 5.5V (5A) Power Supply (Ax503)
• For “FINE” adjustment, connect these terminals to a multimeter (appropriate range). • If the output current reaches the 5A limit current value, the “LIMIT 5A” LED comes on, the power supply automatically switches to “current” regulation mode and the voltage is no longer regulated. NOTE: This output is designed to power logic circuits at 3 or 5V with consumption up to 5A. 1.800.561.8187 information@itm.com www. .com DC Power Supply Models AX501, AX502 and AX503... -
Page 20: Maintenance
• Wipe with a clean dry cloth. Make sure it has completely dried before use. • Do not use abrasives or solvents. Storage • To ensure proper operation, wait for the instrument to return to normal measuring conditions if it has been stored in extreme envi- ronmental conditions for a long period of time. An abrupt change in the ambient temperature may lead to conden- sation inside the instrument and cause short circuits. 1.800.561.8187 information@itm.com Let the power supply stabilize in temperature before use. www. .com DC Power Supply Models AX501, AX502 and AX503... -
Page 21: Repair And Calibration
Fax: (603) 742-2346 or (603) 749-6309 E-mail: repair@aemc.com (Or contact your authorized distributor) Costs for repair, standard calibration, and calibration traceable to N.I.S.T. are available. NOTE: You must obtain a CSA# before returning any instrument. Technical and Sales Assistance If you are experiencing any technical problems, or require any assistance with the proper operation or application of your instrument, please call, mail, fax or e-mail our technical support team: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 200 Foxborough Boulevard Foxborough, MA 02035 USA Phone: (800) 343-1391 (508) 698-2115 Fax: (508) 698-2118 E-mail: techsupport@aemc.com www.aemc.com NOTE: Do not ship Instruments to our Foxborough, MA address. 1.800.561.8187 information@itm.com www. .com DC Power Supply Models AX501, AX502 and AX503... -
Page 22: Limited Warranty
AEMC Instruments. ® For full and detailed warranty coverage, please read the Warranty Coverage Information, which is attached to the Warranty Registration Card (if enclosed) or is available at www.aemc.com. Please keep the Warranty Coverage Information with your records. What AEMC Instruments will do: ®... - Page 23 1.800.561.8187 information@itm.com www. .com...
- Page 24 11/11 99-MAN 100252 v7 1.800.561.8187 information@itm.com Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® www. .com 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
