Life Fitness LCD Entertainment System
How To Replace the Main PC Board
Special service tools required: none

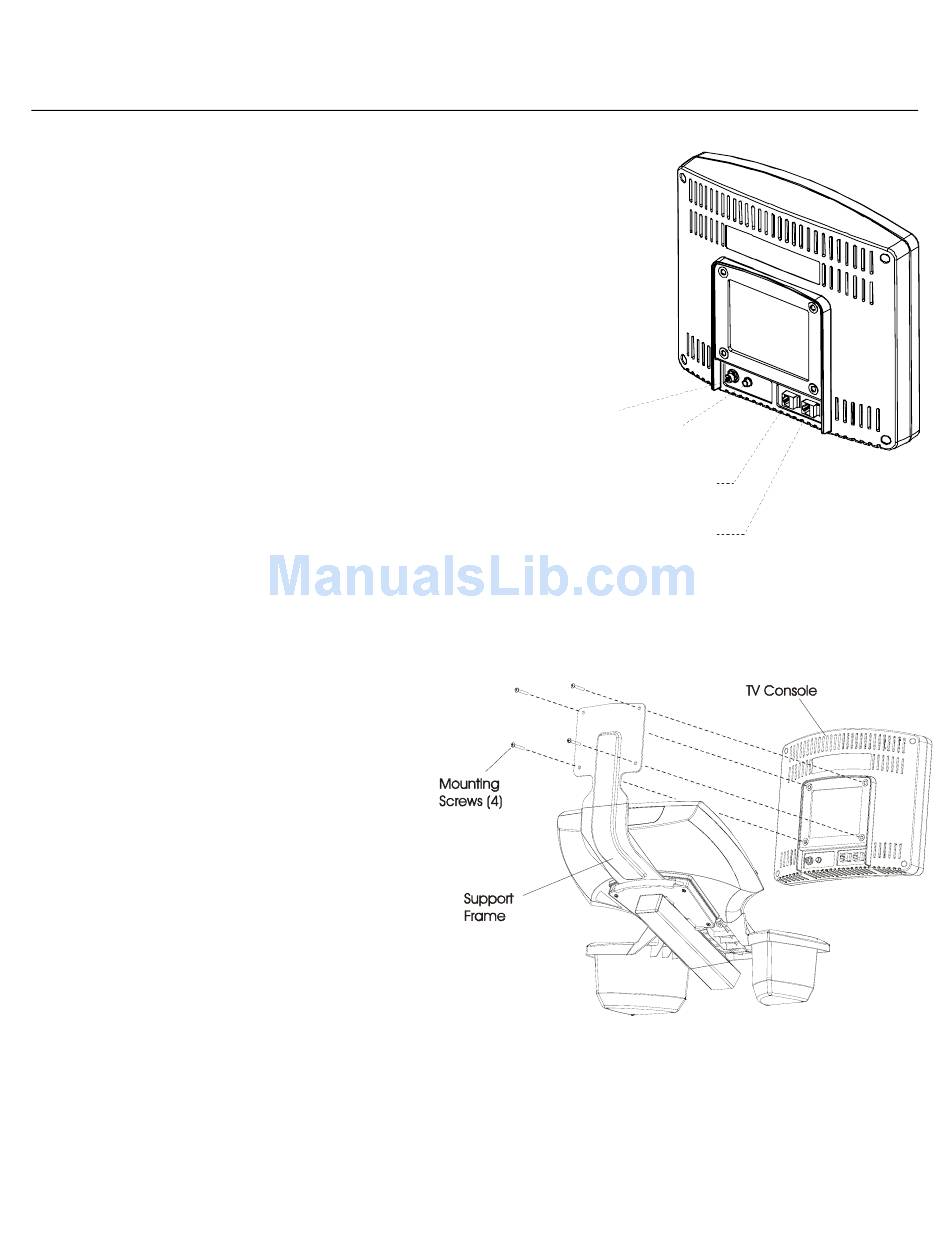

1. Disconnect the three cables from the back of the
console. The power cable and the coax cable are
screw-on connectors.
2. Remove the four screws that secure
the TV console to the support frame.
3. Remove the TV console assembly.
Antenna
Coax
Power
Cable
Cable
Tan 10-Pin Connector
(for remote control)
OR
Black 8-Pin Connector
(for in-console control)
M051-00K32-A084
Advertisement
Table of Contents
Related Manuals for Life Fitness M051-00K32-A084
Summary of Contents for Life Fitness M051-00K32-A084
- Page 1 Life Fitness LCD Entertainment System How To Replace the Main PC Board Special service tools required: none 1. Disconnect the three cables from the back of the console. The power cable and the coax cable are screw-on connectors. 2. Remove the four screws that secure the TV console to the support frame.
- Page 2 Life Fitness LCD Entertainment System How To Replace the Main PC Board - continued Before replacing any circuit board, ground CAUTION! yourself using an anti-static ground strap. 4. Remove the four screws securing the back of the TV console. 5. Separate the front and back halves of the console.
- Page 3 Life Fitness LCD Entertainment System How To Replace the Main PC Board - continued 7. Remove the four screws that secure the main PC board to the bracket. 8. Lift out the main PC board. Note: For Version 1 units, remove and discard the static PCB and all attached cables.
