Koso BA010001 RX-2 User Manual

Gp style meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
INTRODUCTION
CDI & FI

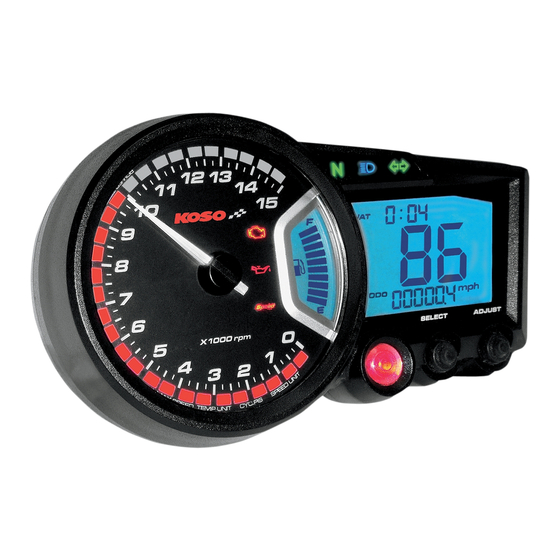

Thank you for purchasing KOSO RX2 GP style meter , before operating the
unit, please read the instruction thoroughly and retain it for the future
reference.
Notice
1.The lcd meter is apply for DC 12V.
2.For installation, please follow the steps described in manual. Any
damage caused by wrong installation shall be imputed to the users.
3.Don't break or modify the wire terminal. To avoid the short circuit, please
don't pull the wire when installing.
4.Do not disassemble or change any parts excluding the manual
description.
5.The interior examination or maintenance should be executed by our
professionals.
MARK MEANING:
You could get the installation details from the information behind the mark.
Some processes must be followed to avoid the affection caused by wrong installation.
WARNING!
Some processes must be followed to avoid damages to yourself or the public.
CAUTION!
Some processes must be followed to avoid the damage to the vehicle.
Press the button
one time
Content
Accessory
1-1
Option accessory
1-2
Wiring installation instructions
2-1
2-2
Installation instructions
3-1
3-2
3-3
3-4
CDI & FI
Press the button
3 seconds
3-5
3-6
3-7
3-8
4
4-1
4-2
4-3
4-4
4-5
4-6
4-7
4-8
4-9
4-10
5-1
5-2
5-3
6
7
8
We recommend that you finish the relative setting before operating to
assure the operation of meter.
CDI & FI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BA010001 RX-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Koso BA010001 RX-2

Summary of Contents for Koso BA010001 RX-2

  • Page 1: Table Of Contents

    CDI & FI The main screen function switch instruction Adjust Thank you for purchasing KOSO RX2 GP style meter , before operating the unit, please read the instruction thoroughly and retain it for the future The setting screen instruction reference.

  • Page 2: Auto-Checking Screen

    Auto-checking screen Basic function instruction Check 3 Green SELECT ADJUST SELECT ADJUST Check 1 Green SELECT ADJUST SELECT ADJUST 44.9 mm 65 mm 11 mm Check 2 Green 184.75 mm 49 mm Blue SELECT ADJUST SELECT ADJUST Blue Blue SELECT ADJUST SELECT ADJUST...

  • Page 3: Basic Function Instruction

    Basic function instruction Clock Indicators lights MAX record WHITE OFF>ON The meter will record the top Repeater light (Green) speed, RPM and temperature Neutral light (Green) Digital thermo automatically. High beam light (Blue) meter (water & oil EOBD light (Amber) SELECT ADJUST temperature)

  • Page 4: The Button Function Instruction

    The button function instruction The screen switch instruction Select button In the setting screen, hole down the Select button for 3 seconds to back to the main screen. 1.In main screen, press the Select button to choose the display of clock, water temperature or oil temperature.

  • Page 5: The Main Screen Function Switch Instruction

    The main screen function switch instruction The main screen function switch instruction Adjust Select In main screen, press the Adjust button to choose In main screen, press the Select button to choose the function combination you want to display on the function combination you want to display on the screen.

  • Page 6: The Setting Screen Instruction

    The setting screen instruction The power test screen instruction In setting screen, press the Select button to choose the function In power test screen, press the Select button to you want to set. The function in setting screen is in order as speed choose the test you want to do.

  • Page 7: Function, Setting Instruction

    Function, setting instruction Display range: 0~360 km/h (0~223 MPH) Speedometer Top temperature record Display range: 0~120 C (32~248 F) Display range: 10 levels Display unit: km/h & MPH for alternative Fuel meter Display internal Display unit: Each level represents 10 % <0.5 second Display range: 0~99999.9 km (mile), Setting range: 100 Ù, 510 Ù, no display...

  • Page 8: Speed Unit Setting

    Speed unit setting Cycle / piston setting In setting screen, press the Select button one In setting screen, press the Select button 2 times time to enter the speed unit setting. to enter the stroke/ piston setting screen. SELECT ADJUST SELECT ADJUST CAUTION!

  • Page 9: Cycle / Piston Setting

    Cycle / piston setting The temperature unit setting Press the Select button to enter the signal input In setting screen, press the Select button 5 times setting. to enter the temperature unit setting screen. EX. The piston setting is changed from 1 P (Piston) to 4 P (Pistons).

  • Page 10: Speeding Warning Light Setting

    Speeding warning setting Over RPM warning setting In setting screen, press the Select button 6 times In setting screen, press the Select button 7 times to enter the speeding warning setting screen. to enter the over RPM warning setting screen. SELECT ADJUST SELECT...

  • Page 11: Over Heat Warning Setting

    Over heat warning setting Press the Adjust button to choose the setting In setting screen, press the Select button 8 times to enter the over heat warning (Water number. temperature) setting screen. EX. Now the over heat warning (Oil temperature) setting is 90.0 C Now the oil temperature logo and the setting...

  • Page 12: Tire Circumference And Sensor Point Setting

    Tire circumference and sensor point setting In setting screen, press the Select button 10 times Press the Select button to enter the sensor point to enter the Tire circumference and sensor point setting. setting screen. EX. The circumference setting is changed from 1,000 mm to 1,300 mm.

  • Page 13: The Clock Setting

    The clock setting The fuel gauge resistance and insufficient fuel warning setting In setting screen, press the Select button 12 In setting screen, press the Select button 14 times to enter the clock setting screen. times to enter the fuel gauge resistance and insufficient fuel warning setting screen.

  • Page 14: The Fuel Gauge Resistance And Insufficient Fuel Warning Setting

    4-10 The fuel gauge resistance and insufficient fuel warning setting The target speed timer / target distance timer setting Press the Adjust button to choose the setting In setting screen, press the Select button 16 number. times to enter the target speed timer setting Now the insufficient setting number is flashing! screen.

  • Page 15: The Target Speed Timer / Target Distance Timer Setting

    4-10 Target speed timer test The target speed timer / target distance timer setting Press the Select button to continue the function WARNING! setting. Please use this function at racetrack to avoid EX. Now the target distance timer setting is traffic accidents.

  • Page 16: Target Speed Timer Test

    Target speed timer test Target distance timer test WARNING! P.S. P.S. 0 km/h 3 km/h Speed up 110 km/h Please use this function at racetrack to avoid traffic accidents. The timer is automatic, so when In power test screen, press the Select button 2 your bike start to move the SELECT ADJUST...

  • Page 17: Target Distance Timer Test

    Target distance timer test The top speed test WARNING! P.S. P.S. Please use this function at racetrack to avoid Speed up traffic accidents. The timer is automatic, so when In power test screen, press the Select button 3 your bike start to move the SELECT ADJUST times to enter the top speed test screen.

  • Page 18: The Top Speed Test

    The top speed test Trouble shooting The following situation do not indicate malfunction of the meter. P.S. P.S. Please check the following before taking it in for repair. Trouble Check item Speed up 0 km/h 3 km/h 180 km/h 179 km/h The timer is automatic, so When the speed The meter doesn't work when...

  • Page 19: Guarantee & Notice Of Products

    Tong Yah Tec hnology Co., Ltd No. 406 DING-AN ST. ANNAN DISTRICT TAINAN CITY 70944 TAIWAN Tel: +886-6-2556565 Fax: +886-6-2461878 http://www.koso.com.tw E-mail: info@koso.com.tw COPYRIGHT RESERVED CDI & FI CDI & FI...
