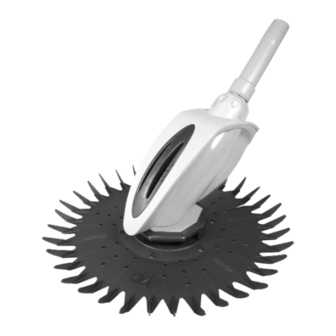

Zodiac Zoom Instruction Manual

Swimming pool cleaner
Hide thumbs Also See for Zoom:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
ABN 87 002 641 965
PO Box 7238
Wetherill Park, NSW 2164 Australia
Ph: 1800 688 552
Fax: 1300 781 688
www.zodiac.com.au
© 2004 Zodiac Group Australia Pty Ltd

Advertisement

loading

Related Manuals for Zodiac Zoom

Summary of Contents for Zodiac Zoom

  • Page 1 ABN 87 002 641 965 PO Box 7238 Wetherill Park, NSW 2164 Australia Ph: 1800 688 552 Fax: 1300 781 688 www.zodiac.com.au © 2004 Zodiac Group Australia Pty Ltd...
  • Page 2 Instruction Manual...
  • Page 3 MASTERING THE ELEMENTS Renowned worldwide for the quality and reliability of its products in the aeronautical and marine sectors, Zodiac has now brought its expertise to swimming pools, to bring you a full range of pools, automatic pool cleaners and water treatment systems.
  • Page 5 THIS LIMITED WARRANTY EXCLUDES THE FOLLOWING: 1. Discoloration of the Zodiac pool cleaner caused by reaction to chemicals used in the pool water. Discoloration does not affect the operating ability of your Zodiac automatic pool cleaner. Therefore, this limited warranty does not cover the replacement of discolored parts.
  • Page 6 Dear Customer, Thank you for buying a Zodiac ZOOM™. It is thanks to you that we have maintained our position as worldwide market leader. Your Zodiac ZOOM™ is the proven model for reliability and efficiency. • REMEMBER TO REGISTER YOUR WARRANTY WITHIN FOURTEEN (14) DAYS FROM DATE OF PURCHASE •...
  • Page 7 • Advanced Water Sanitising • Advanced Electrode Technology for and Purification System Maximum Sanitation • Incorporates Clearwater • Reduces the Time Spent on & Nature2 Technology Maintenance and Manual Cleaning • Self Cleaning Electrode • Easy ‘Set and Forget’ Operation www.zodiac.com.au...
  • Page 8 Briefly describe the problem. (Send a photocopy and retain this page for future use). Mail to: Zodiac Group Australia, PO Box 7238 Wetherill Park, NSW 2164 Australia. Fax to: 1300 781 688 Your Name: ............................
  • Page 9 The Pool Pulse® is a flow meter that measures the volume of water flowing through your Zodiac cleaner. It must be used to properly set the flow and can be used as a diagnostic tool when the cleaner isn’t running properly.
  • Page 10 INDEX Page SECTION 1 – PREPARING YOUR POOL ....1 SECTION 2 – INSTALLATION ......2 SECTION 3 –...
  • Page 11 SECTION 1 – PREPARING YOUR POOL Before operating your Zodiac ZOOM™, these steps must be followed. 1. Empty the skimmer basket. 2. Clean the pump basket. 3. If you have a sand filter, backwash the filter until the sight glass is clear. If you have a cartridge or DE filter, follow the manufacturer's instructions to ensure it is operating at maximum capacity.
  • Page 12 Inner Extension Pipe Diaphragm Wheel Deflector (Large) AD Flow Valve 10. Hose Weight 11. Zodiac Genuine Long Life Hose x10 12. Universal Weir Cuff 13. Hose protector mesh 14. Spacer Ring 15. Pool Pulse STOP: If listed parts are missing, please contact your pool builder/retailer immediately.
  • Page 13 SECTION 4 – SERVICING YOUR MACHINE PROBLEM TO BE CHECKED SOLUTION The Zodiac ZOOM™ is not Are both the pump basket and Clean filter and pump basket. working or is moving too slowly the filter clean? (less than 3 metres a minute) Are there any impurities in the Clean pump.
  • Page 14 It is most important that the valve opening is pointing downwards so that it will not suck air. • The Zodiac ZOOM™ should move across the pool floor at 5-6 metres per minute. This is achieved by adjusting the AD Flow Valve.
  • Page 15 SECTION 2 – INSTALLATION AD FLOW VALVE The use of the Zodiac AD Flow Valve is recommended on pools with only one skimmer box/suction point, or when the filtration system needs to be used but the pool cleaner does not, such as when people are swimming in the pool. It regulates the flow of water to the pump through the pool cleaner.
  • Page 16 SECTION 4 – SERVICING YOUR MACHINE Step 6: Diaphragm Assembly Prior to reinstalling the diaphragm, rinse the diaphragm and the inner extension pipe thoroughly to remove any grit or algae. Attach the diaphragm to the inner extension pipe using the retaining ring (Figure 4). Slide the top of the inner extension pipe (the end which is opposite the diaphragm) into the body.
  • Page 17 Inspect the diaphragm for the blockage or damage. If damage is evident, i.e. a cut or hole on the sides of the diaphragm, it will need to be replaced by your authorised Zodiac dealer. If a blockage is apparent, grasp it and remove it. If this can’t be done, a garden hose may be used to flush the obstacle through.
  • Page 18 SECTION 2 – INSTALLATION WHEEL ADAPTOR INSTALLATION INSTRUCTIONS Your Zodiac Zoom™ comes with the Wheel Adaptor fitted to the Outer Extension Pipe, all you need to do is fit the Wheel Deflector. This guide will assist if you ever need to replace the Wheel Adaptor.
  • Page 19 3. The hose protector should be checked monthly and rotated in order to ensure that the hose does not wear unduly. 4. Always store your Zodiac ZOOM™ hose in a straight line - never coil or leave hose coiled in the sun. If storing for a long period, disconnect the sections and pack into hose box.
  • Page 20 QUICK ACCESS CONTROL SYSTEM Unlike any other automatic pool cleaners designed for above ground pools, the Zodiac ZOOM™ has the Quick Release Access Cassette System. This unique feature allows almost instantaneous access to the one moving part – the diaphragm.
