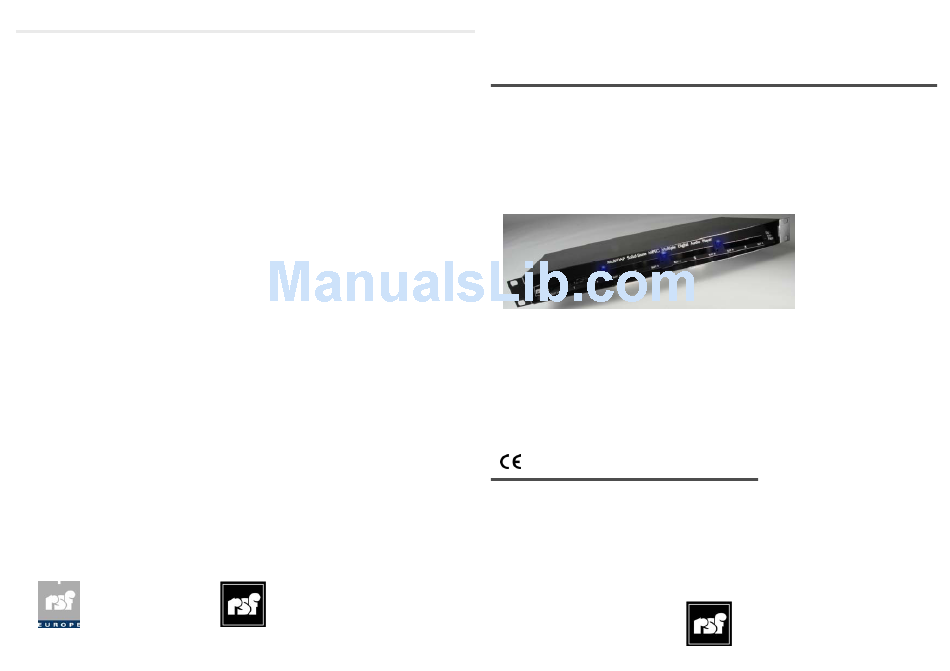

multidap

Quick Start Guide

Technical specifications

_____________________________________________
Audio parameters
Audio format .......................................... 16 bit CD quality compression using MPEG 1/2 Layer II
Bandwidth ............................................. 20Hz to 20KHz
Distortion .............................................. Below 0,01%
Dynamic range ...................................... 92 db
General parameters
Recording time capacity (per player) .... from 2184 mins at 32Kb/s, to 728 mins at 96Kb/s in mono,
and from 728 mins at 96Kb/s, to 364 mins at 192Kb/s in stereo
Number of messages ............................ 940 (maximum)
Storage support (per player) ................. 128 to 512 MB Flash card
Connectors
Independent Output (line level) ............. Female Jack 6,3 mm (2 per player) ) (low Ω)
Mixable stereo output ............................ Female Jack 6,3 mm
SmartMedia Flash Card Slot ................. 1 per player
Audio and Control bus....................... Flat Cable Connector- Speedbloc IDC
Dry contact control ................................ 5-socket Phoenix (1 input port per player)
RS232/SMPTE RS........................... SUB-D9 Fem
Power IN................................................ 2-socket Phoenix
Indicators
Power indicator...................................... 3 x blue LED
Playing................................................... 1 x green LED per player
Programming ................................................... via RSF software "IGuide" for Windows 2000 / XP
Functionalities ................................................. The messages can be triggered via
Power supply ................................................... 12V - DC, 800mA (external)
Maximal consumption ..................................... 0,75 W per Card
Enclosure ......................................................... 1U 19" Rack in lacquered black metal
Dimensions ...................................................... 488 x 250 x 44 mm (L x D x H)
Weight .............................................................. 1200 gr.
Environment
Temperature.......................................... 0°C(32°F) to 50°C(122°F)
Relative Humidity .................................. 0-90%
Warranty .......................................................... 3 years
C o m m e r c i a l D i v i s i o n
RSF EUROPE S.A.
18 rue de l'Industrie
L8399 W indhof – G-D Luxembourg
Tél : +352/49 74 20 40
Fax : +352/49 74 20 50
E-MAIL: info@rsf-int.com
4 x twin Phoenix (max.50V/120mA)
- 4 input ports (dry contact or analog)
- RS232 (up to 940 messages)
- Infra Red (as an optional extra)
1 relay out / player (closed contact when playing message)
Volume of each channel of each player can be independently
controlled and/or read through RS232
M a n u f a c t u r e r
RSF
45, Avenue Marcel Dassault
(Parc de la Plaine)
31500 Toulouse - France
Tél : +33-5/61207909
Fax : +33-5/61800094
M u l t i d a p
Quick Start Guide
