Summary of Contents for agno's MrotatorA
- Page 1 MrotatorA MrotatorA Panoramic Head Panoramic Head Instruction and Maintenance Manual Instruction and Maintenance Manual www.agnos.com www.agnos.com AGNO’S EQUIPMENT AGNO’S EQUIPMENT...
-
Page 2: Package Contents
You may use it for this purpose instead of throwing it away, in order to make a little contribution to the prevention of pollution. Package contents 1 - MrotatorA body 2 - Protecting gasket 3 - 3/8”-1/4” pitch adapter 4 - Allen wrench Instruction and Maintenance Manual www.agnos.com... -
Page 3: Product Description

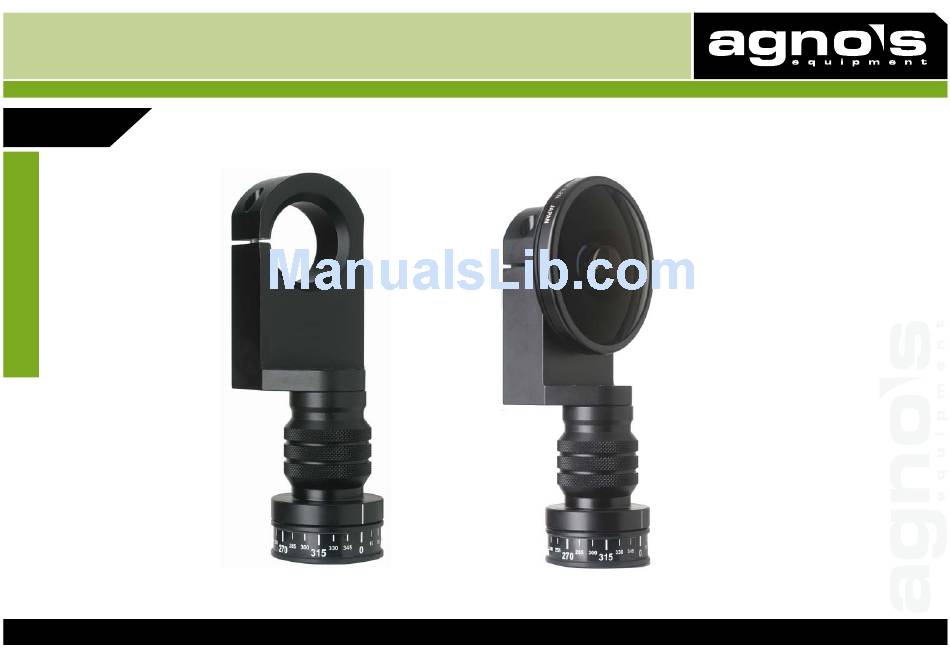

MrotatorA Panoramic Head Product description 1 Rotating body 2 Lens supporting bracket 3 Lens securing screw 4 Lens position reference notch 5 Toroidal level 6 Goniometric scale 7 Goniometric scale reference Instruction and Maintenance Manual www.agnos.com AGNO’S EQUIPMENT... - Page 4 MrotatorA Panoramic Head If necessary, screw the 3/8” to 1/4” pitch adapter onto the bottom of the MrotatorA (fi g.1). Position the rubber protection supplied with the kit between the tripod and the head (fi g.2) Fig. 1 Fig. 2 Instruction and Maintenance Manual www.agnos.com...
-
Page 5: Specifications
4 – Tighten the securing screw on the housing bracket. For ease of use, the camera can be unscrewed from the converter without disassembling it from the MrotatorA; in this way the assembly will always be ready and set-up. Instruction and Maintenance Manual www.agnos.com... -
Page 6: Technical Features
MrotatorA Panoramic Head Technical Features Head height 150 mm Loadable weight 0,850 kg. Head weight 280 gr. Size 50x50x150 Divisions / Releases 180°-2, 120°-3 Instruction and Maintenance Manual www.agnos.com AGNO’S EQUIPMENT...
