Summary of Contents for Spy Cameras WIC-DG60R

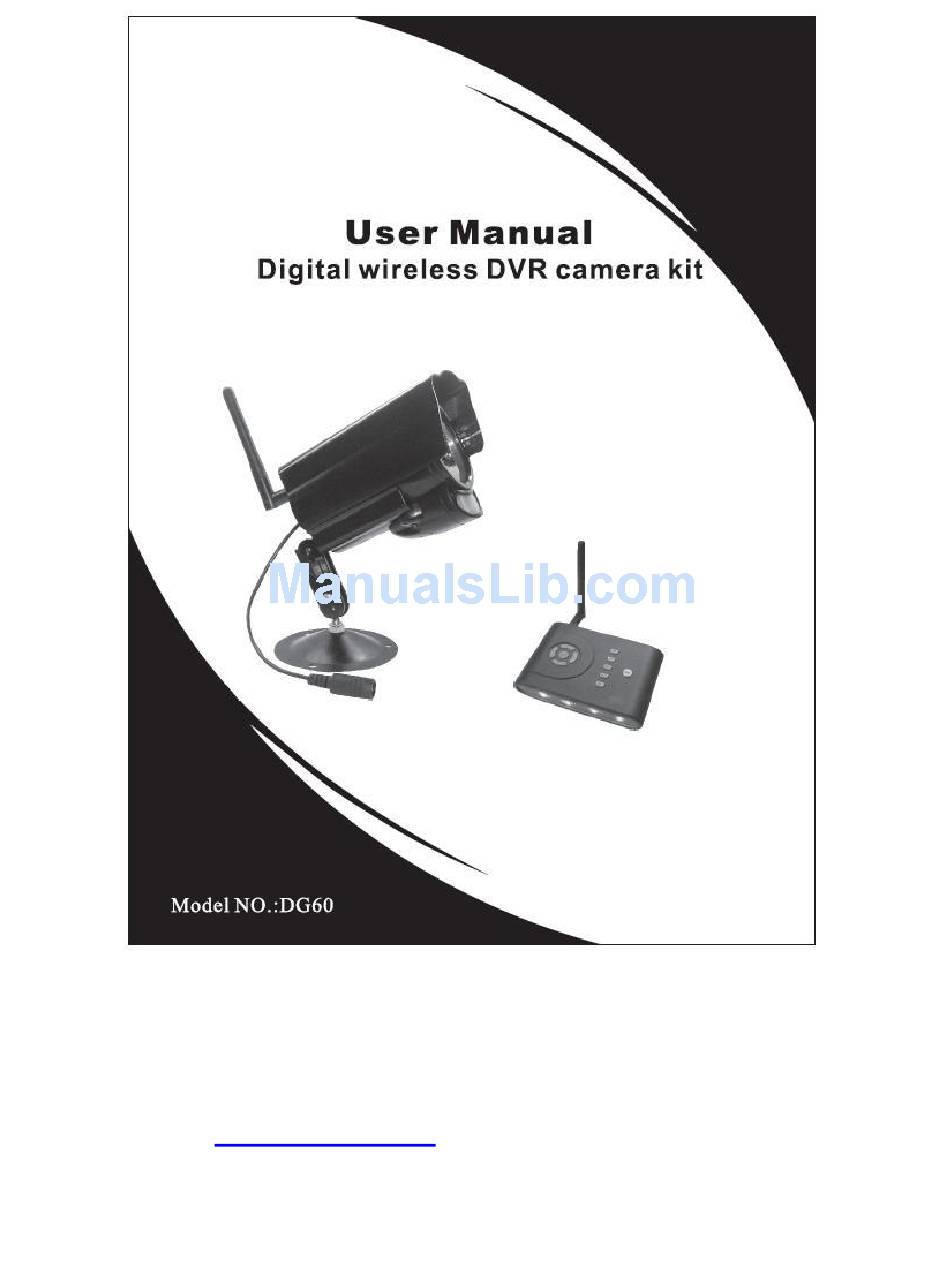

- Page 1 SpyCameras.com WIC-DG60R...
-
Page 2: Table Of Contents
Content Foreword--------------------------------------1 Statement-------------------------------------2 Liability Limit----------------------------------3 Operating Restrictions----------------------3 FCC Information------------------------------3 Important Information------------------------4 Symbol Description---------------------------4 Illustration---------------------------------------5 Accessories------------------------------------10 Parameter---------------------------------------11 Camera Features------------------------------------------12 Structure------------------------------------------12 Size------------------------------------------------12 Receiver Features-------------------------------------------13 Structure-------------------------------------------13 Function Key--------------------------------------13 Size--------------------------------------------------13 Quick start------------------------------------------14 Interface---------------------------------------------16 Functional menu System setting--------------------------------------18 Time Setting------------------------------------------19 Video System----------------------------------------19 Scan Setting------------------------------------------20 Format--------------------------------------------------20 Default Setup------------------------------------------21 Version--------------------------------------------------21 Recorder Setting... -
Page 3: Foreword
Foreword Congratulations on buying our wireless home DVR camera series. The series of products are suitable for the custody of children and elders, monitoring of residence, office, store, factory and so on. It meets FCC,CE Authentication standards, and can offer you a safe, long-lasting, reliable and high-performance service. -
Page 4: Fcc Information
1. Radio waves might potentially cause breakdown of medical electrical equipments and thus cause incidents. 2. Place the product at least 22cm from the heart pacemaker. Radio wave potentially influences heart pacemaker and thus leads to respiratory disturbance. DO NOT use the product to monitor equipments or activities that are relevant to people’s privacy. -
Page 5: Illustration
Messages you need to pay attention to Messages you should know Means that you should not do Illustration DO NOT put the plastic package bags in reach of children or or babies. It might cause asphyxia of children or babies put the bags into their mouths. DO NOT plug the AC adapter into the outlet in improper situations. - Page 6 DO NOT put the camera in wet places where water might splash or where rainwater and mist might erode (Except weather-proof series). l It might cause fire, shock, short circuit ,etc. DO NOT disassemble or repair the camera, receiver or other relevant peripheral equipment s by yourselves.
- Page 7 DO NOT place or use the AC adapter on temperature sensitive materials. l The above practice might cause the plastic distortion, fading or sticking on the surface. DO NOT touch, shake or hold the antenna. l Touching, shaking or holing the antenna might influence the receiving of electromagnetic wave, and thereby influence the receiving effect.
-
Page 8: Accessories
Accessories Receiver*1 Camera*1 Antenna*2 Adapter*2 AV cable*1 Bracket*1 User Manual SD Card*1(optional) Screws*3... -
Page 9: Parameter
Parameter General ISM 2400—2483.5MHz Frequency Modulation GFSK Antenna Omni 3dBi Transmission distance 100m Operating temperature -10℃-60℃ Operating humidity 20％-80％ Receiver Rx sensitivity -81dBm(Typical) Video resolution 640*480(VGA),320*240(QVGA),ZOOM Video signal output NTSC/PAL Composite, 1V pk-pk, 75ohm(with audio) Image input channel 4 wireless channels Video mode M-JPEG AVI Video frame rate... -
Page 10: Camera
Camera Features l Night Vision l Weather-proof l 1/4″ CMOS l Minimum Illumination:0 Lux l 24 Infrared LEDs l Night Vision Range:15m Structure Size... -
Page 11: Receiver
Receiver Features l Motion detection, scheduled and manual video recording l Time stamp l Video frame rate”9-25fps l Frequency :ISM 2400-2483.5MHz digital l Rx sensitivity: -81dBm (Typical) l 4 Channels loop l Record overwrite Structure Function Key... -
Page 12: Size
Size Quick start 1、 Fix the camera in the desired position and connect it to the power supply. 2、 Insert SD card into the receiver, then connect the “AV out” to TV with the AV cable supplied. 3、 After the receiver is connected to power supply, turn on the TV and switch it to AV mode. Now, you can see the image on the screen. - Page 13 5、 In real-time monitoring mode with multiple cameras, press “Cam select” button to manually switch cameras, or press “QUAD” to go to the split screen to view multiple cameras simultaneously. 6、 Press “OK” button, the product will go to the MD mode and the image will display an “...
-
Page 14: Interface
Interface Tips: 1) When the storage media is normal and available for recording, the above SD card icon will appear on the screen. When the storage media runs out of space, the SD card icon and the “Record” indicator on the screen will flash. -
Page 15: Functional Menu
Functional menu Press “MENU” button to go to the following interface menu, and press “UP”, “DOW N”, “RIGHT” and “LEFT” button to select the setting item. The selected icon will turn blue and descriptive text of the corresponding function will appear on the top of the screen, then press “OK” button to go to the sub menu. Press the “MENU”... -
Page 16: Scan Setting
Press “UP” and “DOWN” button to select the desired system, and then press “OK” button to save the setting and exit; if no selection is made, press “MENU” button to exit. C, Scan Setting Auto sequence 1) Select Scan Time Press “UP”... -
Page 17: Default Setup
E, Default Setup Press “UP” and “DOWN” button to select “YES / NO”, the selected option turns blue. Press “OK” button to save the setting and exit; if no selection is made, press “MENU” button to exit. F, Version Enable this function to display the version of the receiver and the camera. Recorder Setting Press UP, DOWN, RIGHT and LEFT to select the item to set, the selected icon will turn blue and descriptive text of the corresponding function will appear on the top of the screen, then press “OK”... -
Page 18: Video Setting
A, Video Setting Press “UP” and “DOWN” button to make selection, the selected option turns blue. Press “OK” button to save the setting and exit; if no selection is made, press “MENU” button to return to the previous menu. B, Trigger Record Time Press “UP”... -
Page 19: Time Stamp
D, Time Stamp When the “TIME STAMP” is enabled, the system will display the record date and time on the recorded video. Press “UP” and “DOWN” button to select whether to enable, when the selection is done, press “OK” button to save the setting. If no selection is made, press “MENU” button to return to the main menu. E, Overwrite When the “Overwrite”... -
Page 20: Pair
Tip: A: In recording mode, “. Record” indicator lights up when recording starts, and “REC” icon will appear on the monitor screen; the “Record” indicator goes out when recording stops. B: In shooting mode, “Record” indicator flashes when shooting starts, and “-----” icon will appear on the monitor screen;... - Page 21 NOTE: the first file icon in the subdirectory indicates that you can return to the previous directory. After entering the folder, select the file to play. Press “OK” button to play. The file name is named based on the recording camera and time “CAM#-HHMMSS”...
-
Page 22: Faq
Abnormal Phenomena Possible Reasons/Solutions Check whether camera/receiver connected to power supplies and power on. Make sure that the A/V cable is connected correctly. Mismatching system of TV(monitor) and cameras, TV may not support NTSC video format. Certificate The product is meet with CE/FCC/ROHS. Please see the certificates as following...
